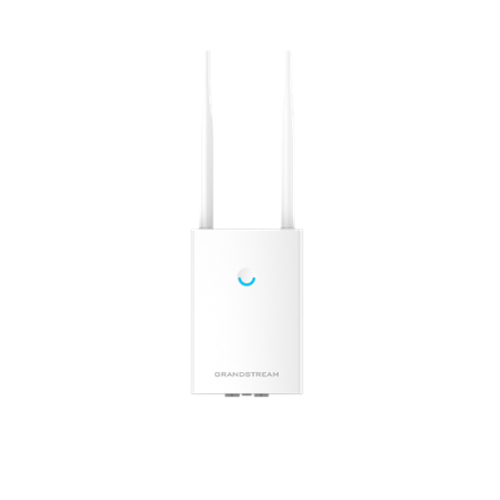

GWN7605LR

GWN 2x2:2 802.11ac Wave-2 Point d'accès longue portée étanche
Le GWN7605LR est un point d'accès longue portée 802.11ac Wave-2 2x2:2 conçu pour offrir une couverture réseau de nouvelle génération pour les environnements intérieurs et extérieurs.

  • Débit sans fil agrégé de 1,27 Gbps et 2 ports filaires Gigabit
  • Double bande 2×2:2 MU-MIMO avec technologie de formation de faisceau
  • Auto-adaptation de l'alimentation lors de la détection automatique de PoE ou PoE+
  • Prend en charge plus de 100 appareils clients Wi-Fi simultanés
  • Portée de couverture jusqu'à 250 mètres
  • QoS avancée pour assurer la performance en temps réel des applications à faible latence
  • Démarrage sécurisé anti-piratage et verrouillage des données/commandes critiques
  • Flexibilité de 2 antennes détachables/remplaçables pour différents scénarios d'application
  • Contrôleur intégré gère jusqu'à 50 points d'accès GWN locaux; GWN.Cloud offre une gestion illimitée des points d'accès, et GWN Manager offre une gestion des points d'accès sur site par logiciel

Free Network Management Options

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

embedded_controller_thumbnail

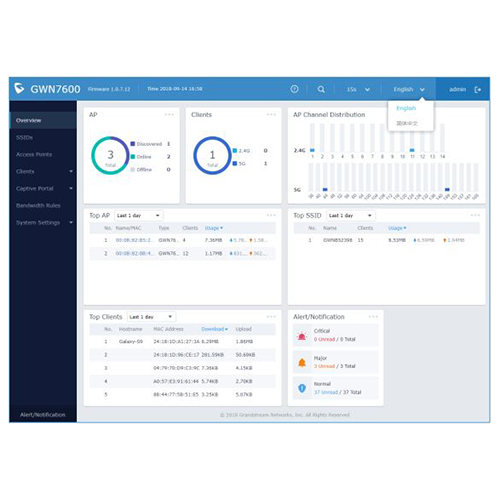

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights

Affordable and Powerful

The GWN7605LR is a competitive Wi-Fi device that was designed for a low price point with high performance, perfect for more cost-sensitive and mid-volume Wi-Fi deployments.

  • Retail Price: Competitive models of similar capabilities priced well above the GWN7605LR
  • Market Leading Wi-Fi Standards: Wave-2 IEEE 802.11a/b/ g/n/ac standards, this supports past, present, and future Wi-Fi devices
  • Greater Performance for Less Money: 100+ concurrent devices, 250-meter coverage range, 1.27Gbps aggregate dual-band throughput
  • Weatherproof Casing: IP66-level weatherproofing for outdoor Wi-Fi deployments

Basic Deployment Concepts GWN Access Points

In this video, we go over some high-level explanations of what is involved in planning, deploying, and optimizing GWN7600 series access points. The information in this video will help installers design a wireless network that will provide the required Wi-Fi coverage, data rates, wireless capacity, and roaming capability. These are the points covered in this video:

  • Predictive site survey
  • AP selection
  • Local and cloud management of GWN access points
  • Post-deployment survey
  • Wi-Fi features: RRM, Voice Enterprise, Airtime Fairness, Client Isolation, Band Steering
NameGWN7605LR
Specs
Client Devices 100+
Range 250 Meters
Network Interfaces 2 x autosensing 10/100/1000 Base-T Ethernet Ports
PoE/PoE+ Supports PoE 802.3af/ 802.3at Max Consumption: 10.16W
2.4G Throughput 300Mbps (2x2:2 MIMO)
5G Throughput 867Mbps (2x2:2 MU-MIMO)
Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
Antennas 2 dual band external antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures
Dimensions 180.4x180.4x40.8mm
Mounting Wall mount or pole mount
