GWN7605

GWN 802.11ac Wave-2 2x2:2 Access Point
Le GWN7605 est un point d'accès Wi-Fi 802.11ac Wave-2 abordable, idéal pour les déploiements de réseaux sans fil de petite et moyenne taille avec une densité d'utilisateurs moyenne. Il offre un MU-MIMO double bande 2x2:2 avec une technologie de formation de faisceaux et une conception d'antenne sophistiquée pour un débit réseau maximal et une plage de couverture Wi-Fi étendue.

  • 1.27Gbps aggregate wireless throughput and 2xGigabit wireline ports
  • Dual-band 2x2:2 MU-MIMO with beamforming technology
  • Self power adaptation upon auto detection of PoE/PoE+
  • Supports 100+ concurrent Wi-Fi client devices
  • Up to 165-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
  • Embedded controller can manage up to 50 local GWN series APs; GWN.Cloud offers unlimited AP management; GWN Manager offers premise-based software controller

Free Network Management Options

www.grandstream.comhubfsgwn cloud combinationn graphic

GWN.Cloud

GWN.Cloud is a enterprise-grade, management platform for Grandstream networking products. Secure networks can be deployed in seconds using GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application, then later managed from either interface.

gwnmanager_thumbnail

GWN Manager

GWN Manager is a  on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products. Typically deployed on a customer’s private network, this solution offers simplified configuration and management. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software at no extra cost and it is simply built-in to the product’s web user interface. Our embedded controllers can auto discovery and auto-provision any in-network GWN series networking product which also offers a centralized provisioning and management interface.





Product Highlights

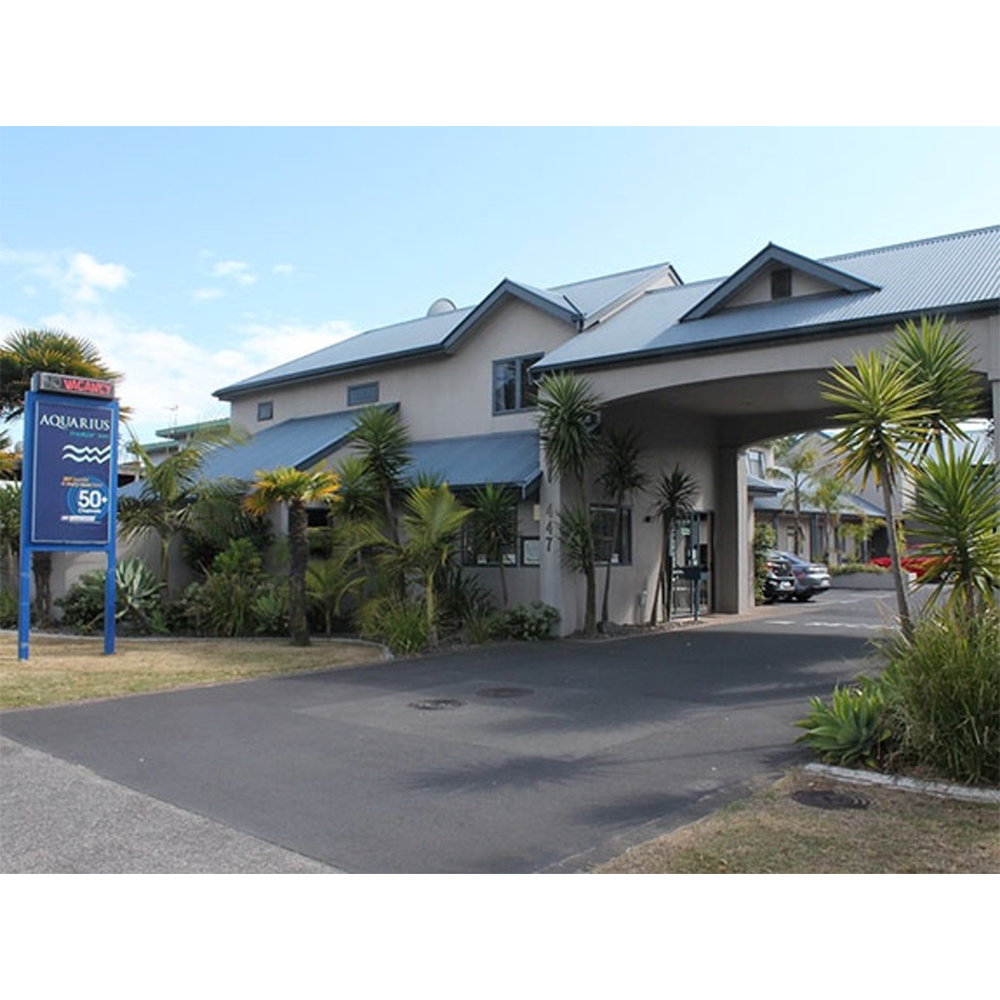

Aquarius Motor Inn Case Study

Aquarius Motor Inn has excellent service and facilities including a swimming pool, private spa pool, SKY Guest Select (50+ SKY channels), and free, unlimited, wireless internet. Aquarius Motor Inn is in a quieter part of the Mount and is the ideal ‘base’ to explore the area. Whether it’s the glorious stretch of white sandy beaches, the bustling harbor with its many visiting cruise liners, the fantastic hot saltwater pools, or the Mount itself, they are within close proximity of all the major attractions.

The GWN7605s were installed on the roof and downstairs in the building apartments. The upstairs apartment roofs house the cabled master access points and downstairs access points operate over a mesh connection to the master devices.

GWN Management Platforms

Grandstream's GWN7605, along with the rest of our GWN networking portfolio, can be fully managed from GWN.Cloud and GWN Manager. These two free platforms allow you to configure, monitor, and troubleshoot GWN deployments from either the cloud or an on-site server. Secure networks can be deployed in seconds using our GWN.Cloud mobile app or the web browser interface, then later managed from the same interface. Keep an eye on the network’s performance with real-time monitoring, alerts, statistics and reports that can be viewed using a web browser or the mobile application.

Click below to head to our documentation center, and learn how you can deploy the GWN7605, and our other devices, on GWN.Cloud or GWN Manager.

Self-Guided Networking Solution Training

Grandstream Networks self-training is an effective pre-recorded video training that offers huge flexibility and provides all the information and explanations needed to acquire the necessary knowledge about Grandstream's solutions before taking the certification exam.

This course covers Grandstream's Networking Solution GCS level (Grandstream Certified Specialist). The course is divided into 4 chapters and it has been recorded for you to make sure that you understand the technical specifications, features, and services of our GWN series.

NameGWN7605
Specs
Client Devices 100+
2.4G Throughput 300Mbps (2x2:2 MIMO)
5G Throughput 867Mbps (2x2:2 MU-MIMO)
6G THROUGHPUT -
Range Up to 165 Meters
Network Interfaces 2 x autosensing 10/100/1000 Base-T Ethernet Ports
PoE/PoE+ Supports PoE 802.3af/ 802.3at; Max Consumption: 10.16W
Wi-Fi Standards IEEE 802.11a/b/g/n/ac (Wave-2)
SSIDs 16 SSIDs total, 8 per radio (2.4Ghz and 5Ghz)
Antennas 2 dual band internal antennas
Wi-Fi and Security Systems WEP, WPA/WPA2-PSK, WPA/ WPA2 Enterprise (TKIP/AES), WPA3, anti-hacking secure boot and critical data/ control lockdown via digital signatures
Dimensions 180.4x180.4x40.8mm
Mounting Indoor wall mount or ceiling mount
