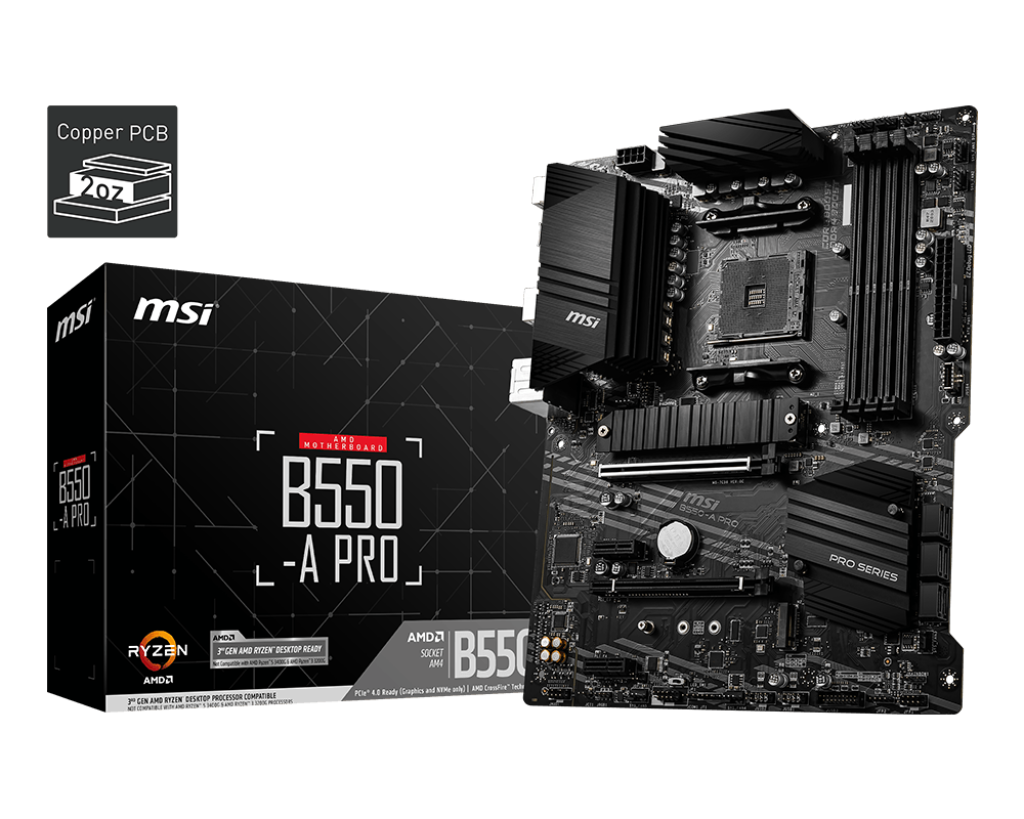

B550-A PRO
Support des processeurs AMD Ryzen™ de 3ème génération et des futurs processeurs AMD Ryzen™ avec mise à jour BIOS
AM4
AMD® B550
1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400 + Mhz en modes JEDEC et A-XMP OC
Dual
4
128
2
Gen4 / Gen3
2
Oui
12
1
1 x Realtek® RTL8111H Gigabit LAN
2
1 x Gen1 type C
2 x Gen1 type A)
2 x Gen1 type A)
1 x Gen2 type C
1 x Gen2 type A
2 x Gen1 type A)
1 x Gen2 type A
2 x Gen1 type A)
6
0/1/10
4
4
6 jacks audio HD
1
1
1
ATX
Windows® 10 64-bit
CPU
Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.
Chipset
AMD B550 Chipset
Memory
- 4x DDR4 memory slots, support up to 128GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R Max speed 4800 MHz
- 1DPC 2R max speed 3866 MHZ
- 2DPC 1R max speed 4000 MHZ
- 2DPC 2R max speed 3600 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
Expansion Slot
- 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)
- 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed
- 2x PCIe 3.0 x1 slots
- The supported specification depends on installed processor.
- When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Multi-GPU
- Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
- 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz
- 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz
- Maximum shared memory of 16 GB
- Available for the processor with integrated graphics.
- Graphics specifications may vary depending on the CPU installed.
Storage
AMD B550 Chipset
- 6x SATA 6Gb/s ports
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
- The supported specification depends on installed processor.
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
- 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
- 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
- 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
- 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
LAN
- 1x Realtek® 8111H Gigabit LAN controller
Internal connectors
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
- 6x SATA 6Gb/s connectors
- 2x M.2 slots (M-Key)
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x 4-pin RGB LED connector
- 2x 3-pin RAINBOW LED connectors
- 1xTPM module connector
- 1x Clear CMOS jumper

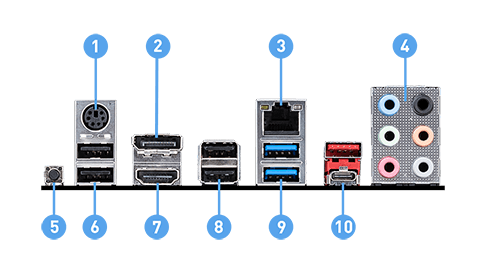

Back panel ports
- Keyboard / Mouse
- DisplayPort
- LAN
- HD Audio Connectors
- Flash BIOS Button
- USB 2.0
- HDMI™
- USB 2.0
- USB 3.2 Gen 1 5Gbps Type-A
- USB 3.2 Gen 2 10Gbps Type-A+C
Dimensions
- ATX Form Factor
- 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
MOUNTING
9 mounting holes

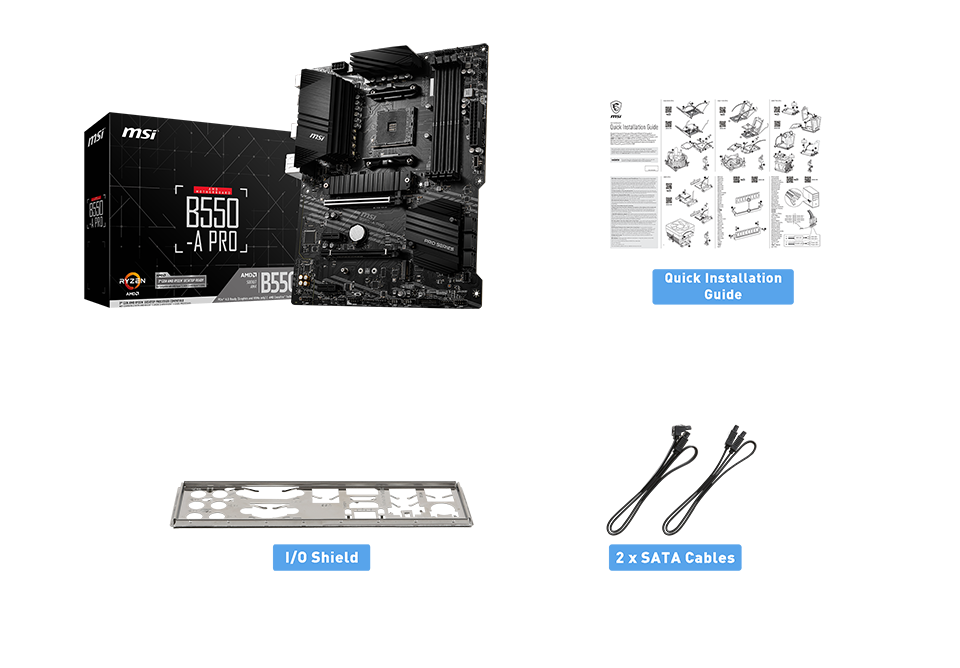

Box content
- MSI® does not guarantee the risks or damages caused by changing the cover.
- These pictures are for reference only and may vary without notice.
