GWN7700M Series

Unmanaged 2.5G Multi-Gigabit Network Switches
The GWN7700M series are 5 & 8 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity up to 2.5Gbps to home offices and small-to-medium businesses

  • 3 Models - GWN7700M, GWN7700MP, and GWN7701M
  • 5 and 8 Multi-Gigabit Copper Ports provide 100/1000/2500Mbps connectivity
  • One SFP+ Fiber Port with 1 Gigabit or 10-Gigabit connectivity
  • LED Indicators; Per port: Link/Activity/Speed Per device: Power
  • Auto MDI/MDIX crossover for all ports
  • Whisper Quiet: fanless
  • Broadcast/Multicast/Unicast Storm Control (fixed to 100Mbps) to monitor traffic levels
  • Green technology reduces power consumption
  • QoS - Supports Default Strict Priority when present



Unmanaged Network Switches

The GWN7700M Series are 6 and 9 port unmanaged multi-Gigabit network switches that provide high-speed network connectivity
through 5 or 8 built-in 2.5 Gbps ports.





Plug and Play

These unmanaged switches do not require any configuration or installation, allowing deployments to be up and running immediately.



Free Network Management Options

gdms-networking-thumbnail

GDMS Networking

GDMS Networking is an enterprise-grade, cloud management platform for Grandstream networking products.

gwn-manager-thumbnail-2

GWN Manager

GWN Manager is an on-premise enterprise- grade, management platform for an unlimited number of Grandstream networking products.

embedded_controller_thumbnail

Embedded Controller

Grandstream's GWN networking products include an embedded controller software and is built-in to the product’s web user interface.

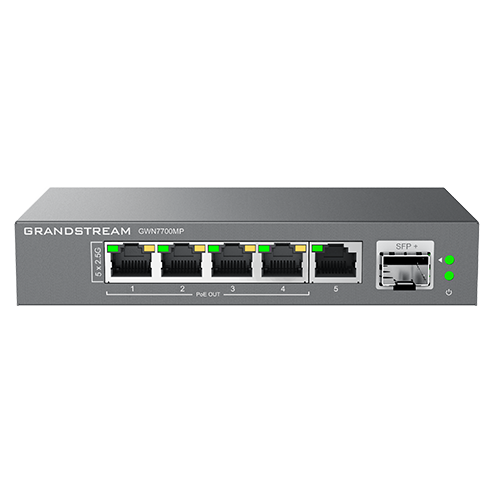

NameGWN7700MP
Specs
Standards and ProtocolsIEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz(2.5GBASE-T), IEEE 802.3x, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3af, IEEE 802.3at
Gigabit Ports5
PoE Ports (PoE Models)4
Port Features
  • 5× 100/1000/2500Mbps RJ45 Ports
  • 1× SFP+ Fiber Port
  • AUTO Negotiation
  • AUTO MDI/MDIX
PoE Configuration (PoE Models)1~4 Ports 802.3 af/at compliant ;
Up to 30 W on Each Port, Total
57W Power Budget;
Switching Capability45Gbps
Jumbo Frame9KB
EnclosureMetal
