Audio-Technica AT-XP5 DJ Phono Cartridge - VM Dual Moving Magnet, Elliptical Stylus
Audio-Technica AT-XP5 DJ phono cartridge with dual moving magnet (VM) and bonded elliptical stylus: 5.5 mV output, 20 to 18,000 Hz, 2 to 4 g tracking force. For DJ turntables with a half-inch mount, with a stylus tip easy to see when cueing.
- VM dual moving magnet cartridge
- 0.3 × 0.7 mil elliptical stylus
- 5.5 mV output
- 20 to 18,000 Hz response
- Tracking force 2 to 4 g (3 g standard)
- Carbon ABS cantilever
- Half-inch mount
- ATN-XP5 replacement stylus
- 6.2 g
Ref.: AT-XP5
New
1/3
912,00 DHincl. VAT
Limited quantity
Earn 10 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
DJ phono cartridge for turntables with a half-inch mount: dual moving magnet (VM), elliptical stylus and stylus tip easy to see when cueing.
Stylus: 0.3 × 0.7 mil bonded elliptical, carbon-fibre-reinforced ABS cantilever
Sound: 5.5 mV output, 20 to 18,000 Hz, 20 dB channel separation
Setup: tracking force from 2 to 4 g, 3 g standard, recommended load 47 kΩ
Mounting: half-inch mount with two screws, screws, nuts and non-magnetic screwdriver included
Maintenance: ATN-XP5 replacement stylus
Audio-Technica's elliptical DJ cartridge, between the conical-stylus AT-XP3 and the aluminium-cantilever AT-XP7.
Request a quoteShare:
Description

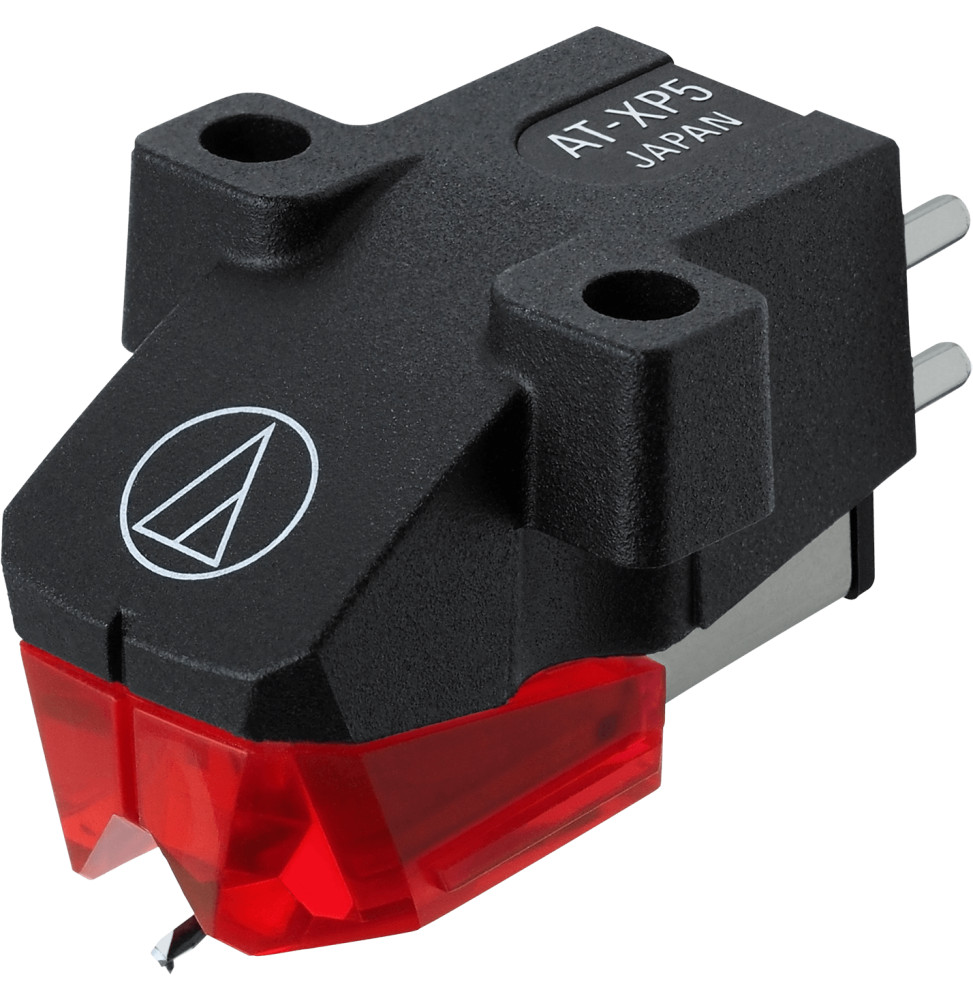

Audio-Technica AT-XP5 · Dual moving magnet DJ cartridge
An elliptical stylus
for cueing in the booth.
The AT-XP5 is a phono cartridge designed for DJs: a rigid, low-resonance body, a stylus tip that is easy to see when you place it, and an elliptical stylus that follows the groove more finely than a conical one. It fits any standard half-inch headshell.
- 5.5 mVoutput voltage
- 0.3 × 0.7 milbonded elliptical stylus
- 3 gstandard tracking force
- 6.2 gin weight
Made for the sound of a venue
Audio-Technica tuned the AT-XP5 for club playback: an output level and impedance adapted to DJ mixers, in a body of glass-fibre-filled PPS that is very rigid and not prone to resonance. The cartridge delivers 5.5 mV at 1 kHz, covers 20 to 18,000 Hz and separates the channels by 20 dB. Its shape leaves the stylus tip clearly visible from the front, to place it quickly and accurately at the start of a track.
Elliptical rather than conical
The 0.3 × 0.7 mil bonded elliptical stylus follows the groove more precisely than a conical stylus; the cantilever that carries it is carbon-fibre-reinforced ABS. This is what sets the AT-XP5 apart from the AT-XP3, the cartridge supplied with the AT-LP140XP turntable. The AT-XP7 keeps the same stylus but moves to a tapered aluminium cantilever, with 6.0 mV output and a response up to 20,000 Hz.
The AT-XP5, in red, and the AT-XP7, in clear: same format, same elliptical stylus.Mounts in a few minutes
The mount is the standard half-inch fitting, with two screws. The box contains two pairs of slotted screws, 8 and 11 mm, two washers, two nuts and a non-magnetic screwdriver. The tonearm is then set between 2.0 and 4.0 g of tracking force, 3.0 g being the standard value, and the anti-skate to the same value.

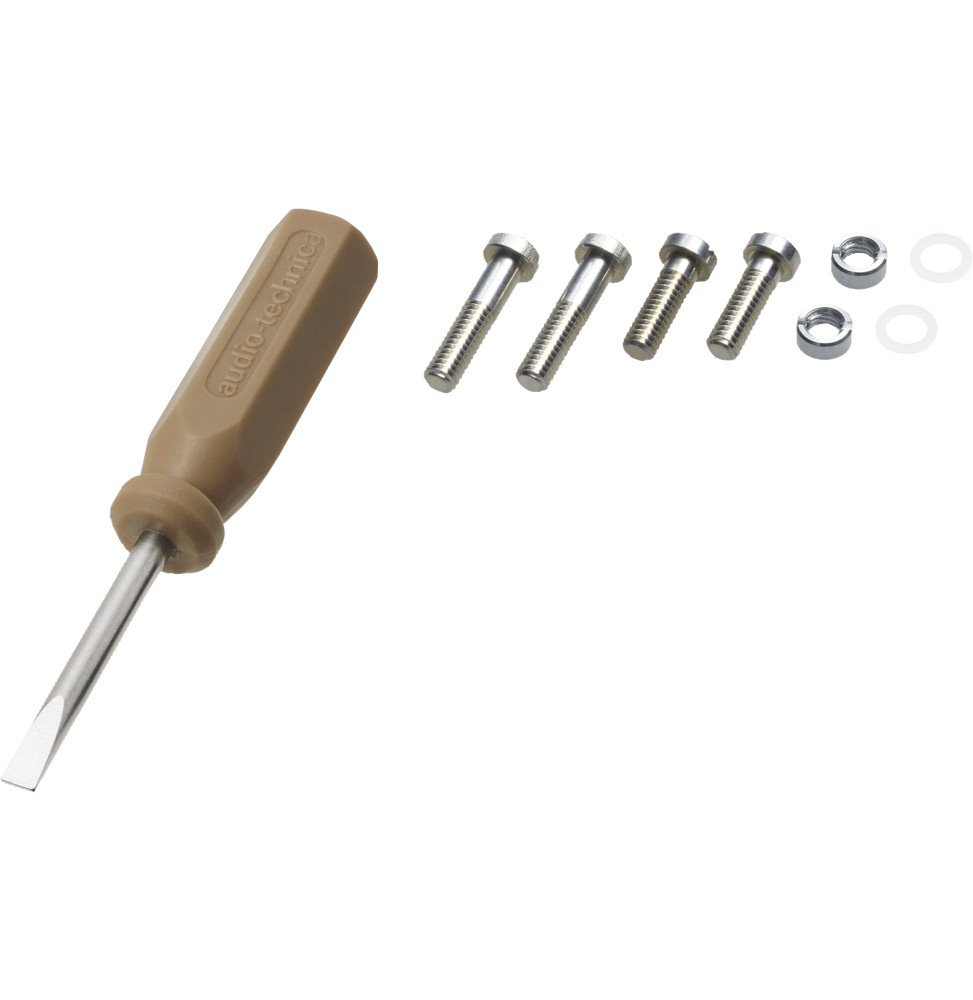

The non-magnetic screwdriver and the supplied screws.The cartridge outputs a phono-level signal: it connects to a PHONO input, that of a DJ mixer or an amplifier, designed for 47 kΩ and 100 to 200 pF. A worn stylus is replaced on its own, with the ATN-XP5. Excessive tracking pressure wears the stylus and the record without improving the sound.
Find turntables and their cartridges in the turntables department and the brand's other products on the Audio-Technica page.
Values taken from Audio-Technica's official AT-XP5 page and its user manual.
Technical specifications
| Dimensions (W x D x H) | 17.8 × 28.3 × 17.2 mm |
|---|---|
| Features | Stylus tip easy to see for cueing, rigid low-resonance PPS and glass fibre body |
| Box contents | Cartridge, 4 slotted mounting screws (2 of 11 mm, 2 of 8 mm), 2 washers, 2 round nuts, non-magnetic screwdriver |
| Weight | 6.2 g |
| Product colour | Black and red |
| Product type | Stereo DJ phono cartridge |
| Output level | 5.5 mV (1 kHz, 5 cm/s) |
| Cartridge type | VM, dual moving magnet |
| Stylus | Bonded elliptical, 0.3 × 0.7 mil radius |
| Cantilever | Carbon-fibre-reinforced ABS |
| Tracking force | 2.0 to 4.0 g (3.0 g standard) |
| Replacement stylus | ATN-XP5 |
| Cartridge frequency response | 20 to 18,000 Hz |
|---|---|
| Channel separation | 20 dB (1 kHz) |
| Channel balance | 2.0 dB (1 kHz) |
| Coil impedance | 6.7 kΩ at 1 kHz, DC resistance 990 Ω |
| Coil inductance | 1.0 H (1 kHz) |
| Recommended load impedance | 47 kΩ |
| Recommended load capacitance | 100 to 200 pF |
| Compliance | Static 20 × 10⁻⁶ cm/dyne, dynamic 6.0 × 10⁻⁶ cm/dyne (100 Hz) |
| Vertical tracking angle | 20° |
| Cartridge mount | Half-inch (½"), two screws |
| Warranty | 1 year |
Specific references
| EAN | 4961310142551 |
|---|---|
| MPN | AT-XP5 |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
On which turntables can the AT-XP5 be mounted?
On any turntable with a standard half-inch headshell, fixed with two screws, such as the AT-HS6 headshell. The tonearm must accept a 6.2 g cartridge and a tracking force of 2 to 4 g. Four 8 and 11 mm screws, washers, nuts and a non-magnetic screwdriver are included.
What tracking force should be set?
The range is 2.0 to 4.0 g, with 3.0 g as the standard value. First balance the tonearm, then set the tracking force with the counterweight, and the anti-skate to the same value. Unnecessary pressure on the stylus can damage the record and the stylus, and also degrades sound quality.
What is the difference with the AT-XP3 and the AT-XP7?
The AT-XP5 replaces the conical stylus of the AT-XP3 with a 0.3 × 0.7 mil elliptical stylus, which follows the groove more finely, on a carbon-reinforced ABS cantilever. The AT-XP7 keeps the same stylus but moves to an aluminium cantilever, 6.0 mV output and a response up to 20,000 Hz.
Do I need a phono preamp?
Yes. The cartridge delivers 5.5 mV at 1 kHz and must be connected to a PHONO input, such as that of a DJ mixer or an amplifier. The recommended load impedance is 47 kΩ and the load capacitance 100 to 200 pF.
Can the stylus be replaced?
Yes. When it is worn, only the stylus is changed, without removing the cartridge from the headshell or redoing its alignment: its replacement is the ATN-XP5. A worn stylus degrades the sound and can damage records: protect it with its cover between sessions, and never touch it with your fingers.
