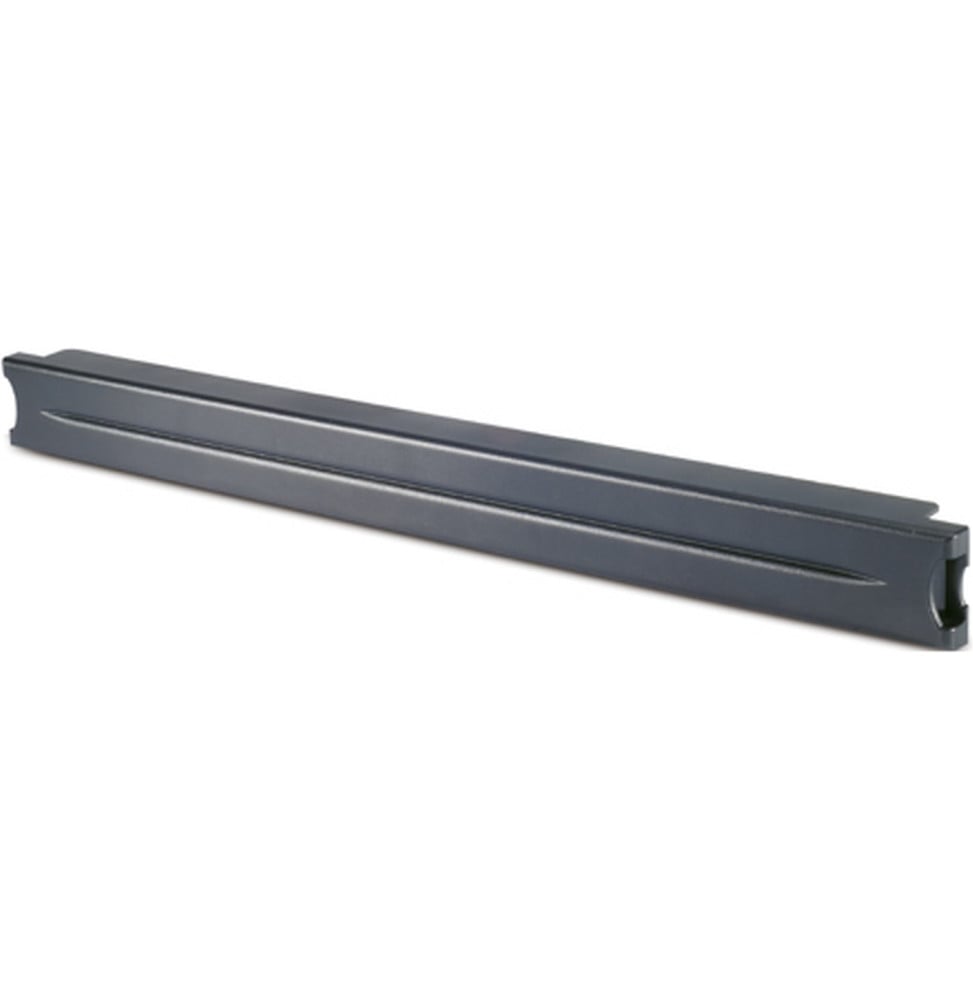

APC 1U 19" Black Tool-less Modular Blanking Panel Kit - Pack of 10 (AR8136BLK)
A pack of ten black 1U blanking panels for a 19-inch rack, mounted tool-free at the front. They close the empty spaces so that hot air does not flow back to the front of the equipment.
- Pack of 10 1U panels
- Tool-less modular mounting
- 19-inch format, EIA-310-D standard
- 483 × 28 × 45 mm per panel
- Black finish
- Designed for APC NetShelter racks
Ref.: AR8136BLK
New
1/3
849,00 DHincl. VAT
Limited quantity
Earn 9 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Fri 2 Oct and Mon 5 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
2 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Blanking panels to close the empty spaces of a 19-inch rack: pack of 10 1U panels, tool-less mounting and controlled airflow.
Role: stop hot air from recirculating from the back to the front of the rack
Mounting: modular, tool-less, at the front, one panel per free unit
Format: 19 inches, 1U, 483 x 28 x 45 mm per panel, EIA-310-D standard
Finish: black, 0.09 kg per panel
Coverage: 10U of empty spaces closed with a single pack
The companion to APC NetShelter racks, instead of screwed plates that must be removed each time equipment is added.
Request a quoteShare:
Description
APC NetShelter · Reference AR8136BLK
Every empty unit,
closed without a tool.
Ten black 1U blanking panels to fill the free spaces of a 19-inch rack, so that hot air does not flow back to the front of the equipment.
Hot air stays at the back
Through a unit left open, air exhausted at the back of servers and switches flows back to the front and warms the air they draw in. The panels close these passages and keep airflow moving from top to bottom of the front. They fit into the rails without tools, one panel per unit, and come out just as easily the day a piece of equipment takes their place.
- Contents
- 10 1U panels
- One panel
- 483 × 45 × 28 mm
- Standard
- EIA-310-D
- White version
- AR8136WHT
Complete it in the rack and cabinet accessories section or with a server rack.
Values taken from the APC datasheet for reference AR8136BLK and its instruction sheet.
Technical specifications
| Weight (kg) | 0.09 kg per panel; 1.64 kg for the packed set |
|---|---|
| Dimensions (W x D x H) (mm) | 483 x 28 x 45 mm (one panel) |
| Box contents | 10 1U panels, user manual |
| Product colour | Black |
| Compatibility | 19-inch racks built to EIA-310-D, including APC NetShelter racks |
| Certifications | EIA-310-D |
| Mounting | At the front of the rack, tool-less modular mounting |
|---|---|
| Product type | 1U blanking panel (airflow management) for 19-inch rack |
| Ventilation | Fills unused space to stop hot air recirculating to the front |
| Usable height (U) | 1U per panel, 10U for the pack |
| Mounting width | 19 inches |
| Warranty | 2 years |
Specific references
| MPN | AR8136BLK |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What is a blanking panel for in a rack?
To close the empty spaces of the front. Without it, hot air exhausted at the back of the equipment flows back to the front through the free units and mixes with the fresh air drawn in. The panels force a front-to-rear path and help keep proper temperatures in the rack.
Are tools or screws needed to install them?
No: these panels fit without tools, thanks to their modular design, directly into the rack rails. One is placed per free unit and removed just as easily the day new equipment is installed in that space.
How many spaces does this pack cover?
Ten units: the pack contains ten 1U panels, i.e. 10U of blanked space, for example the free lower half of a small rack or the gaps between several devices. Each panel is 483 mm wide and 45 mm high.
What are the dimensions of a panel?
483 mm wide, 45 mm high and 28 mm deep, weighing 0.09 kg per panel. The full pack of ten panels weighs 1.64 kg packed. The height matches one rack unit, and the width the 19-inch format defined by the EIA-310-D standard.
Is there another color?
Yes: the manufacturer's instruction sheet also covers a white version, reference AR8136WHT, for racks of that color. The AR8136BLK version offered here is black, the color of most server and network racks.
