HP DesignJet T230 24-inch Plotter (5HB07A)

35 seconds per A1 and 68 plots an hour for 21.5 kg sitting on a corner of a desk. Four inks, including a pigment black, and Wi-Fi Direct to print from a mobile.

  • 35 s per A1 plot, 68 A1 plots per hour
  • A4 to A1 sizes, rolls from 279 to 610 mm
  • 4 inks: cyan, magenta, yellow and pigment black
  • Resolution up to 2400 x 1200 optimised dpi
  • Line accuracy of plus or minus 0.1%
  • Gigabit Ethernet, USB 2.0, Wi-Fi and Wi-Fi Direct
  • Automatic horizontal cutter

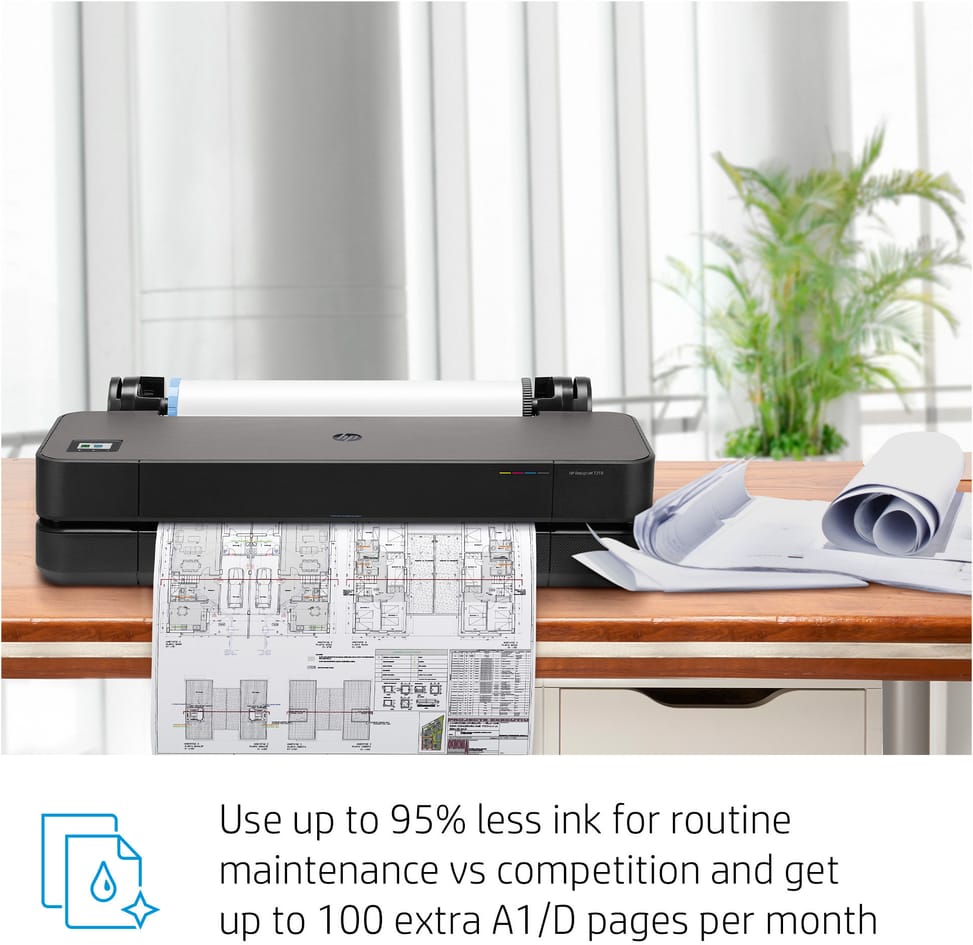

  • 20 ml of ink for 101 A1 pages, maintenance routines included
  • 29 ml colour cartridges, 38 or 80 ml in black
  • 21.5 kg for 1,013 x 440 x 285 mm

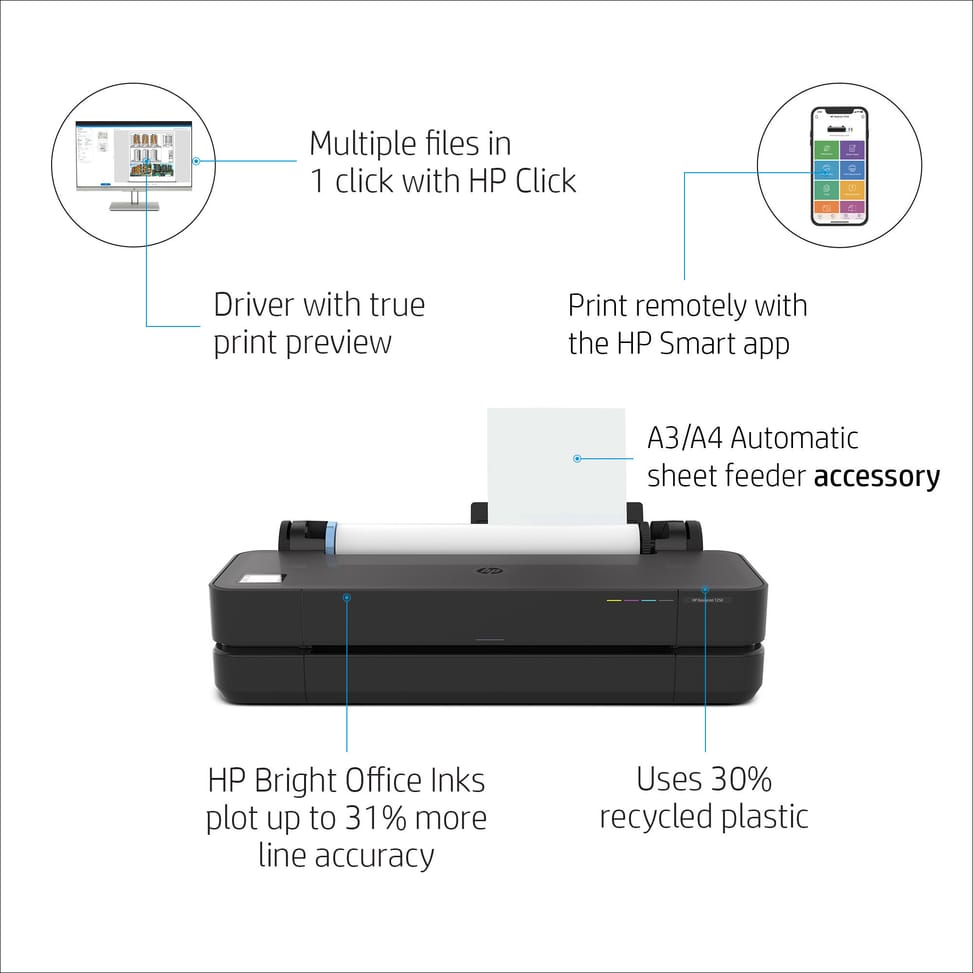

  • Several files sent in one click with HP Click software
Ref.: 5HB07A

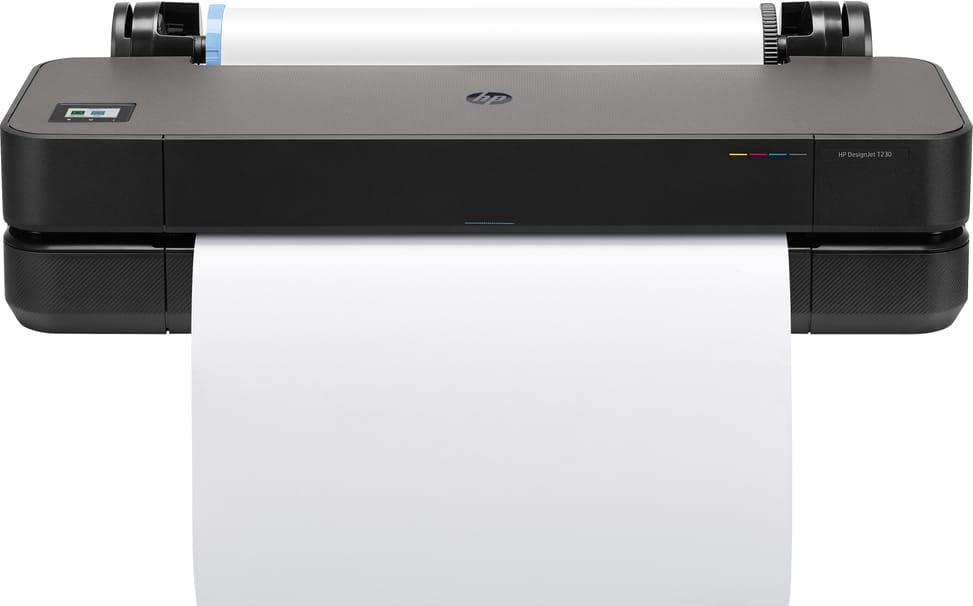

HP DesignJet T230 24-inch Plotter (5HB07A) — image 1

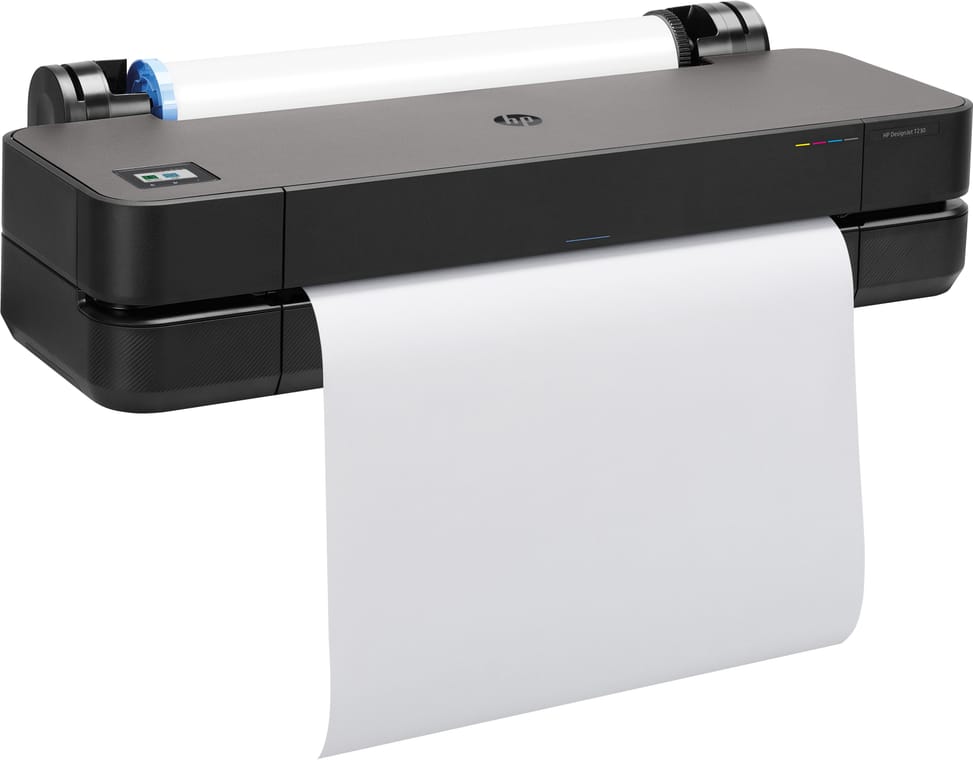

HP DesignJet T230 24-inch Plotter (5HB07A) — image 2
HP DesignJet T230 24-inch Plotter (5HB07A) — image 3
HP DesignJet T230 24-inch Plotter (5HB07A) — image 4
HP DesignJet T230 24-inch Plotter (5HB07A) — image 5

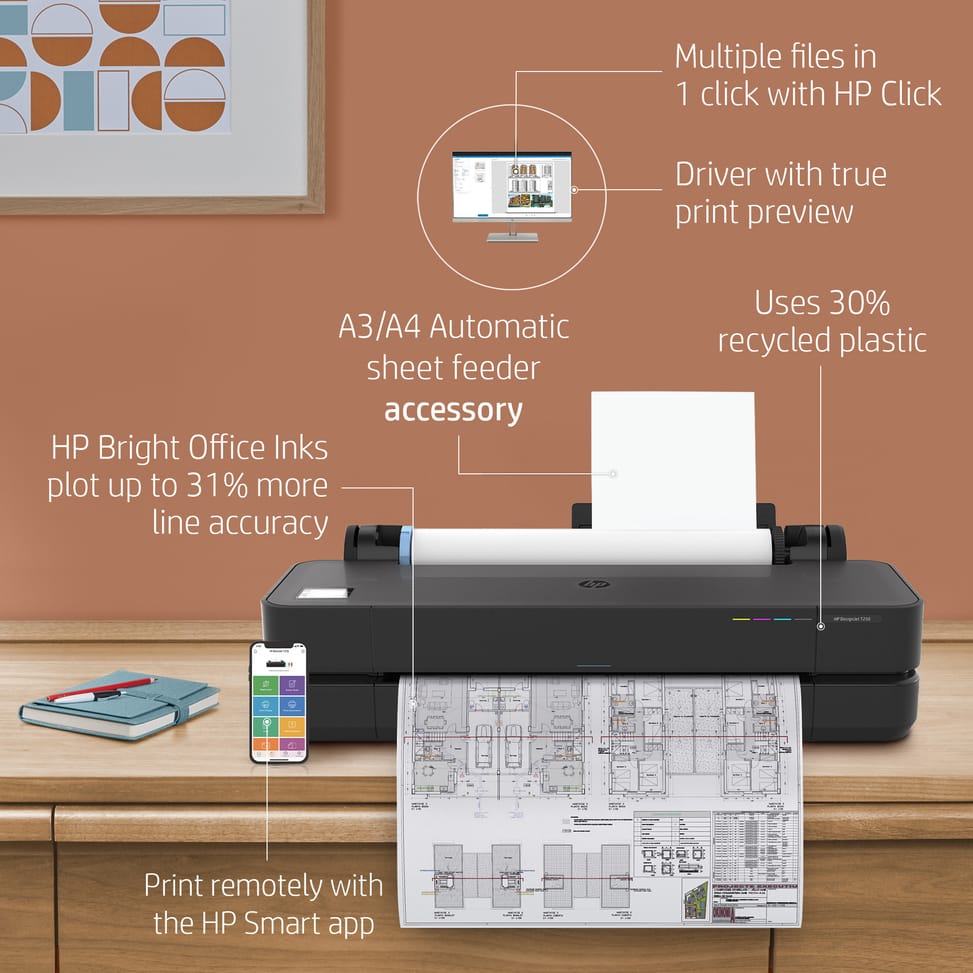

HP DesignJet T230 24-inch Plotter (5HB07A) — image 6
HP DesignJet T230 24-inch Plotter (5HB07A) — image 7
HP DesignJet T230 24-inch Plotter (5HB07A) — image 8
HP DesignJet T230 24-inch Plotter (5HB07A) — image 9
HP DesignJet T230 24-inch Plotter (5HB07A) — image 10

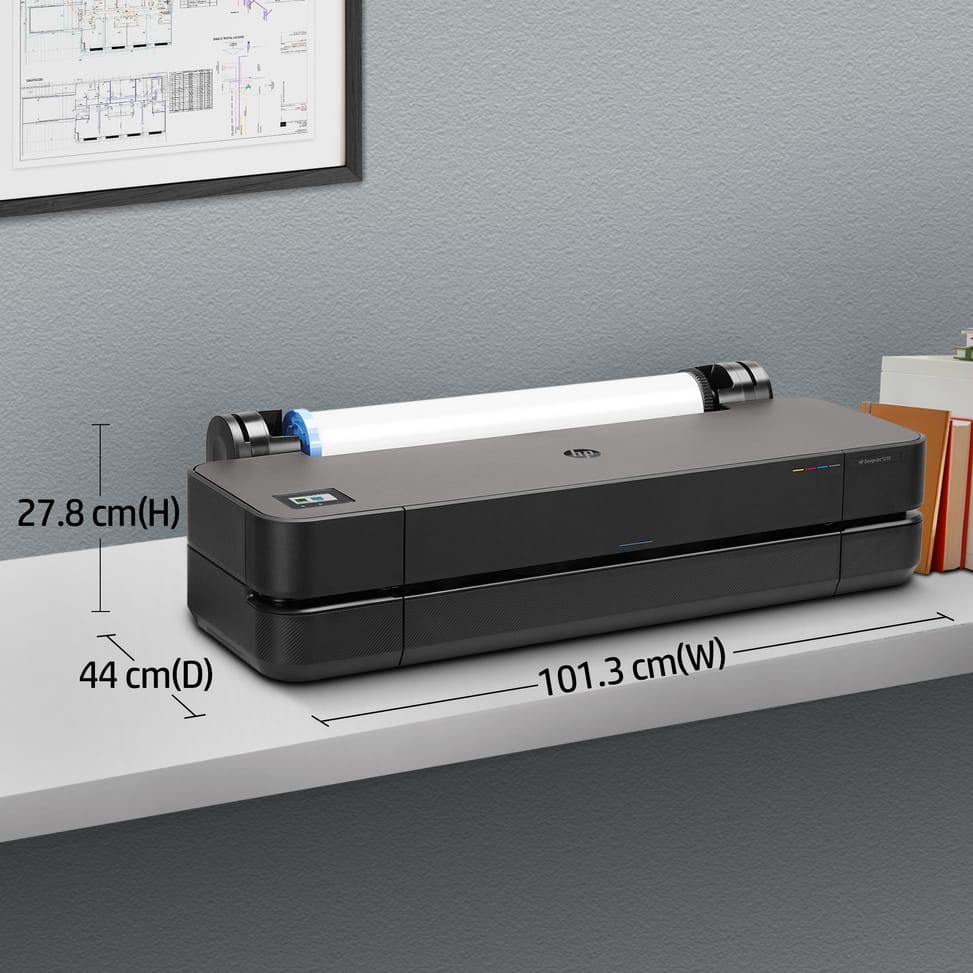

HP DesignJet T230 24-inch Plotter (5HB07A) — image 11
HP DesignJet T230 24-inch Plotter (5HB07A) — image 12
HP DesignJet T230 24-inch Plotter (5HB07A) — image 13
HP DesignJet T230 24-inch Plotter (5HB07A) — image 14
HP DesignJet T230 24-inch Plotter (5HB07A) — image 15

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Paper trays : extra trays, stands, cabinets and the automatic document feeder visible in the image are very often options sold separately.
  • Consumables : the cartridges and toners photographed are not included unless stated; those supplied with the machine are frequently reduced-capacity starter consumables.
  • Features : automatic duplex, touchscreen, Wi-Fi, fax or flatbed scanner cannot be inferred from a photo — only the specifications are binding.
  • Cables : the USB cable is generally not supplied; only the power cord is.
  • Format and version : one image serves a whole series (A4 or A3, monochrome or colour, with or without Wi-Fi).
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/15
12 399,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 2,4 Mo — downloadable

Product overview

Compact 24-inch plotter to get started in CAD: prints up to A1, small footprint and Wi-Fi.
Type: single-function plotter (large-format printing)
Print width: 610 mm (24") — plans and posters up to A1
Colours: 4 inks — optimised for plans and technical drawings; pigment black that resists water and light
Printhead: replaceable — easy maintenance
Speed: 35 seconds per A1 (68 A1/h) — a good pace
Resolution: up to 2400 x 1200 dpi · Line accuracy: ± 0.1%
Memory: 512 MB
Connectivity: Gigabit Ethernet, Wi-Fi and USB
The most affordable plotter to move into large format without breaking the bank.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Hard drive capacityNone
Mobile printingHP Smart app (Print Anywhere), HP Click, email printing, Chrome OS
Compatible operating systemsWindows, including Windows 11 · macOS · Chrome OS
Printing technologyHP thermal inkjet printing
Recommended media weight60 to 280 g/m²
Roll outer diameterUp to 100 mm
Printer languagesJPEG, URF
Power consumptionPrinting: < 35 W · Ready: < 5.6 W · Sleep: < 2.1 W · Off: < 0.2 W
Noise levelSound pressure: 42 dB(A) when printing, < 16 dB(A) when idle · Sound power: 5.8 B(A) when printing, < 3.4 B(A) when idle
Operating temperature5 to 40 °C, 20 to 80% relative humidity
FunctionsPrint
Model size24 inches (610 mm)
Maximum media width610 mm (roll: 279 to 610 mm)
Print resolutionUp to 2,400 x 1,200 optimised dpi
Print consumable colour(s)Cyan, magenta, yellow, black
Ink typesDye-based ink (C, M, Y), pigment-based ink (K)
Ink capacity80 ml (black); 38 ml (black); 29 ml (C, M, Y);
Printhead nozzles1,376
Ink droplet size5.5 pl (cyan, magenta, yellow), 12 pl (black)
Print speed35 s/page on A1, 68 A1 prints per hour
Line accuracy±0.1%
Technical specifications (continued)
Paper feed and outputSheet feed, roll feed, automatic horizontal cutter
Stand and output binOptional 3C753A stand and media bin: not included
Supported media sizes/formatsA4, A3, A2, A1
Media thicknessUp to 0.3 mm
Media typesBond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photo paper (satin, gloss, semi-gloss, polypropylene), self-adhesive (adhesive, polypropylene)
Margins - printable areaNon-printable area (sheet) 5 x 5 x 5 x 17 mm (manual feed); 5 x 5 x 5 x 5 mm (input tray) Non-printable area (roll media) 5 x 5 x 5 x 5 mm
Memory512 MB
DimensionsPackaging dimensions (W x D x H) 1,155 x 575 x 405 mm Minimum dimensions (W x D x H) 1,013 x 440 x 285 mm
Weight21.5 kg (Carton/package weight: 28 kg)

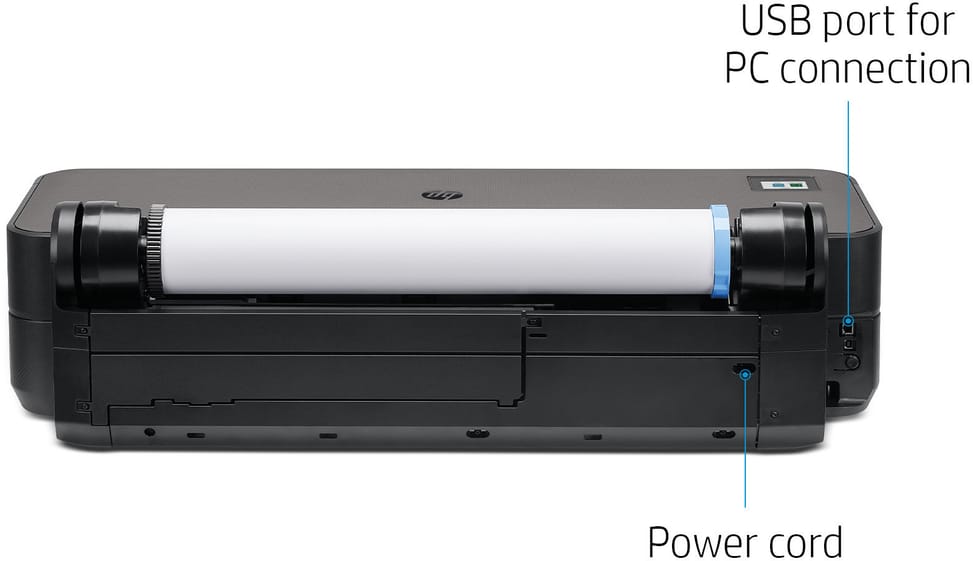

ConnectivityGigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct
Power supplyInput voltage (auto-sensing): 100-240 V (±10%), 50/60 (±3 Hz), 1,200 mA max
Box contents24-inch HP DesignJet T230 printer, printhead, setup ink cartridges, spindle, quick reference guide, assembly poster, power cord
Included softwareHP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
ConsumablesHP 713 printhead (3ED58A), HP 712 cartridges: 3ED67A cyan, 3ED68A magenta, 3ED69A yellow 29 ml, 3ED70A black 38 ml, 3ED71A black 80 ml
Number of colours4 colours
InterfacesEthernet, USB 2.0, Wi-Fi
Scanner featuresNo scanner
Scan speedNo scanner
Optical scan resolutionNo scanner
Size24" - 610 mm
Warranty1 year
