HP DesignJet T1600 36" Plotter (3EK10A)

6-colour printing up to A0, with 128 GB of memory and Wi-Fi/Gigabit Ethernet connectivity.

  • 6 ink colours
  • Speed 180 A1/h (19 s/A1)
  • Resolution 2400 x 1200 dpi
  • Memory 128 GB
  • Wi-Fi + Gigabit Ethernet
Ref.: 3EK10A

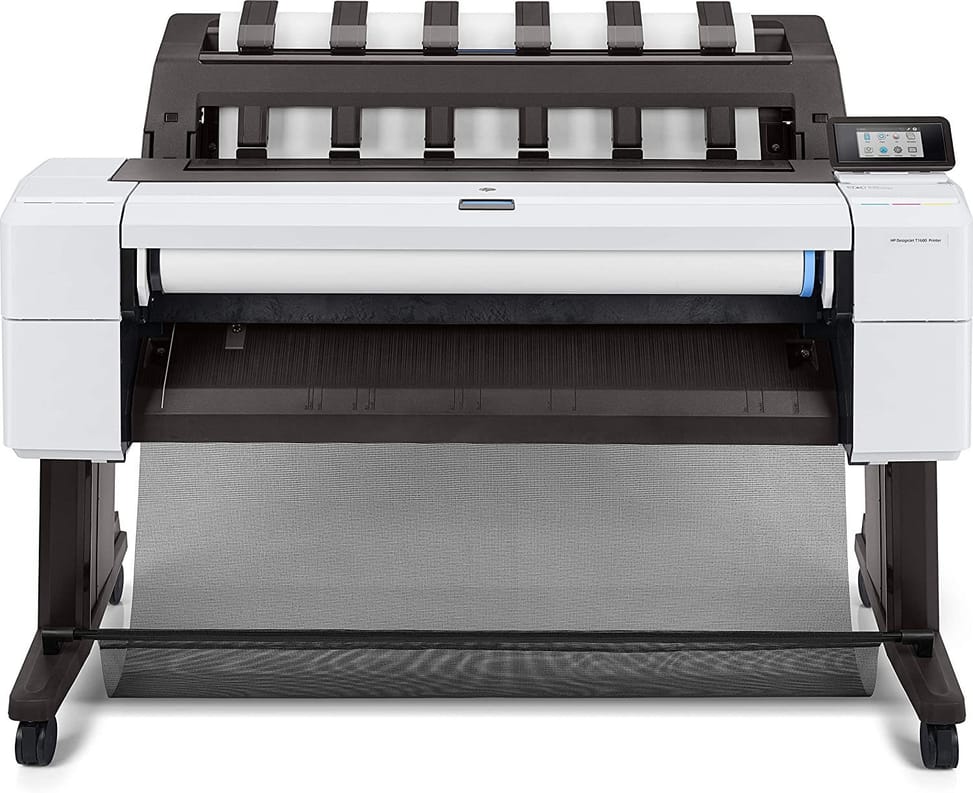

HP DesignJet T1600 36" Plotter (3EK10A) — image 1

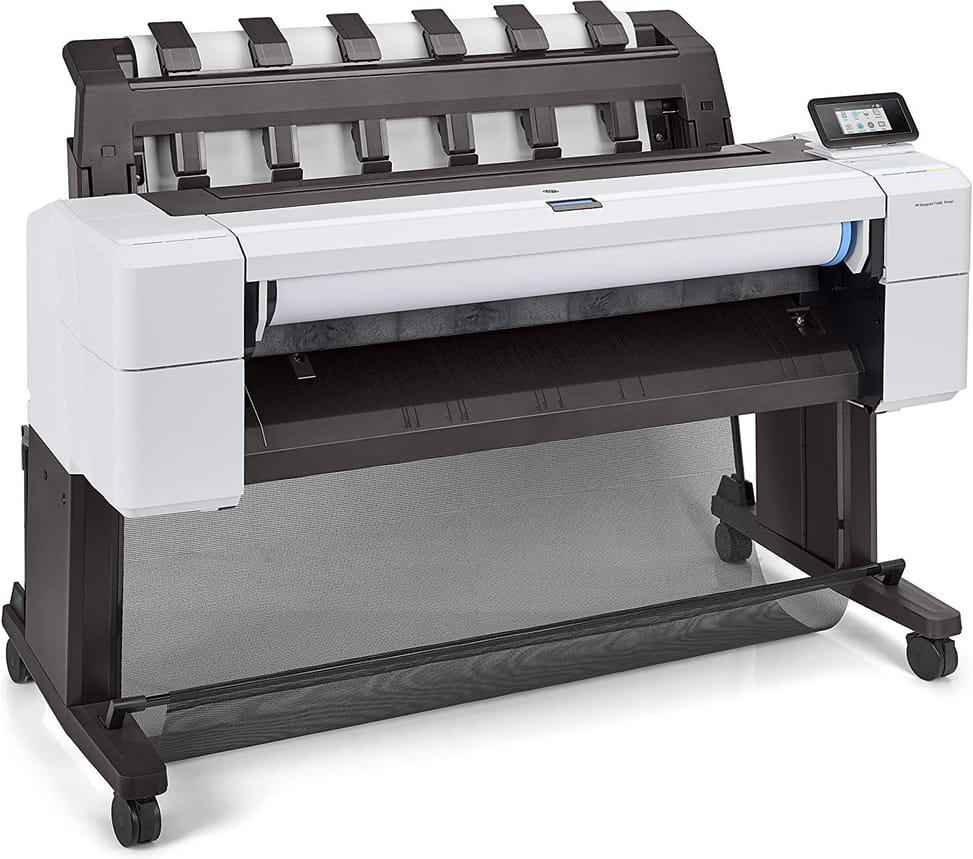

HP DesignJet T1600 36" Plotter (3EK10A) — image 2

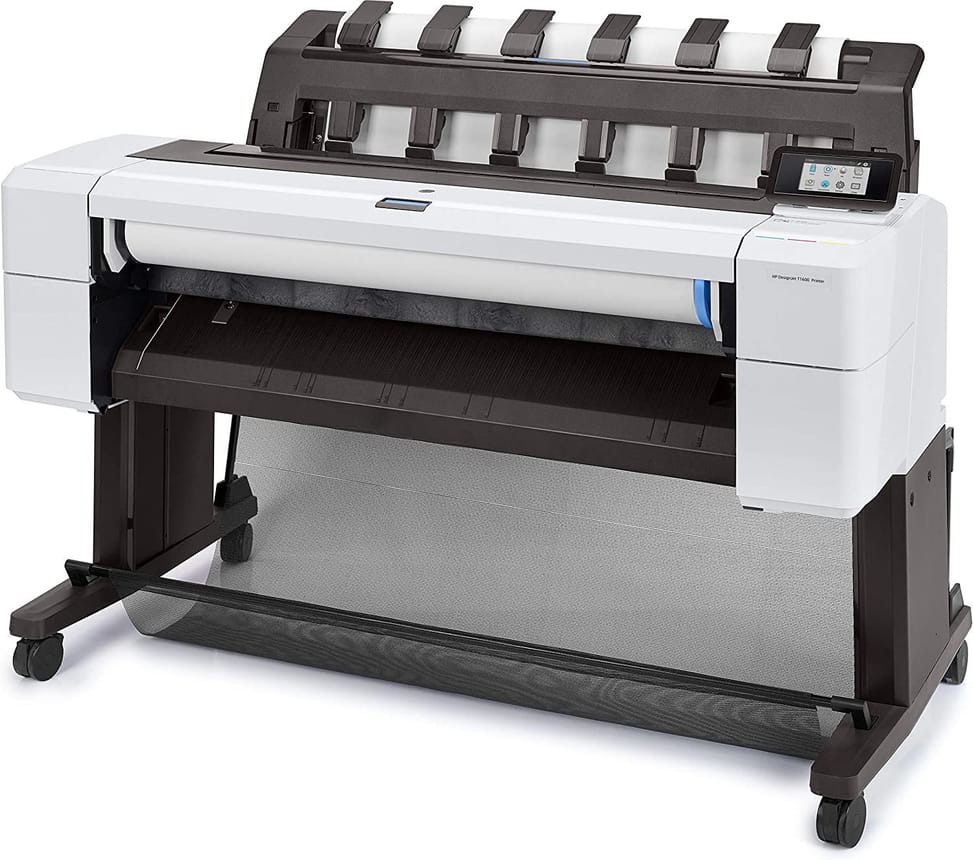

HP DesignJet T1600 36" Plotter (3EK10A) — image 3

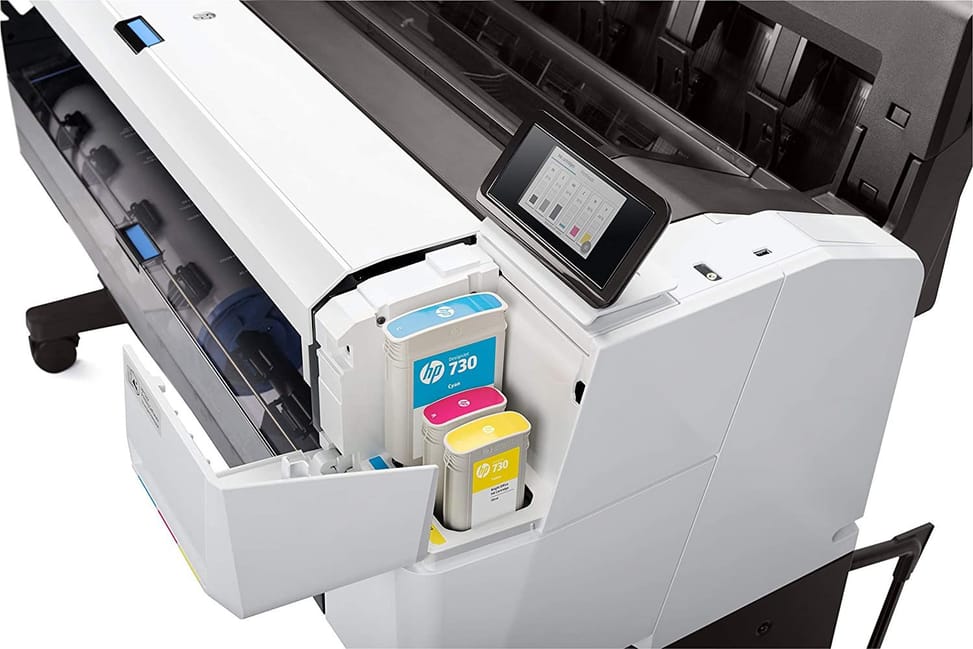

HP DesignJet T1600 36" Plotter (3EK10A) — image 4
HP DesignJet T1600 36" Plotter (3EK10A) — image 5
HP DesignJet T1600 36" Plotter (3EK10A) — image 6

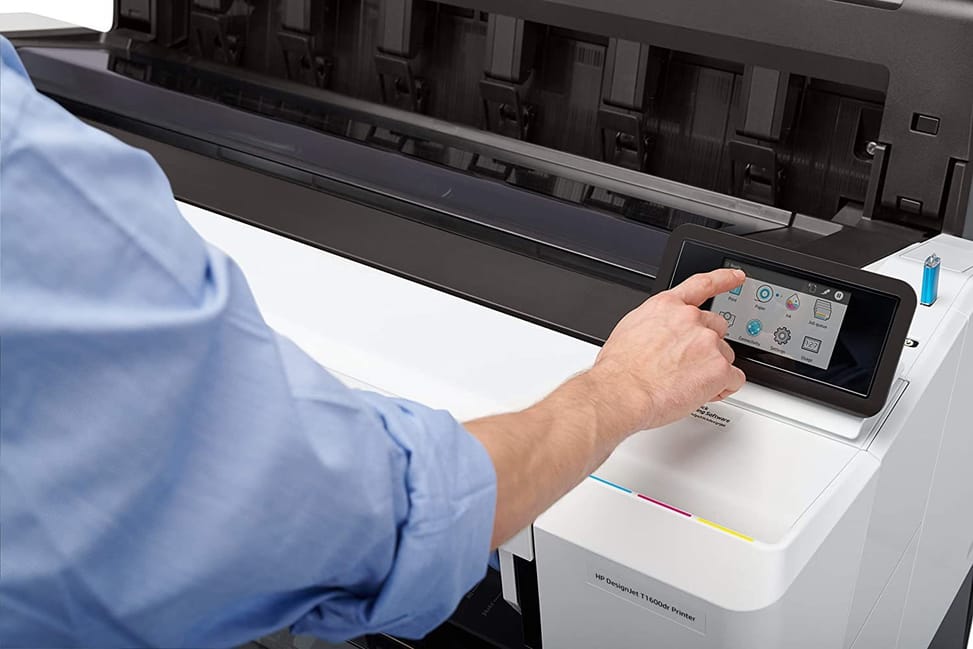

HP DesignJet T1600 36" Plotter (3EK10A) — image 7

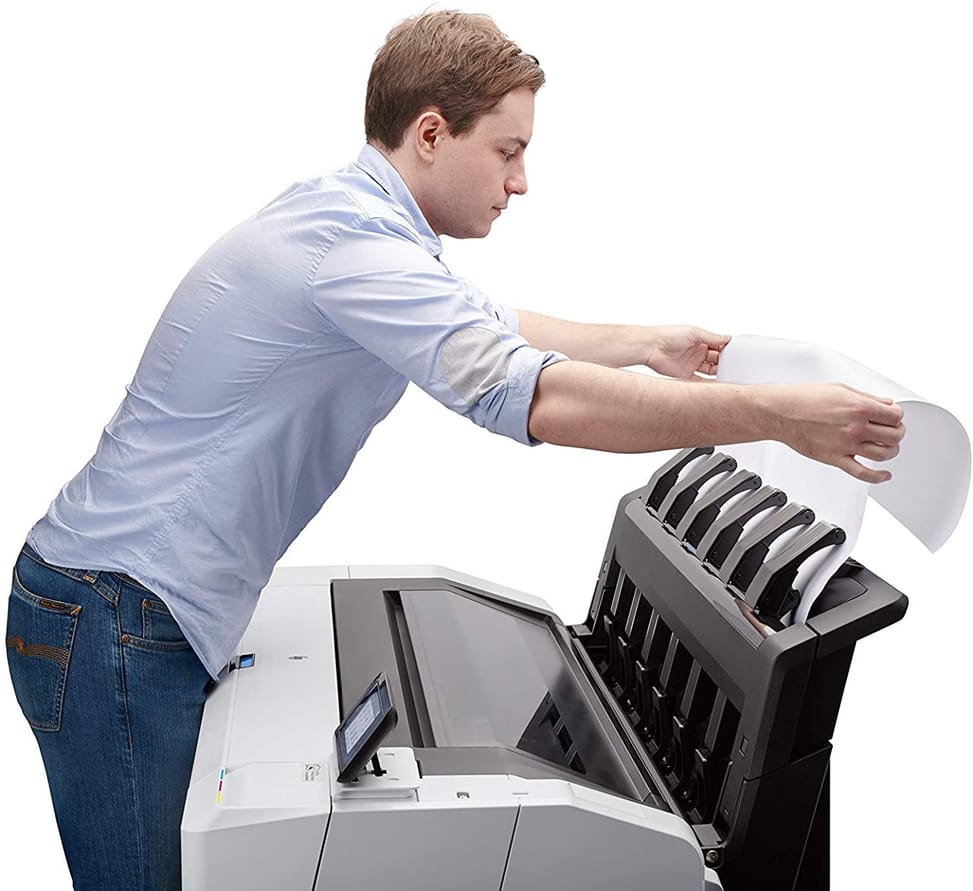

HP DesignJet T1600 36" Plotter (3EK10A) — image 8

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Paper trays : extra trays, stands, cabinets and the automatic document feeder visible in the image are very often options sold separately.
  • Consumables : the cartridges and toners photographed are not included unless stated; those supplied with the machine are frequently reduced-capacity starter consumables.
  • Features : automatic duplex, touchscreen, Wi-Fi, fax or flatbed scanner cannot be inferred from a photo — only the specifications are binding.
  • Cables : the USB cable is generally not supplied; only the power cord is.
  • Format and version : one image serves a whole series (A4 or A3, monochrome or colour, with or without Wi-Fi).
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/8
54 499,00 DHincl. VAT

Limited quantity

Quantity
Order on WhatsAppOn WhatsAppQuick reply

Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Receive it between Wed 23 Sept and Fri 25 Sept — delivery 560 DH incl. VAT all over Morocco

Delivery to your address

Receive it between Wed 23 Sept and Fri 25 Sept — delivery 560 DH incl. VAT all over Morocco

The estimate is refined using actual delivery rounds to your city.

  • Free delivery from 3 000 DH of purchases, all over Morocco.
  • Below that, the same rate in every city for parcels up to 30 kg (delivery to your home or workplace) — the exact amount is shown above, then in the basket.
  • Above 30 kg, the rate follows the parcel's weight. In Casablanca, the flat rate holds up to 120 kg.
  • You are notified by SMS, then called by the courier before your parcel is handed over (delivered by Sapress).
  • Observed delivery time: 1 to 5 working days depending on the city.
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)

In-store collection — free

Casablanca store
We bring it to the store within 24 h
We call you as soon as it arrives in store.

Résidence Manoir des Roses, Lot. 18, Boulevard El Hachmi El Filali, Rond-point Bachkou, Casablanca

Opening hours

  • Mon–Fri: 10am – 7pm
  • Sat: 10am – 2pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

Temara pickup point
We bring it to the store within 48 h
We call you as soon as it arrives in store.

Boulevard Hassan II, Résidence Les Perles de Témara, Immeuble 5, appartement 2, Témara

Opening hours

  • Mon–Fri: 8.30am – 1pm / 2pm – 6pm
  • Sat: 8.30am – 12.30pm
  • Closed on Sundays and public holidays

Payment on site: cash, bank card via terminal, certified cheque.

View the map on Google Maps

1 year warranty — free repair in Morocco if it breaks down during the warranty period

1 year manufacturer's warranty

This product is covered for 1 year by a manufacturer's warranty (the brand's official warranty). Your iris.ma invoice serves as the warranty document: keep it safe.

A problem with your product? Don't worry: contact us by phone, WhatsApp or e-mail. Depending on the brand, we direct you either straight to the repairer appointed by the brand to fix your product, or to us — and we take care of the rest.

  • If a repair is possible, it is carried out free of charge.
  • If the product cannot be repaired, the brand offers an exchange for another product.
  • If no product is available, a refund is issued as soon as the brand confirms it.

Faulty straight out of the box? Some brands offer an immediate exchange, others a repair. Contact us to find out what applies to your product.

The warranty covers breakdowns occurring under normal use, as defined by the brand's terms. Product breakage (drop, impact, liquid…) is not covered, nor are certain consumable parts.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

New, never opened — our commitment

All our products are new, delivered in their sealed original packaging.

We commit to never sending you a product that has been opened, unboxed or returned by another customer — even one “just opened for checking”.

Any doubt on delivery (damaged box, seal already opened)? Point it out to the courier or contact us immediately: we take the product back and send you another one.

Sales invoice

Every order comes with its sales invoice, included with the parcel (handed over in person for a store collection).

Ordering for a company? Using the details you give at checkout (company name and ICE), the invoice is issued in your company's name, with its ICE.

Need a quote? Request a free quote — reply within 24 working hours.

100% secure payment: Bank transfer · Bank card · Certified cheque

Accepted payment methods

Bank transfer

Simply transfer the amount shown to account 007 826 0002684000000426 89 — SGM2I, Attijariwafa bank. The rest (the reference to quote, sending us the proof, tracking) is explained right after confirmation and by email. An instant transfer is recommended: it saves you 24 hours on the delivery time.

Bank card

Your everyday Moroccan bank card is enough — Visa, Mastercard or CMI, no special card required. Foreign cards are accepted too. Secure payment by Attijari Payment.

Certified cheque

Certified cheque payable to “sgm2i”. Have your bank certify the cheque, then send us a copy on WhatsApp (+212 6 64 10 46 24) or to service.client@iris.ma — we dispatch as soon as we receive it.

The methods offered depend on the order total and the carrier — checkout shows the final list.

Google reviews4.7(553 reviews)
Manufacturer's datasheetView the PDF · 1,9 Mo — downloadable

Product overview

36-inch plotter for design offices and architects: prints up to A0, 6 colours and fast output.
Type: single-function plotter (large-format printing)
Print width: 914 mm (36") — plans and posters up to A0
Colours: 6 inks — sharp technical plans and faithful rendering; pigment matte black that resists water and light
Printhead: replaceable — easy maintenance
Speed: 19 seconds per A1 (180 A1/h) — fast throughput
Resolution: up to 2400 x 1200 dpi · Line accuracy: ± 0.1%
Memory: 128 GB — handles large CAD files without slowing down
Connectivity: Gigabit Ethernet, Wi-Fi and printing from a USB flash drive
A plotter built for intensive CAD production: accurate and made to last.

See all the specifications ↓
Request a quote

Be notified of a price drop

Share:

Technical specifications

Technical specifications
Hard drive capacity500 GB self-encrypting
Mobile printingHP Smart app for iOS and Android, AirPrint, HP ePrint, HP Click, email printing
Compatible operating systemsWindows · macOS · Android and iOS · Chrome OS
Printing technologyHP thermal inkjet printing
Recommended media weight60 to 328 g/m²
Roll outer diameterUp to 140 mm
Printer languagesHP-GL/2, HP-RTL, TIFF, JPEG, CALS G4 · Adobe PostScript 3 and Adobe PDF 1.7 optional
EthernetYes
FormatUp to A4
Power consumptionPrinting: 100 W · Ready: < 36 W · Sleep: < 1 W (< 10 W with integrated Digital Front End) · Off: 0.3 W
Noise levelSound pressure: 42 dB(A) when printing, 32 dB(A) when idle, < 17 dB(A) in sleep mode · Sound power: ≤ 5.9 B(A) when printing, 4.9 B(A) when idle, ≤ 3.5 B(A) in sleep mode
Operating temperature5 to 35 °C, 20 to 80% relative humidity
Number of cartridges6 cartridges
Print colourColour
FunctionsPrint
Model size36 inches (914 mm)
Maximum media width914 mm (roll: 279 to 914 mm)
Print resolutionUp to 2,400 x 1,200 optimised dpi
Print consumable colour(s)Cyan, magenta, yellow, photo black, matte black, grey
Ink typesDye-based colour ink (C, M, Y, pK, G), Pigment-based ink (mK)
Ink capacity300 ml (C, M, Y, G, pK, mK), 130 ml (C, M, Y, G, pK, mK)
Print speed180 A1/h, 19.3 s/A1
Technical specifications (continued)
Line accuracy± 0.1%
Paper feed and outputSheet feed, automatic front-loading rolls, integrated output stacker, media bin, automatic horizontal cutter
Stand and output binPrinter stand and media bin included
Supported media sizes/formatsCustom media sizes: 210 x 279 to 914 x 1219 mm Supported media formats: A4, A3, A2, A1, A0
Media thicknessUp to 0.5 mm
Media typesPlain and coated paper (plain, coated, heavyweight coated, super heavyweight coated and matte, coloured), technical paper (natural tracing, plain translucent, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit film, self-adhesive (double-sided clear, indoor paper, polypropylene, vinyl)
Margins - printable areaNon-printable area (sheet) 3 x 22 x 3 x 3 mm Non-printable area (roll media) 3 x 3 x 3 x 3 mm
Memory128 GB
Dimensions1390 x 760 x 1080 mm - Packaging dimensions: 1477 x 767 x 800 mm
Weight82 kg - Carton/package weight: 113 kg
ConnectivityGigabit Ethernet (1000Base-T), Wi-Fi with the optional Jetdirect accessory · TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP v1/v2c/v3, Bonjour, WS Discovery, embedded web server (HTTP, HTTPS), IPsec, SMTP, Raw IP 9100, LPD, IPP, WS Print, NTLM v2, SMBv3, SSL/TLS, 802.1X (LEAP, PEAP, EAP-TLS), DFS
Power supply100-240 V (± 10%), 50/60 Hz (± 3 Hz), 2 A max Power consumption: 100 W (printing) < 36 W (ready) < 1 W (< 10 W with integrated Digital Front End) (sleep) 0.3 W (off)
Box contentsHP DesignJet T1600 printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
Included softwareHP Click, HP Mobile, ePrint and iOS/Android support and the HP Smart mobile app, HP Web Jetadmin, HP JetAdvantage Security Manager.
ConsumablesB3P06A HP 727 DesignJet printhead P2V62A HP 730 DesignJet ink cartridge, cyan, 130 ml P2V63A HP 730 DesignJet ink cartridge, magenta, 130 ml P2V64A HP 730 DesignJet ink cartridge, yellow, 130 ml P2V65A HP 730 DesignJet ink cartridge, matte black, 130 ml P2V66A HP 730 DesignJet ink cartridge, grey, 130 ml P2V67A HP 730 DesignJet ink cartridge, photo black, 130 ml P2V68A HP 730 DesignJet ink cartridge, cyan, 300 ml P2V69A HP 730 DesignJet ink cartridge, magenta, 300 ml P2V70A HP 730 DesignJet ink cartridge, yellow, 300 ml P2V71A HP 730 DesignJet ink cartridge, matte black, 300 ml P2V72A HP 730 DesignJet ink cartridge, grey, 300 ml P2V73A HP 730 DesignJet ink cartridge, photo black, 300 ml
Number of colours6 colours
InterfacesEthernet, Direct printing from a USB flash drive
Scanner featuresNo scanner
Scan speedNo scanner
Optical scan resolutionNo scanner
Size36" - 914 mm
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is Wi-Fi included on the HP DesignJet T1600 plotter?
No: it requires the Jetdirect accessory, sold as an option. As standard, the machine connects via Gigabit Ethernet. This needs settling before installation, as it determines where the plotter can be placed on the premises.
How fast is the HP DesignJet T1600 plotter?
19 seconds per A1, or 180 A1 prints per hour — the fastest in this category. Its 128 GB of memory absorbs heavy CAD files without the machine pausing between two drawings.

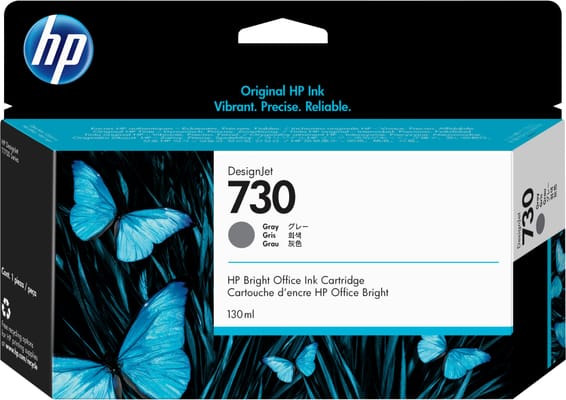

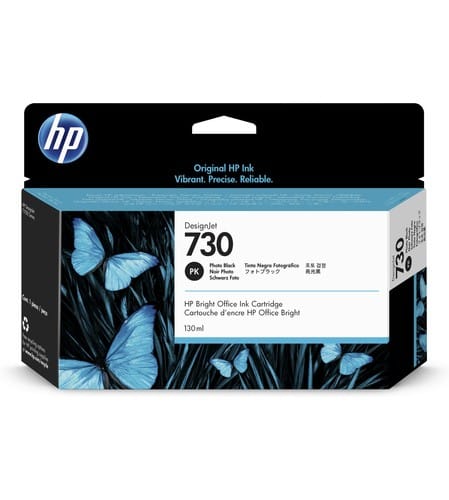

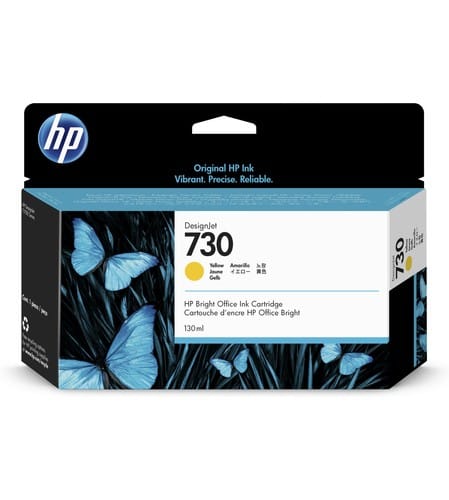

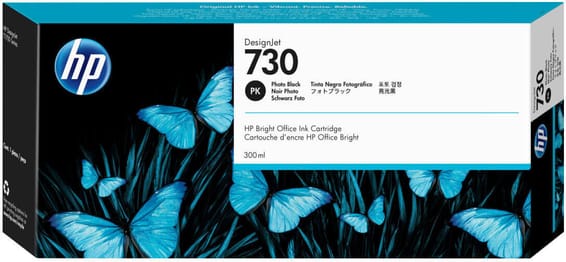

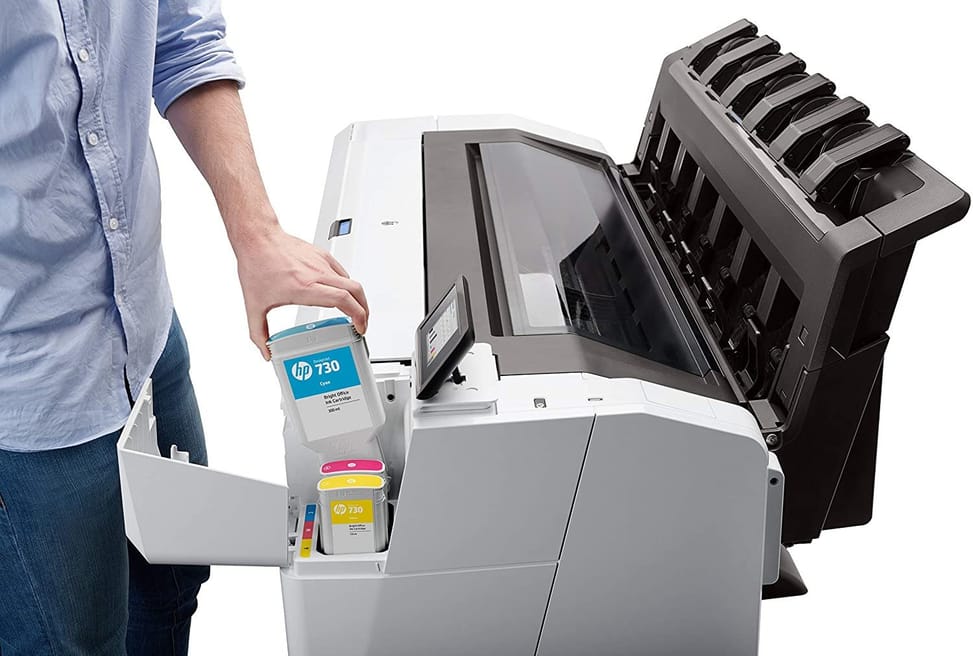

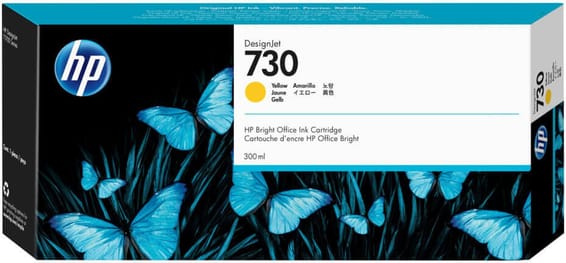

Which ink cartridges does the HP DesignJet T1600 use?
HP 730 cartridges, in six colours — cyan, magenta, yellow, grey, photo black and matte black — in 130 ml or 300 ml. The printhead part number is HP 727 (B3P06A): it is a separate consumable, to be included in the running budget.
Can the HP DesignJet T1600 print from a USB flash drive?
Yes, direct printing from a USB flash drive is one of its interfaces. It also accepts jobs sent by email via HP ePrint and from iOS, Android and Chrome OS mobile apps.

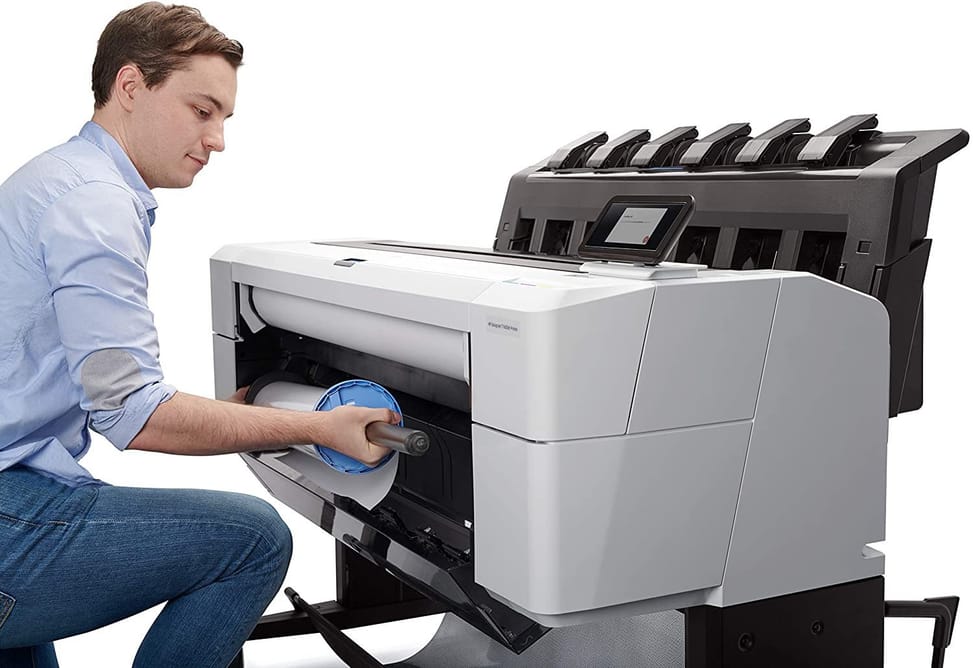

Is loading the roll easy on the HP DesignJet T1600?
It is done from the front, with automated loading. The machine has a built-in output stacker, a media bin and an automatic horizontal cutter: prints stack up on their own, without an operator having to collect them one by one.
Is the HP DesignJet T1600 plotter suitable for a corporate network?
Yes. It supports IPsec, 802.1X authentication (LEAP, PEAP, EAP-TLS), SSL/TLS and SNMP v3, and is managed through HP JetAdvantage Security Manager. That is the level an IT department requires before connecting a machine to the network.
What formats does the HP DesignJet T1600 accept?
From A4 to A0, on a 914 mm roll width, with custom formats from 210 x 279 to 914 x 1,219 mm. Media thickness can reach 0.5 mm, which covers tracing paper as well as heavy coated paper.
How much power does the HP DesignJet T1600 plotter use?
100 W when printing, less than 36 W when idle, less than 1 W in sleep mode and 0.3 W when off. The 36 W at idle is the figure to watch: that is the state an engineering office machine spends most of its day in.
What margins does the HP DesignJet T1600 leave?
3 mm on all four sides on rolls, but 3 x 22 x 3 x 3 mm on sheets — 22 mm on one edge. A difference to factor in right from the drawing layout if the title block runs to the very edge of the format.
How much space does the HP DesignJet T1600 plotter take up?
1,390 x 760 x 1,080 mm for 82 kg. The shipping box weighs 113 kg and measures 1.477 m: arrange handling and check the route to its final location before ordering.
Is the HP DesignJet T1600 plotter new and under warranty?
New, part number 3EK10A, in original HP packaging, with its printer stand, media bin, spindle, printheads and introductory cartridges. The invoice serves as the warranty document for 1 year. The HP datasheet details the specifications.
