Canon

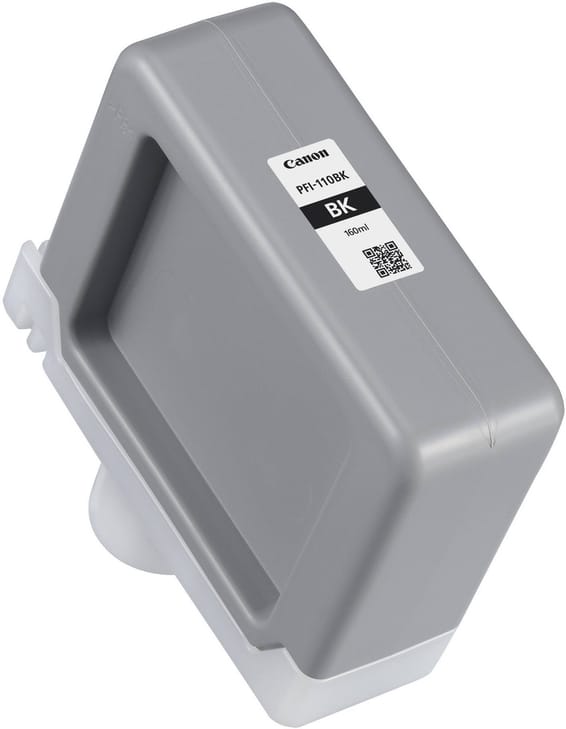

Canon PFI-110BK Black (2364C001AA) - Original Canon Ink Cartridge
Out of stock
1 419 DHincl. VAT1 419,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Visit the Canon store

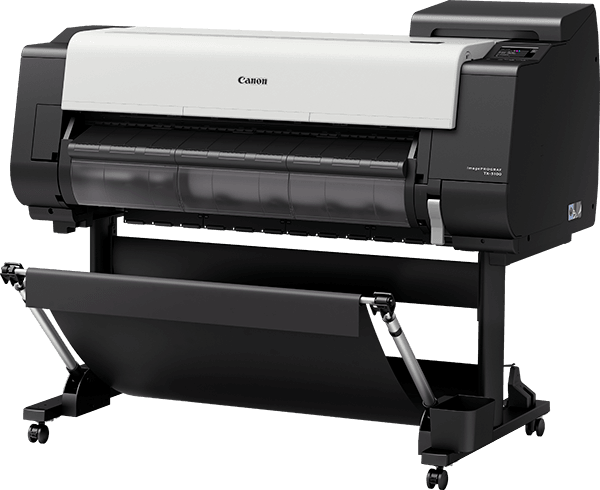

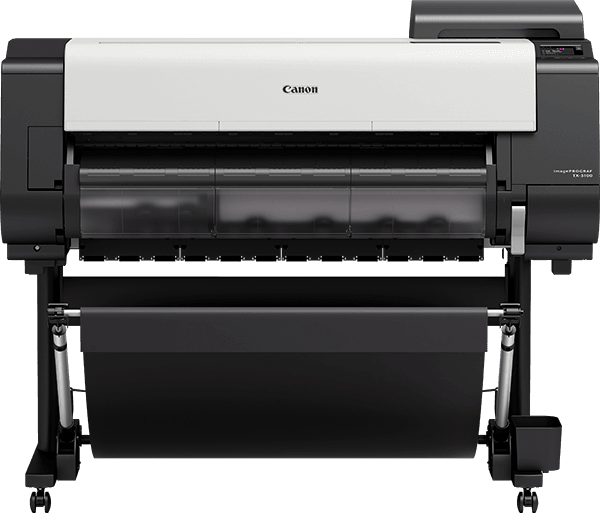

Canon imagePROGRAF TX-3100 36'' Plotter (4600C003)
5 pigment inks, 128 GB of memory plus a 500 GB hard drive and Ethernet/Wi-Fi/USB connectivity, for production use.
- 5 pigment inks
- Speed 18 s per A1 page (fast mode)
- Resolution 2400 x 1200 dpi
- 128 GB memory + 500 GB hard drive
- Ethernet, Wi-Fi and USB connectivity
Ref.: 4600C003
50 599,00 DHincl. VAT
Limited quantity
Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 780 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
36-inch plotter for intensive CAD production: prints up to A0, large memory and fast output.
Print width: 914 mm (36") — plans and posters up to A0
Colours: 5 pigment inks — sharp technical plans, prints that resist water and light
Printhead: replaceable — easy maintenance
Speed: one A1 in 18 seconds in fast mode — fast throughput
Resolution: 2400 × 1200 dpi · Line accuracy: ± 0.1%
Memory: 128 GB + 500 GB hard drive — manages and archives the largest projects
Connectivity: Ethernet, Wi-Fi and printing from a USB flash drive
Designed for design offices that turn out plans in high volumes, one job after another.
Request a quoteShare:
Technical specifications
| Hard drive capacity | 500 GB (encrypted) |
|---|---|
| Compatible operating systems | Windows 10, 8.1, 7 (32 and 64-bit) and Windows Server 2008 R2 to 2019 · macOS 10.12.6 to 10.15 |
| Printing technology | Canon Bubblejet on demand, 6 colours, integrated type (6 chips per printhead; 1 printhead) |
| Maximum roll output | 18 m on roll, 1.6 m on sheet |
| Roll outer diameter | Up to 170 mm |
| Roll core | 2 and 3 inches |
| Printer languages | HP-GL/2, HP RTL, PDF 1.7, JPEG |
| Power consumption | Operating: 115 W maximum · Sleep: 2.1 W maximum · Off: 0.3 W maximum |
| Noise level | Sound pressure: 51 dB(A) when operating, 35 dB(A) maximum in sleep mode · Sound power: 6.9 bels maximum (plain paper, standard mode, ISO 7779) |
| Operating temperature | 15 to 30 °C, 10 to 80% relative humidity, non-condensing |
| Functions | |
| Model size | 36 inches (917 mm) |
| Maximum media width | 917 mm (roll and sheet: 152.4 to 917 mm) |
| Print resolution | 2,400 × 1,200 dpi |
| Print consumable colour(s) | Matte black (MBK), black (BK), cyan (C), magenta (M), yellow (Y) |
| Ink types | Pigment inks: 5 colours MBK / C / M / Y / BK |
| Ink capacity | Supplied ink: 330 ml (MBK)/160 ml (C, M, Y, BK) Ink available for purchase: 160 ml / 330 ml / 700 ml |
| Printhead nozzles | Total: 15,360 nozzles · MBK: 5,120 nozzles · C, M, Y, BK: 2,560 nozzles each |
| Ink droplet size | 5 pl minimum per colour |
| Print speed | Line drawing: Plain paper (A1): 0:18 (fast economy mode), 3.2 ppm Plain paper (A0): 0:34 (fast economy mode) 00:37 (fast) 1:04 (standard) Poster: Plain paper (A0): 0:37 (fast economy mode) 0:42 (fast) 1:15 (standard) Heavy coated paper (A0): 1:38 (fast) 2:33 (standard) |
| Line accuracy | ± 0.1% maximum, after user adjustment, on CAD paper (plain, tracing, coated or matte translucent film) |
|---|---|
| Paper feed and output | Roll paper: one roll, front loading and output Sheet: front loading and output (manual feed using the media lock lever) |
| Supported media sizes/formats | Media width: Roll paper: 152.4 mm - 917 mm / Sheet: 152.4 mm - 917 mm Minimum printable length: Roll paper: 101.6 mm (except fabric, canvas, tracing paper and matte translucent film, for which it is 200 mm); Sheet: 203.2 mm Maximum printable length: Roll paper: 18 m (varies by operating system and application); Sheet: 1.6 m |
| Media thickness | Roll/Sheet: 0.07 mm - 0.8 mm |
| Margins - printable area | Roll paper: top: 3 mm, bottom: 3 mm, side: 3 mm Roll paper (borderless): top: 0 mm, bottom: 0 mm, side: 0 mm Sheet: top: 3 mm, bottom: 20 mm, side: 3 mm |
| Memory | 128 GB (physical memory: 2 GB) |
| Dimensions | Physical dimensions and weight: 1390 × 984 × 1168 mm (basket open) 1390 × 766 × 1168 mm (basket closed) Packaging dimensions and weight: Printer (main unit with pallet): 1606 × 903 × 1061 mm Roll unit: 1524 × 562 × 461 mm |
| Weight | 105 kg (with roll holder and roll unit; excluding ink and printheads) Printer (main unit with pallet): 149 kg Roll unit: 26 kg |
| Connectivity | USB A port: direct printing from a USB flash drive for JPEG/PDF files USB B port: built-in Hi-Speed USB Ethernet: 10/100/1000 Base-T Wireless LAN: IEEE802.11n / IEEE802.11g / IEEE802.11b |
| Power supply | 100 to 240 V AC, 50/60 Hz |
| Box contents | Printer, 1 printhead, 1 roll holder (spool), 3-inch main paper module, 1 set of starter ink tanks, setup guide, safety and environmental standards booklet User software CD-ROM (Windows), PosterArtist Lite CD-ROM European Biocidal Products Regulation, Eurasian Economic Community regulation, important information |
| Included software | imagePROGRAF TX printer driver and PosterArtist Lite Other software available for download from the web. |
| Consumables | PFI-110 (160 ml), PFI-310 (330 ml), PFI-710 (700 ml) ink tanks · PF-06 printhead · CT-07 cutter blade · MC-30 maintenance cartridge |
| Number of colours | 5 colours |
| Interfaces | USB-B, Ethernet, Wi-Fi, USB-A (direct printing from a USB flash drive for JPEG/PDF files) |
| Scanner features | No scanner |
| Scan speed | No scanner |
| Optical scan resolution | No scanner |
| Size | 36" - 914 mm |
| Warranty | 1 year |
Specific references
| EAN | 4549292184075 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Does the Canon TX-3100 plotter have a hard drive?
Yes, a 500 GB hard drive, in addition to 128 GB of memory for processing. It lets you keep jobs on the machine and reprint without resending the file — a real time-saver when the same drawing goes out several times over the course of a project.
How long does the Canon TX-3100 take to print an A1 drawing?
18 seconds in economy fast mode, or 3.2 pages/min. An A0 takes 34 seconds in that same mode, 37 seconds in fast mode and 1 min 04 in standard mode: three speeds to choose from depending on what the print is for.

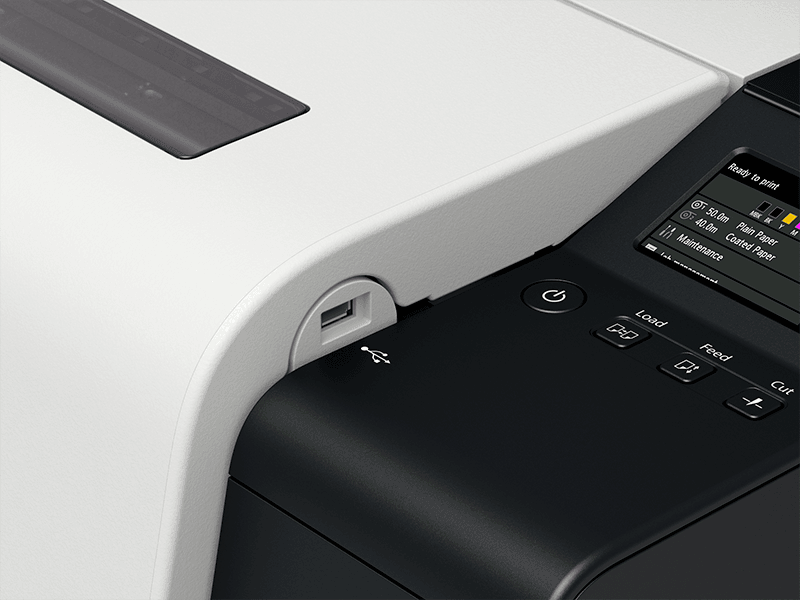

Can you print from a USB flash drive on the Canon TX-3100?
Yes, its USB Type-A port accepts direct printing of JPEG and PDF files from a flash drive, without a computer. The machine also connects via Gigabit Ethernet, Wi-Fi and Hi-Speed USB.

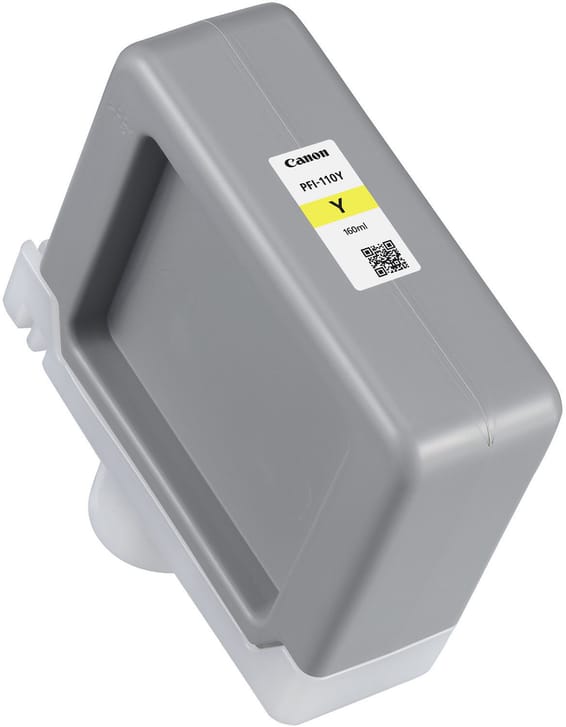

Which ink tanks does the Canon imagePROGRAF TX-3100 use?
The PFI-110 (160 ml), PFI-310 (330 ml) and PFI-710 (700 ml), in five pigment inks. The machine is supplied with 330 ml of matte black and 160 ml of each of the other four: the 700 ml tanks, for their part, significantly lower the cost per metre in production.
Do you have to stop the Canon TX-3100 to change an ink?
No, the tanks are replaced without interrupting printing. On a batch of drawings started at the end of the day, this is what stops an empty tank from halting production until the next morning.
Can the Canon TX-3100 print borderless on custom sizes?
Yes, borderless printing is possible on custom sizes, with 0 mm on all four sides on roll paper. With margins, allow 3 mm on roll paper and 3 mm at the top, 20 mm at the bottom on cut sheets.
What media does the Canon imagePROGRAF TX-3100 accept?
Media widths from 152.4 to 917 mm, on rolls and cut sheets alike, with a thickness of 0.07 to 0.8 mm. The printable length reaches 18 metres on roll paper and 1.6 m on cut sheets. The LUCIA TD pigment ink makes the prints durable.
How does the Canon TX-3100 prevent clogged nozzles?
With a system that detects and compensates for non-firing nozzles, at a density of 1,200 dpi x 2 rows. The printhead has 15,360 nozzles in total and fires 5-picolitre droplets: a faulty nozzle is compensated for before the defect shows up on the drawing.
How accurate are lines on the Canon TX-3100?
± 0.1% at most, under two stated conditions: an adjustment made by the user under actual operating conditions, and media chosen from plain paper, tracing paper, coated paper or translucent matte film. Outside these conditions, the figure is not guaranteed.

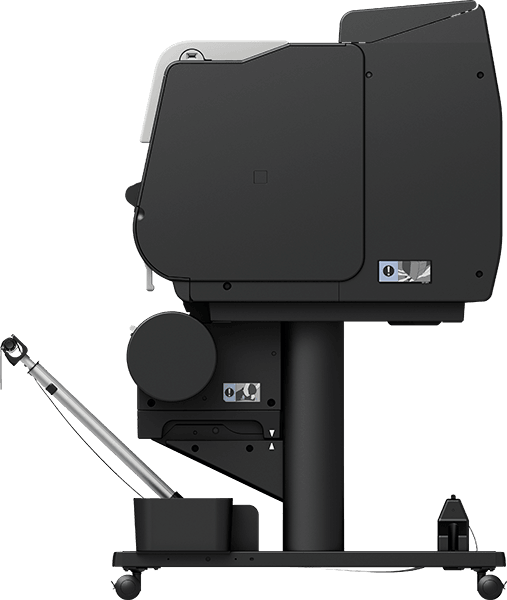

How much space does the Canon TX-3100 plotter need, and how much does it weigh?
1,390 x 984 x 1,168 mm with the basket open, or 766 mm deep with the basket closed, for 105 kg excluding ink and printheads. The main shipping box weighs 149 kg and the roll unit 26 kg: handling needs to be arranged before you order.
How much power does the Canon imagePROGRAF TX-3100 plotter use?
115 W maximum in operation, 2.1 W in sleep mode and 0.3 W when switched off, on 100-240 V. By default, it goes into sleep mode after 5 minutes of inactivity.
Is the Canon imagePROGRAF TX-3100 plotter new and covered by a warranty?
New, part number 4600C003, in original Canon packaging, with its printhead, roll holder, 3-inch paper core attachment, starter ink tanks and PosterArtist Lite software. The invoice serves as the warranty document for 1 year.
