HP DesignJet T1600 PostScript 36-inch Plotter (3EK11A)

An A1 plot every 19 seconds, up to 180 an hour, with a stacker that takes around a hundred pages unattended. Six inks for crisp drawings as well as colour renderings.

  • 19.3 s per A1 plot, up to 180 A1 plots per hour
  • A4 to A0 sizes, rolls from 279 to 914 mm
  • 6 inks: cyan, magenta, yellow, grey, photo black and matte black
  • Built-in stacker for up to 100 pages
  • PostScript 3 interpreter and built-in Adobe PDF engine
  • Resolution up to 2400 x 1200 optimised dpi
  • Line accuracy of plus or minus 0.1%
  • Gigabit Ethernet; Wi-Fi with the optional HP Jetdirect accessory
  • Printing from a USB flash drive, a shared network folder or an email
  • Cartridges of 130 or 300 ml
  • Automatic horizontal cutter and receiving bin
  • 128 GB memory and 500 GB encrypted hard drive
Ref.: 3EK11A

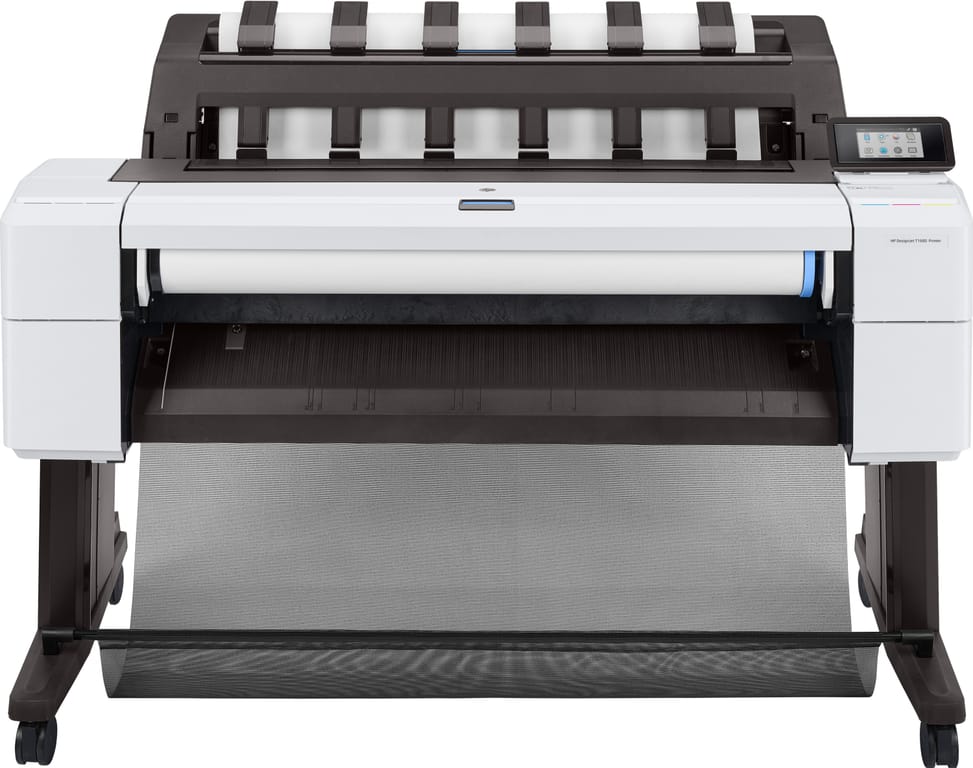

HP DesignJet T1600 PostScript 36-inch Plotter (3EK11A) — image 1

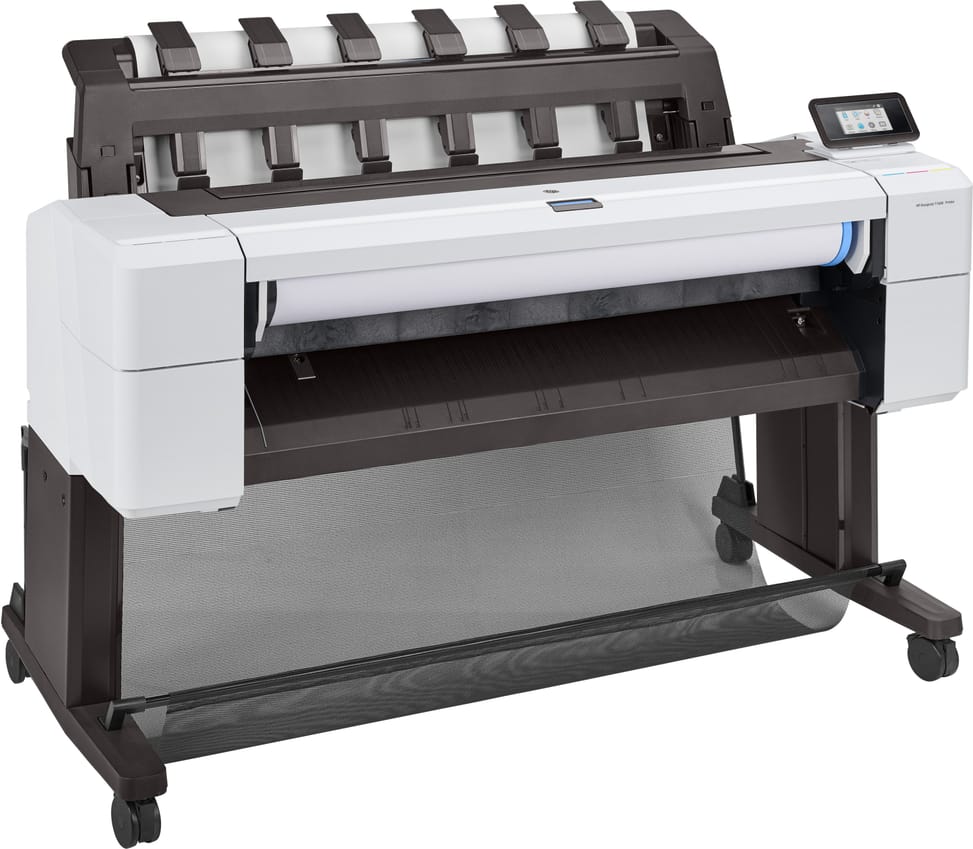

HP DesignJet T1600 PostScript 36-inch Plotter (3EK11A) — image 2

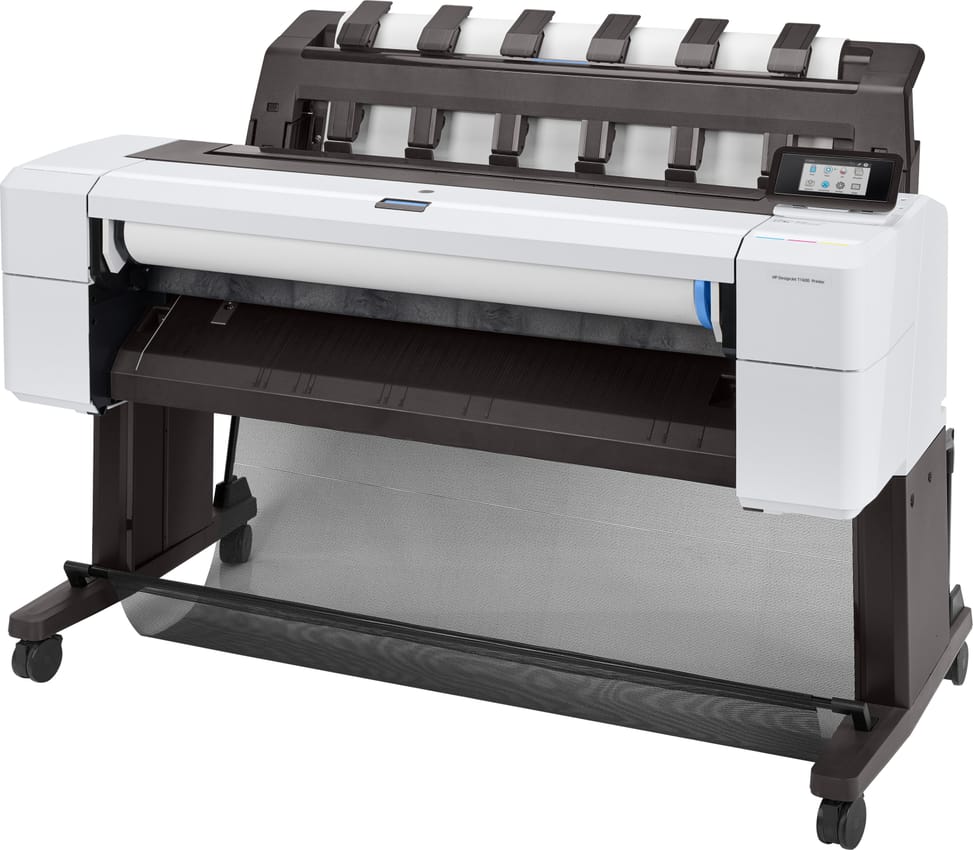

HP DesignJet T1600 PostScript 36-inch Plotter (3EK11A) — image 3

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Paper trays : extra trays, stands, cabinets and the automatic document feeder visible in the image are very often options sold separately.
  • Consumables : the cartridges and toners photographed are not included unless stated; those supplied with the machine are frequently reduced-capacity starter consumables.
  • Features : automatic duplex, touchscreen, Wi-Fi, fax or flatbed scanner cannot be inferred from a photo — only the specifications are binding.
  • Cables : the USB cable is generally not supplied; only the power cord is.
  • Format and version : one image serves a whole series (A4 or A3, monochrome or colour, with or without Wi-Fi).
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/3
98 199,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 1,9 Mo — downloadable

Product overview

36-inch PostScript plotter for design offices and architects: prints up to A0, PostScript and fast output.
Type: single-function plotter (large-format printing)
Print width: 914 mm (36") — plans and posters up to A0
Colours: 6 inks — sharp plans and faithful rendering; pigment matte black that resists water and light
Printhead: replaceable — easy maintenance
Speed: 19 seconds per A1 (180 A1/h) — fast throughput
Resolution: up to 2400 x 1200 dpi · Line accuracy: ± 0.1%
Memory: 128 GB
Connectivity: Gigabit Ethernet, Wi-Fi with the optional Jetdirect accessory, and printing from a USB flash drive
The PostScript version faithfully reproduces PDFs and professional layout files.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Hard drive capacity500 GB self-encrypting
Mobile printingHP Smart app for iOS and Android, AirPrint, HP ePrint, HP Click, email printing
Compatible operating systemsWindows · macOS · Android and iOS · Chrome OS
Printing technologyHP thermal inkjet
Recommended media weight60 to 328 g/m²
Roll outer diameterUp to 140 mm
Printer languagesAdobe PostScript 3, Adobe PDF 1.7, HP-GL/2, HP-RTL, TIFF, JPEG, CALS G4
Power consumptionPrinting: 100 W · Ready: < 36 W · Sleep: < 1 W (< 10 W with integrated Digital Front End) · Off: 0.3 W
Noise levelSound pressure: 42 dB(A) when printing, 32 dB(A) when idle, < 17 dB(A) in sleep mode · Sound power: ≤ 5.9 B(A) when printing, 4.9 B(A) when idle, ≤ 3.5 B(A) in sleep mode
Operating temperature5 to 35 °C, 20 to 80% relative humidity
FunctionsPrint
Model size36 inches (914 mm)
Maximum media width914 mm (roll: 279 to 914 mm)
Print resolutionUp to 2,400 x 1,200 optimised dpi
Print consumable colour(s)Cyan, magenta, yellow, grey, photo black, matte black
Ink typesDye-based colour ink (C, M, Y, pK, G); Pigment-based ink (mK)
Ink capacity300 ml (C, M, Y, G, pK, mK); 130 ml (C, M, Y, G, pK, mK)
Print speed180 A1/h, 19.3 s/A1[1]
Line accuracy± 0.1% [2]
Paper feed and outputSheet feed, automatic front-loading rolls, integrated output stacker, media bin, automatic horizontal cutter
Technical specifications (continued)
Stand and output binPrinter stand and media bin included
Supported media sizes/formatsCustom media sizes: 210 x 279 to 914 x 1219 mm, Supported media formats: A4, A3, A2, A1, A0
Media thicknessUp to 0.5 mm
Media typesPlain and coated paper (plain, coated, heavyweight coated, super heavyweight coated and matte, coloured), technical paper (natural tracing, plain translucent, vellum), film (clear, matte, polyester), photographic paper (satin, gloss, semi-gloss, matte, high-gloss), backlit film, self-adhesive (double-sided clear, indoor paper, polypropylene, vinyl)
Margins - printable areaNon-printable area (sheet) 3 x 22 x 3 x 3 mm Non-printable area (roll media) 3 x 3 x 3 x 3 mm
Memory128 GB
DimensionsPackaging dimensions (W x D x H) 1477 x 767 x 800 mm Minimum dimensions (W x D x H) 1390 x 760 x 1080 mm
Weight82 kg (Carton/package weight: 113 kg)
ConnectivityGigabit Ethernet (1000Base-T), Wi-Fi (with the optional Jetdirect accessory), supporting the following standards: TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour compatible, WS Discovery, embedded web server (HTTP, HTTPS), IPsec, SMTP (e-mail), Raw IP printing (9100), LPD, IPP, WS Print, NTLM v2, SMBv3, SSL/TLS, 802.1 X authentication (LEAP, PEAP, EAP-TLS), DFS
Power supplyInput voltage (auto-selecting) 100-240 V (± 10%), 50/60 Hz (± 3 Hz), 2 A max
Box contentsHP DesignJet T1600 printer, printer stand and media bin, spindle, printheads, introductory ink cartridges, user guide, power cords
Included softwareHP Click, HP Mobile, ePrint and iOS/Android support and the HP Smart mobile app, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartTracker (optional)
ConsumablesHP 730 DesignJet cartridges, 130 ml: P2V62A cyan, P2V63A magenta, P2V64A yellow, P2V65A matte black, P2V66A grey, P2V67A photo black · 300 ml: P2V68A, P2V69A, P2V70A, P2V71A, P2V72A, P2V73A · B3P06A printhead (HP 727)
Number of colours6 colours
InterfacesEthernet, USB 2.0, Wi-Fi with the optional Jetdirect 3100w accessory
Scanner featuresNo scanner
Scan speedNo scanner
Optical scan resolutionNo scanner
Size36" - 914 mm
Warranty1 year
