HP DesignJet T630 24-inch Plotter (5HB09A)

Two paper sources, the roll and an A4-A3 feeder, plus a stand with a receiving bin as standard. 30 seconds per A1 plot, four inks and Wi-Fi Direct.

  • 30 s per A1 plot, 76 A1 plots per hour
  • Automatic A4 and A3 feeder in addition to the roll
  • A4 to A1 sizes, rolls from 279 to 610 mm
  • 4 inks: cyan, magenta, yellow and pigment black
  • Stand and receiving bin included
  • Resolution up to 2400 x 1200 optimised dpi
  • Line accuracy of plus or minus 0.1%
  • Gigabit Ethernet, USB 2.0, Wi-Fi and Wi-Fi Direct
  • 20 ml of ink for 101 A1 pages, maintenance routines included
  • 29 ml colour cartridges, 38 or 80 ml in black
  • Automatic horizontal cutter
  • 28.9 kg for 1,013 x 605 x 932 mm
Ref.: 5HB09A

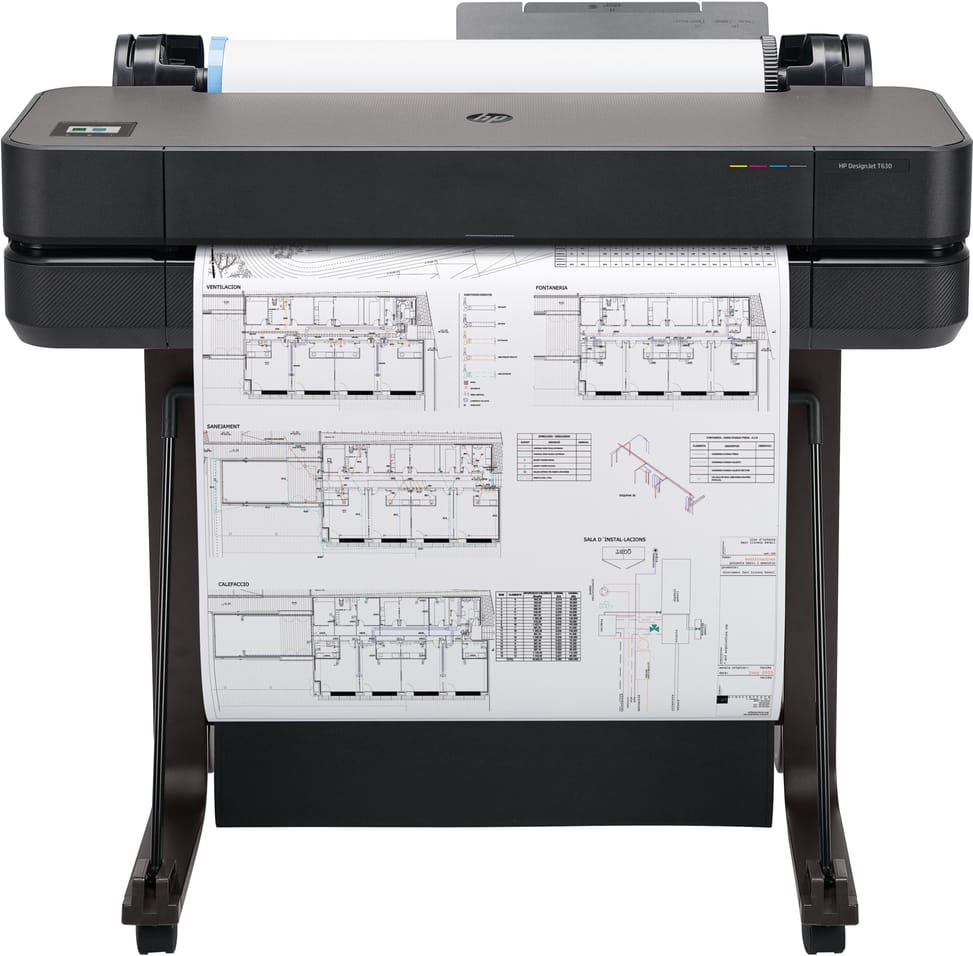

HP DesignJet T630 24-inch Plotter (5HB09A) — image 1

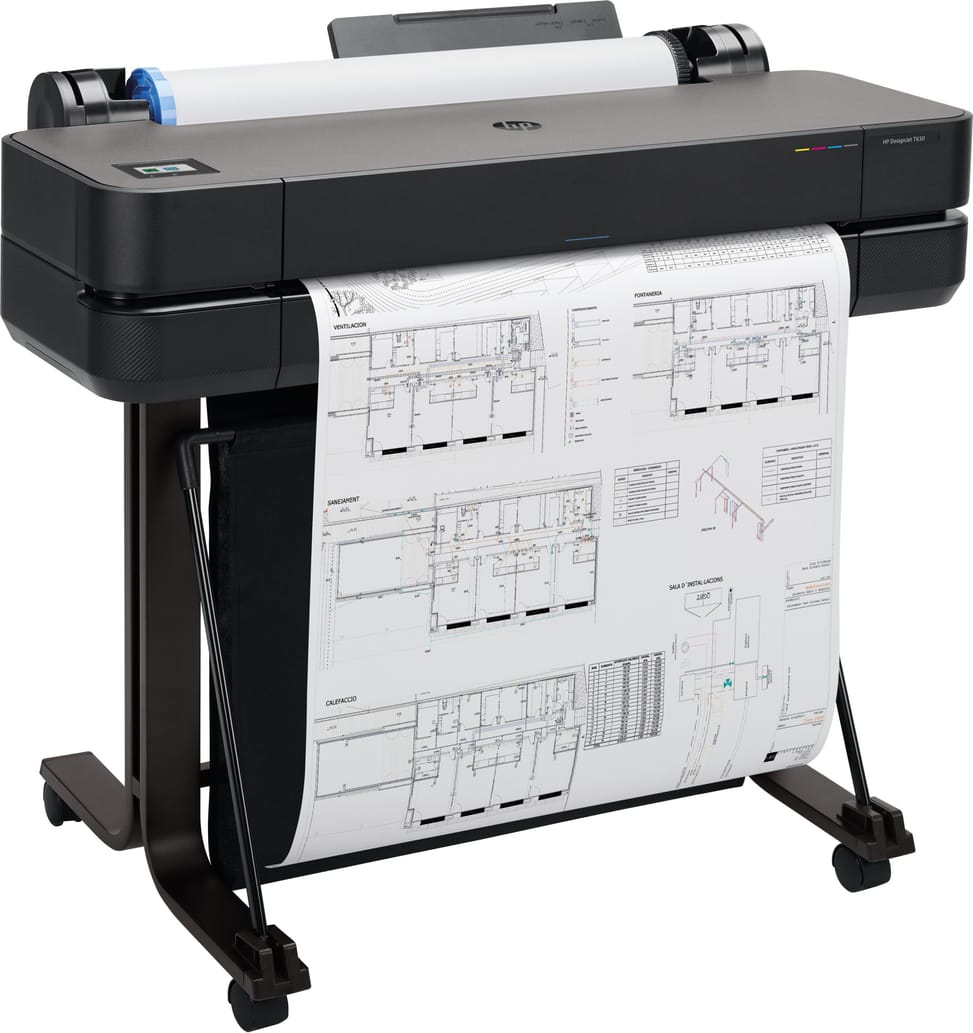

HP DesignJet T630 24-inch Plotter (5HB09A) — image 2

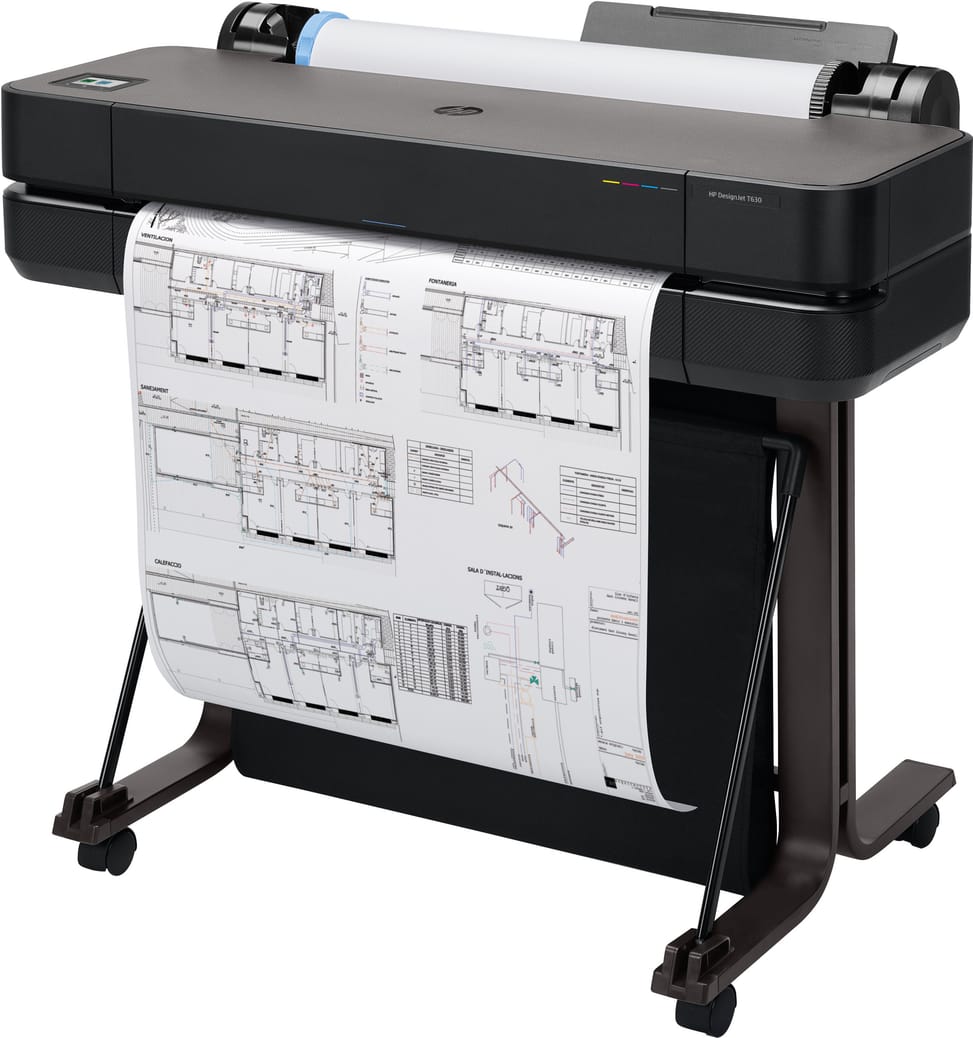

HP DesignJet T630 24-inch Plotter (5HB09A) — image 3

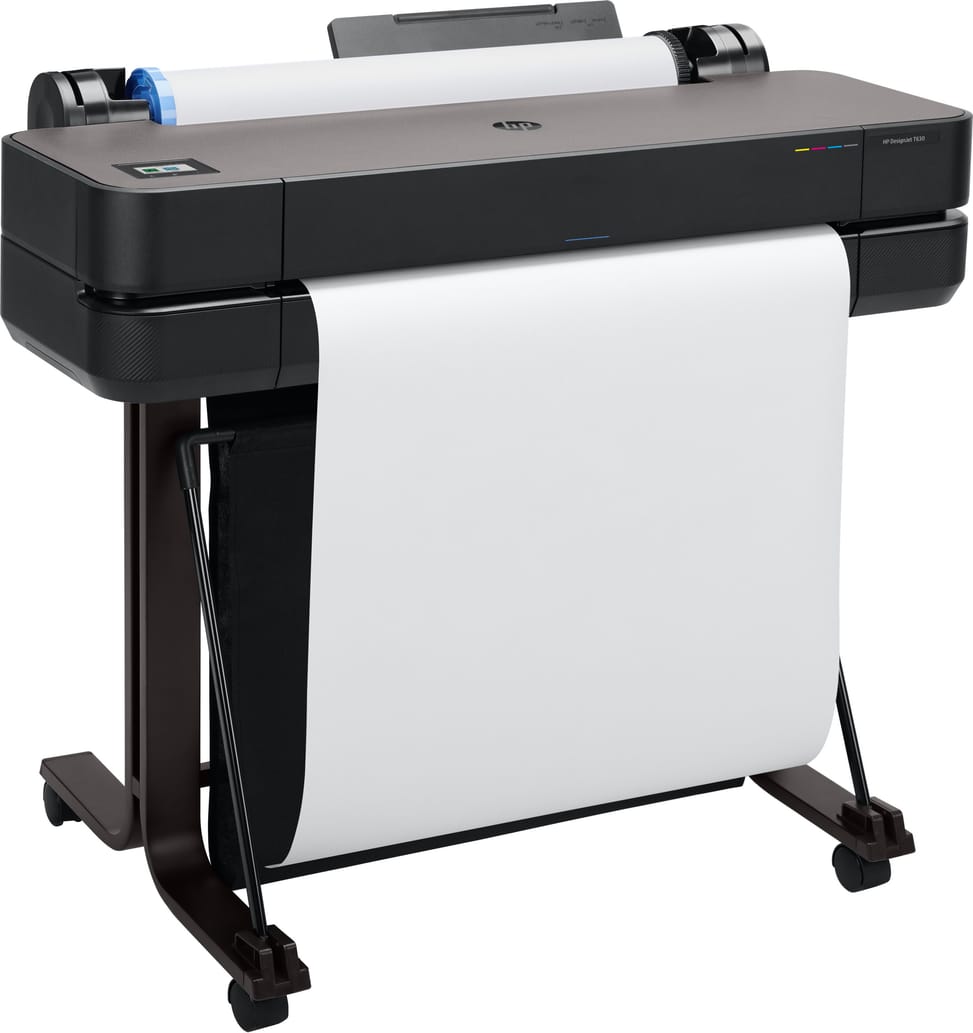

HP DesignJet T630 24-inch Plotter (5HB09A) — image 4

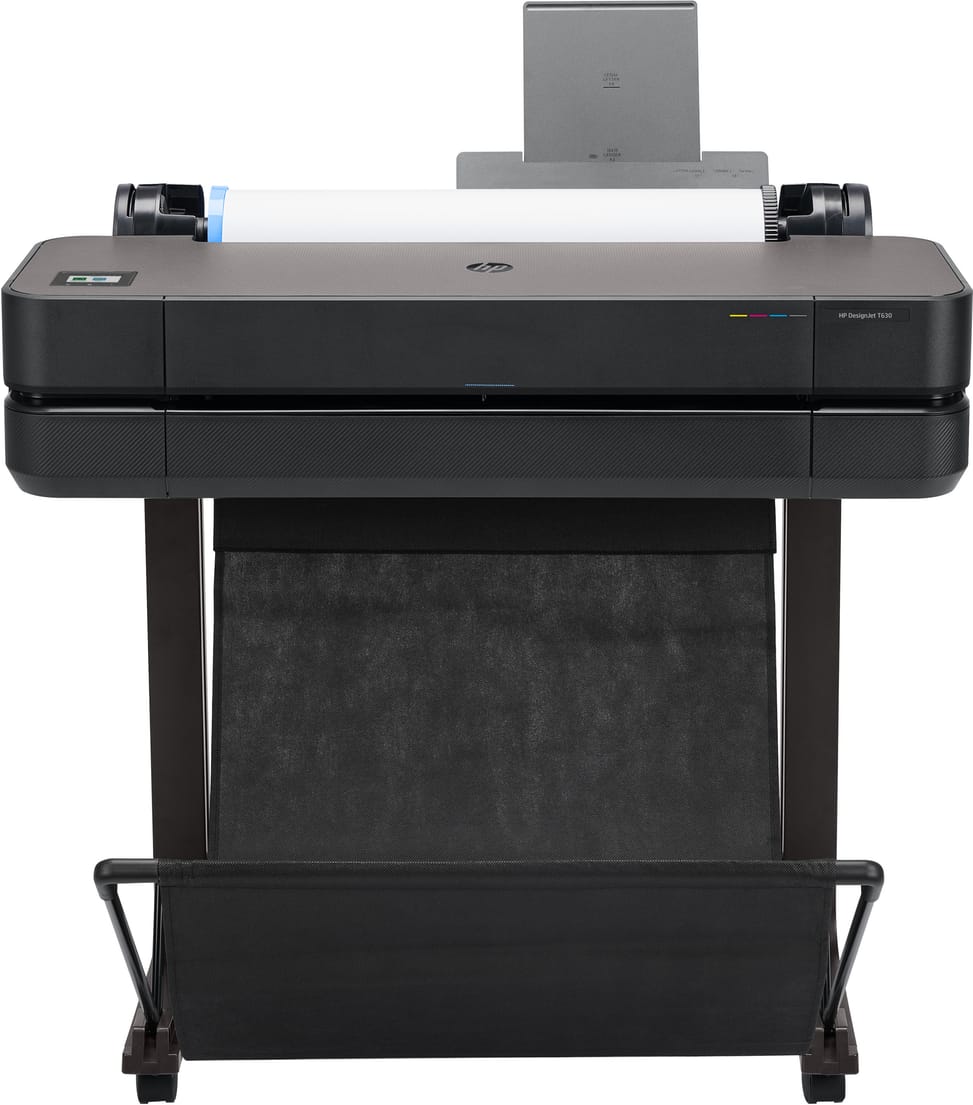

HP DesignJet T630 24-inch Plotter (5HB09A) — image 5

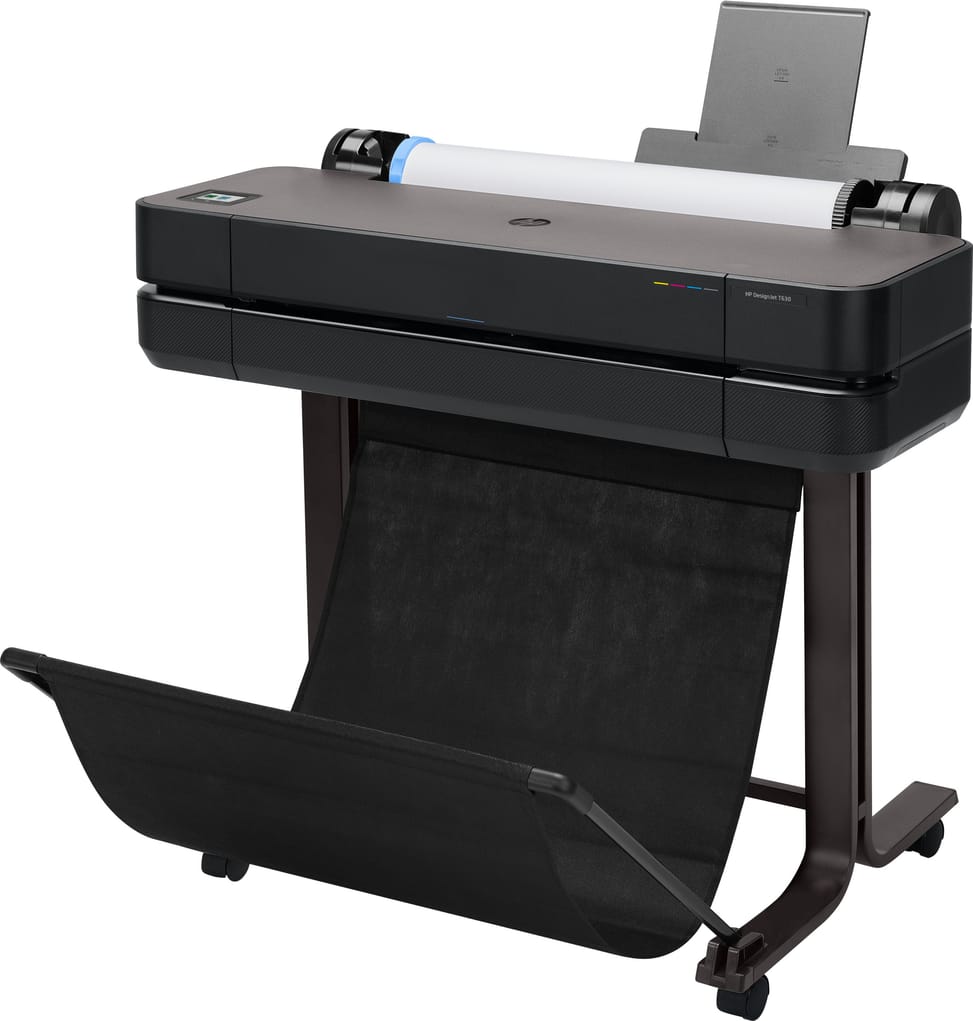

HP DesignJet T630 24-inch Plotter (5HB09A) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Paper trays : extra trays, stands, cabinets and the automatic document feeder visible in the image are very often options sold separately.
  • Consumables : the cartridges and toners photographed are not included unless stated; those supplied with the machine are frequently reduced-capacity starter consumables.
  • Features : automatic duplex, touchscreen, Wi-Fi, fax or flatbed scanner cannot be inferred from a photo — only the specifications are binding.
  • Cables : the USB cable is generally not supplied; only the power cord is.
  • Format and version : one image serves a whole series (A4 or A3, monochrome or colour, with or without Wi-Fi).
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6
19 299,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 2,3 Mo — downloadable

Product overview

24-inch plotter for design offices: prints up to A1, automatic sheet feeder and fast output.
Type: single-function plotter (large-format printing)
Print width: 610 mm (24") — plans and posters up to A1
Colours: 4 inks — optimised for plans and technical drawings; pigment black that resists water and light
Printhead: replaceable — easy maintenance
Speed: 30 seconds per A1 (76 A1/h) — fast throughput
Resolution: up to 2400 x 1200 dpi · Line accuracy: ± 0.1%
Memory: 1 GB
Connectivity: Gigabit Ethernet, Wi-Fi and USB
Its automatic A3/A4 sheet feeder makes it easy to switch between roll and sheet printing.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Hard drive capacityNone
Mobile printingAirPrint, HP Smart app, HP Click, email printing, Android and Chrome OS printing
Compatible operating systemsWindows · macOS · Chrome OS · Android and iOS
Printing technologyHP thermal inkjet printing
Recommended media weight60 to 280 g/m² (roll and manual feed), 60 to 220 g/m² (A3/A4 automatic feeder)
Roll outer diameterUp to 100 mm
Printer languagesHP-GL/2, HP-RTL, CALS G4, JPEG, URF
Power consumptionPrinting: < 35 W · Ready: < 5.6 W · Sleep: < 2.1 W · Off: < 0.2 W
Noise levelSound pressure: 42 dB(A) when printing, < 16 dB(A) when idle · Sound power: 5.8 B(A) when printing, < 3.4 B(A) when idle
Operating temperature5 to 40 °C, 20 to 80% relative humidity
FunctionsPrint
Model size24 inches (610 mm)
Maximum media width610 mm (roll: 279 to 610 mm)
Print resolutionUp to 2,400 x 1,200 optimised dpi
Print consumable colour(s)Cyan, magenta, yellow, black
Ink typesDye-based ink (C, M, Y), pigment-based ink (K)
Ink capacity80 ml (black); 38 ml (black); 29 ml (C, M, Y);
Printhead nozzles1,376
Ink droplet size5.5 pl (cyan, magenta, yellow), 12 pl (black)
Print speed30 s/page on A1, 76 A1 prints per hour
Line accuracy±0.1%
Technical specifications (continued)
Paper feed and outputSheet feed, roll feed, A3/A4 automatic document feeder, output tray, automatic horizontal cutter
Stand and output binStand and media bin included
Supported media sizes/formatsA4, A3, A2, A1 with sheet feed · A4, A3 with the automatic feeder · custom: 210 x 279 to 610 x 1,897 mm
Media thicknessUp to 0.3 mm
Media typesBond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photo paper (satin, gloss, semi-gloss, polypropylene), self-adhesive (adhesive, polypropylene)
Margins - printable area5 x 5 x 5 x 5 mm
Memory1 GB
Dimensions1,013 x 605 x 932 mm - Packaging dimensions (W x D x H): 1,155 x 575 x 475 mm
Weight28.9 kg
ConnectivityGigabit Ethernet (1000Base-T), Hi-Speed USB 2.0 port, Wi-Fi 802.11a/b/g/n
Power supplyInput voltage (auto-sensing): 220-240 V (±10%), 50/60 (±3 Hz), 1,200 mA max.
Box contents24-inch HP DesignJet T630 printer, stand and media bin, A3/A4 automatic feeder, printhead, setup ink cartridges, spindle, quick reference guide, assembly poster, power cord
Included softwareHP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant
ConsumablesHP 713 printhead (3ED58A), HP 712 cartridges: 3ED67A cyan, 3ED68A magenta, 3ED69A yellow 29 ml, 3ED70A black 38 ml, 3ED71A black 80 ml
Number of colours4 colours
InterfacesEthernet RJ-45, USB Type-B, Wi-Fi
Scanner featuresNo scanner
Scan speedNo scanner
Optical scan resolutionNo scanner
Size24" - 610 mm
Warranty1 year
