HP DesignJet T950 36-inch Multifunction Plotter (2Y9H3A)

Scanning and copying an A0 drawing with no separate scanner, then collecting up to 40 pages stacked flat. 21 seconds per A1 plot and two A4-A3 trays for small jobs.

  • 21 s per A1 plot, 120 A1 plots per hour
  • Printing, scanning and copying up to A0
  • Front-loading scanner up to 600 dpi, to e-mail, network or USB drive
  • Stacker that takes up to 40 pages flat
  • Front input tray of 100 sheets and organiser of 50 sheets
  • 4 pigment inks: cyan, magenta, yellow and matte black
  • Rolls from 369 to 914 mm, sheets A4 to A0
  • Resolution up to 2400 x 1200 optimised dpi
  • Line accuracy of plus or minus 0.1%
  • Gigabit Ethernet, Wi-Fi and Wi-Fi Direct
  • Cartridges of 130 or 300 ml
  • Automatic horizontal cutter
  • Printer stand included
Ref.: 2Y9H3A

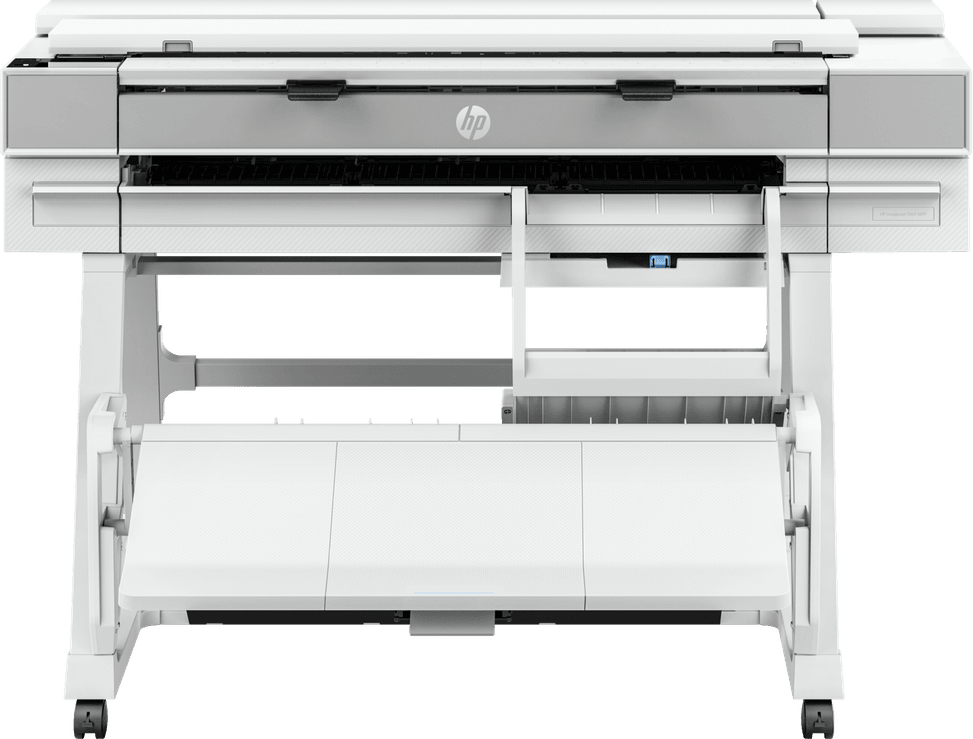

HP DesignJet T950 36-inch Multifunction Plotter (2Y9H3A) — image 1

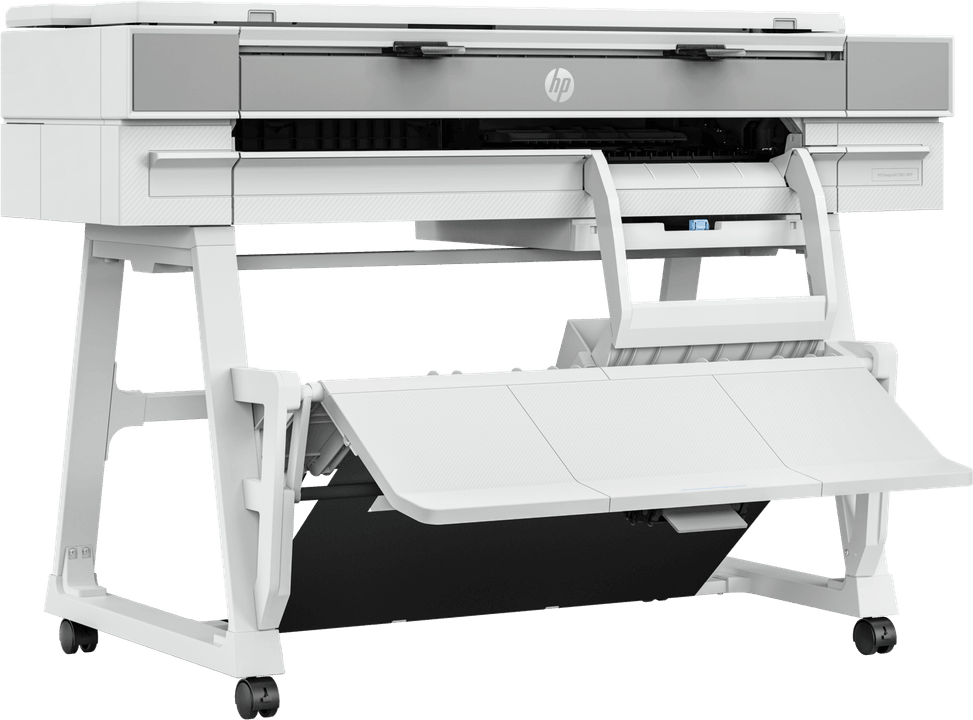

HP DesignJet T950 36-inch Multifunction Plotter (2Y9H3A) — image 2

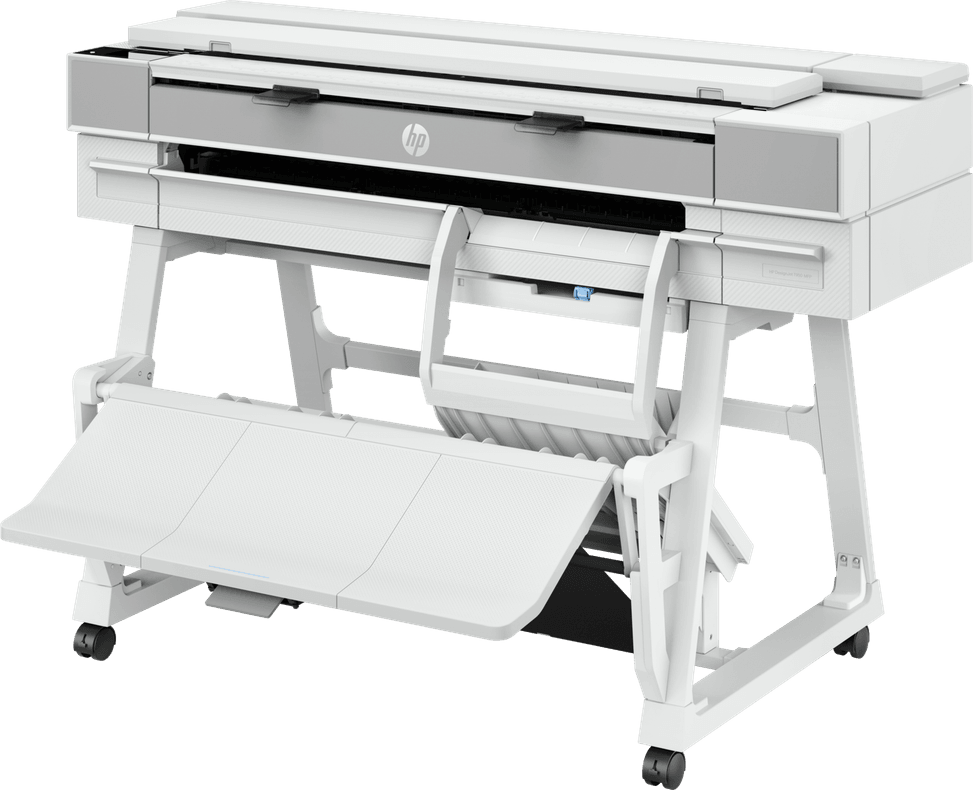

HP DesignJet T950 36-inch Multifunction Plotter (2Y9H3A) — image 3

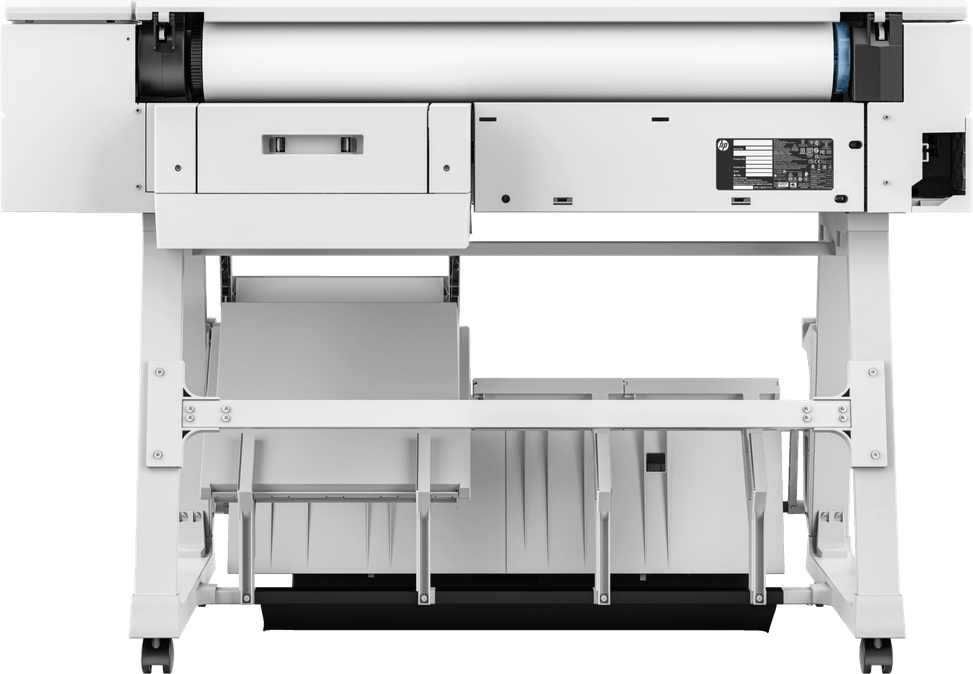

HP DesignJet T950 36-inch Multifunction Plotter (2Y9H3A) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Paper trays : extra trays, stands, cabinets and the automatic document feeder visible in the image are very often options sold separately.
  • Consumables : the cartridges and toners photographed are not included unless stated; those supplied with the machine are frequently reduced-capacity starter consumables.
  • Features : automatic duplex, touchscreen, Wi-Fi, fax or flatbed scanner cannot be inferred from a photo — only the specifications are binding.
  • Cables : the USB cable is generally not supplied; only the power cord is.
  • Format and version : one image serves a whole series (A4 or A3, monochrome or colour, with or without Wi-Fi).
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
104 899,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 3,2 Mo — downloadable

Product overview

36-inch multifunction plotter for design offices: large-format scanning and copying, prints up to A0 and fast output.
Functions: large-format printing, copying and scanning — scan and copy your plans without a separate scanner
Print width: 914 mm (36") — plans and posters up to A0
Colours: 4 pigment inks — sharp plans, prints that resist water and light
Printhead: replaceable — easy maintenance
Speed: 21 seconds per A1 (120 A1/h) — fast throughput
Resolution: up to 2400 x 1200 dpi · Line accuracy: ± 0.1%
Memory: 2 GB · Connectivity: Gigabit Ethernet and Wi-Fi
Built-in large-format scanning: a rare asset that replaces a separate A0 scanner.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Hard drive capacityNone
Mobile printingAirPrint, HP app, remote printing, Wi-Fi Direct, Chrome OS
Compatible operating systemsWindows · macOS · Chrome OS · Android and iOS
Printing technologyHP thermal inkjet
Recommended media weight60 to 280 g/m² (roll and manual feed), 64 to 220 g/m² (front-loading input tray)
Roll outer diameterUp to 140 mm
Printer languagesTIFF, JPEG, URF, PDF, HP-GL/2, HP-RTL, CALS G4
Power consumptionPrinting: 35 W · Ready: < 11 W · Sleep: < 3.5 W · Off: < 0.1 W
Noise levelSound pressure: 42 dB(A) when printing, < 16 dB(A) when idle · Sound power: 5.8 B(A) when printing, < 3.4 B(A) when idle
Operating temperature5 to 40 °C, 20 to 80% relative humidity
FunctionsPrint, copy, scan
Model size36 inches (914 mm)
Maximum media width914 mm (roll: 369 to 914 mm)
Print resolutionUp to 2,400 x 1,200 optimised dpi
Print consumable colour(s)Cyan, magenta, yellow, matte black
Ink typesPigment-based (Cyan, magenta, yellow, matte black)
Ink capacity300 ml (Cyan, magenta, yellow, matte black), 130 ml (Cyan, magenta, yellow, matte black)
Printhead nozzles1,376 per colour; 5,504 in total
Ink droplet size6 pl (cyan, magenta, yellow), 12.6 pl (matte black)
Print speed21 s/page on A1, 120 A1 prints per hour
Line accuracy± 0.1%
Technical specifications (continued)
Paper feed and outputSheet feed, roll feed, front-loading input tray (100-sheet capacity), sheet organiser (50-sheet capacity[5]), stacker (40-sheet capacity[5]), automatic horizontal cutter
Stand and output binPrinter stand, sheet organiser and stacker included
Supported media sizes/formatsFront-loading input tray: 210 x 279 to 305 x 457 mm; Sheet feed: 210 x 279 to 914 x 1,676 mm
Media thicknessUp to 0.3 mm (scanner: up to 0.8 mm)
Media typesBond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photo paper (satin ID, gloss ID), self-adhesive (matte/gloss adhesive, gloss adhesive polypropylene), polypropylene (matte)
Margins - printable areaNon-printable area (sheet) 5 x 5 x 5 x 5 mm Non-printable area (roll media) 5 x 5 x 5 x 5 mm
Memory2 GB
DimensionsPackaging dimensions (W x D x H) 1575 x 630 x 780 mm Minimum dimensions (W x D x H) 1407 x 720 x 967 mm
WeightWeight: 71 kg Carton/package weight: 97 kg
ConnectivityGigabit Ethernet (1000Base-T), Wi-Fi
Power supplyInput voltage (auto-sensing): 100-240 V (±10%), 50/60 (±3 Hz), 1.2 A max
Box contentsHP DesignJet T950 MFP multifunction printer, printhead, setup ink cartridges, printer stand, spindle, guide, warranty leaflet, power cord
Included softwareHP Click for Windows and macOS, HP app for Windows, macOS, Android and iOS
ConsumablesHP 738 DesignJet ink cartridge, cyan, 130 ml HP 738 DesignJet ink cartridge, magenta, 130 ml HP 738 DesignJet ink cartridge, yellow, 130 ml HP 738 DesignJet ink cartridge, black, 130 ml HP 738B DesignJet ink cartridge, black, 130 ml HP 738 DesignJet ink cartridge, magenta, 300 ml HP 738B DesignJet ink cartridge, black, 300 ml HP 738 DesignJet ink cartridge, cyan, 300 ml HP 738 DesignJet ink cartridge, black, 300 ml HP 738 DesignJet ink cartridge, yellow, 300 ml HP 739 DesignJet printhead replacement kit
Number of colours4 colours
InterfacesEthernet, Wi-Fi
Scanner featuresSheet feed, CIS sensor, paper jam detection · Scanning up to 914 mm x 7 m · To e-mail, network, USB flash drive, cloud and mobile
Scan speedUp to 3.81 cm/s in colour and 11.43 cm/s in greyscale, at 200 dpi
Optical scan resolutionUp to 600 dpi
Size36" - 914 mm
Warranty1 year
