TP-Link
TP-Link Omada OC220 2-Port Gigabit Hardware Controller (OC220)
In stock
1 249 DHincl. VAT1 249,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Visit the Aruba store

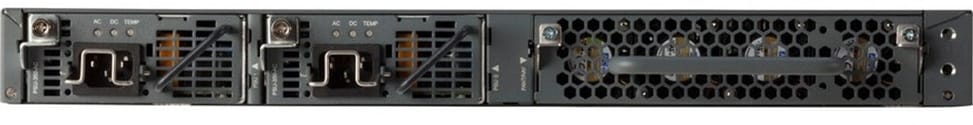

Aruba 7210 RW Controller (JW743A)
Drives up to 2,048 access points from a single appliance, with a firewall that applies rules per user and per device. Dynamic segmentation unifies wired and wireless, and the unit can become an SD-WAN gateway.
- Up to 2,048 access points managed
- Firewall with per-user and per-device policies
- Dynamic segmentation of wired and wireless
- Can act as an SD-WAN gateway
- Sized for high-density environments
Ref.: JW743A
71 299,00 DHincl. VAT
Limited quantity
Earn 300 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
Boost your business connectivity with the HPE Aruba 7210! This mobility controller delivers up to 100 Gbit/s of throughput to handle 32,728 users and 2,048 access points, ideal for high-density environments. Centralise your wired and wireless networks with dynamic segmentation and an advanced firewall that enforces user- and device-based policies. Turn it into an SD-WAN gateway for optimised connectivity. Performance, security and flexibility for robust enterprise networks!
Request a quoteShare:
Technical specifications
| MTBF | 106,536 hours at 40 °C |
|---|---|
| Package contents | The controller and a 350 W AC power supply; no SFP or SFP+ transceiver is included |
| Product type | Rack-mount mobility controller, 1U form factor, “Rest of World” regulatory domain |
| Number of VLANs | 4,096 VLANs |
| Interfaces | 4 SFP+ 10G slots (10G or 1G), 2 combo ports 10/100/1000BASE-T or 1000BASE-X, 1 USB 2.0 port, mini-USB and RJ45 console, out-of-band management port; no 40G port |
| Redundancy and high availability | Clustering of multiple controllers, with in-service software upgrades and protection against network failures |
| Managed access points | Up to 512 campus or remote access point licences |
| Access point licences | No access point licence ships with the JW743A part number; up to 512 licences, and only the 7210 K-12 models are sold with a bundle of 128 or 256 licences |
| Power consumption | 110 W maximum |
| Weight | 7.45 kg |
| Dimensions (W x D x H) | 445 x 445 x 44 mm |
| Built-in display | LCD screen with navigation buttons |
| Power supply | 350 W AC power supply included, 100 to 240 V AC, 50/60 Hz |
|---|---|
| Cooling system | Internal power supply fan, back-to-front airflow; 52.9 dBA |
| Firewall | Policy enforcement firewall, applied by user role, device type, application and network location; 2 million active sessions |
| VPN | GRE, IPsec and SSL |
| Concurrent VPN tunnels | 8,192 concurrent GRE tunnels, 16,384 IPsec sessions and 8,192 SSL sessions |
| Certifications | FCC Part 15 Class A, CE, Industry Canada Class A, VCCI Class A, EN 55022 Class A, UL 60950 and EN 60950, CAN/CSA 22.2 No. 60950; CE marking, cTUVus, CB, C-tick, Anatel, NOM and MIC |
| Operating temperature | 0 to 40 °C |
| Operating humidity | 5 to 95% non-condensing |
| Simultaneously connected devices | Up to 16,384 concurrent users or devices |
| Processing throughput | 20 Gbps firewall throughput and 20 Gbps wired switching; 7 Gbps encrypted |
| Warranty | 1 year |
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many access points does the Aruba 7210 controller manage?
Up to 2,048 access points and more than 32,000 concurrent users, with more than 2 million active firewall sessions. That is the scale of a large campus, not of a single-site business.
What is the Aruba 7210's dynamic segmentation?
It routes all traffic, wired and wireless alike, through the same built-in firewall, for deep inspection and policy enforcement. Policies are no longer tied to a port: they follow the user's role.
What does the Aruba 7210 firewall base its rules on?
On the user role, the device type, the application and the location on the network. Four combined criteria: the same employee does not get the same rights from their office workstation and from their phone in the waiting room.
How many applications can the Aruba 7210 identify?
More than 3,000, with no additional hardware. This visibility is what makes it possible to throttle a streaming service during class hours or guarantee bandwidth for a business application, without an external probe.
Can the Aruba 7210 be used as an SD-WAN gateway?
Yes, it can be repurposed as an SD-WAN gateway. A controller made redundant by a Wi-Fi overhaul thus gets a second life at the head end of an inter-site link, instead of being scrapped.
What happens if an Aruba 7210 controller fails?
Several controllers can be clustered, which enables in-service software upgrades and protects against failures. Zero-touch provisioning also simplifies the deployment of remote sites.
What ports does the Aruba 7210 controller offer?
Four 10GBASE-X SFP+ ports and two dual-personality ports, usable as 10/100/1000BASE-T copper or SFP. These last two let you adapt the connection to the existing cabling, copper or fibre.
How is the Aruba 7210 controller powered?
With 100 to 240 V AC or -40 to -72 V DC depending on the chosen source, for a power consumption of 110 W. The DC input is the one used in telecom exchanges, which run on 48 V batteries.
Is the HPE Aruba 7210 controller new and under warranty?
New, reference JW743A, in original HPE Aruba packaging. The invoice serves as the warranty document for 1 year. Keep it: it is the document that will be requested if you make a claim.
