Visit the Huawei store

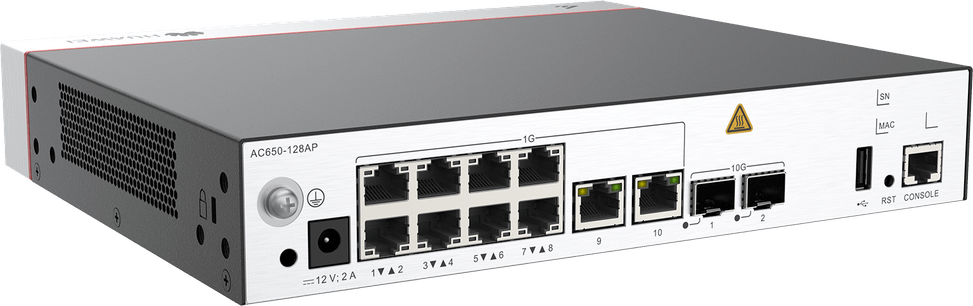

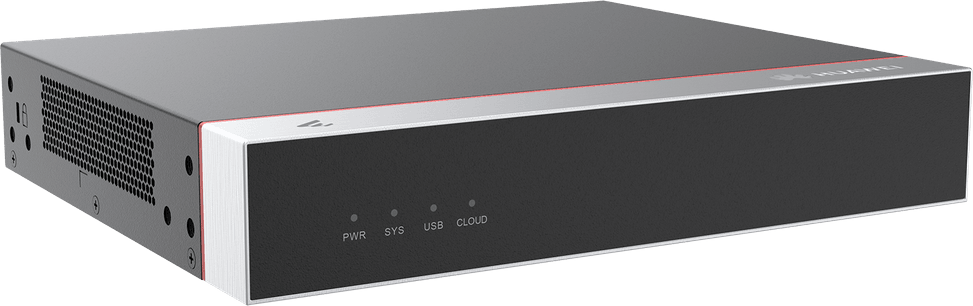

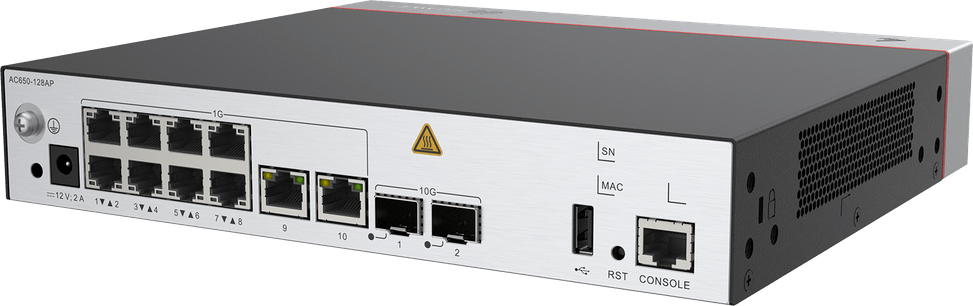

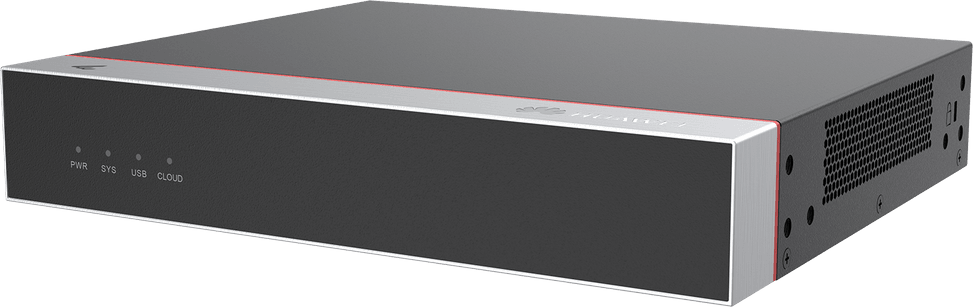

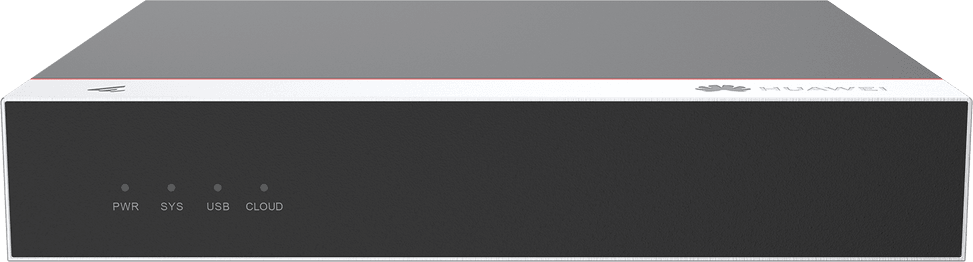

Huawei AC650-128AP Wireless Access Controller (02355NCG)
Drives up to 128 Wi-Fi access points from a single unit, with a built-in Gigabit Ethernet switch to connect wired workstations as well. Fanless and therefore silent, it mounts on a wall, on a shelf or sits on a desk.
- Manages up to 128 Wi-Fi access points
- Built-in Gigabit Ethernet switch: wired and wireless access together
- Fanless, silent and energy efficient
- 6 kV surge protection
- Wall, shelf or desktop installation
- Compact format
- For campus networks, enterprise networks and metropolitan coverage
Ref.: 02355NCG
Back to school
-4%4 890,00 DHincl. VAT5 099,00 DH
You save 209,00 DH incl. VAT
Ends in, ends in 2 days and 22 hours
Limited quantity
Earn 49 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Streamline your network management with the Huawei AC650-128AP wireless access controller. Designed for SOHO businesses and mid-sized professional environments, this WAC manages up to 128 access points and integrates a GE Ethernet switch for seamless wired and wireless connectivity. Compact, fanless and energy-efficient, it installs easily on a wall, on a shelf or on a desk. With high scalability, rugged protection (6 kV) and compatibility with campus and metropolitan networks, the AC650-128AP is a reliable, high-performance choice for building an agile, lasting network infrastructure.
Request a quoteShare:
Technical specifications
| Product type | Wireless access controller with built-in Gigabit Ethernet switch |
|---|---|
| MAC table size | 8,192 entries |
| Number of VLANs | 4,096 VLANs |

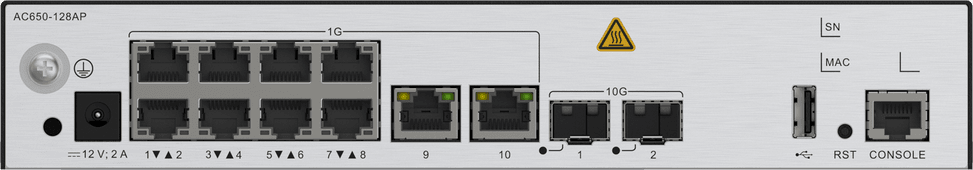

| Interfaces | 2 optical ports 10GE (SFP+), 10 electrical ports GE 10/100/1000BASE-T, 1 RJ45 console port and 1 USB port |
| Management modes | Built-in web interface, command line via console and Telnet, SSHv2, SNMP v1/v2c/v3, standard MIB, RMON, and file transfer via FTP and TFTP |
| Redundancy and high availability | 1+1 hot standby (HSB) and N+1 backup between controllers, plus port backup via LACP or MSTP |
| Managed access points | 128 access points supported, compatible with Huawei 802.11n, 802.11ac and 802.11ax access points |
| Access point licences | 128 managed access points without a licence |
| Layer 2 features | 802.1Q VLAN in access, trunk and hybrid modes with VLAN pool, link aggregation and load balancing, port isolation, broadcast storm control, jumbo frames, STP/RSTP/MSTP, IGMP snooping and LLDP |
| IP routing | Static routing, RIP-1/RIP-2, OSPF, BGP, IS-IS, RIPng, OSPFv3, BGP4+ and IS-IS IPv6, with policy-based routing and 4,096 IPv4 routing entries |
| Quality of service (QoS) | Traffic classification by Layer 2 header, IP quintuple and 802.1p priority; PQ, DRR, PQ+DRR, WRR and PQ+WRR queue scheduling; SRED and WRED congestion avoidance |
| Power consumption | 21 W maximum |
| Weight | 1.47 kg |
| Dimensions (W x D x H) | 210 x 250 x 43.6 mm |
|---|---|
| Security features | WEP, WPA/WPA2 with PSK, 802.1X or PPSK (TKIP and CCMP), built-in or external captive portal, MAC authentication, built-in Portal/AAA server, and WIDS for detecting and containing rogue access points and clients |
| Power supply | AC/DC power adapter |
| Firewall | Attack defence (source address spoofing, Land, SYN flood, Smurf, ping flood, Teardrop, Ping of Death), ACL filtering, DHCP packet filtering, URL filtering, antivirus and intrusion prevention |
| Operating temperature | 0 to 45 °C from -60 to 1,800 m altitude; above that, the upper limit drops by 1 °C per 220 m |
| Operating humidity | 5 to 95% non-condensing |
| Location | Indoor |
| Mounting type | Multiple |
| PoE power | PoE (802.3af) |
| Simultaneously connected devices | 1,024 users, the maximum varying with the authentication mode |
| Processing throughput | 10 Gbps forwarding capacity |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many access points does the Huawei AC650-128AP manage?
Up to 128 Wi-Fi access points, from a single unit. That is the scale of a medium-sized campus, an enterprise network or metropolitan-type coverage, with a single interface for all the access points.
Does the Huawei AC650-128AP also act as a switch?
Yes, it includes a Gigabit Ethernet switch. Wired workstations and wireless access points therefore connect to the same device: one box fewer in the rack, and a single management point for both types of access.
Is the Huawei AC650-128AP controller noisy?
No: it is fanless, so silent, and energy-efficient. That is what allows it to be installed in an office or an occupied room, rather than in an isolated technical room.
Is the Huawei AC650-128AP protected against surges?
Yes, up to 6 kV. On a device that centralises all the access points on a site, this protection is what prevents a lightning strike on an outdoor line from taking the whole wireless network down.
Where can the Huawei AC650-128AP controller be installed?
On a wall, on a shelf or on a desk. It has a compact form factor and is designed for indoor use: three mounting options, so it can be installed wherever the cabling arrives, without a dedicated rack.
Can the Huawei AC650-128AP be powered over the network?
It is listed as compatible with PoE 802.3af. Power over the network cable avoids a dedicated power outlet, which matters when the controller is wall-mounted, away from the electrical panel.
What types of network is the Huawei AC650-128AP intended for?
For campus networks, enterprise networks and metropolitan coverage, as well as small organisations. Its capacity of 128 access points places it between a standalone access point and a carrier-grade controller.
Is the Huawei AC650-128AP controller new and under warranty?
New, reference 02355NCG, in original Huawei packaging. The invoice serves as the warranty document for 1 year. Keep it: it is the document that will be requested if you make a claim.
