Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE)

16" laptop for demanding gaming: dedicated RTX 5070 (8 GB GDDR7), 240 Hz WQXGA screen. RGB backlit keyboard with 24 zones, reinforced Legion Coldfront cooling.

  • NVIDIA GeForce RTX 5070, 8 GB GDDR7 (115 W TGP)
  • Intel Core i9-14900HX (24 cores / 32 threads)
  • RAM 32 GB DDR5, dual channel
  • 1 TB NVMe SSD, 2nd M.2 slot free
  • 16" WQXGA 240 Hz screen
  • RGB backlit keyboard with 24 zones
  • Aluminium chassis (top surface)
  • Legion Coldfront cooling
  • 80 Wh battery
  • Weight 2.4 kg
  • Wi-Fi 6
Ref.: 83NN001TFE
Best seller

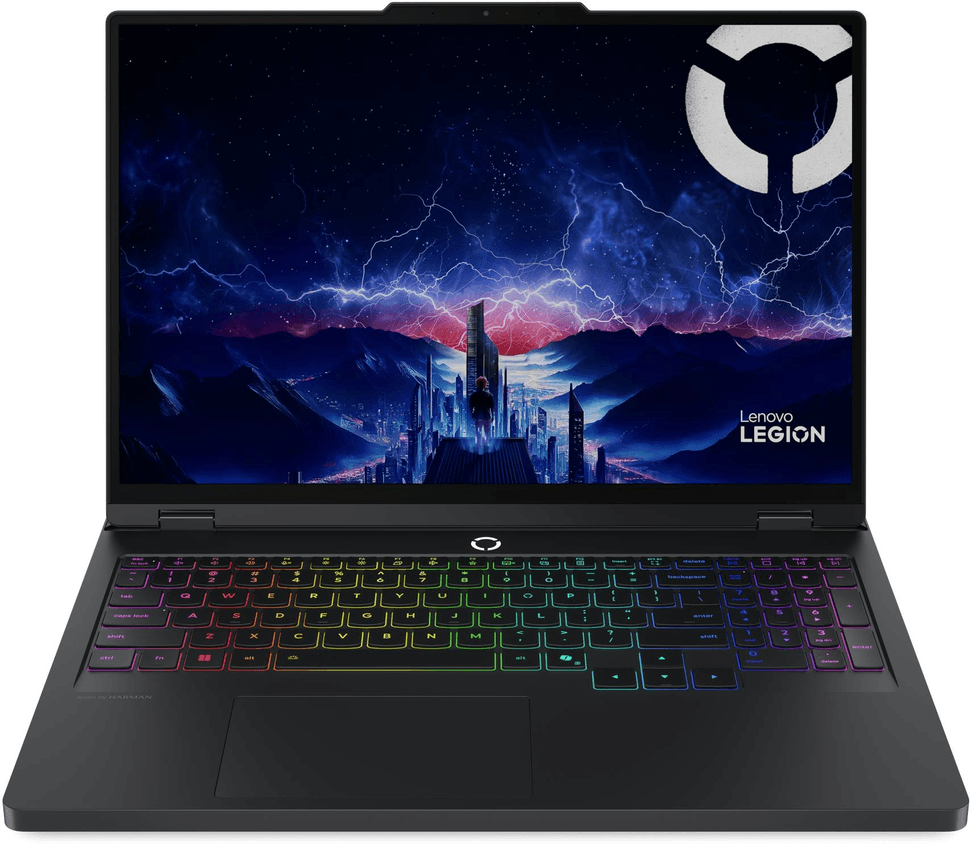

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 1

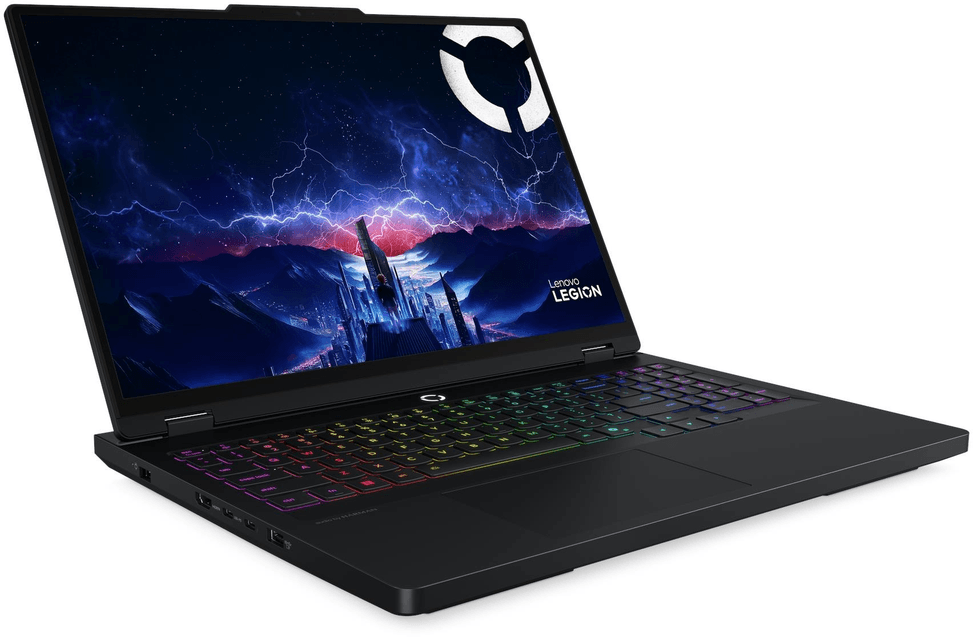

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 2

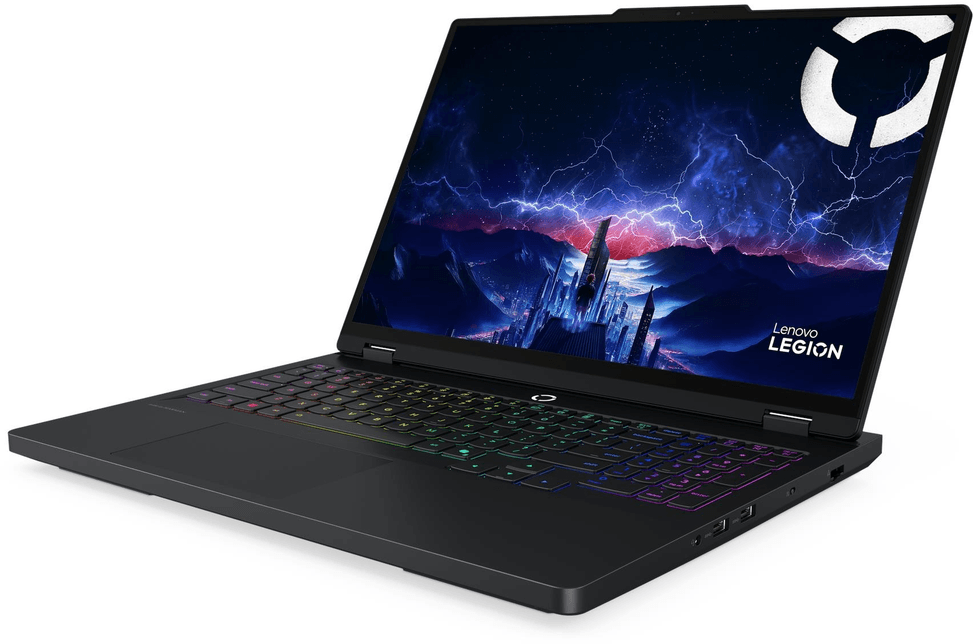

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 3

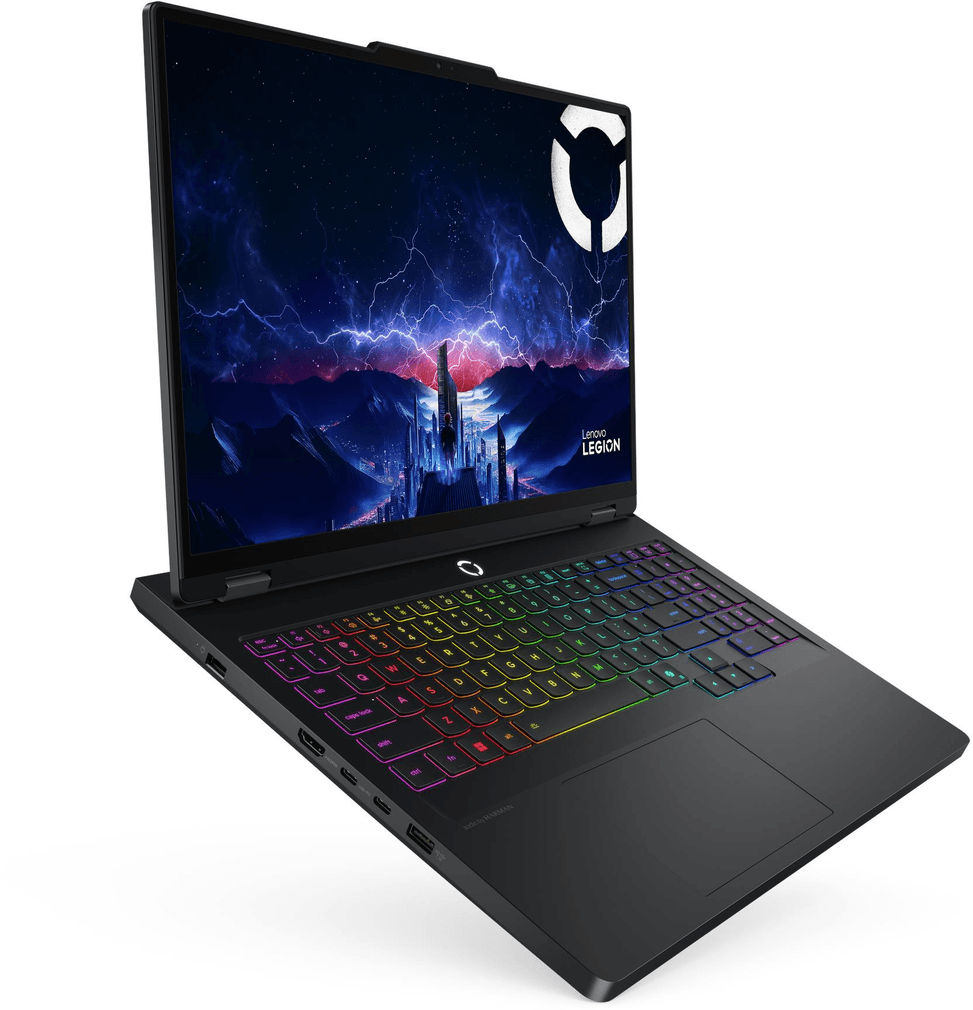

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 4

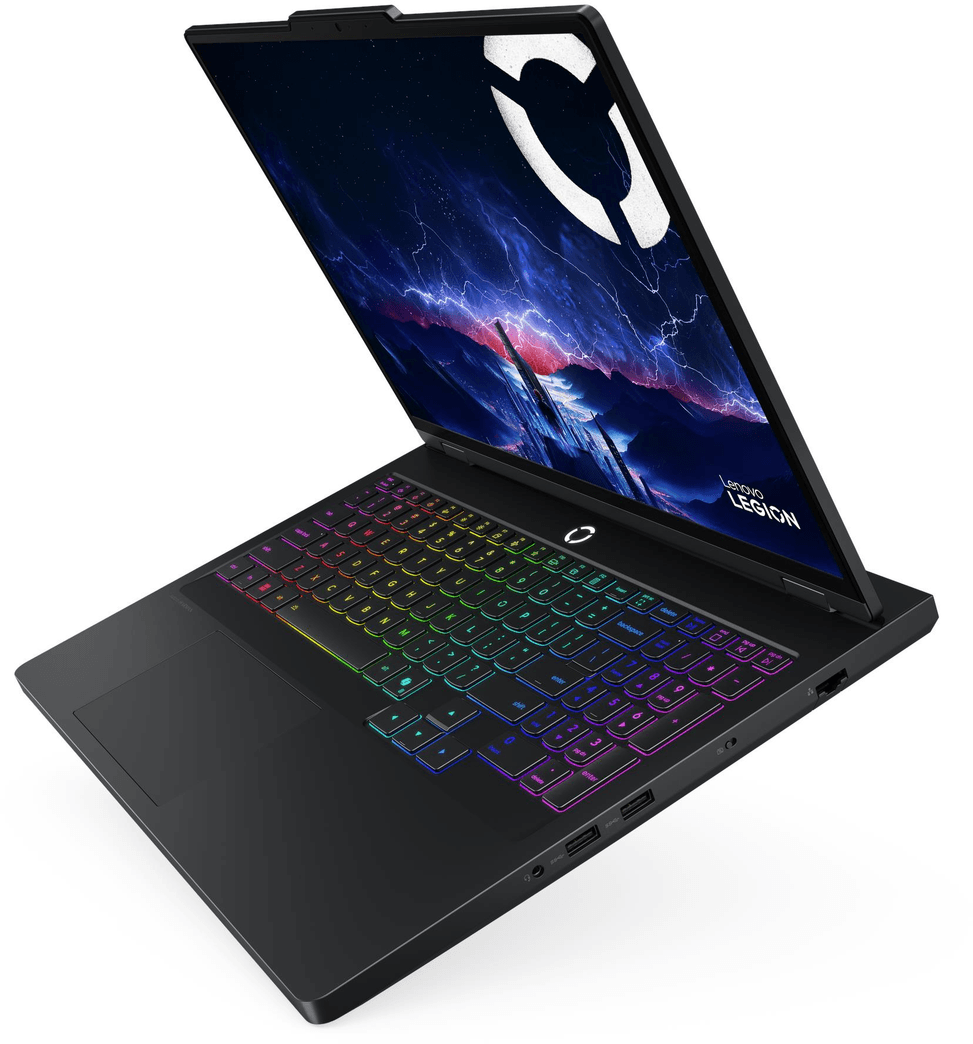

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 5

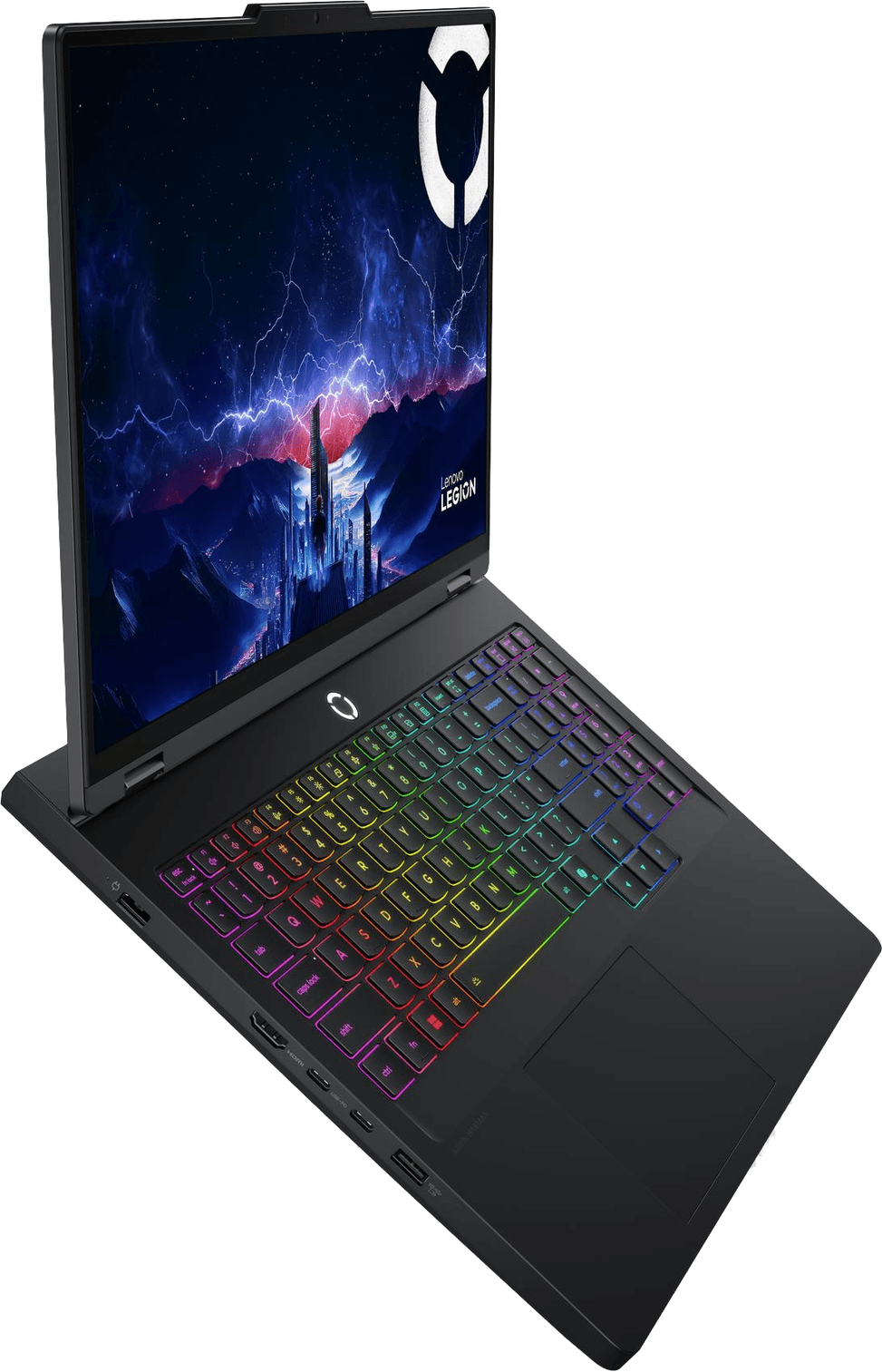

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 6

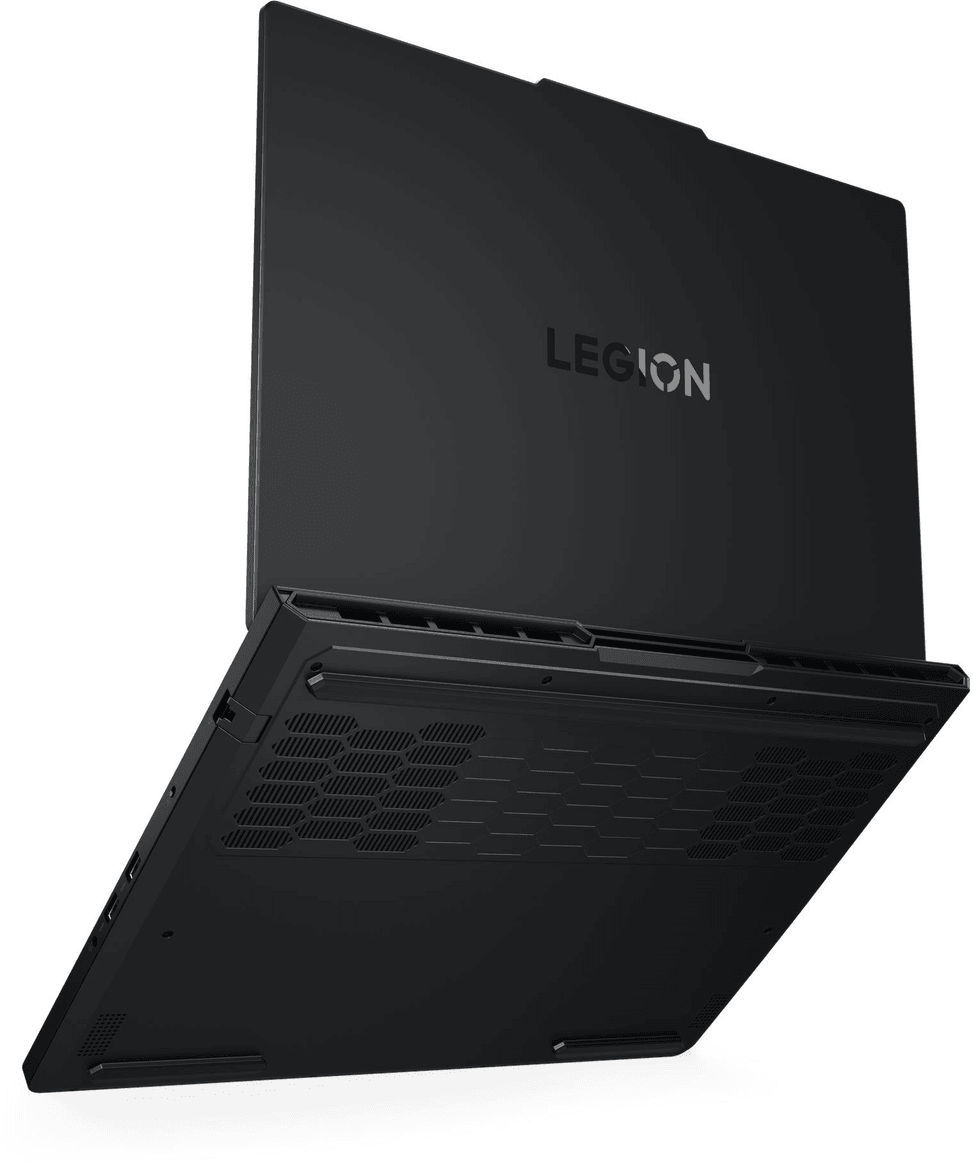

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 7

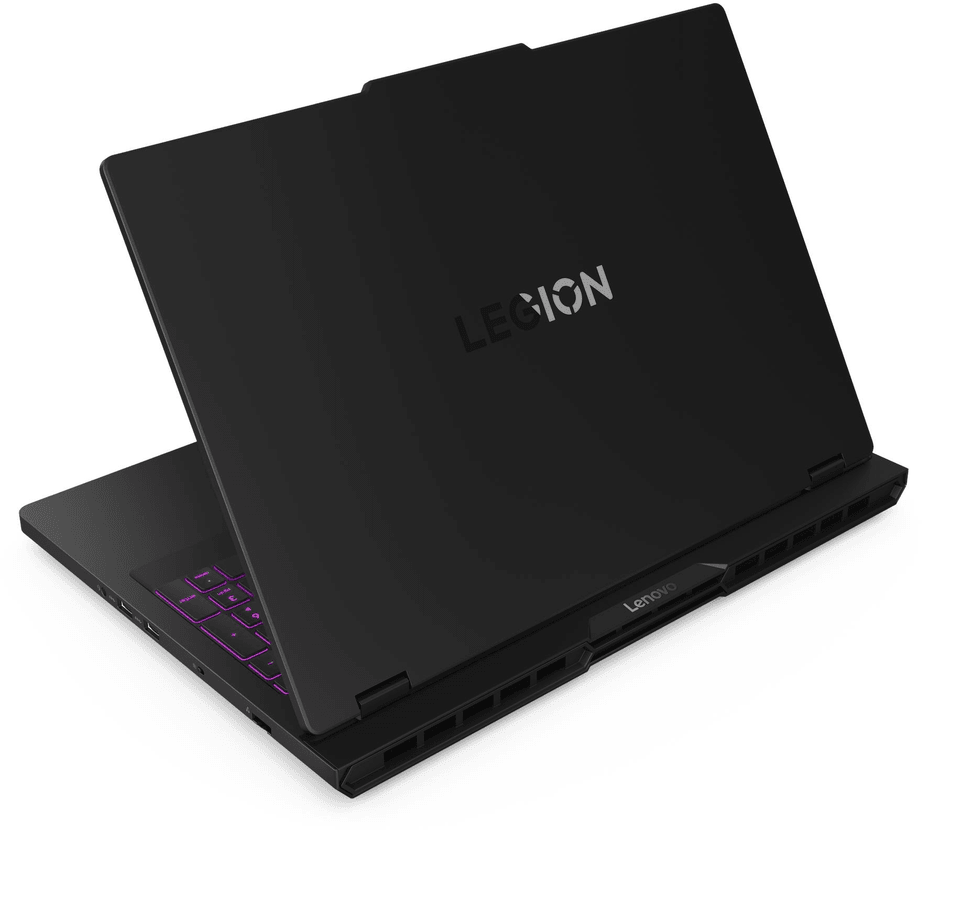

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 8

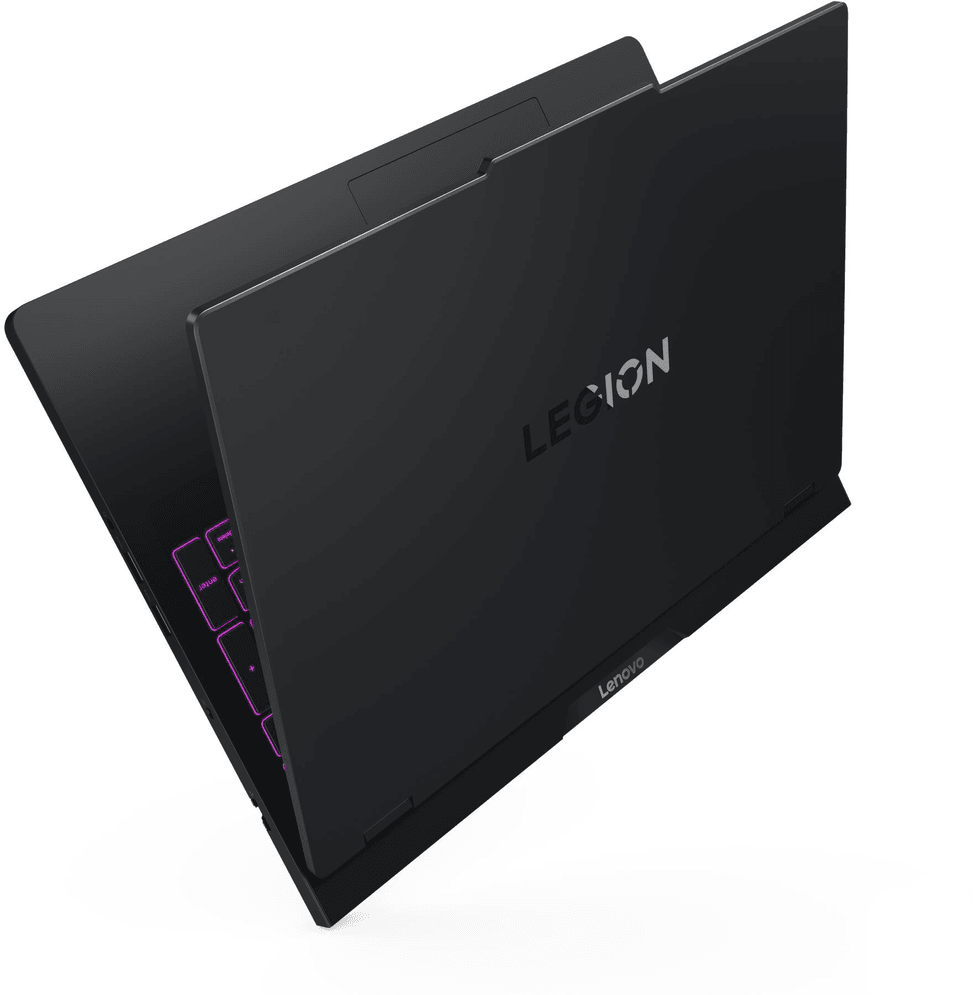

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 9

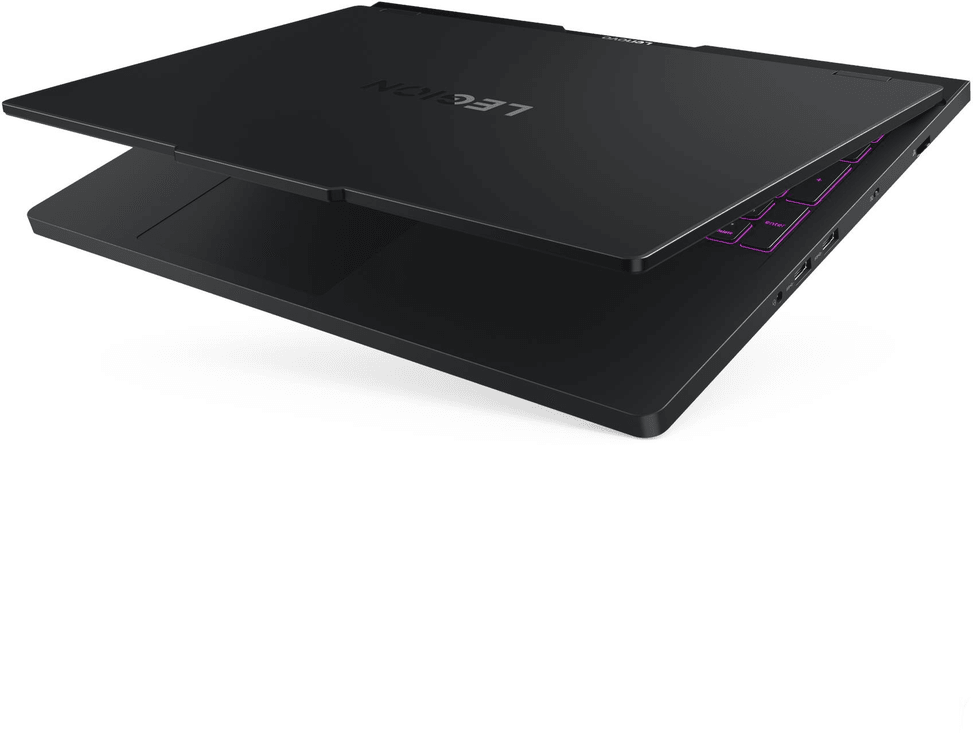

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 10

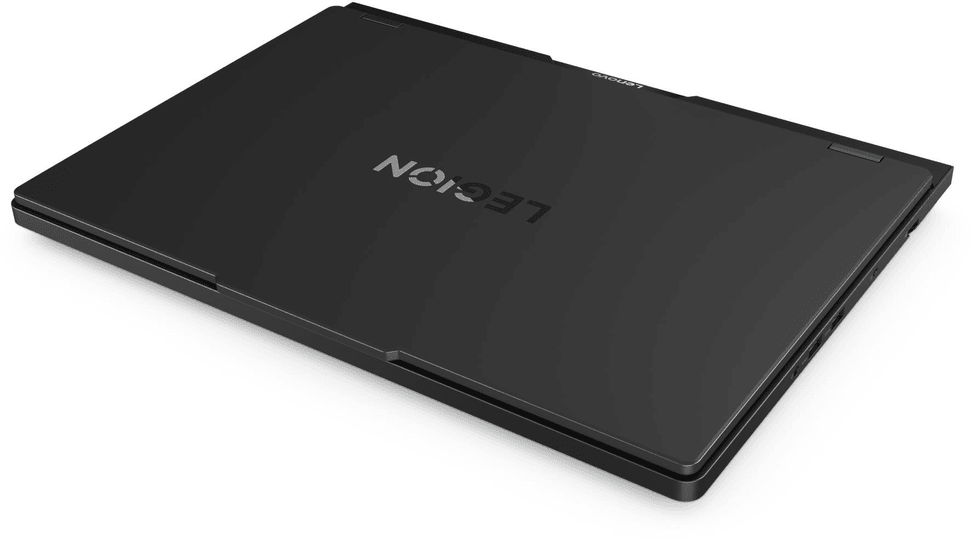

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 11

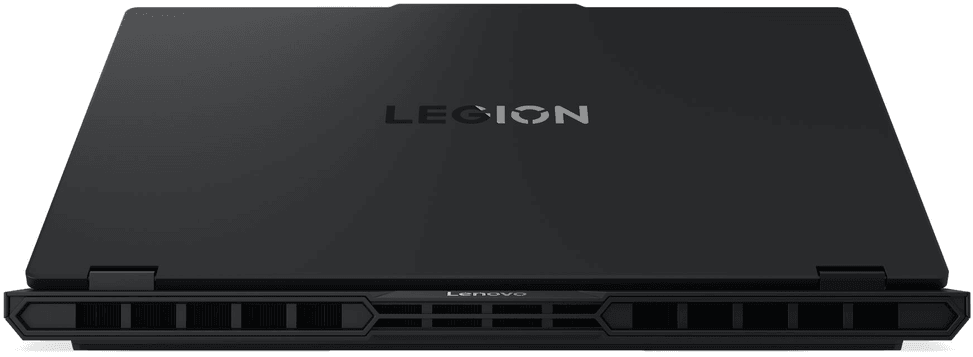

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 12

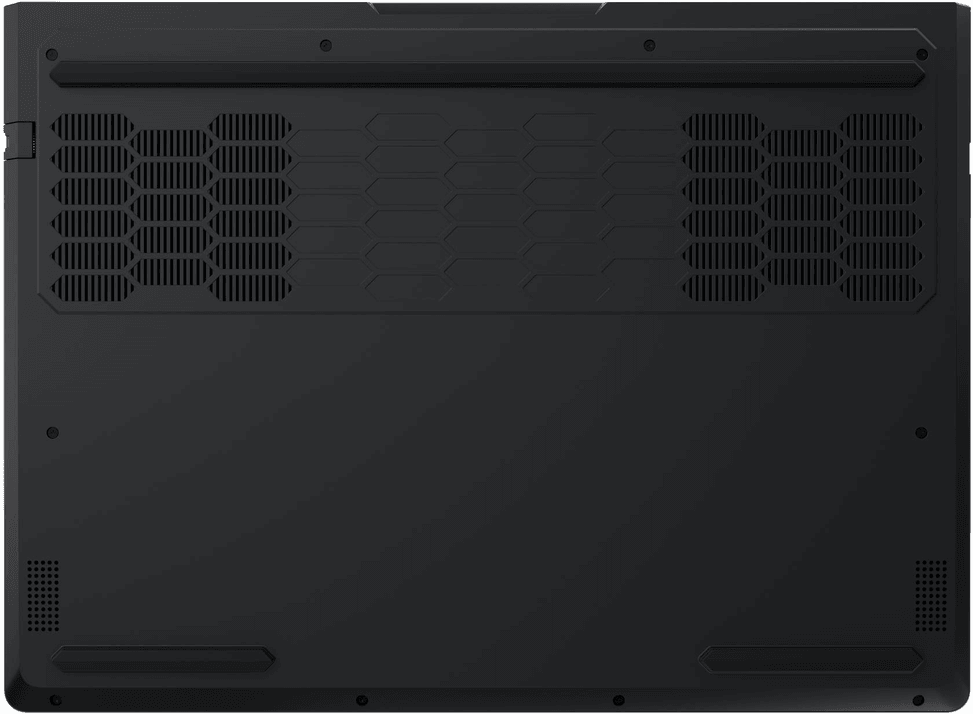

Lenovo Legion Pro 5 16IRX10 Gaming Laptop (83NN001TFE) — image 13

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Keyboard : manufacturers' images are international: our computers ship with an AZERTY (French) keyboard, even when the photo shows a QWERTY one.
  • Visible features : a fingerprint reader, backlit keyboard, webcam, numeric keypad or card reader glimpsed in the image are not necessarily present on this exact reference.
  • Ports and connectors : the number, type and position of the ports (USB, USB-C, HDMI, RJ45) change from one configuration to another within a single photographed series.
  • Display : the image shown on the screen is a composite; resolution, touch panel and bezel thinness are those of the specifications.
  • Operating system : the Windows desktop visible in the photo implies neither a Windows licence nor an Office suite installed: the specifications state the system actually delivered.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/13
38 999,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 290 Ko — downloadable

Product overview

16" gaming laptop for demanding games: very bright 240 Hz display, dedicated RTX 5070, aluminium chassis.

Processor: Intel Core i9-14900HX — 24 cores / 32 threads, up to 5.8 GHz, 36 MB cache. Extreme HX series, for gaming and heavy creative work.
RAM: 32 GB DDR5-5600 (2 slots, maximum capacity reached)
Storage: 1 TB SSD NVMe PCIe 4.0 (2nd M.2 slot free)
Display: 16" WQXGA IPS · 240 Hz · very bright (500 nits) · 100% DCI-P3 · anti-glare
Graphics: NVIDIA GeForce RTX 5070 dedicated, 8 GB GDDR7 — 115 W TGP
Operating system: Windows 11 Home
Chassis: aluminium (top cover) · 24-zone RGB backlit keyboard
Cooling: reinforced Legion Coldfront system for intensive gaming

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
ProcessorIntel Core i9-14900HX
Processor details24 cores (8P + 16E), 32 threads, 2.2-5.8 GHz (P), 1.6-4.1 GHz (E), 36 MB cache
Installed RAM32 GB DDR5-5600 (2 x 16 GB, SO-DIMM)
Maximum RAM32 GB DDR5-5600
Hard drive capacity1 TB SSD M.2 2242 NVMe PCIe 4.0 x4
Optical driveNone
Graphics cardNVIDIA GeForce RTX 5070 8 GB GDDR7, boost clock 2,347 MHz, 798 AI TOPS
Maximum graphics power (TGP)115 W
Weight (kg)2.4 kg
Screen size16 inches
Screen typeWQXGA (2560 x 1600), IPS, 240 Hz, 500 nits, anti-glare, DisplayHDR 400, Dolby Vision
Built-in webcam5 MP, electronic shutter
Audio2 × 2 W speakers, HARMAN audio, Nahimic, Realtek ALC3287 codec
Ethernet network card100/1000M (RJ-45)
BluetoothBluetooth 5.2
Wireless communicationWi-Fi 6 (802.11ax 2x2)
Connectors2 USB-A 5 Gbps, 1 USB-A 10 Gbps, 2 USB-C 10 Gbps (DP 2.1/1.4), 1 HDMI 2.1 8K 60 Hz, 1 RJ-45, 1 jack (3.5 mm)
Biometric recognitionNone
Battery type / battery life80 Wh
Operating systemWindows 11 Home
Dimensions (W x D x H) (mm)364.38 x 268.06 x 21.69-25.95 mm
Technical specifications (continued)
Adaptive syncNVIDIA G-SYNC
Product colourEclipse Black
Power supply245 W, Slim Tip connector — USB-C PD charging 65-100 W
KeyboardAZERTY, 24-zone RGB backlighting — precision touchpad, 75 × 120 mm
Memory slots2 SO-DIMM DDR5 slots, none free
Expansion slots2 M.2 2280 PCIe 4.0 x4 slots
Storage typeSSD
Cooling systemLegion Coldfront Hyper: sealed hyperchamber, 3D copper heat pipes
Colour gamut100 % DCI-P3
TouchscreenNo
Refresh rate240 Hz
With built-in AIYes
UseGaming
Backlit keyboardYes
GPU typeNVIDIA GeForce
Panel typeIPS
Screen resolutionWQXGA (2560x1600)
Screen aspect ratio16:10
Ultraportable (≤ 1.5 kg)No
Warranty2 years

Specific references

EAN0199271370278

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Can you add a second SSD to this Lenovo Legion Pro 5 16IAX10?
Yes: the chassis has two M.2 slots in PCIe 4.0 x4, only one of which is taken by the supplied 1 TB SSD. A second drive can therefore be installed without replacing the first — enough to keep the system separate from a games library.
Can you upgrade the memory in this Lenovo Legion Pro 5 16IAX10?
No, the maximum capacity has already been reached: both SO-DIMM slots are filled with 2 × 16 GB of DDR5-5600, and the machine accepts 32 GB at most. That is already comfortable for gaming and creative work alike.
How good is the RTX 5070 in this Lenovo Legion Pro 5 16IAX10?
It is a dedicated 8 GB GDDR7 card set to a 115 W TGP — a high power budget, which matters as much as the model name: two laptops with an “RTX 5070” do not deliver the same performance if one gets 60 W and the other 115.
How good is the screen on this Lenovo Legion Pro 5 16IAX10?
A 16-inch IPS panel at 2560 × 1600, 240 Hz and 500 nits, covering 100% of the DCI-P3 colour space, certified DisplayHDR 400 and Dolby Vision, G-SYNC compatible and anti-glare. It therefore suits gaming as well as colour work.
What does the “HX” in this Legion Pro 5's Core i9-14900HX mean?
HX denotes Intel's most generous variant in terms of power, derived from desktop chips. This i9-14900HX has 24 cores and 32 threads at up to 5.8 GHz with 36 MB of cache: the format of a computing workstation as much as of a gaming machine.
Can this Lenovo Legion Pro 5 16IAX10 be charged via USB-C?
Yes, one of the USB-C ports accepts 65 to 100 W Power Delivery charging and carries video over DisplayPort 2.1 — handy when travelling. The supplied power brick is still a 245 W unit, the only power rating that matches an i9 HX paired with an RTX 5070.
What ports does this Lenovo Legion Pro 5 16IAX10 have?
Three USB-A ports — including one at 10 Gbps marked Always On —, two USB-C ports at 10 Gbps with display support, an HDMI 2.1 output up to 8K at 60 Hz, an RJ-45 network port, a headphone jack and the power connector.
Is this Lenovo Legion Pro 5 16IAX10's keyboard RGB?
Yes, and with fine control: the backlighting can be set across 24 separate zones, well beyond the usual 4 zones. The keyboard is a French AZERTY layout, and the 5 MP webcam has an electronic shutter to cut the image.
How much does this Lenovo Legion Pro 5 16IAX10 weigh?
2.4 kg, plus a 245 W adapter that is anything but a pocket charger. The battery is 80 Wh, generous for the category. It is a backpack machine, designed to move between the office and home.
Is this Lenovo Legion Pro 5 16IAX10 new and ready to play?
Yes, it is new and sealed, with Windows 11 Home preinstalled and a warranty for which the purchase invoice serves as the document. It features an Ethernet port, 2x2 Wi-Fi 6 and enhanced Legion Coldfront cooling.
