MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025)

Twenty desktop processor cores in a tower-free chassis, with 16 GB of DDR5 and a 1 TB SSD. 27-inch IPS panel at 100 Hz and a height-adjustable stand. Supplied with FreeDOS: the operating system still has to be installed.

  • 27" Full HD IPS display, 100 Hz
  • Intel Core i7 14700 (20 cores, 28 threads, up to 5.4 GHz)
  • RAM 16 GB DDR5 (2 x 8 GB)
  • 1 TB NVMe M.2 SSD
  • FreeDOS — supplied without Windows (to be installed)
  • Full HD infrared webcam with a privacy shutter
  • Height- and tilt-adjustable stand
  • TÜV certified flicker-free and low blue light
  • HDMI 2.1 and DisplayPort 1.4 outputs for two additional monitors
  • USB-C, 5 USB-A ports and Ethernet
  • Wi-Fi 6E and Bluetooth
  • DTS audio
  • VESA 75 x 75 mm wall mount compatible
  • dTPM 2.0 security chip and Kensington slot
Ref.: 9S6-AF8321-1025
New

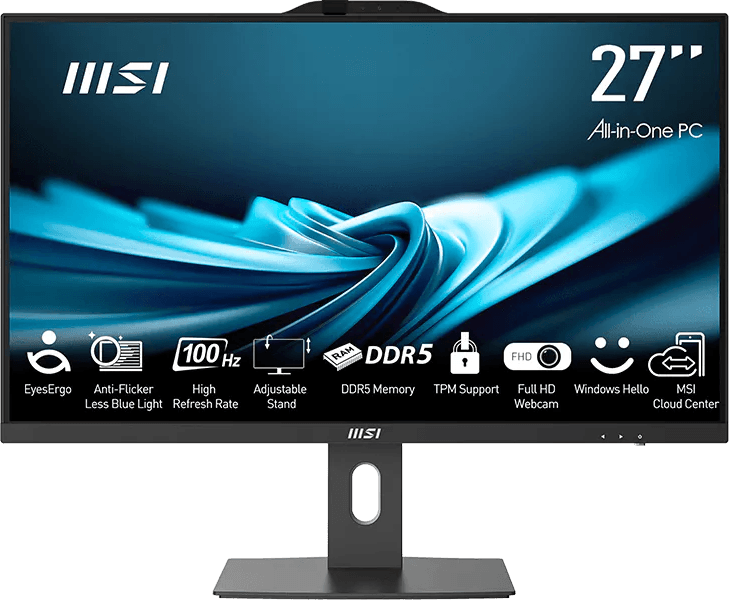

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 1

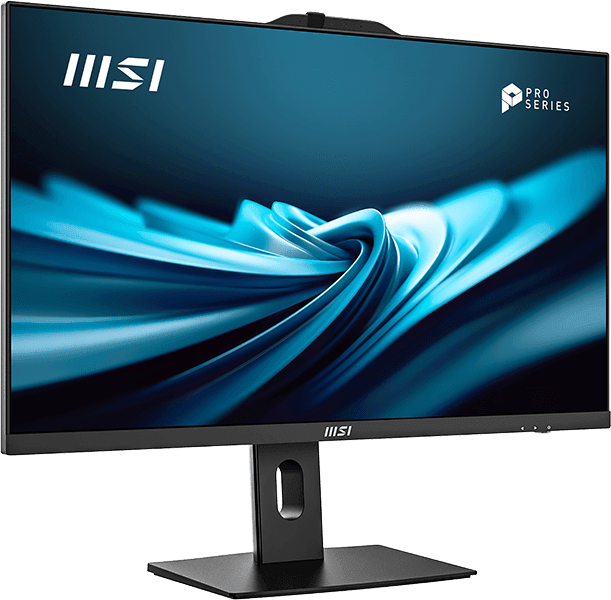

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 2

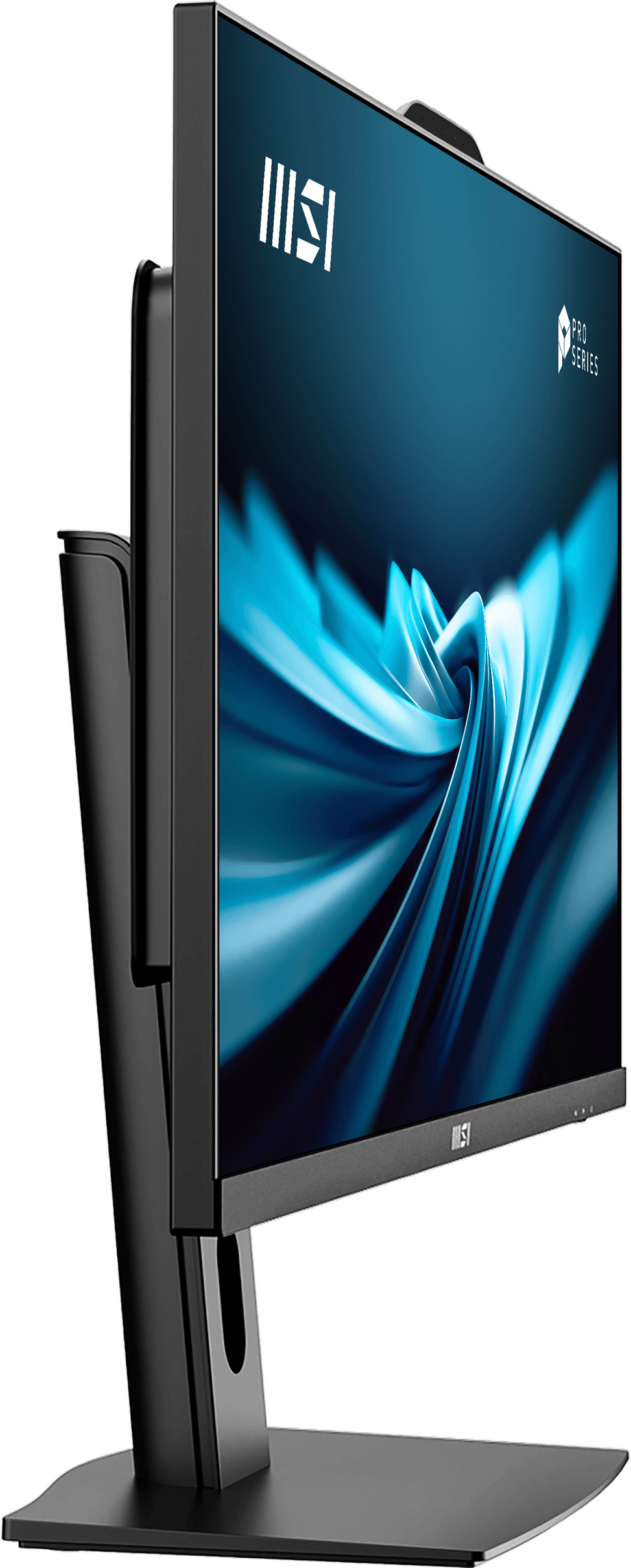

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 3

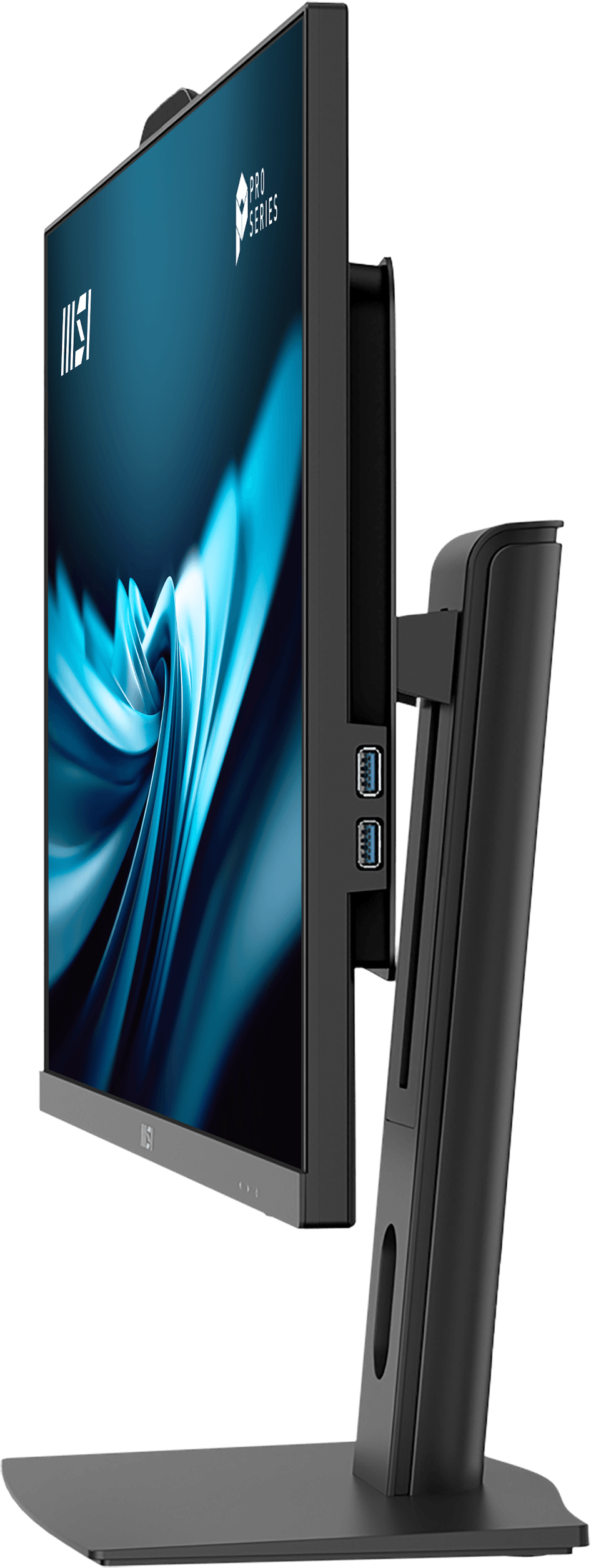

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 4

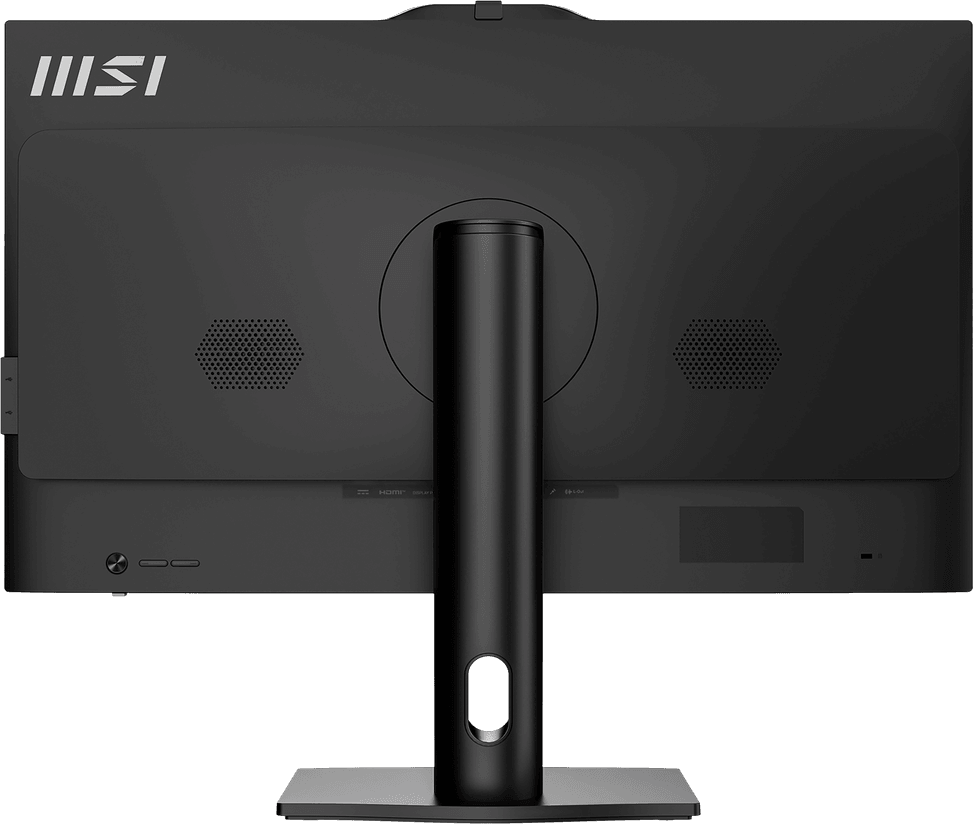

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 5

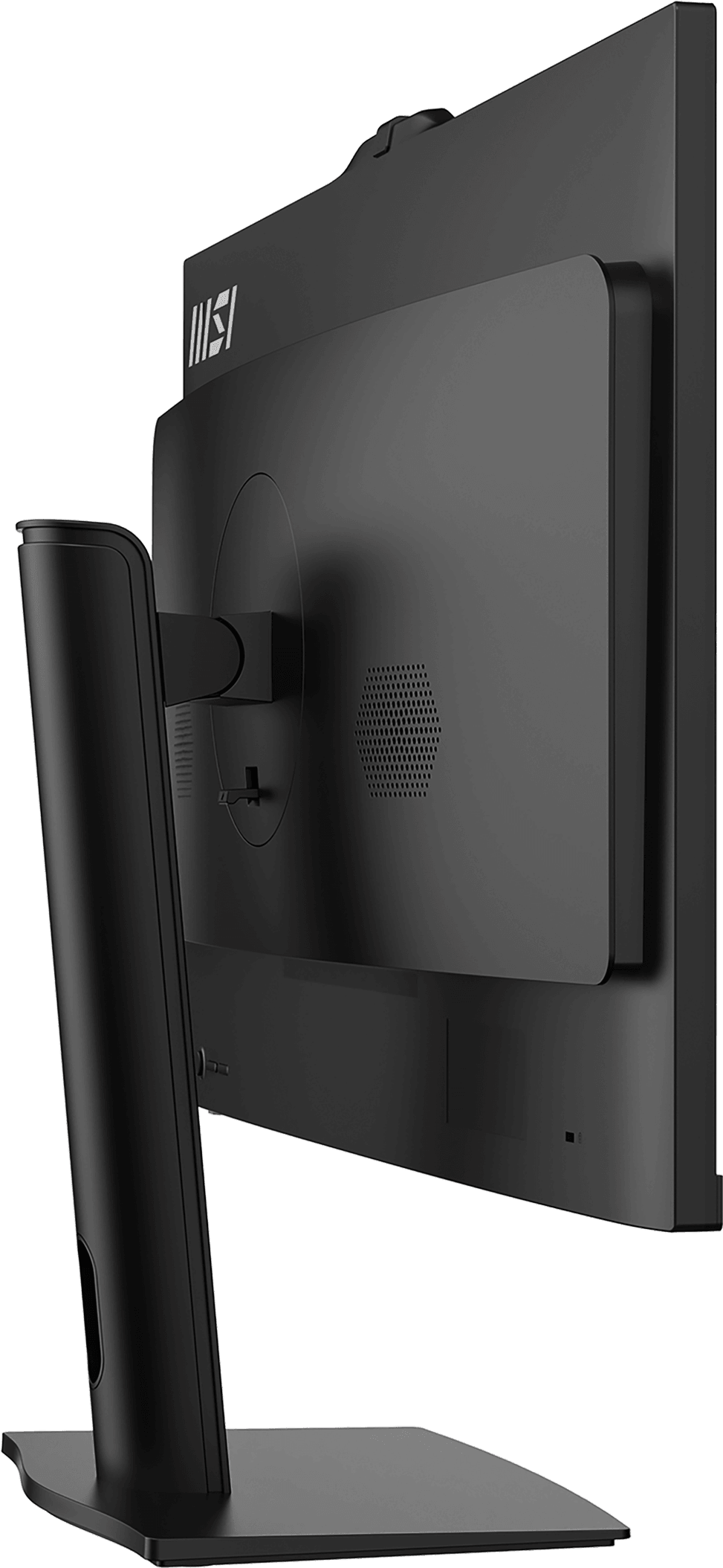

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 6

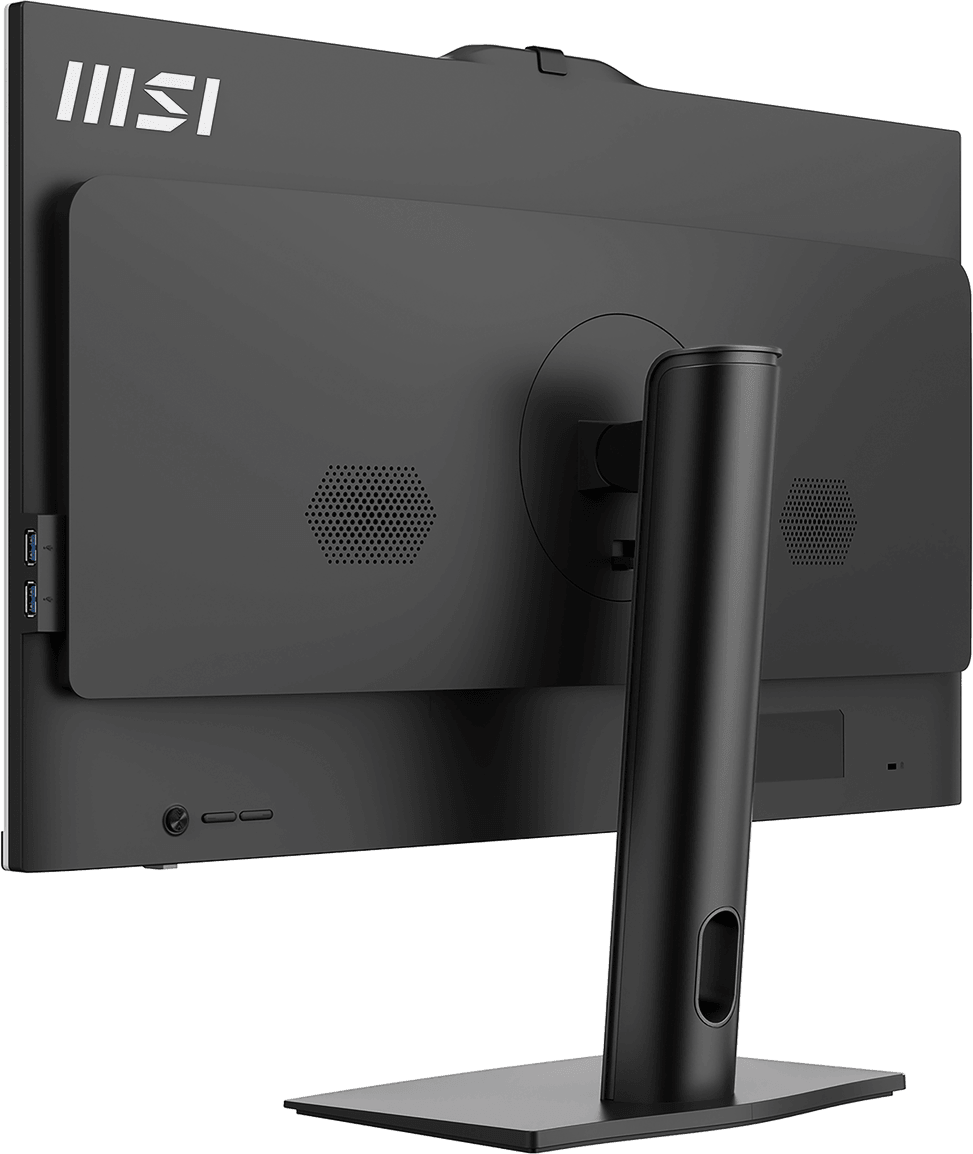

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 7

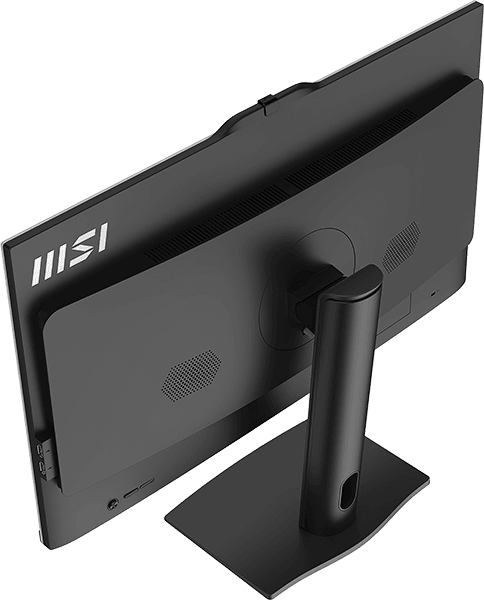

MSI Pro AP272P 14M-886XEU All-in-One PC (9S6-AF8321-1025) — image 8

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Monitor, keyboard and mouse : photographed to illustrate use, they are not included unless explicitly stated in the title or the specifications.
  • Internal configuration : the components visible through a window (graphics card, memory modules, fans, RGB lighting) illustrate the case, never the configuration sold.
  • Bays, drives and power supplies : the number of drives, populated bays and power supply units, along with the rail kit, are those of the specifications, not those of the photo.
  • Keyboard supplied : when a keyboard is included, it ships in AZERTY (French), even if the photo shows a QWERTY one.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/8
13 899,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 560 Ko — downloadable

Product overview

Intel Core-i7 Processor 14700 (2.1GHz, 65W, up to 5.40 GHz, 33 MB Intel® Smart Cache)
RAM: 16GB (8GB*2) SO-DIMM DDR5 SDRAM 2800(5600)MHz
Storage: 1TB M.2-2280 M-KEY PCIe GEN3x4
Display: 27" (69 cm) 1920x1080 (FHD) 250 nits, 1000:1, 14ms
Graphics card: Intel graphics
FreeDOS (no Windows)

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
ProcessorIntel Core i7-14700
Processor details20 cores, 28 threads, 2.1 GHz, up to 5.40 GHz, 33 MB Intel Smart Cache, TDP 65 W
Processor frequency2.1 GHz, up to 5.40 GHz
External cache memory33 MB Intel Smart Cache
Installed RAM16 GB DDR5 SDRAM-5600 (2 x 8 GB SO-DIMM)
Maximum RAM64 GB
Hard drive capacity1 TB M.2 2280 M-Key NVMe PCIe Gen3x4 SSD
Hard drive typeM.2 2280 M-Key NVMe PCIe Gen3x4 SSD
Optical driveNone
Graphics cardIntel Graphics (integrated, shared memory)
Weight (kg)7 kg (11.78 kg with packaging)
Screen size27 inches (69 cm)
Screen typeFull HD 1920 x 1080, IPS, LED backlight, 250 nits, 1000:1 contrast, 14 ms, 178° viewing angles
Memory card readerNone
Built-in webcamFull HD 1080p camera, 2 MP
Audio2.1-channel HD audio, Realtek ALC897 codec, DTS processing, 3.5 mm microphone input and line output
Ethernet network cardGigabit Ethernet (RJ-45, Intel I219-V card)
BluetoothBluetooth 5.3
Wireless communicationWi-Fi 6E
Connectors1 HDMI 2.1, 1 DisplayPort 1.4, 1 RJ-45, 1 USB-C 10 Gbps, 1 USB-A 10 Gbps, 2 USB-A 5 Gbps, 2 USB 2.0 Type-A
Biometric recognitionWindows Hello authentication
Battery type / battery lifeNone (mains powered)
Operating systemFreeDOS (no Windows)
Dimensions (W x D x H) (mm)613.49 x 268 x 457.66 mm
Box contentsAll-in-one, AC power adapter, power cable, quick start guide
Technical specifications (continued)
Screen position adjustmentsTilt -4° to +20°, 130 mm height adjustment
Brightness250 cd/m²
Panel typeIPS
Wall mountVESA 75 x 75 mm
DisplayWith display
Product colourBlack
Pointing deviceNone
Special featuresVESA 75 x 75 mm mounting, tool-free assembly, Tobii Aware software, MSI Cloud Center
Power supply120 W external power supply
Security managementdTPM 2.0 chip, Kensington slot
KeyboardNone
Memory slots2 SO-DIMM DDR5 slots, none free
Expansion slots1 M.2 slot (occupied), 1 free 2.5-inch bay
ChipsetIntel H610
Optimal resolutionFull HD 1,920 x 1,080
Storage typeSSD
Included accessoriesNone
Form factor27-inch all-in-one
TouchscreenNo
With built-in AINo
Front ports2 USB 2.0 Type-A, 2 USB-A 5 Gbps (on the side)
Graphics card typeIntegrated graphics
Desktop PC form factorAll-in-one
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is Windows installed on this MSI Pro AP272P?
No: the machine comes with FreeDOS. The operating system has to be purchased and installed separately — an item to include in the budget.
Are a keyboard and mouse supplied with this MSI?
No: the specifications state “No” for both the keyboard and the pointing device. Plan to get both, in addition to the operating system.
How good is this All-in-One's Core i7-14700 processor?
20 cores and 28 threads, up to 5.4 GHz, with 33 MB of cache — it is a desktop processor, not a mobile version. Tower-class power in a chassis with no tower.
Is the stand on this MSI Pro AP272P adjustable?
Yes, for height and tilt, and MSI highlights its tool-free assembly. This is what lets you adjust the screen height to your seated position rather than propping the stand up on books.
How good is the panel on this 27-inch MSI?
27-inch Full HD IPS at 100 Hz, 250 nits, 1000:1 contrast ratio, 14 ms response time. The 100 Hz makes scrolling smoother than on a conventional 60 Hz office monitor.
Can the webcam on this MSI be covered?
Yes, with a privacy shutter. It records in Full HD and supports infrared, which enables facial recognition once a compatible operating system is installed.
What memory does this MSI Pro AP272P have?
16 GB of DDR5 as two 8 GB SO-DIMM modules, so in dual-channel mode. The frequency is given as 2,800 MHz, i.e. 5,600 MT/s.
Can this All-in-One be locked down against theft?
Yes, it has a Kensington lock slot. This is the point to check for a workstation installed at a reception desk, in a training room or in a self-service area.
What wireless connectivity does this MSI offer?
Wi-Fi 6E and Bluetooth 5.3. Wi-Fi 6E adds the 6 GHz band to the 2.4 and 5 GHz bands: less congested, and therefore more stable in a busy environment.
Is this MSI Pro AP272P new and under warranty?
Yes, it is a new MSI product, reference 9S6-AF8321-1025, in black, with a 1 TB NVMe SSD. The invoice serves as the warranty document, for 1 year. Datasheet: MSI Pro AP272P.
