Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420)

99% Adobe RGB coverage and 1.07 billion colours: what appears matches the file. You draw straight on it with the Pro Pen 2, 8192 pressure levels and tilt, on 522 × 294 mm of tempered glass. Connects to a PC or a Mac.

  • Pen display with no system of its own: connects to a computer (PC or Mac) that runs the software
  • 99% coverage of the Adobe RGB space
  • 1.07 billion colours (10-bit), high-brightness AHVA panel
  • Drawing area 522 × 294 mm, 16:9 format
  • Wacom Pro Pen 2, battery-free and cordless, 2 side buttons
  • 8192 pressure levels (nib and eraser)
  • Tilt recognition ±60°
  • Pen resolution 5080 lpi
  • Edge-to-edge tempered glass with electrolytic etching
  • Built-in stand, 5° or 20° tilt
  • 3 USB-C ports, DisplayPort and HDMI inputs, headphone socket
  • USB, DisplayPort, HDMI and USB-C cables included
  • 10 spare nibs, 4 colour rings and a nib extractor
  • Weight 7.2 kg without the stand
Ref.: DTK-2420

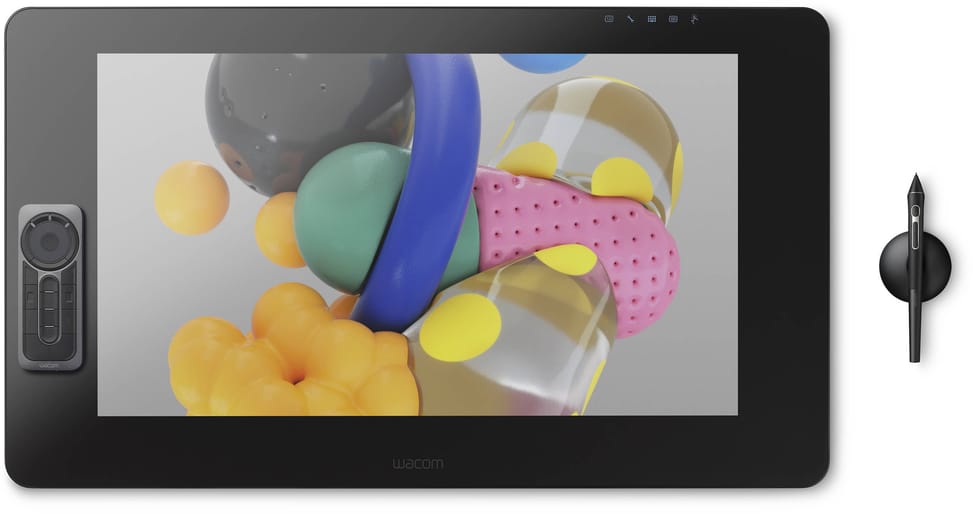

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 1

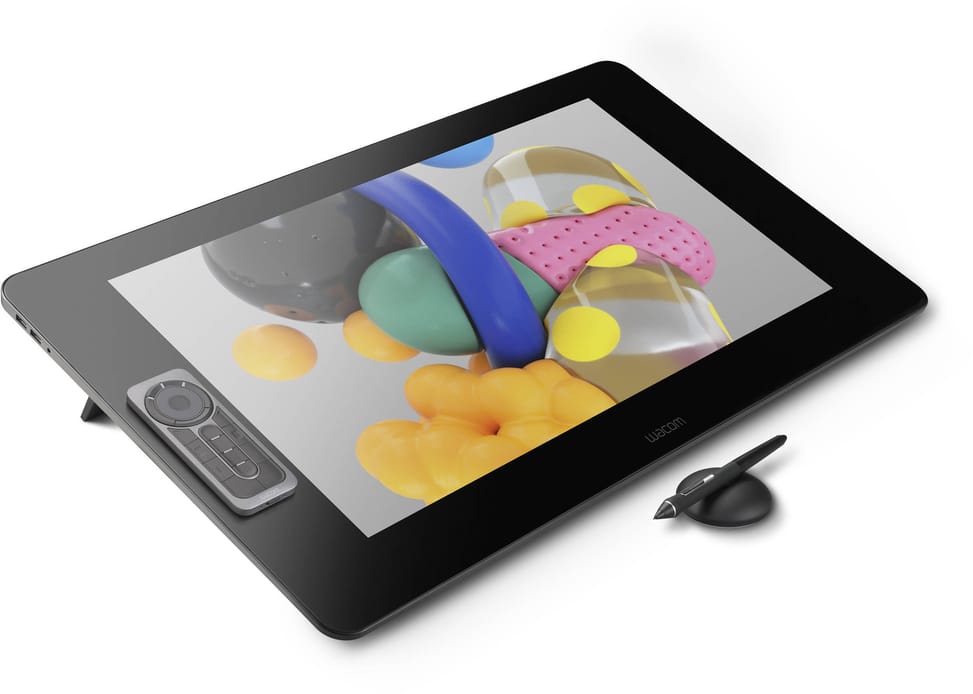

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 2

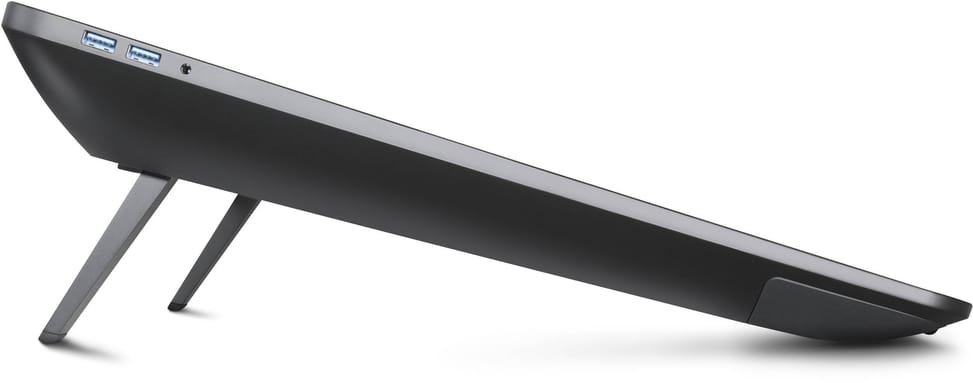

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 3

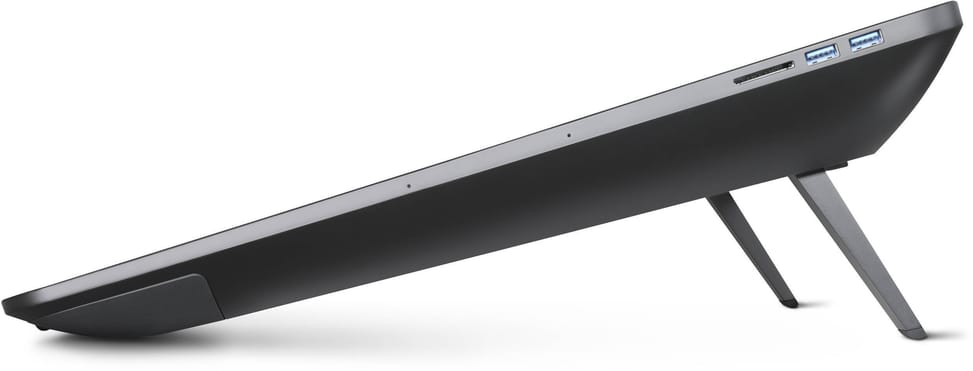

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 4

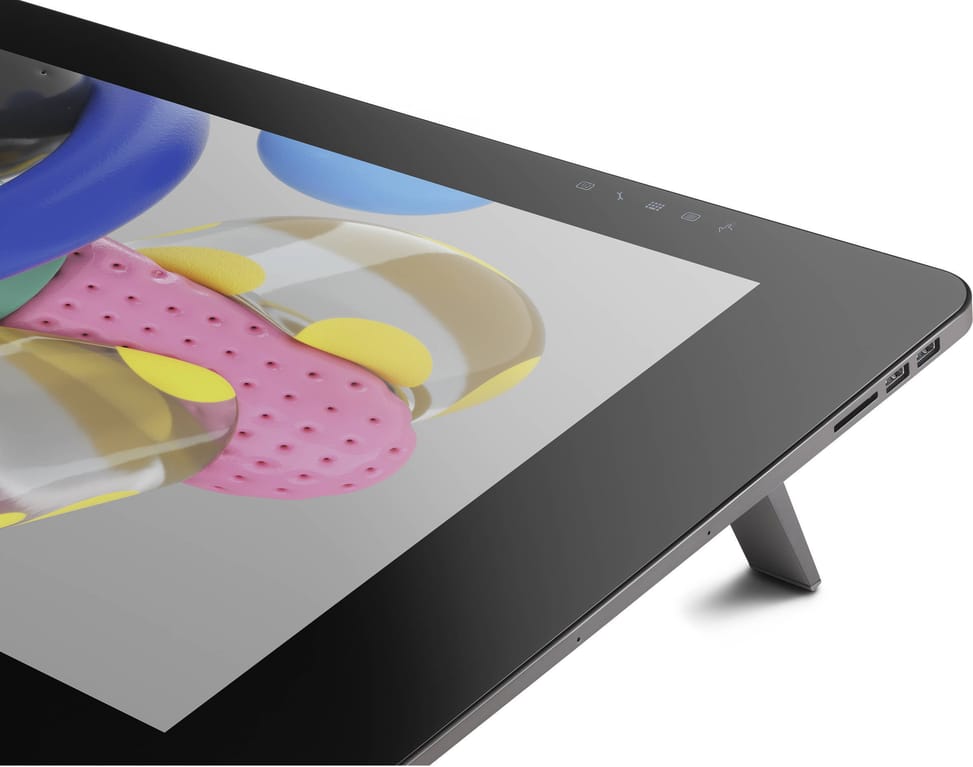

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 5

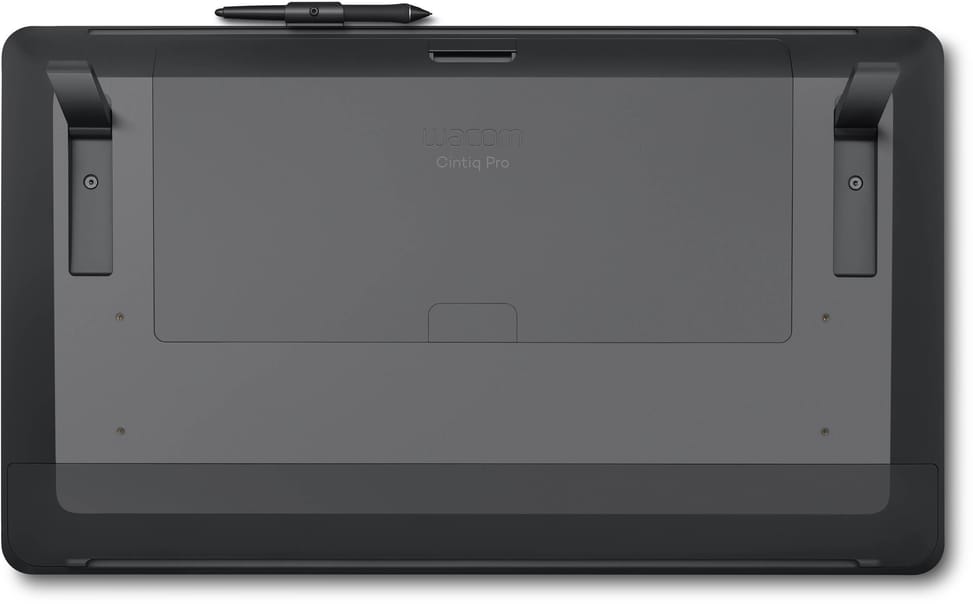

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 6

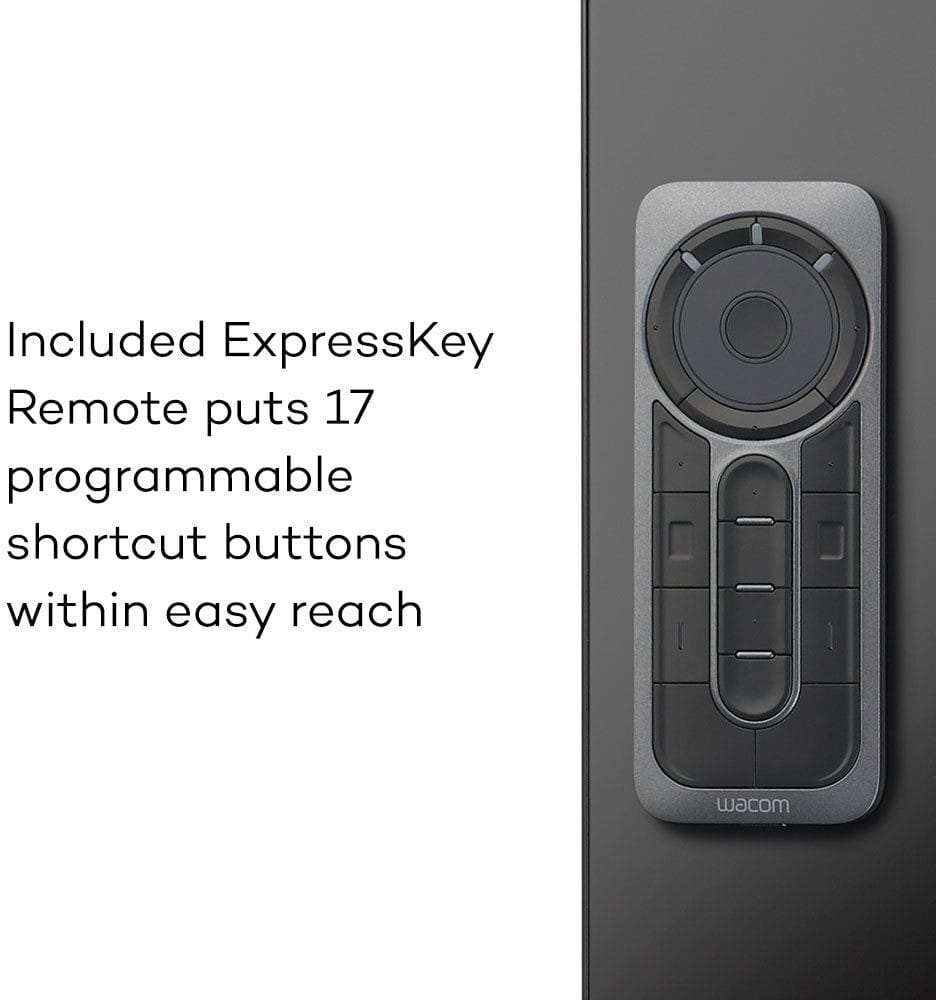

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 7

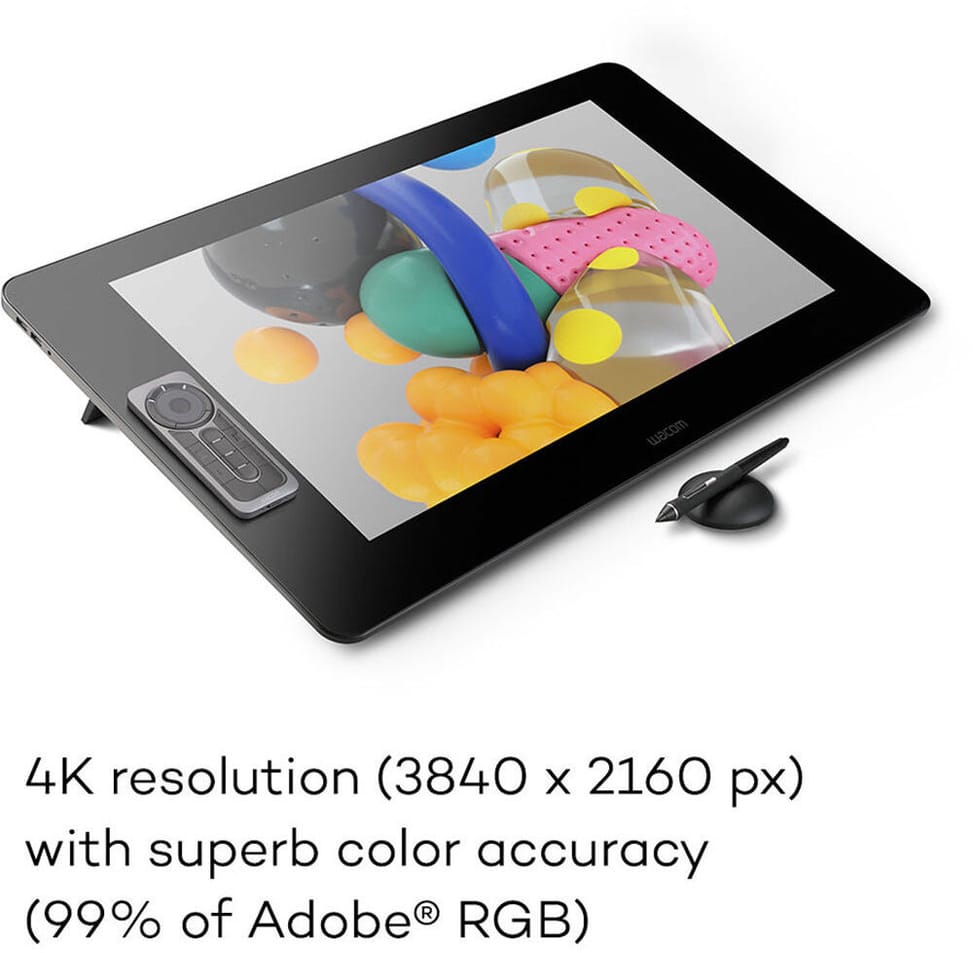

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 8
Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 9

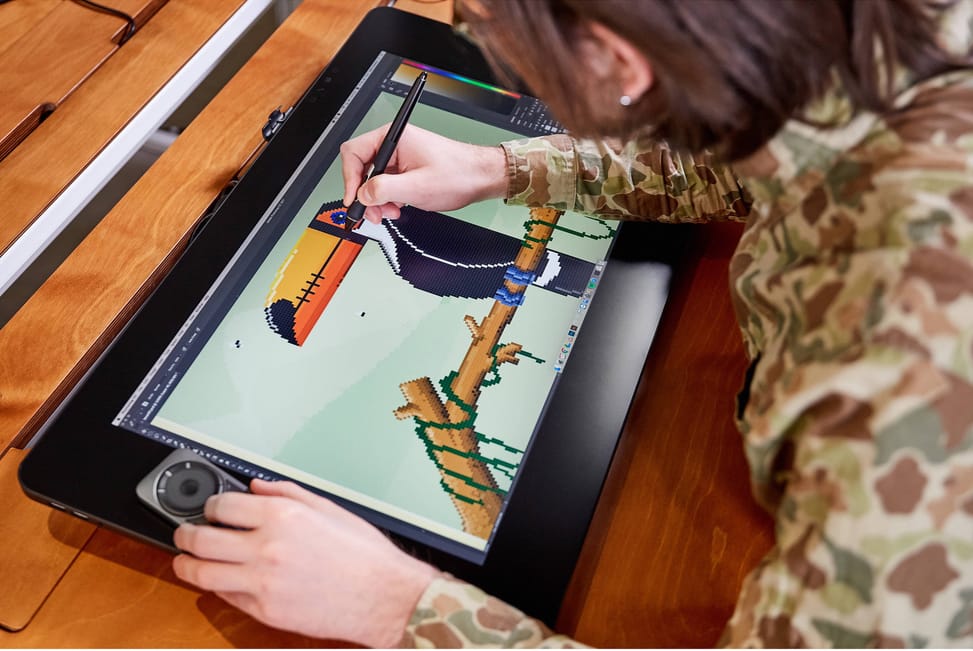

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 10
Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 11

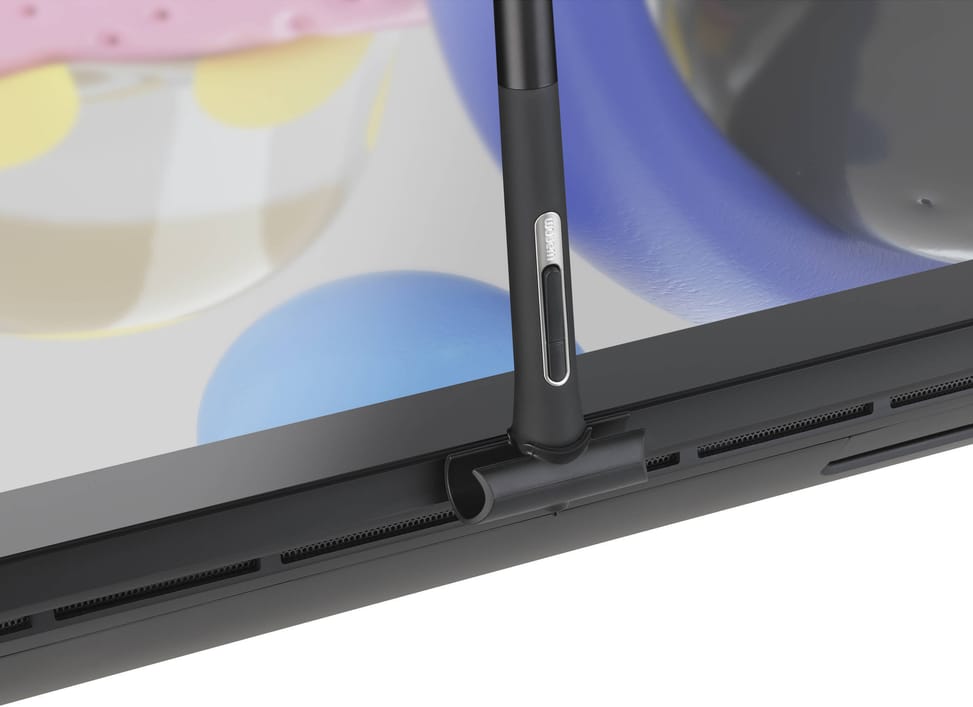

Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420) — image 12

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Stylus and nibs : stylus, spare nibs, stand and glove are supplied only if the specifications list them.
  • Devices photographed : the computer, monitor and drawings shown around the tablet are not included.
  • Active area and screen : the usable dimensions, the presence of a built-in screen and the shortcut keys depend on the reference.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/13
28 499,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 579 Ko — downloadable

Product overview

Professional 24-inch 4K interactive pen display for high-end creative work: 4K display, Adobe RGB colour and 8192 pressure levels.
Type: interactive pen display — you draw directly on the screen; with no operating system of its own, it connects to a computer (PC or Mac) that runs the software
Display: 23.6" 16:9, UHD 4K resolution · wide 99% Adobe RGB coverage — colour accuracy ready for professional creative work
Active area: 345 × 194 mm · pen input only (no touch)
Pen: Wacom Pro Pen 2, battery-free and wireless · 8192 pressure levels and tilt recognition
Connectivity: USB-C · headphone jack · built-in tilting stand (5° or 20°)
The benchmark pen display for illustrators, retouchers and studios: maximum precision and faithful colour for professional creative work.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Battery lifeNo battery
Product typeInteractive pen display
Tablet size677 × 394 × 47 mm (W × D × H)
Active area522 × 294 mm (20.55 × 11.57 inches)
Keys/buttonsNone
Pressure levels8,192 levels (pen tip and eraser)
Tilt recognitionYes, ± 60 levels over 60 degrees
Multi-touch inputNo
Connectivity4 USB 3.0 ports, 1 USB-C port, 1 HDMI 2.0 port, 1 DisplayPort port, headphone jack
Weight7 kg without the optional stand
Resolution5,080 lpi
StylusWacom Pro Pen 2, battery-free, 2 customisable side buttons
ErgonomicsBuilt-in stand, 5° without legs or 20° with legs
Technical specifications (continued)
Cable includedUSB to USB cable (3 m), DisplayPort to DisplayPort cable (3 m), HDMI 2.0 to HDMI 2.0 cable (3 m), USB-C to USB-C cable (1.8 m), DisplayPort to Mini DisplayPort adapter, microUSB to USB cable (30 cm; for the ExpressKey Remote)
Screen size (diagonal)23.6 inches (59.94 cm)
Screen resolution3840 × 2160 (4K Ultra HD)
Aspect ratio16:9
Contrast ratio1000:1
Brightness350 cd/m²
Colour gamut99% of the Adobe RGB colour space, 1.07 billion colours (10-bit)
Tablet typeInteractive display (you draw on the screen, connected to a computer)
Drawing area sizeExtra-large format (20 inches and above)
Wireless connectionNo — wired connection
Pen pressure levels8,192
Compatible withWindows, macOS
Warranty2 years

Downloads

Videos

Video — Wacom Cintiq Pro 24 Interactive Pen Display: Graphics Tablet with 23.6" 4K screen (DTK-2420)

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Does the Cintiq Pro 24 work without a computer?
No. It is a pen display with no operating system: it must be connected to a computer — PC or Mac — that runs the software. It is not a standalone tablet, and this is a costly mix-up at the time of purchase.
Are the Cintiq Pro 24's colours accurate?
99% of the Adobe RGB colour space and 1.07 billion colours in 10-bit, on a high-brightness AHVA panel. Adobe RGB is the reference colour space for printing: what is displayed matches what the file contains.
What is the drawing area of the Cintiq Pro 24?
522 × 294 mm, in 16:9 format, on a 23.6-inch 4K screen. This is the active area — where the pen is recognised — and it determines how wide your strokes can be.
How good is this Cintiq's Pro Pen 2?
8,192 pressure levels at both the tip and the eraser, tilt recognition of ±60° and a resolution of 5,080 lpi. It works with no battery or cable and has two side buttons.
Which cables are supplied with the Cintiq Pro 24?
USB, DisplayPort, HDMI 2.0 and USB-C, plus a DisplayPort to Mini DisplayPort adapter and a microUSB cable for the ExpressKey Remote. Nothing to buy to connect the display, whatever output your machine has.
Does the Cintiq Pro 24 need a separate stand?
No, the stand is built in, with two tilt positions — 5° or 20°. The display weighs 7.2 kg without the stand: make sure your work surface can take this weight.
What else is in the Cintiq Pro 24 box?
Ten replacement nibs, four colour rings to tell pens apart and a nib removal tool. Nibs wear through contact with the glass: ten spares easily cover the first year.
Is the Wacom Cintiq Pro 24 display new and under warranty?
New, reference DTK-2420, in original Wacom packaging, compatible with Windows and macOS, with 3 USB-C ports, DisplayPort and HDMI inputs and a headphone jack. The invoice serves as the warranty document for 1 year.
