Epson LQ-690II 24-Pin Dot Matrix Printer (C11CJ82401)
Fast (487 cps) and able to produce up to 6 copies at once, with a long-life ribbon.
- Speed up to 487 cps (10 cpi)
- Up to 1 original + 6 copies
- Long-life ribbon (10 million characters)
- Reliability 20,000 hours
Ref.: C11CJ82401
6 299,00 DHincl. VAT
Configuration · Epson LQ-690II
- Configuration shown: LQ-690II USB
- LQ-690IIN Ethernet
In stock
Earn 63 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 940 DH by card or bank transfer) · Certified cheque
Product overview
Get more from your printing with the Epson LQ-690II 24-pin dot matrix printer. Print fast at up to 487 cps (10 cpi), with 1 + 6 copies for outstanding productivity. A high ribbon life of 10 million characters keeps running costs down. Reliability is built in, with an MTBF of 20,000 hours, and a modern design that blends perfectly into your workspace.
Request a quoteShare:
Technical specifications
| Connectivity | USB 2.0, bidirectional parallel |
|---|---|
| Supported media types | Cut sheets (single or multipart), continuous paper (single or multipart), labels (single or multipart), roll paper, envelopes, card |
| Dimensions (W x D x H) | 480 x 301 x 211 mm (width x depth x height) |
| Net weight | 6.8 kg |
| Installed memory | 128 KB |
| Compatible operating systems | Windows 11, 10, 8, 7, Vista, XP SP3 or later (32-bit), 2000 and 98 · Windows Server 2003 SP2 or later |
| Box contents | Printer, ribbon, power cable, driver and utilities (CD), software (CD), user manual (CD), setup instructions, warranty document |
| Features | |
| Printing technology | Ink ribbon (dot matrix) |
| Print resolution | 360 x 180 dpi |
| Print method | Impact dot matrix |
| Pins | 24 pins |
| Included software | Epson Status Monitor |
| Printhead life | 400 million impacts per pin |
| Ribbon yield | 10 million characters in black, draft mode |
| Emulations | ESC/P2, IBM PPDS |
| Print speed | High speed draft: 487 cps at 10 cpi, 529 cps at 12 cpi · Draft: 366 cps at 10 cpi, 396 cps at 12 cpi · Letter quality (LQ): 121 cps at 10 cpi, 132 cps at 12 cpi |
| Product type | 24-pin impact dot matrix printer, 106 columns |
| Duplex printing | Manual |
| Fax | No |
| Wi-Fi | No |
| Ethernet | No |
|---|---|
| Display | No display |
| Format | Up to A4 |
| Power consumption | 38 W · 3 W in standby |
| Supported barcodes | Codabar (NW-7), Code 128, Code 39, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, POSTNET, UPC-A, UPC-E |
| Built-in fonts | Epson bitmap fonts: Courier, Draft, Roman and Sans Serif (10, 12 and 15 cpi), OCR-B, Orator, Orator-S and Script (10 cpi), Prestige (10 and 12 cpi), Script C (proportional) · Epson scalable fonts: Roman, Roman T, Sans Serif, Sans Serif H |
| Character sets | PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, ISO-8859-15, Roman 8, Italic |
| Copy capability | 7-part (1 original + 6 copies) |
| Reliability | Mean time between failures (MTBF) 20,000 hours |
| Compatible cartridges | Black ribbon LQ-690 C13S015610 (10 million characters) |
| Noise level | Sound pressure: 59 dB(A) in operation, 54 dB(A) in standby |
| Operating temperature | 5 to 35 °C |
| Operating humidity | 10 to 80 % |
| Number of cartridges | 1 cartridge |
| Print colour | Black and white only |
| Paper feed and output | Cut sheet front, continuous paper rear, front paper output |
| Media thickness | Single sheet: 0.065 to 0.15 mm · Multipart: 0.12 to 0.49 mm · Continuous paper: 0.065 to 0.49 mm · Labels: 0.16 to 0.19 mm |
| Automatic document feeder | No |
| Number of pins | 24 pins |
| Number of columns | 106 columns |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is the ribbon supplied with the printer, and how long does it last?
Yes, a ribbon is included in the box, along with the power cable, the driver CDs and the user manual. Each ribbon lasts 10 million characters, which means long intervals between replacements and low running costs. It is a black ribbon: the LQ-690II prints in black and white only.
Which ribbon should I reorder, and can I reuse the ones from my old LQ-690?
The consumable is the LQ-690 black ribbon, reference C13S015610, with a capacity of 10 million characters. It is transferable: the ribbons from your current printer fit the LQ-690II instead of being thrown away. A first ribbon is supplied in the box in any case.
How many multipart copies can the LQ-690II print in a single pass?
The original plus six copies, i.e. seven sheets per pass. The accepted thickness for multipart forms ranges from 0.12 to 0.49 mm, and paper thickness adjustment is automatic: nothing to adjust between two types of form.
Can it print on labels, envelopes, card or continuous paper?
Yes, all four. It accepts cut-sheet and continuous paper (single-part or multipart), labels, roll paper, envelopes and card. As for thickness: 0.065 to 0.15 mm for single sheets, up to 0.49 mm for continuous paper, and 0.16 to 0.19 mm for label sheets.
Can the LQ-690II print barcodes?
Yes, eleven symbologies: EAN-13, EAN-8, UPC-A, UPC-E, Code 39, Code 128, Codabar (NW-7), Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5 and POSTNET. Ten character tables are also built in, including PC437, PC850, PC858 and ISO-8859-15.
Does the advertised 487 characters per second apply to all print qualities?
No: 487 cps corresponds to high-speed draft mode at 10 cpi, measured with the printer's resident fonts. In standard draft you get 366 cps, and in letter quality (LQ) 121 cps. At 12 cpi, these three values become 529, 396 and 132 cps respectively.
How does it connect, and do the drivers work on Windows 11?
It connects via USB 2.0 or bidirectional parallel, and the drivers cover Windows from 98 to Windows 11, as well as Windows Server 2003 SP2 and later. One point to plan for: the drivers, the software and the Epson Status Monitor utility are supplied on CD.
How long does the LQ-690II print head last?
It is rated for 400 million strokes per pin, and the machine has a mean time between failures of 20,000 hours. Both figures are explicitly aimed at producing large volumes of documents with reduced maintenance.
Can it be installed in a hot or humid warehouse?
Yes: the chassis is designed to withstand high humidity and heat, and Epson positions this machine for the office as well as the warehouse. The operating range is nevertheless limited to 5 to 35 °C. Compact and robust, it weighs 6.8 kg and is 480 mm wide.
What is its power consumption if it stays on all day?
38 W when printing and just 3 W in sleep mode. You can therefore leave it switched on permanently at a data entry station or a till.
How much desk space does it take, and does it need space behind it?

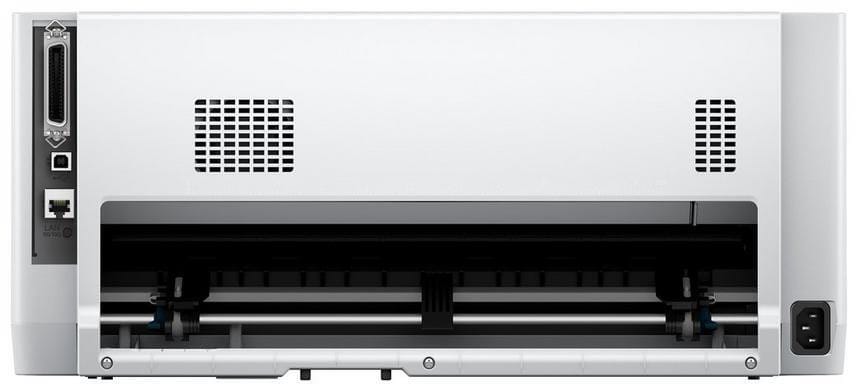

It measures 480 × 301 × 211 mm and weighs 6.8 kg. Leave clearance at the rear: single sheets are inserted at the front and come out at the front, but continuous paper feeds from the rear.
Is the printer new and under warranty?
Yes: the LQ-690II (C11CJ82401) is new, in its original packaging, with its warranty document and its ribbon. The invoice serves as the warranty document for 1 year. Full specifications are given in the Epson datasheet (PDF).
