Reyee RG-EST310 V2 5GHz 802.11ac MIMO Wireless Bridge - 1 km range PTP/PTMP

Sold as a pair and factory paired: the two units find each other as soon as they are powered up and restart on their own after an outage. 10 dBi directional antenna, IP54 housing and less than 7 W consumed.

  • Supplied as a pair, factory paired
  • Up to 867 Mbps on the 5 GHz band
  • 10 dBi directional antenna, 60° horizontal beamwidth
  • IP54 housing, from -30 to +55 °C
  • 4 kV lightning protection
  • 1 port at 10/100 powered by 24 V passive PoE
  • Consumption below 7 W
  • Up to 16 cameras at 3 Mbps over a 1 km link
  • Normal, High performance or Anti-interference modes
  • Link quality indicators with 3 levels
  • Commissioning with no configuration, by QR code or serial number
  • Remote access, statistics and restart through the cloud
  • Wall or pole mounting, brackets and clamps included
Ref.: RG-EST310 V2

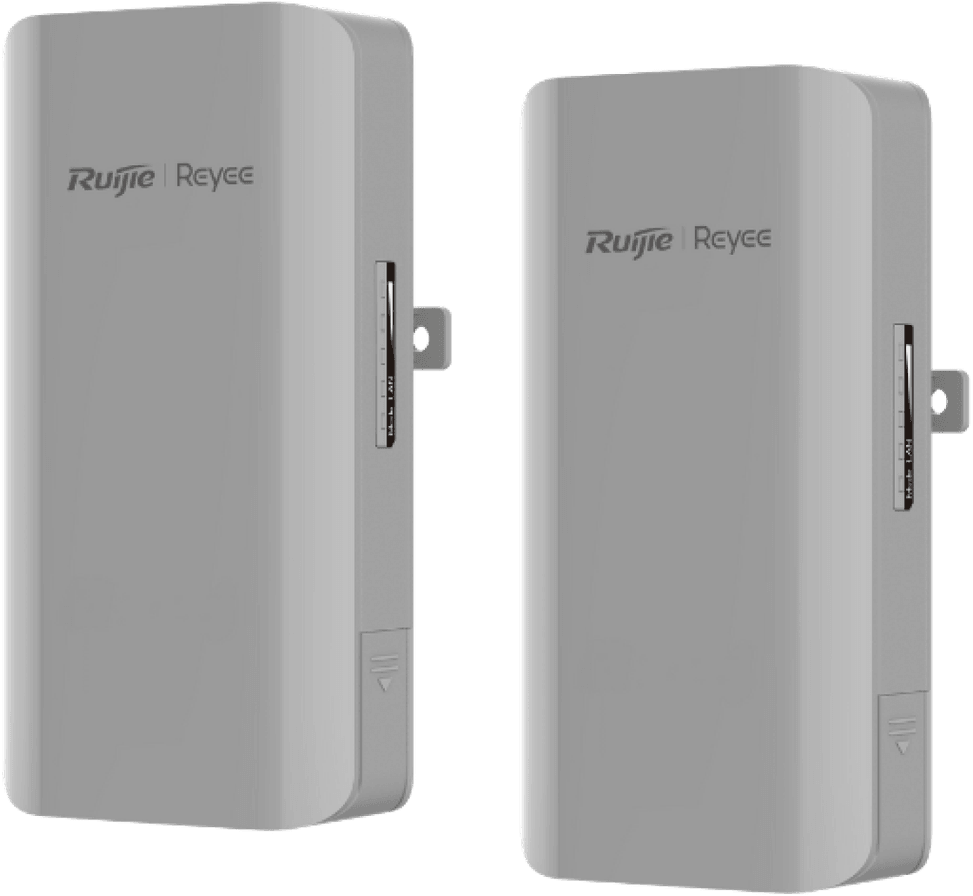

Reyee RG-EST310 V2 5GHz 802.11ac MIMO Wireless Bridge - 1 km range PTP/PTMP — image 1

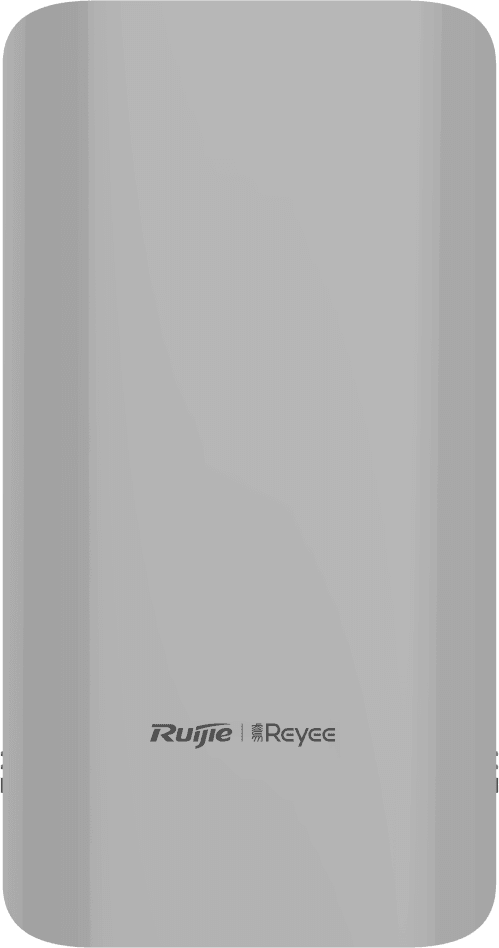

Reyee RG-EST310 V2 5GHz 802.11ac MIMO Wireless Bridge - 1 km range PTP/PTMP — image 2

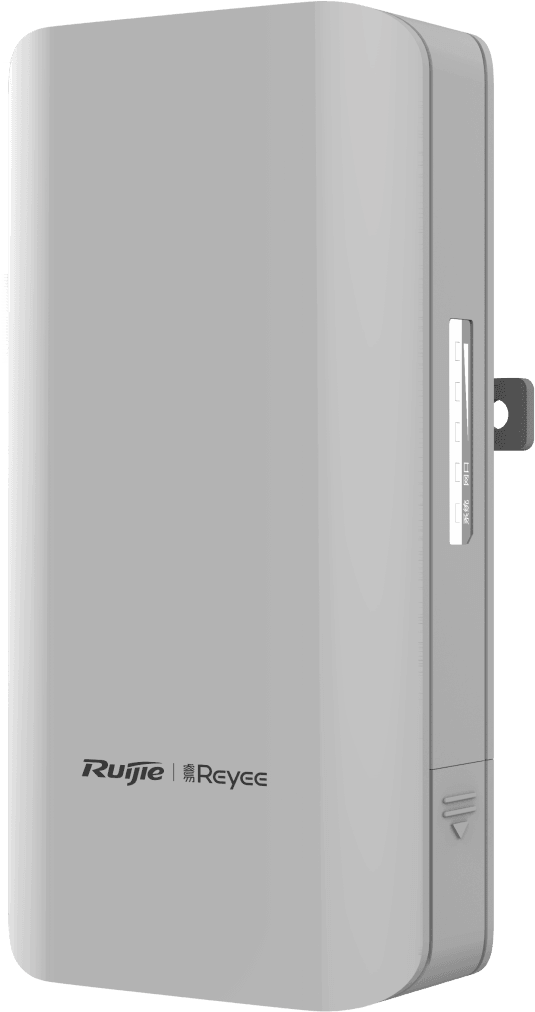

Reyee RG-EST310 V2 5GHz 802.11ac MIMO Wireless Bridge - 1 km range PTP/PTMP — image 3

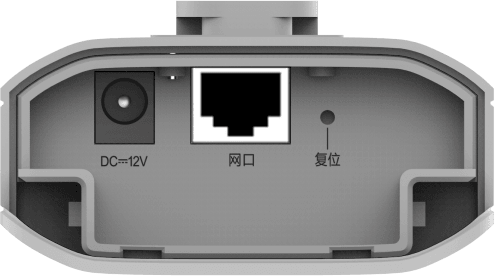

Reyee RG-EST310 V2 5GHz 802.11ac MIMO Wireless Bridge - 1 km range PTP/PTMP — image 4

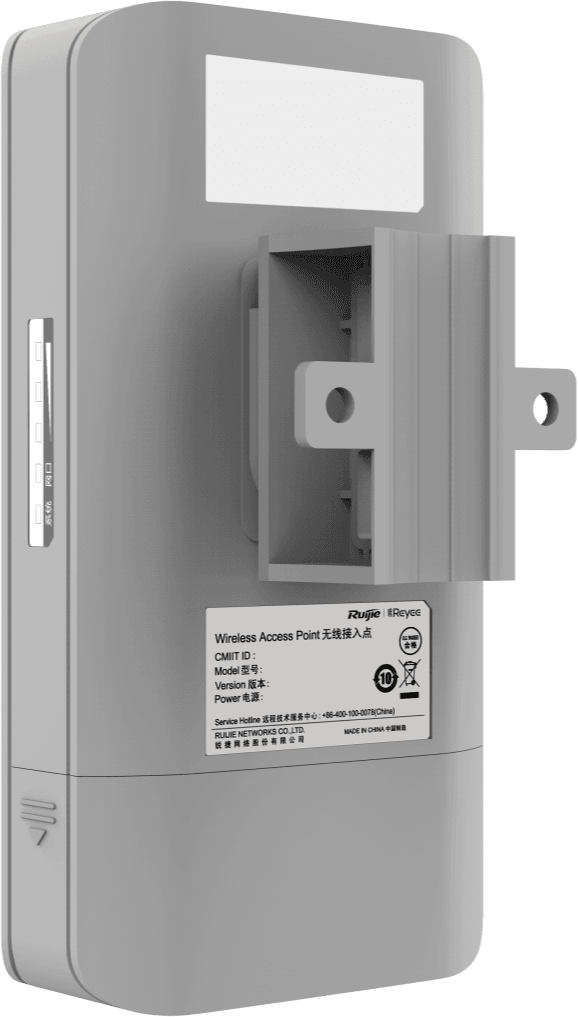

Reyee RG-EST310 V2 5GHz 802.11ac MIMO Wireless Bridge - 1 km range PTP/PTMP — image 5

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/5
1 579,00 DHincl. VAT

On its way — back in stock soon

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 1,5 Mo — downloadable

Product overview

Optimise your network connections with the Reyee RG-EST310 V2 wireless bridge, designed for reliable transmission up to 1 km. With 5 GHz 802.11ac 2x2 MIMO technology, it reaches 867 Mbps, ideal for video surveillance and demanding outdoor deployments. Weatherproof (IP54) and built for extreme temperatures (-30 °C to 55 °C), it stays stable over time. Factory pre-configured for quick installation, it restarts automatically after a power cut. Its 10 dBi directional antenna and PTP/PTMP support provide optimal coverage and seamless connectivity in every environment.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MTBFOver 400,000 hours
Package contents2 wireless bridges with antenna, 2 PoE injectors and 2 mounting brackets; no AC adapter
Number of units included2 bridges
IP protection ratingIP54, ±4 kV common-mode and ±2 kV differential-mode surge protection
Electrostatic discharge protection±8 kV contact, ±15 kV air
Interfaces1 RJ45 10/100 Mbps port, 1 reset button
PoE portsNone
Total PoE budgetNone
Network standardsIEEE 802.11a/n/ac on 5 GHz
Advanced Wi-Fi technologiesAdaptive modulation from MCS0 (BPSK) to MCS9 (256-QAM)
Proprietary link protocolTDMA, fixed or flexible mode
Maximum channel widthAutomatic, 20/40/80 MHz on 5 GHz
Spatial streams and MU-MIMO2×2 MIMO with two streams at 5 GHz
Maximum Wi-Fi throughput per band867 Mbps on 5 GHz
Received signal level by distance-52 dBm at 100 m, -65 dBm at 500 m, -68 dBm at 1 km, -75 dBm at 2 km
Link throughput by distance90 Mbps at 100 m, 80 Mbps at 500 m, 80 Mbps at 1 km and 40 Mbps at 2 km on a 40 MHz channel
Management modesSNMP, cloud management and monitoring
Installation and alignment toolsAntenna alignment, spectrum scan, AI heat map, ping, traceroute and DNS diagnostics; no one-touch pairing, as the bridges are factory-paired
Layer 2 featuresVLAN packet passthrough, storm control, WMM, DHCP server and client; no link aggregation
Roaming and meshSelf-organising network (SON) between bridges
Technical specifications (continued)
Power consumptionLess than 7 W
Weight0.35 kg
Dimensions (W x D x H)147 x 76 x 37 mm, excluding the mounting bracket
Frequency bands5 GHz only
Dedicated management radio5.150 to 5.350 GHz and 5.725 to 5.850 GHz
Operating frequency range5 GHz (802.11a/n/ac): 5.150 to 5.350 GHz, 5.470 to 5.725 GHz and 5.725 to 5.850 GHz
AntennasIntegrated directional antenna, 10 dBi gain at 5 GHz
Antenna beamwidth60° horizontal, 30° vertical
Stated range1 km
Number of PTMP links5 PTMP links
Maximum transmit power26 dBm on 5 GHz
Receiver sensitivity20 MHz channel: -91 dBm (MCS0) to -57 dBm (MCS9) · 40 MHz channel: -83 dBm to -57 dBm · 80 MHz channel: -76 dBm (MCS0) to -51 dBm (MCS9)
Security featuresWPA2-PSK encryption, SSID hiding
Power supply24 V passive PoE; 802.3af and 802.3at PoE standards are not supported
Status indicators1 system LED, 1 port LED, 3 signal strength LEDs
CertificationsCE
Operating temperature-30 to 55 °C
Operating humidity5 to 95% non-condensing
Operating modeBase station or CPE, PTP and PTMP links
Warranty1 year
