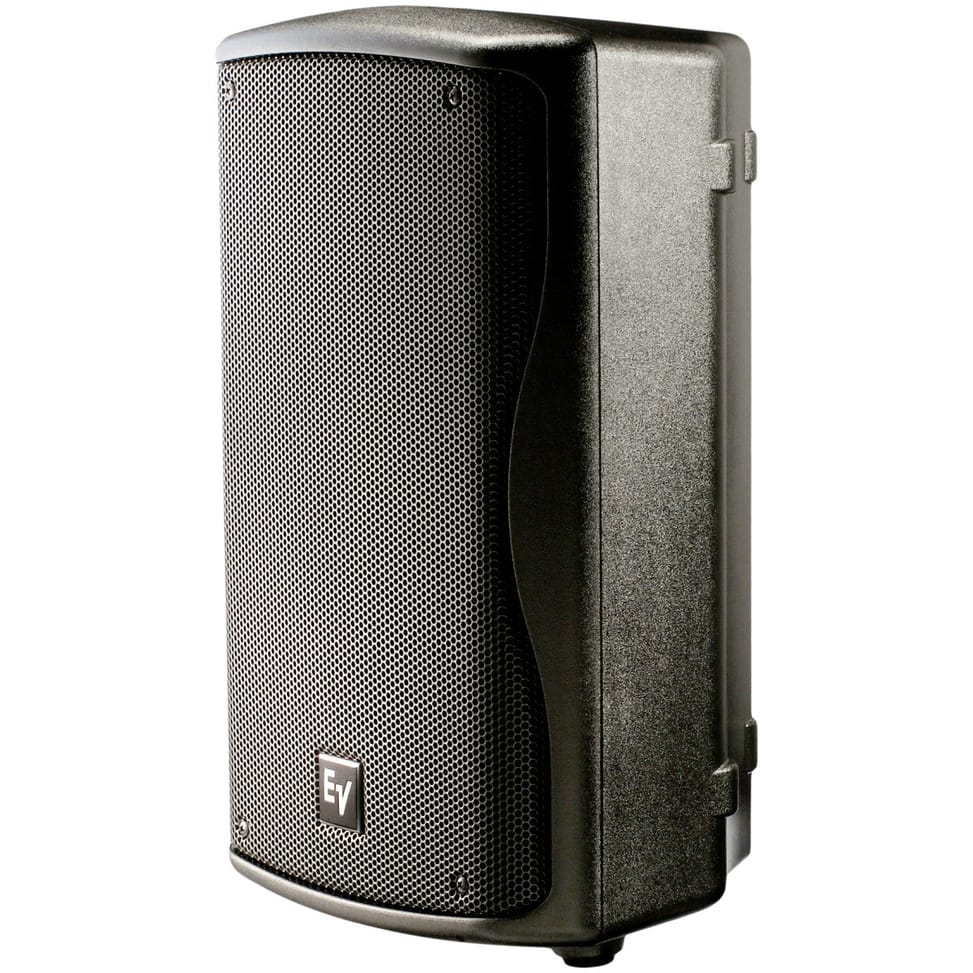

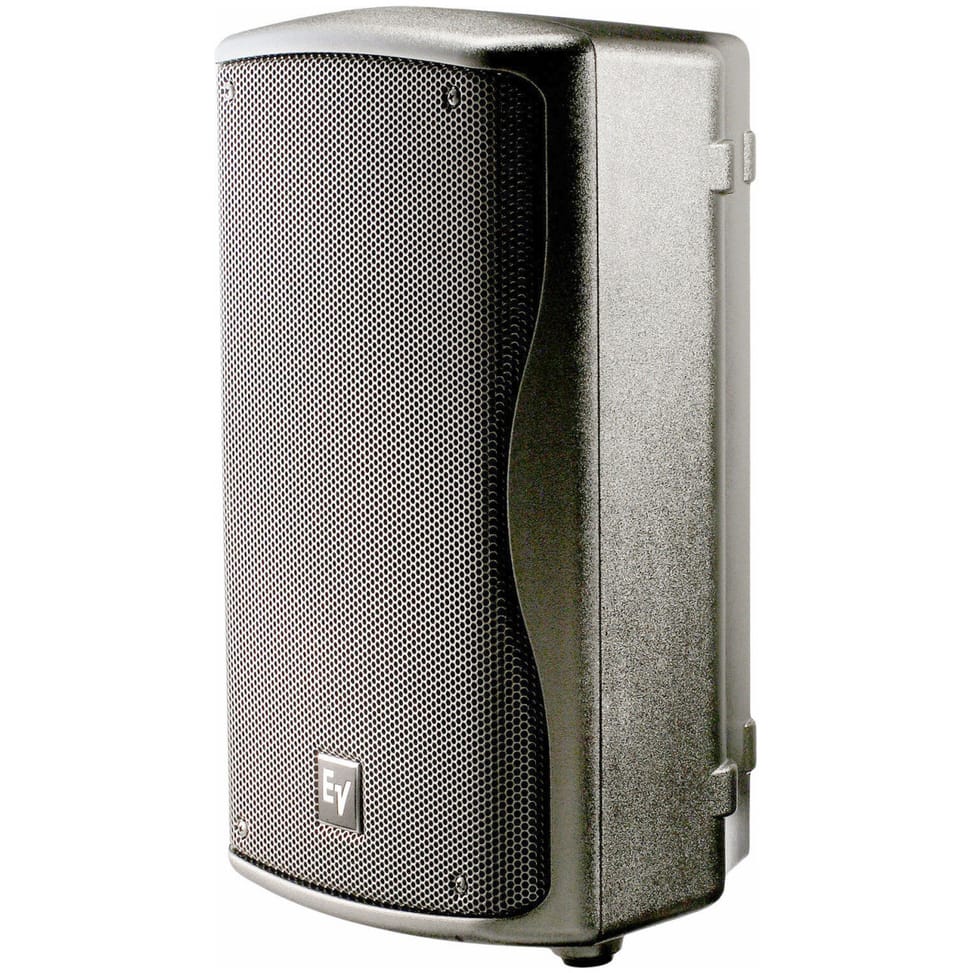

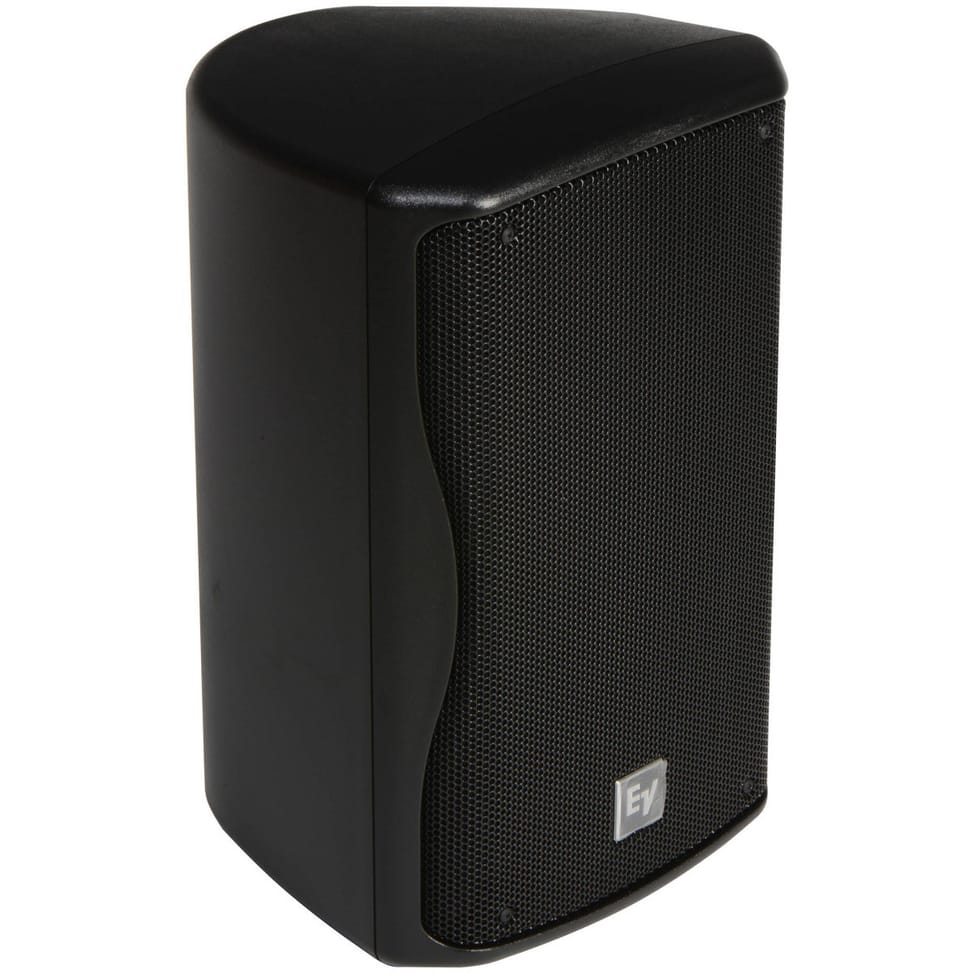

Bosch Electro-Voice ZX1-90 2-Way 8" 200 W 90°x50° Passive Speaker (ZX1-90)
Delivers up to 123 dB over a 60 Hz to 20 kHz frequency range, with a rotatable horn and a built-in pole mount socket.
- Up to 123 dB, 60 Hz–20 kHz frequency range
- Rotatable horn (50°x90°)
- EV8L 8" woofer + DH2005 driver
- Polymer enclosure, galvanised steel grille
Ref.: ZX1-90
New
1/3
5 179,00 DHincl. VAT
In stock
Earn 52 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Tue 10 Nov and Thu 12 Nov ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
The Electro-Voice ZX1-90 is an 8-inch two-way passive speaker designed for both fixed and mobile sound reinforcement. It handles 200 W continuous and reaches up to 123 dB, over a frequency range of 60 Hz to 20 kHz. Its rotatable horn provides 90° × 50° coverage, which can be reoriented to 50° × 90° to suit the geometry of the venue. The 8-inch EV8L low-frequency driver and one-inch DH2005 compression driver deliver clear reproduction of both speech and music. The high-impact polymer enclosure and powder-coated galvanised steel grille resist moisture, and the integrated pole-mount socket makes temporary installations easy.
Request a quoteShare:
Technical specifications
| Weight (kg) | 8.4 kg |
|---|---|
| Bluetooth | None |
| Dimensions (W x H x D) | 282 x 457 x 264 mm |
| Battery capacity | None (device has no battery) |
| Battery type | None (device has no battery) |
| Remote control | None |
| Frequency response | 60 Hz - 20 kHz (-3 dB), 48 Hz - 20 kHz (-10 dB) |
| Audio input | Neutrik Speakon NL4 connector |
| Audio output | None |
| Power handling | 200 W continuous, 400 W program, 800 W peak |
| Wi-Fi | None |
| Material(s) | High-strength polymer enclosure, powder-coated 18 GA galvanised steel grille |
| Microphone | None |
| Power supply | None (8-ohm speaker: external power amplifier required) |
| Battery life | None (device has no battery) |
| Mounting | Built-in pole-mount socket, recessed handle, built-in floor-monitor angle |
|---|---|
| In-ceiling mounting | Not applicable (surface mounting) |
| RGB lighting | No |
| Speaker type | Portable 2-way 8-inch passive speaker, 8 ohms |
| Charging time | None (device has no battery) |
| Controls | None |
| Impedance | 8 ohms nominal, 6 ohms minimum |
| Drivers (transducers) | 1 x EV8L 8-inch (203 mm) woofer, 1 x DH2005 1-inch (25.4 mm) compression driver |
| Wireless pairing and daisy-chaining | None |
| Local media playback | None |
| Charging connector | None (device has no battery) |
| Sensitivity (1 W / 1 m) | 94 dB (1 W / 1 m, half-space) |
| Maximum sound pressure level | 123 dB (calculated maximum) |
| Coverage angle | 90° x 50°, can be reoriented to 50° x 90° by rotating the horn |
| Warranty | 1 year |
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Does the Electro-Voice ZX1-90 work without an amplifier?
No: it is a passive speaker. It contains no amplification and must be connected to a power amplifier sized for its 200 W continuous power. That is the first thing to include in an installation budget.
Can the ZX1-90's coverage be adapted to the shape of the room?
Yes, by rotating the horn. The coverage pattern changes from 90° × 50° to 50° × 90°: the same speaker covers a wide, shallow room or the reverse, without changing model. This is the key adjustment on this reference.
What sound level can the ZX1-90 reach?
Up to 123 dB maximum sound pressure level, over a range of 60 Hz to 20 kHz. The one-inch compression driver and the 8-inch woofer keep voice and music clear at high levels, with headroom to spare.
Which drivers are fitted in the Electro-Voice ZX1-90?
An 8-inch EV8L low-frequency driver and a 1-inch DH2005 high-frequency compression driver. This two-way design splits the work between bass and treble, which benefits speech as much as music.
Can the ZX1-90 handle mobile sound reinforcement use?
Yes. The enclosure is made of high-strength polymer, the grille of powder-coated galvanised steel — two materials that resist moisture — and an integrated pole-mount socket lets you mount it on a tripod stand for a temporary setup.
Is this Electro-Voice speaker available in white?
Yes, the ZX1-90 is available in a black or white finish. White blends into a light-coloured ceiling or wall, which matters in a place of worship, a lobby or a meeting room where the speaker needs to stay discreet.
Is the Electro-Voice ZX1-90 speaker new and under warranty?
New, reference ZX1-90, in original packaging. The invoice serves as the warranty document for 1 year. Keep it: it is the document requested for any claim.
