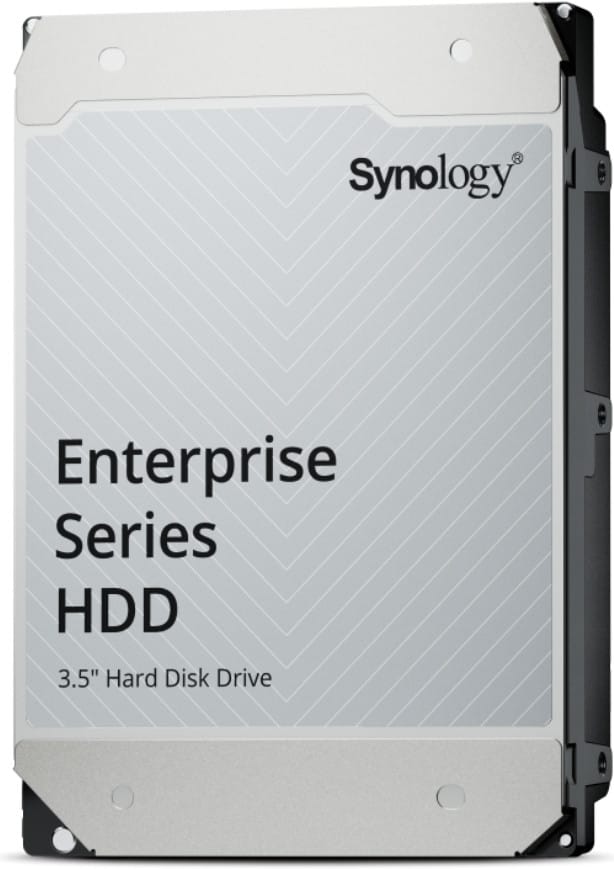

Synology HAT5310 SATA 3.5'' Enterprise Series HDD 16 TB Internal Hard Drive for NAS (HAT5310-16T)

16 TB Synology Enterprise Series hard drive built to run 24/7 in a NAS: CMR technology, helium-sealed, 7,200 rpm and a 550 TB/year workload rate. One-click firmware updates from DSM.

16 TB, 3.5-inch form factor, SATA 6 Gb/s interface
CMR recording technology
Helium-sealed, 7,200 rpm
Up to 281 MB/s sustained transfer
512 MB cache
2.5 million hours MTBF
550 TB/year workload rate
Persistent write cache against power outages
One-click firmware updates from DSM
8.35 W in operation, 4.16 W idle

Ref.: HAT5310-16T

Synology HAT5310 SATA 3.5'' Enterprise Series HDD 16 TB Internal Hard Drive for NAS (HAT5310-16T)

13 962,00 DHincl. VAT

Configuration · Synology Enterprise Series SATA

Out of stock

Available right now

Our in-stock alternatives, in a similar range.

See the 10 available alternatives

Manufacturer's datasheetView the PDF · 842 Ko — downloadable

Product overview

Hard drive for professional NAS running around the clock: 16 TB, CMR technology and helium-sealed.
Capacity: 16 TB in 3.5-inch form factor, SATA 6 Gb/s interface
Speed: 7,200 rpm, up to 281 MB/s sustained transfer
Cache: 512 MB
Reliability: 2.5 million hours MTBF
Workload: 550 TB/year
Power: 8.35 W in read/write
The Enterprise Series drive Synology validates for its RackStation servers and IP SAN arrays.

See all the specifications ↓

Request a quoteShare:

Available alternatives

Models available from 5 399 DH incl. VAT, in a similar range.

Synology
Synology HAS5300 SAS-3 3.5" Enterprise Series HDD 20TB Internal Hard Drive for NAS (HAS5310-20T)
Low-latency 12 Gb/s SAS protocol and up to 281 MB/s sustained throughput, for critical workloads that never stop. Degraded RAID arrays rebuild up to 27% faster on a Synology NAS.
- Low-latency 12 Gb/s SAS interface
- Designed for service 24 hours out of 24, 7 days out of 7
- Workload of 550 TB per year
In stock
13 899 DHincl. VAT13 899,00 DHincl. VAT
Delivery everywhereDelivered all over Morocco
Synology
Synology HAT5300 SATA 3.5'' Enterprise Series HDD 20 TB Internal Hard Drive for NAS (HAT5310-20T)
Up to 281 MB/s sustained throughput, 512 MB of cache and 7,200 rpm. For high-availability arrays: 550 TB handled per year, 2.5 million hours MTBF and RAID repair up to 27% faster.
Synology
Synology HAT5300 SATA 3.5'' Enterprise Series HDD 18 TB Internal Hard Drive for NAS (HAT5310-18T)
Built for high-capacity arrays and heavy workloads: 550 TB handled per year, CMR recording for steady writes and sequential reads up to 23% faster on a Synology system.
Synology
Synology HAT5300 SATA 3.5" Enterprise Series HDD 12 TB Internal Hard Drive for NAS (HAT5300-12T)
Enterprise class: 550 TB of data handled per year, up to 2.5 million hours of MTBF and a persistent write cache that limits data corruption in the event of a power cut.
Synology
Synology HAT5320 SATA 3.5'' Enterprise Series HDD 8TB Internal Hard Drive for NAS (HAT5320-8T)
Firmware updated in one click from DSM, without removing the drive. 512 MB of cache, 7,200 rpm and up to 281 MB/s, with 550 TB handled per year for a service that does not stop.
Synology
Synology SAT5221 SATA III 2.5" Enterprise Series 3.84 TB Internal SSD for NAS (SAT5221-3840G)
More than 7,000 TB written of endurance and capacitors that protect the data from a power cut. 500 MB/s read as well as write and 90,000 IOPS on random reads, for databases and virtualisation.
Synology
Synology HAT3310 12 TB 3.5" Internal Hard Drive (HAT3310-12T)
7,200 rpm and up to 281 MB/s sustained transfer: enough to feed a NAS, a file server or large backups without slowing down, with contained power draw for round-the-clock service.
- Designed for continuous operation
- 7,200 rpm rotation
Synology
Synology SNV3410 NVMe M.2 2280 Enterprise Series 400 GB Internal SSD for NAS (SNV3410-400G)
Designed to run 24/7, it takes an array's cache to 3,000 MB/s read and 750 MB/s write. 491 TB written of endurance, end-to-end data protection and wear monitoring straight in DSM.
Synology
Synology HAT3320 SATA 3.5" Plus Series HDD 8 TB Internal Hard Drive for NAS (HAT3320-8T)
Workload rated at 300 TB a year and sequential reads up to 36% faster than third-party drives of a similar class. Full CMR recording, 7,200 rpm and up to 281 MB/s of sustained throughput.
Synology
Synology HAT5320 SATA 3.5'' Enterprise Series HDD 4 TB Internal Hard Drive for NAS (HAT5320-4T)
Designed for high-capacity arrays and sustained workloads: CMR recording, 7,200 rpm and up to 281 MB/s. It handles 550 TB a year and carries a persistent write cache against power cuts.

Technical specifications

Technical specifications
Rotational speed	7,200 rpm
Read speed	Up to 281 MB/s sustained transfer
MTBF	2.5 million hours
Annual workload	550 TB/year
Typical power consumption	8.35 W read/write
Standby power consumption	4.16 W idle
Weight	720 g
Dimensions	26.1 x 101.85 x 147 mm (H x W x D)
Operating temperature	5 °C to 60 °C
Storage temperature	-40 °C to 70 °C
Storage capacity	16 TB
Cache size	512 MB

Technical specifications (continued)
Interface	SATA 6 Gb/s
Certifications	CE, BSMI, RCM, KC, ICES, UKCA, TUV, UL, RoHS
Storage type	Mechanical hard drive (HDD)
Drive form factor	3.5 inches
Recording technology	CMR (conventional magnetic recording)
Drive design	Helium-sealed
Sector size	512e
Operating humidity	5% to 90% RH, non-condensing
Product type	Hard drive for Synology storage systems
Use	NAS & server
Warranty	5 years

Specific references

MPN	HAT5310-16T

Downloads

Fiche technique(PDF)

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions about this product

Is the HAT5310-16T compatible with my Synology NAS?

Synology designs it for its own NAS and IP SAN arrays, and lists the HAT5300 series among the compatible drives for its recent RackStation models, including the RS1226+, RS1626xs+, RS3626xs, RS4826xs+, RS6426xs+ and RS2423RP+II. Check your model's compatibility list on synology.com before ordering: some NAS only accept the drives it lists.

Does the HAT5310-16T use CMR or SMR technology?

CMR, conventional magnetic recording. Unlike SMR, it does not need to rewrite neighbouring tracks on every write: performance stays consistent during RAID rebuilds and long writes, which makes it the right choice for a NAS running continuously with several users.

What workload can the HAT5310-16T handle?

Up to 550 TB of data transferred per year, whether read, written or verified, with an MTBF of 2.5 million hours. It is built for 24/7 environments: enterprise file servers, large-scale video surveillance or media post-production. MTBF is a statistical value, not a product lifespan.

Why is the HAT5310-16T helium-sealed?

Helium, lighter than air, creates less drag on platters spinning at 7,200 rpm: the drive runs cooler and draws less power, 8.35 W in operation and 4.16 W idle, while holding more platters, hence 16 TB in a standard 3.5-inch form factor. The sealed enclosure also protects the mechanics from dust.

What capacity will the system show for this 16 TB drive?

Less than 16 TB: the manufacturer counts 1 TB as 1,000 billion bytes, while operating systems calculate in powers of 2. The system therefore shows about 14.5 TB, and usable capacity then depends on formatting and the RAID configuration chosen: in RAID 1, two 16 TB drives only offer the capacity of one.

How do I update the HAT5310-16T firmware?

In one click from DiskStation Manager, on a Synology NAS: no Linux command line. Synology measures an update time cut from more than 50 minutes to a few minutes per system fitted with 24 drives. Its persistent write cache also reduces the risk of data corruption during a power outage.
