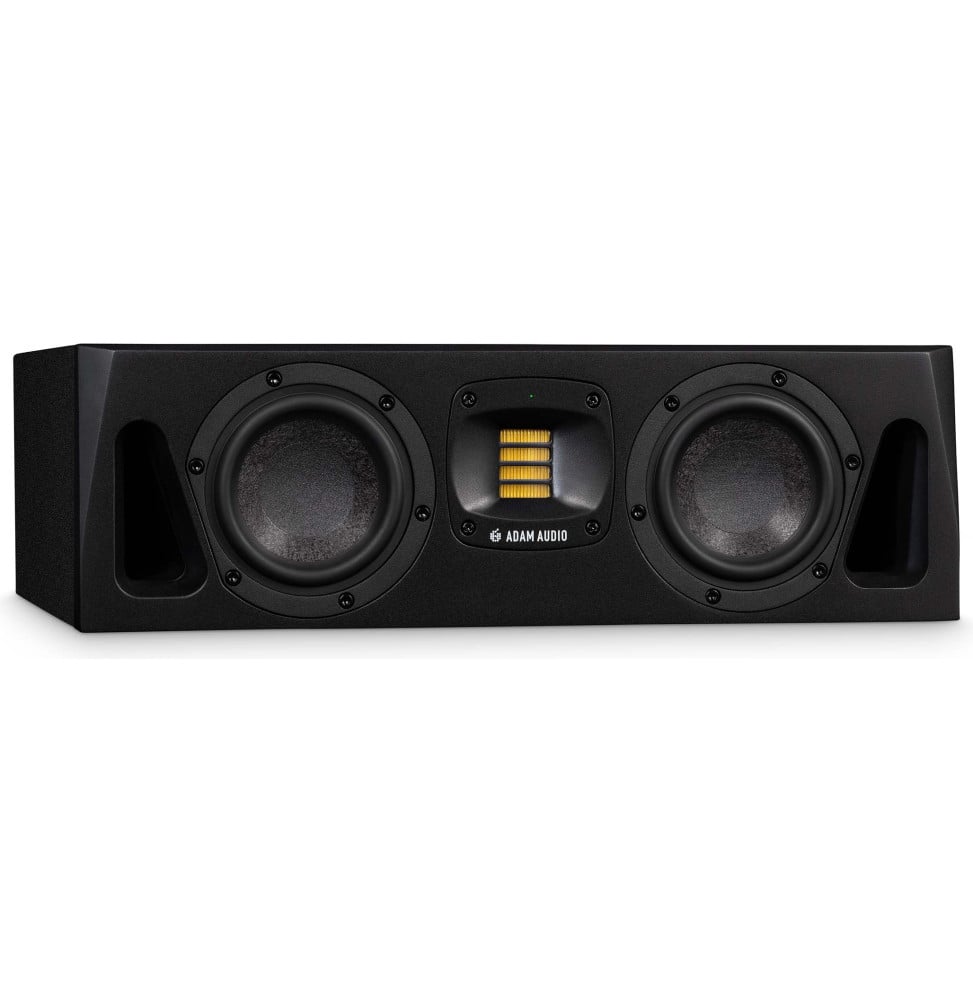

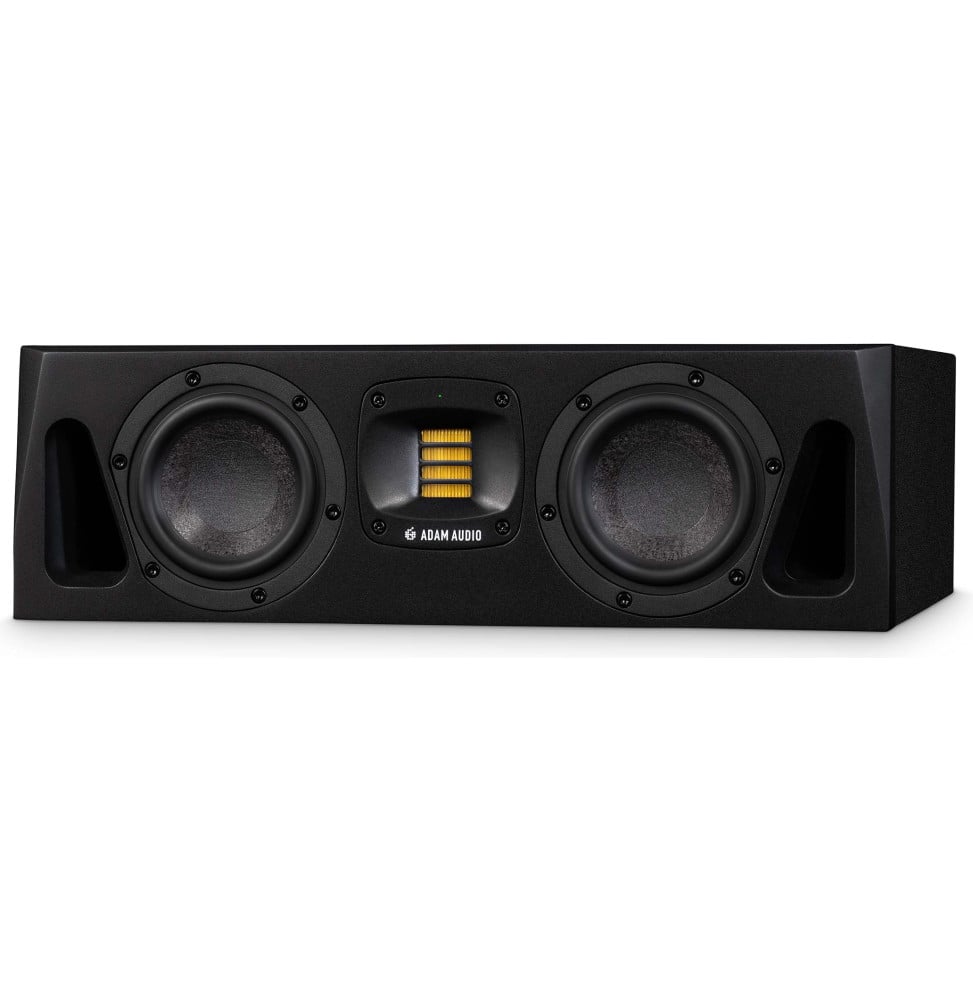

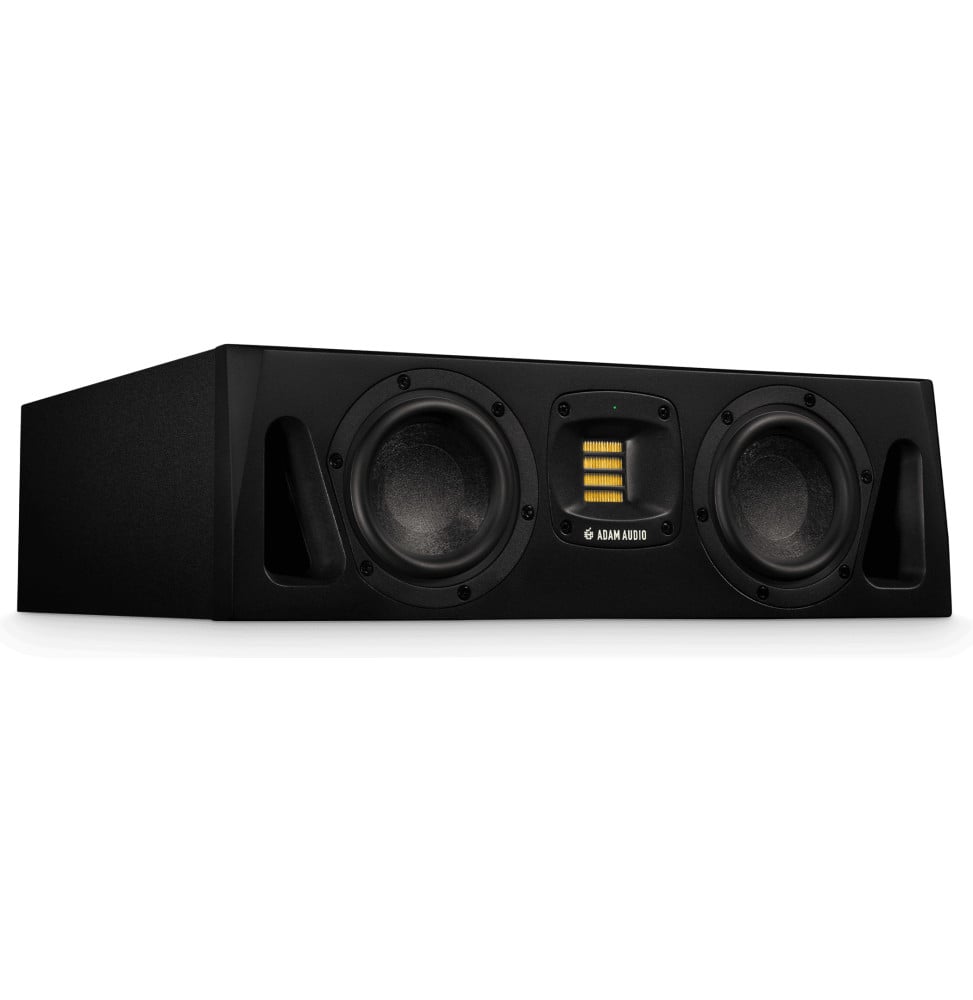

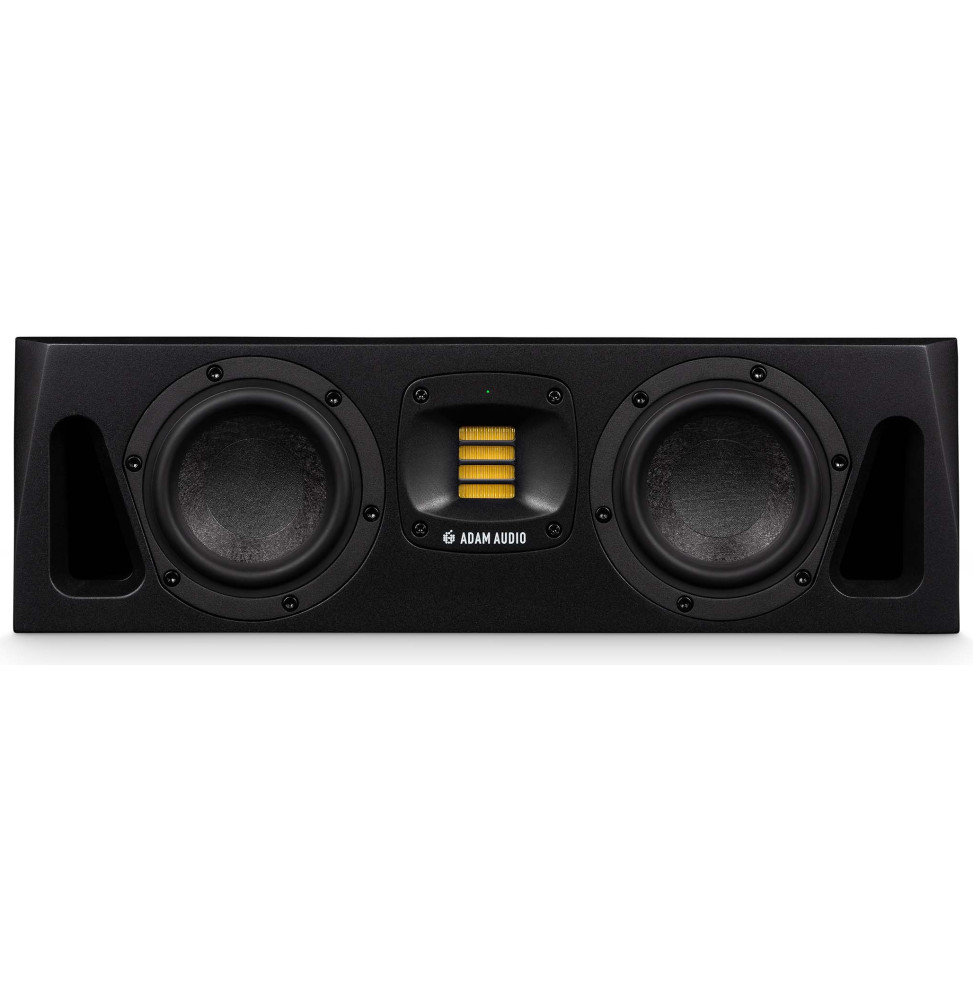

Studio monitor ADAM Audio A44H, horizontal - 2 × 4" woofers, X-ART tweeter, DSP, sold individually
ADAM Audio A44H active studio monitor, sold individually: a 432 mm wide horizontal format with two 4-inch woofers and an X-ART tweeter, 130 W peak, 46 Hz to 45 kHz, and a DSP adjustable on the rear panel or remotely. It sits below a screen or serves as a center speaker.
- Sold individually: two for stereo
- Horizontal format 432 × 135 × 350 mm
- 2 × 4" MLM woofers · X-ART tweeter
- 130 W peak: PWM + class A/B
- 46 Hz – 45 kHz at -6 dB
- 103 dB SPL peak per speaker at 1 m
- XLR and RCA inputs
- Pure and UNR voicings
- 4-band room adaptation
- Network control via A Control (RJ45)
- 9.7 kg
Ref.: 12105500
New
1/5
7 788,00 DHincl. VAT
Limited quantity
Earn 78 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Mon 5 Oct and Wed 7 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
2 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Active studio monitor in a horizontal format for small control rooms and immersive systems: 2 × 4" MLM woofers, X-ART tweeter and adjustable DSP.
Sold: individually, two speakers for stereo
Size: 432 × 135 × 350 mm, fits under a screen or on a rack shelf
Sound: 46 Hz – 45 kHz at -6 dB · 130 W peak · 103 dB SPL peak at 1 m
Settings: Pure and UNR voicings, 4-band room adaptation, level from -12 to +12 dB
Connection: XLR and RCA inputs · network control via the A Control software (RJ45)
The low-profile alternative to the A7V in the A series, also designed for the center channel of a multichannel system.
Request a quoteShare:
Description
ADAM Audio A44H · Reference 12105500
A true monitor,
lying under the screen.
The A44H follows the A Series recipe, two 4-inch woofers and an X-ART tweeter, in a cabinet just 135 mm high. It slips under a screen, onto a rack shelf, or takes the center channel of a multichannel setup. It is sold individually.
- 135 mmhigh
- 46 Hzbass extension, at -6 dB
- 130 Wpeak, two amplifiers
- 1speaker per box
A folded tweeter rather than a dome
In the center, the X-ART tweeter does not use a dome but a 2,420 mm² diaphragm folded like an accordion. As they compress, its folds push the air out four times faster than the diaphragm itself moves: the treble extends up to 45 kHz. The HPS waveguide around it spreads the treble over 120° horizontally and 70° vertically, and it rotates to follow the orientation of the cabinet. Two long-throw mineral-fiber woofers, with two front ports, hold the bass down to 46 Hz.
Everything is set on the back
The rear panel brings together the balanced XLR input, the RCA input and the button that selects between them, the level control from -12 to +12 dB, the voicing button and the four room adaptation buttons. Pure gives the most neutral response; UNR recalls the more colored sound of the earlier AX series. The RJ45 port connects the speaker to the free A Control software: remote adjustment, delay of up to 10 ms, six parametric filters and firmware updates.

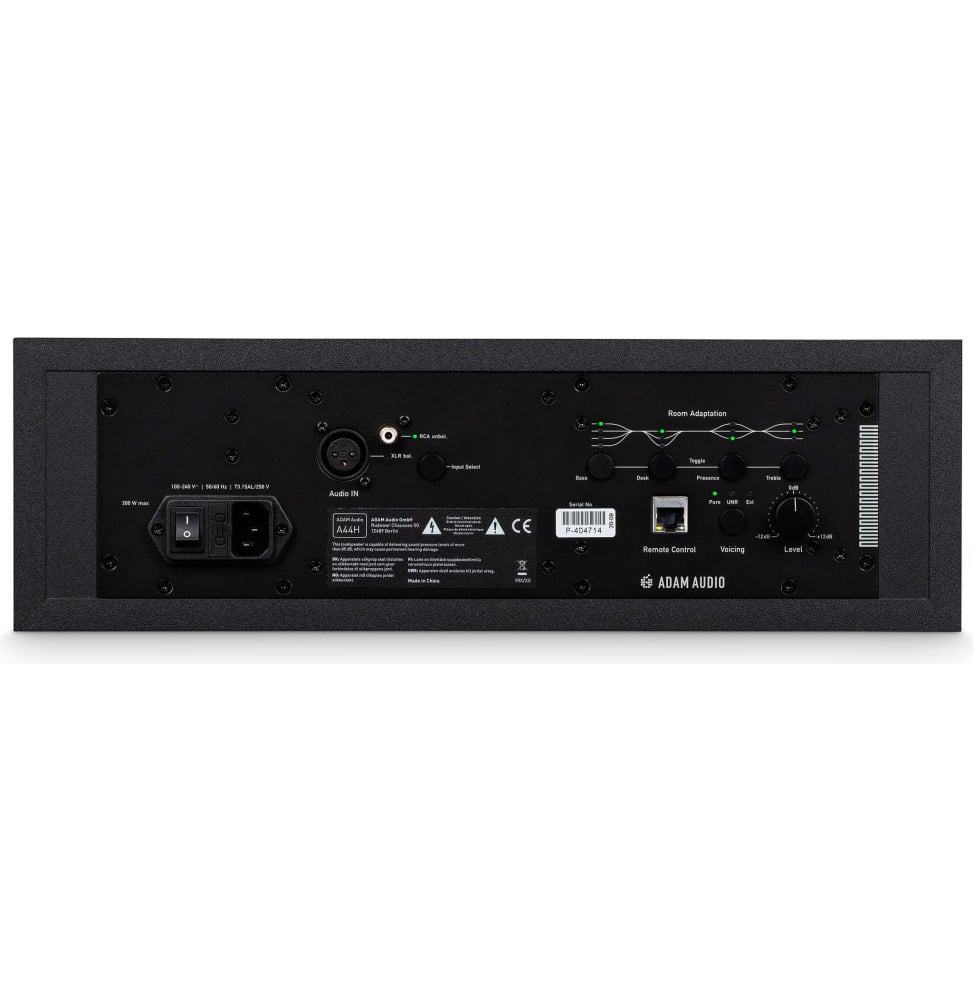

On the back: power, XLR and RCA inputs, network port and DSP settings.A starting setting for every placement
The user manual suggests a baseline setting for each situation, to be fine-tuned by ear afterwards. Against a wall, you take out bass with Bass; on a desk, you compensate for the effect of the surface with Desk.
- Nearby plaster wallBass at -2 dB
- Brick or concrete wallBass at -4 dB
- In a cornerBass -4 dB, Desk -2 dB
- Large reflective deskDesk at -4 dB
- Cramped roomBass -4 dB, Presence -1 dB
- On stands, untreated roomBass -2 dB, Treble -1.5 dB
Where an upright monitor would be in the way
In a control room, a pair of A44H keeps the window and the screen clear. For stereo listening, the two speakers and the head form an equilateral triangle; the wall behind the speakers should be either less than 30 cm from their backs or more than 2 m away, to avoid dips in the bass. Four M8 inserts under the cabinet take a mount.
Two A44H in a control room, on stands on each side of the screen.- XLR cable
- up to 100 m
- RCA cable
- up to 10 m
- Max. input level
- +19 dBu
- Adjustable delay
- 0 to 10 ms, in 0.1 ms steps
- Standby
- 3.5 W
The A44H is sold individually, without audio or network cable: plan for two speakers and two XLR cables for stereo listening.
Browse the other models in the studio monitors category, the studio, podcast and music production range and the full ADAM Audio brand.
Values taken from the A44H data sheet and the ADAM Audio A Series user manual.
Technical specifications
| Weight (kg) | 9.7 kg |
|---|---|
| Output power | 130 W peak in total: woofer 110 W peak / 90 W RMS, tweeter 20 W peak / 15 W RMS |
| Amplification | Hybrid: PWM (class D) for the woofer, class A/B for the tweeter |
| EQ controls | Room adaptation on the rear panel: Bass +2/0/-2/-4 dB, Desk 0/-2/-4 dB, Presence +1/0/-1 dB, Treble +1.5/0/-1.5 dB; advanced adaptation via A Control: 6 parametric filters, level and delay |
| Box contents | 1 A44H speaker, 1 power cord, quick start guide; audio and network cables not included |
| Features | DSP: Pure (most neutral response) and UNR voicings, room adaptation, 0 to 10 ms delay in 0.1 ms steps, remote control over Ethernet, import of Sonarworks SoundID Reference corrections, firmware updates over the network |
| Dimensions (W x H x D) | 432 × 135 × 350 mm (W × H × D) |
| Frequency response | 46 Hz – 45 kHz (-6 dB) · 49 Hz – 41 kHz (-3 dB) |
| Crossover frequency | 2.4 kHz |
| Audio input | 1 balanced XLR and 1 unbalanced RCA, selected with the Input Select button |
| Power consumption | 220 W maximum · 10 W idle · 3.5 W in standby |
| Material(s) | Vinyl-wrapped MDF cabinet, painted MDF front panel |
| Product colour | Black |
| Power supply | Mains 100-240 V AC, 50/60 Hz, switch-mode power supply; power cord supplied according to the regional version (here the EU version) |
| Mounting | 4 M8 threaded inserts under the cabinet; rotatable tweeter and waveguide module for horizontal or vertical placement |
| Operating temperature | -10 to +40 °C, relative humidity < 75% non-condensing |
| Number of speakers | 1 (sold individually: two speakers for stereo) |
|---|---|
| Speaker type | Active 2-way bi-amplified studio monitor, horizontal format (near-field), sold individually |
| Controls | Rear panel: level from -12 to +12 dB, XLR/RCA input select button, Voicing button (Pure, UNR, Ext), 4 room adaptation buttons, power switch |
| Protections | Independent peak and thermal limiters for each driver, thermal limiter for the amplifiers |
| Lighting and indicators | Multicolor LED on the front: green when on (flashing in standby or when attenuated), red at startup, shutdown or mute, gold for short-term limiter or update, purple for long-term limiter, white for identification in A Control |
| Input impedance | 9 kΩ / 3.3 kΩ |
| Input sensitivity | 0 dBu = 100 dB SPL at 1 m (level set to 0 dB) |
| Conversion resolution | 24-bit A/D conversion, internal processing at 96 kHz |
| Management software | A Control (Windows and macOS), free after MyADAM registration; RJ45 Ethernet connection, OCA protocol over IP |
| Drivers (transducers) | 2 long-excursion 4" multilayer mineral fiber woofers (MLM, 25 mm voice coil) and X-ART folded-diaphragm tweeter of 2,420 mm² (56 mm equivalent Ø, 4:1 velocity ratio), rotatable HPS waveguide |
| Acoustic loading | Bass reflex, two front ports |
| Maximum input level | +19 dBu |
| Maximum sound pressure level | 103 dB SPL peak per speaker at 1 m (sine bursts) · 110 dB SPL (IEC weighted noise) |
| Coverage angle | 120° horizontal × 70° vertical (HPS waveguide) |
| Warranty | 2 years |
Specific references
| EAN | 4260113134603 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is the A44H sold as a pair?
No, it is sold individually: the box contains one speaker, its power cord and the quick start guide. For stereo listening, you need two. On its own, it also fits in as the center speaker of a multichannel or immersive system, a role its horizontal format was designed for.
Why choose a horizontal monitor?
Because it fits where a vertical speaker would get in the way: at 135 mm high and 432 mm wide, the A44H sits on a rack shelf, above or below a screen, without blocking the picture. The X-ART tweeter is placed between the two 4-inch woofers, and the frequency response remains that of a near-field monitor: 46 Hz to 45 kHz at -6 dB.
Which sources can be connected to the A44H?
One balanced XLR input and one unbalanced RCA input, on the rear; the Input Select button chooses between them. The input accepts up to +19 dBu, enough to take the line output of an audio interface or a mixing console. Audio cables are not included; the user manual allows 100 m of cable on XLR and 10 m on RCA.
What are the Pure and UNR voicings for?
Pure gives the most neutral response, measured in anechoic conditions: it is the setting for mixing and mastering. UNR recreates the more colored curve of ADAM's earlier AX Series speakers. A third position, Ext, activates the settings sent by the A Control software; the rear level knob is then ignored.
How do I adapt the speaker to my room?
With four buttons on the rear panel: Bass (+2 to -4 dB) compensates for a nearby wall, Desk (0 to -4 dB) for the reflection from a desk, Presence (±1 dB) for overly prominent mids and Treble (±1.5 dB) for the highs. The user manual suggests, for example, -2 dB on Bass near a plaster wall. The A Control software adds 6 parametric filters, level and a delay.
Do I need a computer to set it up?
No: the essential settings are on the rear panel. The RJ45 Ethernet port is also used to control one or more speakers from the free A Control software (Windows and macOS, downloaded after registering in the MyADAM area), to apply a delay of 0 to 10 ms, to import a room correction calculated with Sonarworks SoundID and to update the firmware. The network cable is not included.
What power and sound level can I expect?
The hybrid amplification delivers 130 W peak in total: 110 W peak, or 90 W RMS, in PWM for the woofers, and 20 W peak, or 15 W RMS, in class A/B for the tweeter. Each speaker reaches 103 dB SPL peak at 1 m with sine bursts, and independent limiters protect each driver and each amplifier.
How do I install the A44H?
Four M8 threaded inserts under the cabinet take a mounting plate or a bracket. The tweeter and waveguide module rotates: you turn it with an Allen key, with the tweeter protected by masking tape, to keep the right dispersion when the speaker changes orientation. The user manual recommends doing this before installation.
