Visit the ADAM Audio store
Studio subwoofer ADAM Audio T10S - 10" woofer, 130 W, for T series monitors
ADAM Audio T10S active subwoofer: downward-firing 10-inch woofer, 130 W class D, 28 Hz to 120 Hz, stereo XLR and RCA inputs and outputs, 80 Hz, 120 Hz or Bypass filter and phase inversion. Designed to complement the T5V and T7V monitors.
- Downward-firing 10" woofer
- 130 W RMS class D
- 28 Hz – 120 Hz at -6 dB
- 104 dB SPL at 1 m
- Stereo XLR and RCA inputs and outputs
- 80 Hz, 120 Hz or Bypass filter
- Phase 0° / 180°
- Bypass via pedal (6.35 mm jack)
- Standby after 15 min without signal
- 318 × 390 × 413 mm · 12.2 kg
Ref.: 14104900
New
1/5
5 268,00 DHincl. VAT
Limited quantity
Earn 53 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
2 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Active subwoofer to complete a pair of near-field monitors: downward-firing 10" woofer, 130 W class D and 80 / 120 Hz crossover.
Bass: 28 Hz – 120 Hz at -6 dB · 104 dB SPL at 1 m
Connection: stereo XLR and RCA inputs and outputs, the monitors connect to the subwoofer
Settings: crossover at 80 Hz, 120 Hz or Bypass, 0° / 180° phase, level
Convenience: footswitch bypass via 6.35 mm jack · automatic standby after 15 minutes without signal
Size: 318 × 390 × 413 mm, 12.2 kg · designed for ADAM Audio's T5V and T7V monitors.
Request a quoteShare:
Description
ADAM Audio T10S · Reference 14104900
The low end
small monitors lack.
The T10S is the subwoofer of the ADAM Audio T Series, designed to complement the T5V and T7V monitors. Its downward-firing 10-inch woofer and its 130 W amplifier extend the bass down to 28 Hz, in a compact cabinet 390 mm high.
- 28 Hzbass extension, at -6 dB
- 10 inchesdownward-firing woofer
- 130 WRMS, Class D
- 15 minbefore standby
It connects between the interface and the monitors
The left and right outputs of the audio interface or mixing console go into the T10S, via XLR for +4 dBu or via RCA for -10 dBV. Its outputs, in the same formats, go on to the two monitors. While it is active, a high-pass filter relieves the monitors of the bass, which the subwoofer takes over. On the back, the filter is set to 80 Hz, 120 Hz or Bypass, the phase to 0° or 180°, and the level lines up with the 0 mark of the T Series monitors.
Three filter settings, three uses
- 80 Hzwith the T Series near-field monitors or any professional monitor
- 120 Hzwith small speakers with limited bass, or for a cinema LFE channel
- Bypasswhen a controller or surround processor already distributes the bass
A 6.35 mm jack socket takes a bypass pedal or switch, not included: with one foot, you switch off the subwoofer and give the monitors back the full range, to check a mix without the sub. When plugged in, the T10S stays in standby, red LED; it switches on as soon as a signal arrives, green LED, and goes back to standby fifteen minutes after the signal ends.
Placement changes the bass
A nearby wall adds 6 dB of bass, a corner 12 dB, at the expense of accuracy. The user manual advises starting from a position between the two monitors, at the same distance from the listening position, then trying the others. Its map, drawn for a square room, shows in green the positions to favor and in red those where standing waves cause problems. The driver radiates beneath the cabinet: nothing should obstruct the space between its feet.
The placement map from the user manual, for a square room.- Dimensions
- 318 × 390 × 413 mm
- Weight
- 12.2 kg
- Inputs
- 2 XLR + 2 RCA
- Outputs
- 2 XLR + 2 RCA
- Max. power consumption
- 190 W
The T10S comes with its power cord, without audio cables or bypass pedal: allow for two cables to the interface and two to the monitors.
Browse the other models in the studio monitors category, the studio, podcast and music production range and the full ADAM Audio brand.
Values and placement map taken from the ADAM Audio T10S data sheet and user manual.
Technical specifications
| Weight (kg) | 12.2 kg |
|---|---|
| Output power | 130 W RMS |
| Amplification | Class D (PWM) |
| Box contents | 1 T10S subwoofer, 1 power cord, quick start guide, welcome card; bypass pedal and cables not included |
| Features | Remote bypass via a pedal or switch on a 6.35 mm TS jack (not included): switches off the subwoofer and sends the full range back to the monitors; phase inversion |
| Dimensions (W x H x D) | 318 × 390 × 413 mm (W × H × D) |
| Frequency response | 28 Hz – 120 Hz (-6 dB), upper limit set by the selected filter |
| Crossover frequency | 80 Hz, 120 Hz or Bypass (external filter), 3-position switch |
| Audio input | 2 balanced XLR and 2 unbalanced RCA (left and right) |
| Audio output | 2 XLR and 2 RCA (left and right) to the monitors, high-pass filtered while the subwoofer is active |
| Power consumption | Up to 190 W |
| Product colour | Black |
| Power supply | Mains 100-240 V AC ±10%, 50/60 Hz; two-pin IEC C17 inlet; power cord supplied (EU version) |
| Automatic sleep | Yes: standby 15 minutes after the signal stops, wakes automatically as soon as a signal arrives |
|---|---|
| Compatibility | Designed for ADAM Audio T5V and T7V monitors; 80 Hz filter for any near-field monitor, 120 Hz for small speakers or an LFE channel |
| Mounting | Floor-standing on rubber feet |
| Speaker type | Active subwoofer for near-field monitors, downward-firing driver |

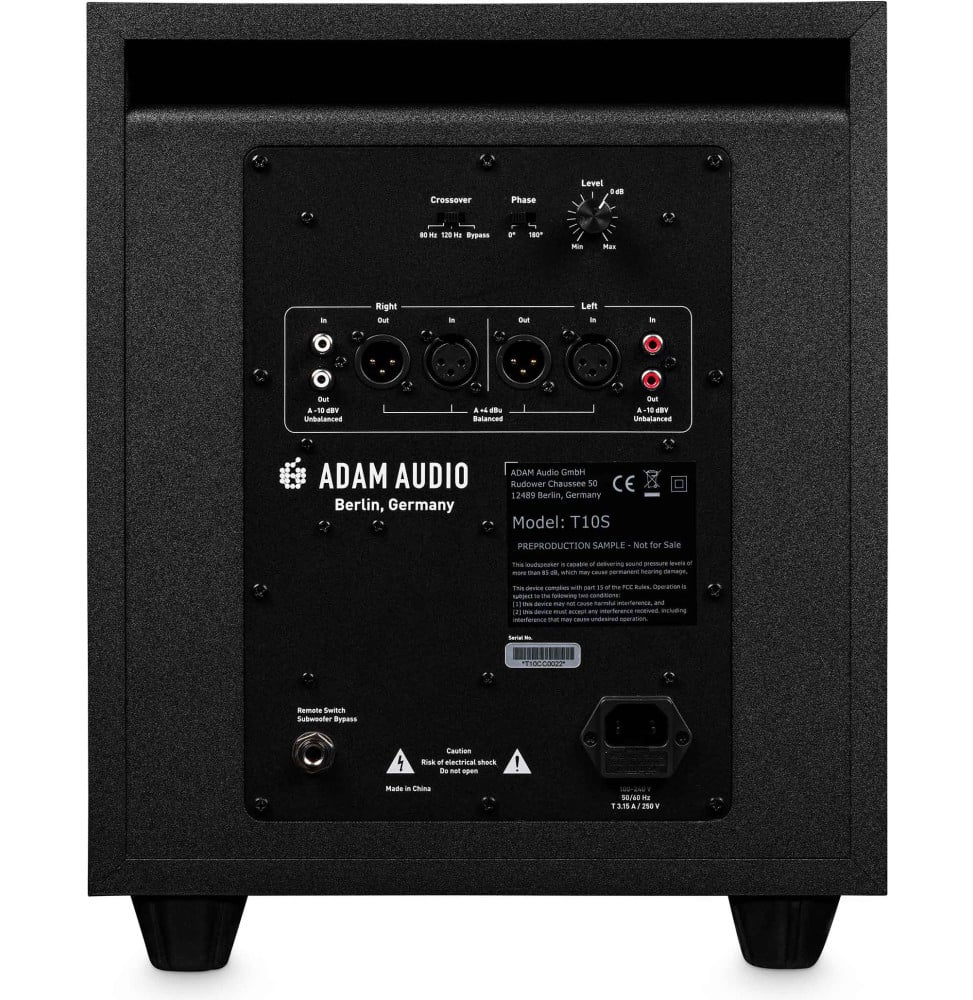

| Controls | Rear panel: level (0 dB = 0 mark of T Series monitors), 80 Hz / 120 Hz / Bypass filter, phase 0° / 180°, Bypass remote socket |
| Lighting and indicators | Front indicator: red in standby, green when the amplifier is active |
| Input sensitivity | +4 dBu on XLR, -10 dBV on RCA; level adjustable from -60 to +16 dBu (XLR) or from -60 to +6 dBV (RCA) |
| Drivers (transducers) | 10" (260 mm) paper cone woofer, 38 mm (1.5") voice coil, downward-firing |
| Acoustic loading | Bass reflex, large rear port |
| Maximum sound pressure level | 104 dB SPL or more at 1 m (half-space) |
| Total harmonic distortion | 0.6% above 60 Hz |
| Warranty | 2 years |
Specific references
| EAN | 4260113134160 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How do I connect the T10S with two monitors?
The subwoofer goes in between: the left and right outputs of the audio interface or mixing console go to its XLR or RCA inputs, then its XLR or RCA outputs go to the two monitors. While the subwoofer is active, it removes the low end from the monitors with a high-pass filter. The user manual recommends starting with the level at minimum, the filter on 80 Hz and the phase at 0°.
Which filter setting should I choose?
80 Hz with ADAM Audio's T Series near-field monitors or any professional monitor. 120 Hz with small speakers with limited bass, or for an LFE channel to cinema standards. Bypass when a monitor controller or a surround processor already handles the bass distribution. In most cases, the lower value gives tighter bass.
What is the phase inversion for?
To blend the subwoofer with the monitors. Depending on the distance between the subwoofer, the speakers and the listening position, the bass from both can add up or cancel out around the crossover frequency: the low mids then sound hollow. You compare the 0° and 180° positions by ear and keep the fuller one; the setting does not affect the monitors' signal.
Can the subwoofer be switched off during mixing?
Yes, with a pedal or a switch connected to the Remote Bypass socket, a mono 6.35 mm jack. Closing the circuit switches off the subwoofer and removes the filter from the outputs: the monitors take back the full range, to check a mix without the subwoofer. A momentary keyboard pedal will do; it is not included.
Where should I place the T10S?
Near the monitors, preferably between them in a stereo setup. A nearby wall reinforces the bass but costs it precision: it is best to try several positions by ear. Its driver fires toward the floor, under the subwoofer: its rubber feet keep the necessary space clear, which should not be cluttered with cables or objects.
Does the subwoofer stay on all the time?
No, it goes into standby on its own. When plugged in, it shows a red indicator; as soon as a signal arrives, the indicator turns green and the amplifier switches on. It stays on for fifteen minutes after the music stops, then returns to standby. Power consumption reaches at most 190 W in operation.
