Visit the Altai store
Altai C1n outdoor Wi-Fi CPE access point, 2.4 GHz 300 Mbps IP55 (WA1011N-G)
Altai C1n outdoor CPE access point: 2x2 802.11n radio on 2.4 GHz and a built-in 10 dBi sector antenna in an IP55 enclosure. It picks up a distant Wi-Fi network to bring it indoors, or works as a small access point. 18 V passive PoE power, injector included.
- Wi-Fi N300
- 2.4 GHz, 2x2 radio
- 10 dBi sector antenna
- 29 dBm maximum
- IP55 enclosure
- 18 V passive PoE
- Injector included
- 16 SSIDs
- 10/100 Ethernet port
Ref.: WA1011N-G
New
1/3
1 332,00 DHincl. VAT
In stock
Earn 14 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Outdoor Wi-Fi CPE to pick up a distant Wi-Fi network and bring it indoors, or to act as a small access point: built-in 10 dBi sector antenna, IP55 enclosure and passive PoE power.
Radio: 802.11b/g/n 2x2 on 2.4 GHz, up to 300 Mbps, 29 dBm maximum
CPE range: up to 4 km line of sight to an Altai A8-Ein(ac) base station
Modes: access point, CPE or repeater; bridge or NAT gateway, 16 SSIDs
Installation: pole, wall, window or desktop; 8-segment signal LED for alignment
Power: 18 V passive PoE, injector included; 10/100 Mbps Ethernet port
The client unit of Altai's Super WiFi range, to place where the signal needs a boost.
Request a quoteShare:
Description

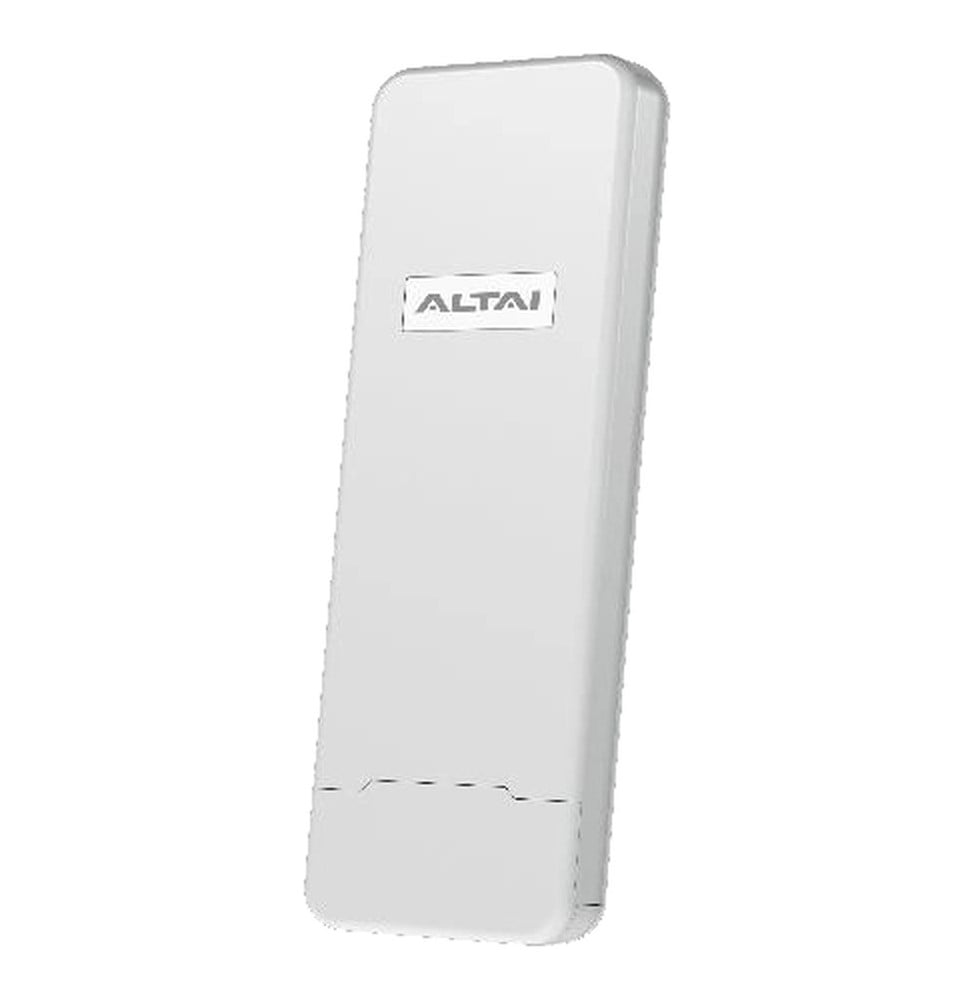

Altai C1n · Model WA1011N-G
The Wi-Fi from across the way, brought indoors.
The C1n goes where the signal arrives weak, against a window, on a wall or on a roof. Its antenna picks up the distant base station and its Ethernet output shares the connection inside the building.
- 10 dBibuilt-in sector antenna
- 4 kmline-of-sight CPE link
- IP55enclosure for outdoor use
An antenna that looks in one direction
The two built-in panels, polarised at ±45°, concentrate 10 dBi in a sector of 70° horizontally and 30° vertically, and attenuate by 20 dB what comes from behind. Facing an Altai A8-Ein(ac) base station, the link holds up to 4 km in line of sight, 3 km to an A3-Ei. The 2x2 802.11n transmitter reaches 29 dBm, within the limit set by local regulations.

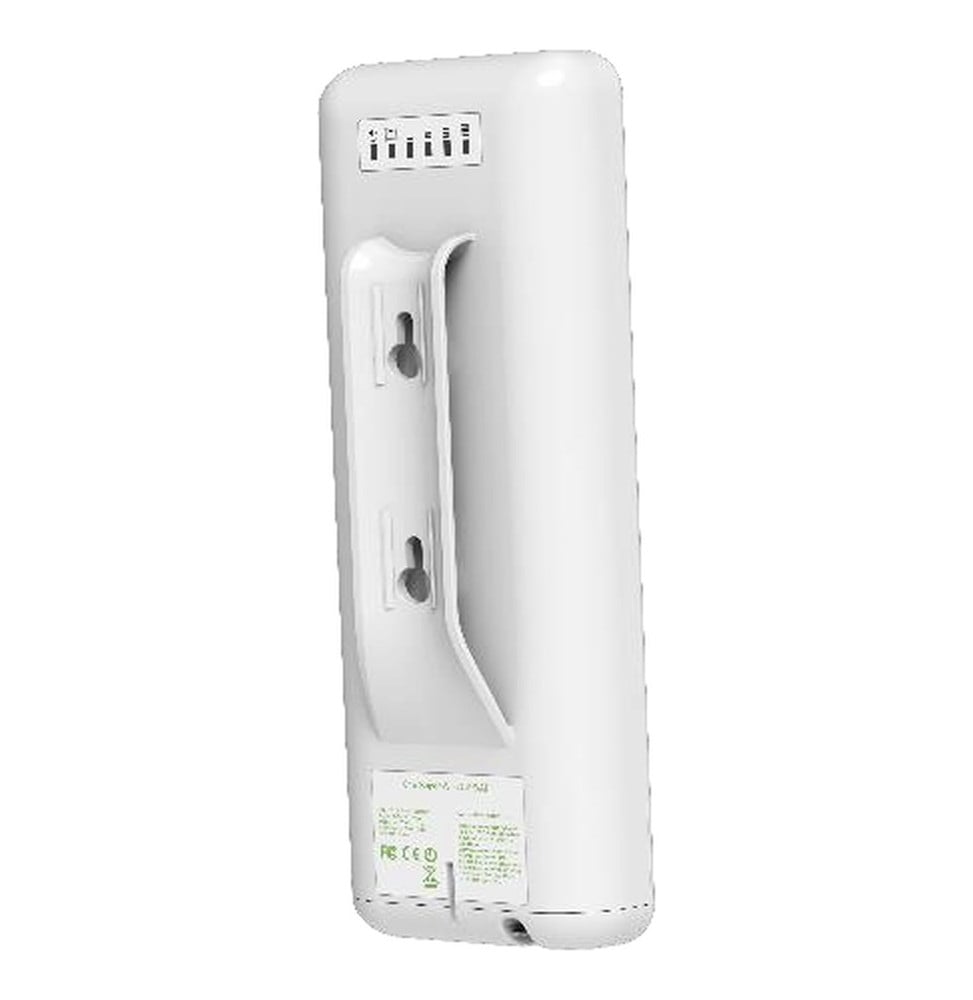

An LED to aim right
On the back, an 8-segment level LED shows the strength of the received signal: turn the unit until as many segments as possible light up, then tighten the mount. The C1n can also stand on a desk, indoors, facing the window.

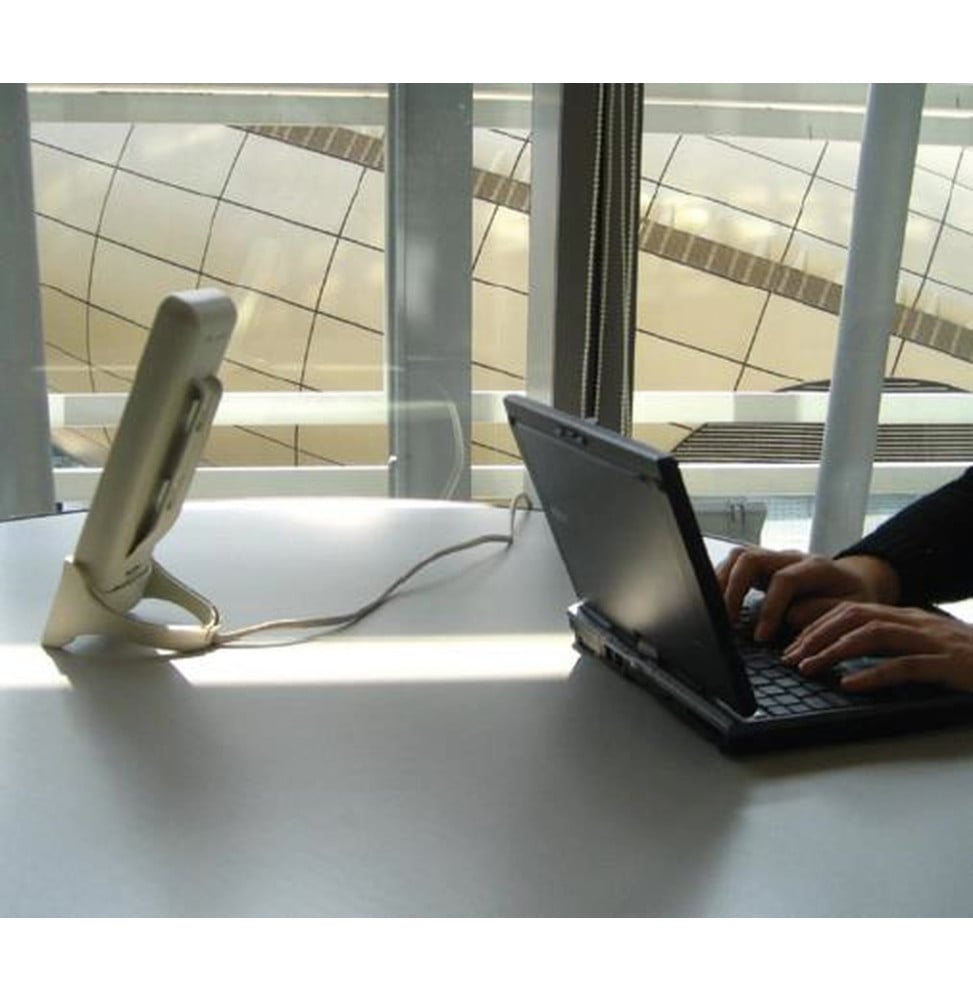

Placed indoors, facing the window, and connected to the computer by its Ethernet cable.Access point, client or repeater
The same unit works as a CPE connecting to an existing network, as a repeater, or as a small 2.4 GHz access point for 802.11b, g or n devices, with up to 16 SSIDs. It runs in bridge or gateway mode with NAT, DHCP and PPPoE, and is managed through its web interface, over SSH or from the AltaiCare and AltaiGate platforms.
- Power
- 18 V passive PoE
- Consumption
- 6 W typical, 8 W max
- Network port
- Ethernet 10/100 Mbps
- Dimensions
- 242 x 80 x 27 mm
- Temperature
- -20 to +55 °C
- Wind
- up to 200 km/h
The C1n works only on 2.4 GHz. The 18 V passive PoE injector is in the box; to power it from an 802.3af PoE switch, you also need the 802.3af to passive PoE adapter, sold as an option by the manufacturer.
Other CPEs and outdoor antennas are in the outdoor Wi-Fi antenna and CPE category; all wireless equipment in networking and Wi-Fi.
Values taken from the Altai C1n Super WiFi CPE/AP catalogue and the manufacturer's C1n/C1an product page.
Technical specifications
| Package contents | C1n access point with built-in antennas, DC injector and AC adapter, cable ties |
|---|---|
| IP protection rating | IP55, UV-stabilised plastic |
| Wind resistance | Up to 200 km/h |
| Product type | Outdoor Wi-Fi CPE and 2.4 GHz access point with built-in sector antenna |
| Number of SSIDs | 16 SSIDs |
| Interfaces | 1 10/100 Mbps Ethernet port |
| Supported WAN technology | Bridge or gateway mode, NAT, DHCP client and server, PPPoE client, IPv4/IPv6, Soft-GRE, VLAN |
| Network standards | IEEE 802.11b/g/n, 2x2 radio |
| Advanced Wi-Fi technologies | WMM, 802.11h, 802.11k, 802.11r, 802.11v, 802.11w, Passpoint (Release 2), fast roaming, Altai AirFi optimisation |
| Maximum Wi-Fi throughput per band | 2.4 GHz: up to 300 Mbps |
| Management modes | AltaiGate, AltaiCare, web interface, SSH command line, SNMP v1/v2c/v3, Syslog |
| Installation and alignment tools | 8-segment signal level LED for alignment |
| Power consumption | 6 W typical, 8 W maximum |
| Weight | 0.4 kg |
| Dimensions (W x D x H) | 242 x 80 x 27 mm (without mounting kit) |
| Operating frequency range | 2.400 to 2.485 GHz (channels 1 to 13) |
| Antennas | Built-in 2.4 GHz 10 dBi sector antenna, ±45° dual slant polarisation |
| Antenna beamwidth | 70° horizontal, 30° vertical (-3 dB); front-to-back ratio -20 dB |
| Stated range | Line-of-sight CPE link: up to 4 km to an Altai A8-Ein(ac) station, 3 km to an A3-Ei |
| Maximum transmit power | 29 dBm maximum (26 dBm per chain) |
|---|---|
| Receiver sensitivity | 802.11b 11 Mbps: -91 dBm · 802.11g 54 Mbps: -81 dBm · 802.11n HT20: -95 dBm, HT40: -92 dBm |
| Security features | WPA/WPA-PSK, WPA2/WPA2-PSK, 802.1x (EAP-PEAP/TLS/TTLS/SIM/AKA); WEP, TKIP, AES; client isolation; MAC filtering; RADIUS; dynamic VLAN |
| Storage temperature | -40 to +80 °C |
| Power supply | 18 V passive PoE, or 802.3af PoE through an optional adapter; DC injector and AC adapter included |
| Manufacturer part number | Altai C1n, model WA1011N-G |
| Firewall | Firewall, WIDS/WIPS, broadcast/multicast flooding control |
| Status indicators | Power, Ethernet, 8-segment signal level (configurable) |
| Certifications | FCC, CE, RoHS |
| Mounting | On a desk, on a pole, on a wall or against a window |
| Operating temperature | -20 to +55 °C |
| Operating humidity | Up to 95%, non-condensing |
| Wi-Fi standard | Wi-Fi 4 |
| Location | Indoor/outdoor |
| Bands | Single-band |
| PoE power | Passive PoE |
| Operating mode | Access point, CPE (client), repeater; bridge (switch) or gateway mode |
| Warranty | 1 year |
Specific references
| MPN | WA1011N-G |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What is a CPE like the C1n used for?
To pick up a distant outdoor Wi-Fi network and make it usable indoors: placed against a window, on a wall or on a roof, it connects to the base station and brings the connection back through its Ethernet port. It can also act as a small 2.4 GHz Wi-Fi access point for 802.11b, g or n devices.
At what distance does it connect to a base station?
In line of sight, up to 4 km from an Altai A8-Ein(ac) base station and up to 3 km from an A3-Ei. These ranges assume Altai's Super WiFi range at the other end. An obstacle on the path or interference reduces them.
How is it powered?
Through its Ethernet cable, with 18 V passive PoE: the DC injector and the AC adapter are in the box. To power it from an 802.3af PoE switch, you need the 802.3af to passive PoE adapter, sold as an option. It draws 6 W in typical use, 8 W maximum.
Can it stay outdoors all year round?
Yes: its UV-stabilised plastic enclosure is IP55 compliant, it operates from -20 to +55 °C and withstands winds of 200 km/h. It mounts on a pole, on a wall or against a window, and can also stand on a desk.
How do you aim it at the base station?
With its 8-segment signal level LED: turn the unit until as many segments as possible light up. Its sector antenna covers 70° horizontally and 30° vertically, and attenuates by 20 dB the signal coming from behind.
Does it work on 5 GHz?
No. The C1n works only on 2.4 GHz, from 2.400 to 2.485 GHz, on channels 1 to 13, in 802.11b, g and n. It therefore connects to a base station or router broadcasting on 2.4 GHz. In the same Altai range, the C1an model is the one that works on 5 GHz.
