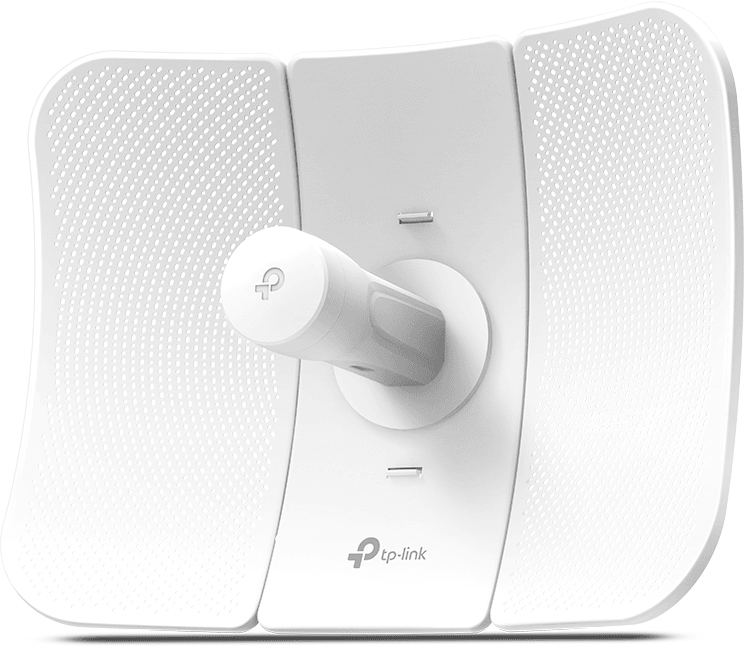

TP-Link CPE710 Outdoor WiFi CPE Station 5GHz AC 867 Mbps 23dBi
Linking two buildings without digging a trench: the IP65 weatherproof casing holds from -40 to 70 °C and the Gigabit Ethernet port does not throttle the link. The supplied PoE adapter feeds up to 60 metres of cable.
- Shielded Gigabit Ethernet port, PoE powered
- 24 V passive PoE adapter included, up to 60 m of cable
- Point-to-point and point-to-multipoint links
- 5.15-5.85 GHz band
- 20, 40 or 80 MHz channel width
- Dynamic frequency selection (DFS)
- IP65 weatherproof outdoor casing
- Operates from -40 °C to 70 °C
- Access point, client and router modes
- Centralised management with the Pharos Control software
- Mounting kits and mains cord included
Ref.: CPE710
Best seller
1/5
1 069,00 DHincl. VAT
In stock
Earn 11 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (on site) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
TP-Link CPE710 outdoor 5 GHz CPE station: a long-range wireless link to connect two sites several kilometres apart.
Wi-Fi & speed: 5 GHz 802.11ac up to 867 Mbps.
Antenna: built-in high-gain 23 dBi directional antenna for maximum range.
Durability: waterproof outdoor enclosure, passive PoE power, Pharos MAXtream TDMA technology.
Uses: point-to-point bridge, remote video surveillance, coverage of distant sites.
A reliable outdoor CPE to extend your network where cables can't reach.
Request a quoteShare:
Technical specifications
| Package contents | Outdoor CPE, 24 V 0.5 A passive PoE adapter, pole-mounting kits, AC power cord, installation guide |
|---|---|
| IP protection rating | IP65, stabilised PC plastic enclosure for outdoor use |
| Electrostatic discharge protection | 15 kV against electrostatic discharge, 6 kV against lightning |
| Product type | Outdoor CPE station, built-in radio and directional antenna |
| Internal memory | 128 MB DDR2 RAM, 16 MB flash memory |
| Interfaces | 1 shielded 10/100/1000 Mbps Ethernet port (LAN/PoE), 1 reset button |
| Supported WAN technology | Static, dynamic or PPPoE WAN; static, dynamic or DHCP LAN |
| Network standards | IEEE 802.11a/n/ac |
| Proprietary link protocol | None |
| Maximum channel width | 20/40/80 MHz selectable |
| Maximum Wi-Fi throughput per band | Up to 867 Mbps on an 80 MHz channel, 400 Mbps on 40 MHz and 173.4 Mbps on 20 MHz, as physical data rates of the standard |
| Management modes | Pharos Control app, HTTP/HTTPS web interface, system log, SNMP v2c agent, Ping Watch Dog, dynamic DNS, SSH server |
| Installation and alignment tools | Antenna alignment, spectrum analyser, throughput test, ping, traceroute, signal strength, noise and CCQ quality indicators |
| Dimensions (W x D x H) | 366 x 280 x 207 mm |
| Processor | Qualcomm at 750 MHz, MIPS 74Kc |
|---|---|
| Operating frequency range | 5.15 to 5.85 GHz |
| Antennas | 23 dBi directional antenna |
| Antenna beamwidth | 9° azimuth, 7° elevation |
| Maximum transmit power | 27 dBm maximum, adjustable in 1 dBm steps |
| Security features | WPA/WPA2 and WPA-PSK/WPA2-PSK encryption (AES/TKIP), SSID broadcast can be enabled or disabled, multi-SSID with VLAN tagging in access point mode, Wi-Fi MAC address filtering |
| Power supply | Passive PoE via the LAN port, 16 to 27 V DC (pins 4 and 5 positive, 7 and 8 negative); 24 V 0.5 A passive PoE injector included |
| Firewall | SPI firewall, ping blocking, protection against denial-of-service attacks, access control, IP and MAC binding |
| Certifications | CE, FCC, RoHS, IP65 and IC |
| Operating temperature | -40 to 70 °C |
| Operating humidity | 10 to 90% non-condensing |
| Required operating system | Windows 98SE, NT, 2000, XP, Vista, 7, 8 and 10, macOS, NetWare, UNIX or Linux |
| Operating mode | Access point, client, AP router, AP client router (WISP client) |
| Warranty | 1 year |
Specific references
| EAN | 6935364089702 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is a single CPE710 enough to link two buildings?
No: a point-to-point link is set up with two CPEs, one at each end, pointing at each other. To serve several sites, you install a base station fitted with a sector antenna and one client CPE per site, in point-to-multipoint. Its 23 dBi directional antenna concentrates the signal into a narrow beam.
Do you need a power socket at the top of the mast to power it?
No. It is powered by 24 V passive PoE through the network cable itself, up to 60 metres away, thanks to the injector included in the package. Only one cable therefore runs up to the antenna, for both data and power. It draws 24 V DC / 0.5 A.
Is the CPE710's network port limited to 100 Mbps like on entry-level models?
No: it has a shielded 10/100/1000 Mbps Gigabit Ethernet port, whereas the CPE210, CPE220, CPE510, CPE605 and CPE610 stop at 10/100 Mbps. The wired link therefore does not throttle the 867 Mbps of the wireless link. This same port serves as the PoE power input: a single cable is enough.
Can you really count on 867 Mbps between the two sites?
The 867 Mbps is the maximum physical data rate on an 80 MHz channel under the 802.11ac standard. Usable throughput depends on the real-world environment: obstacles and materials, local interference, traffic density and the quality of the equipment at the other end. The 20 and 40 MHz widths remain selectable if the spectrum is congested.
How do you correctly align the two antennas once they are installed up high?
The PharOS firmware includes an antenna alignment tool, a spectrum analysis to spot free channels, a throughput test, ping and traceroute. You correct the orientation by reading the signal strength, noise and transmission CCQ live.
Can it withstand rain, frost and high heat?
Yes: a housing in PC plastic stabilised for outdoor use, IP65 protection against water and dust, and operation from -40 to 70 °C at 10 to 90% non-condensing humidity. It is designed to stay exposed all year round.
Is it protected against lightning and electrostatic discharge?
The Pharos series states 15 kV ESD protection and 6 kV lightning protection. Note: these are only effective with proper earthing and shielded cables. On an exposed mast, have the installation checked by a professional.
Can it act as an access point or a router, not just a bridge?
Yes: it operates in AP, Client, AP Router or Client Router (WISP) mode, with a static, dynamic or PPPoE WAN connection. In AP mode, it handles multi-SSID with VLAN tagging, bandwidth control, MAC address filtering and an SPI firewall. Static routing and IP-MAC binding are also available.
Can all 5 GHz channels be used everywhere?
The CPE710 covers the 5.15 - 5.85 GHz band and supports dynamic frequency selection (DFS). The frequencies actually available and the maximum transmit power allowed depend on the regulations of the country of installation; power can be adjusted in 1 dBm steps to stay within the limits.
What is in the CPE710 package?
It includes the outdoor CPE, the 24 V passive PoE adapter, its mains power cord, the mounting kits for the mast and the quick installation guide. You will need to provide the outdoor Ethernet cable that will connect the antenna to the injector.
How do you manage several CPEs on the same network?
Each unit is configured from its PharOS web interface over HTTP/HTTPS, and the Pharos Control software manages the whole fleet from a single PC: device discovery, status monitoring, firmware updates and maintenance. SSH, SNMP v2c, system log and Ping Watch Dog are also available.
Is the CPE710 new and under warranty?
Yes: new equipment in its original packaging, supplied with its invoice, which serves as the 1-year warranty. It is CE, FCC and RoHS certified, with IP65 protection. Full details are in the Pharos datasheet (PDF).
