Ubiquiti airMAX WiFi 5 NanoBeam AC 5 GHz Gen2 (NBE-5AC-GEN2)
Compact and discreet, it is aimed on its 3-axis ball joint and hooks onto a pole without screws. A 19 dBi directional antenna, more than 450 Mbps of real throughput, and a second Ethernet port that powers another device.
- 19 dBi antenna gain
- Real throughput above 450 Mbps
- 2 Gigabit Ethernet ports, one of them passing power back out
- 24 V passive PoE, Gigabit injector included, outside the 802.3af/at standard
- 3-axis ball joint for alignment, pole or wall mounting
- airMAX ac TDMA protocol for low latency
- Channel width of up to 80 MHz in point-to-point
- Dedicated Wi-Fi radio for configuration through the UNMS app
- airView spectrum analyser, without dropping the link
- Withstands winds of 200 km/h, -40 to 80 °C
- 530 g with its mount, 8.5 W maximum
Ref.: NBE-5AC-GEN2
1 659,00 DHincl. VAT
Limited quantity
Earn 17 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Tue 10 Nov and Thu 12 Nov ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Wi-Fi 5 airMAX ac CPE Ubiquiti NanoBeam AC 5 GHz Gen2: long-range outdoor PtP and PtMP links.
Wi-Fi & throughput: 5 GHz airMAX ac radio, single-band — real throughput > 450 Mbps; 19 dBi directional antenna for maximum range and reduced noise.
Capacity: airMAX ac TDMA — low latency, dedicated Wi-Fi management radio that does not interrupt the link.
Installation: IPX5 outdoor use, withstands 200 km/h winds, −40 °C to 80 °C; pole/mast or wall mounting (kit included), 3-axis ball joint.
Ports & power: 2 Gigabit ports (PoE passthrough); 24 V passive PoE (injector included) — not compatible with standard 802.3af/at, 8.5 W.
Management: airOS® 8 interface, UNMS app, airView® (spectrum) and advanced RF diagnostics.
Uses: links between buildings, remote sites, distribution networks, residential areas, long-range video surveillance.
A compact CPE for reliable point-to-point links, even in a crowded RF environment.
Request a quoteShare:
Technical specifications
| Package contents | Pole-mounting kit and 24 V 0.5 A Gigabit PoE adapter included |
|---|---|
| Wind resistance | 200 km/h survival, 45.4 N wind load at 200 km/h |
| Electrostatic discharge protection | ±24 kV air and contact |
| Product type | Outdoor airMAX ac CPE station, built-in radio and directional antenna, with dedicated Wi-Fi management radio |
| Internal memory | 128 MB DDR2, 8 MB flash memory |
| Interfaces | 2 Ethernet ports (10/100/1000 Mbps) and a Wi-Fi management radio |
| Proprietary link protocol | airMAX ac TDMA protocol |
| Maximum channel width | 10, 20, 30, 40, 50, 60 or 80 MHz in point-to-point; 10, 20, 30 or 40 MHz in point-to-multipoint |
| Management modes | airOS 8 system, HTML5 web interface, UNMS app via the Wi-Fi management radio |
| Installation and alignment tools | airMagic channel selection tool, airView spectrum analyser, RF diagnostics, detailed device statistics |
| Power consumption | 8.5 W maximum |
| Weight | 0.530 kg, including mount |
| Dimensions (W x D x H) | 189 x 189 x 125 mm, including mount |
| Processor | Atheros MIPS 74Kc at 720 MHz |
| Dedicated management radio | Dedicated Wi-Fi management radio, 2,412 to 2,472 MHz worldwide |
| Operating frequency range | 5,150 to 5,875 MHz worldwide |
| Antennas | Built-in 19 dBi directional antenna, dual linear polarisation |
| Maximum standing wave ratio | 1.5:1 |
|---|---|
| Maximum transmit power | 25 dBm output |
| Receiver sensitivity | From -96 dBm at BPSK 1/2 to -65 dBm at 256QAM 5/6 |
| Security features | WPA2 encryption |
| Power supply | 24 V 0.5 A Gigabit PoE adapter included |
| Status indicators | Power, Ethernet and 4 software-adjustable signal strength LEDs |
| Certifications | CE, FCC and IC; RoHS compliant |
| Operating temperature | -40 to 80 °C |
| Operating humidity | 5 to 95% non-condensing |
| Wi-Fi standard | Wi-Fi 5 |
| Location | Outdoor |
| Mounting type | Pole/Mast |
| Bands | Single-band |
| PoE power | Passive PoE |
| Operating mode | airMAX point-to-multipoint access point in mixed mode, or long-range point-to-point link |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Can the NanoBeam 5AC Gen2 be powered by an 802.3af or at PoE switch?
No. It runs on 24 V passive PoE, outside the 802.3af/at standard: an off-the-shelf PoE switch port will not start it. The 24 V - 0.5 A Gigabit injector designed for it is included in the box, with its mains cord. Power consumption, for its part, peaks at 8.5 W, which remains well below the budget of an ordinary PoE port.
What is the second Ethernet port of the NanoBeam 5AC Gen2 for?
To pass power on to another device. The main port receives power from the injector, the second sends it on to a nearby device: a camera or a second radio can thus be connected without running an additional cable back to the equipment room. Both ports are Gigabit 10/100/1000.
How do you aim the NanoBeam 5AC Gen2 at the antenna opposite?

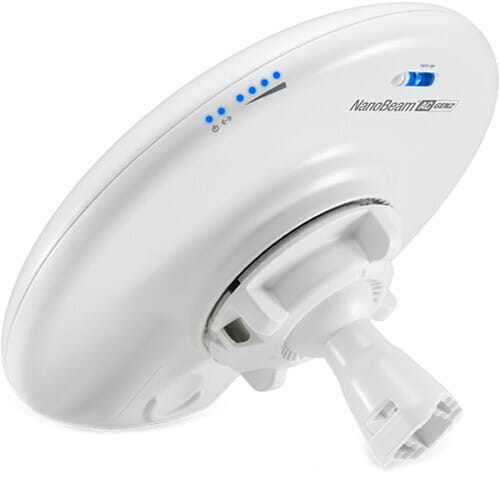

By hand, on its 3-axis ball joint, then you fine-tune with the four signal strength LEDs. Their thresholds are set in airOS 8 to the RSSI values expected for your link: you narrow the steps, then turn the antenna until the last LED lights up, without checking the interface between each adjustment.
Do you need a computer at the top of the mast to configure the NanoBeam 5AC Gen2?
No. A Wi-Fi management radio, separate from the 5 GHz radio that carries the link, is built into the device: it transmits on 2.4 GHz, and the UNMS app, on iOS or Android, opens the airOS interface directly from a phone. Setup is therefore done at the foot of the mount, without a service cable.
Is the mast mounting kit supplied with the NanoBeam 5AC Gen2?

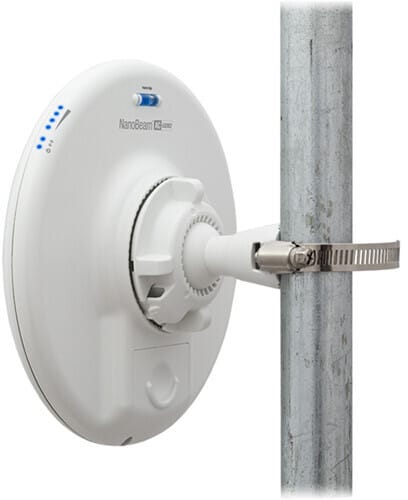

Yes, and mast mounting requires no screws: the part clips on. Wall mounting, on the other hand, requires an anchor screw that does not come with the product. Two accessories are available separately: the NBE-WMK reinforced wall mount kit and the NBE-19-WM suction cup mount, for installation behind a window.
Which channel widths does the NanoBeam 5AC Gen2 support?
From 10 to 80 MHz in point-to-point, but only 10 to 40 MHz in point-to-multipoint. The maximum width is therefore only available on a dedicated link between two devices; as soon as a station serves several clients, the channel is capped at 40 MHz and throughput is set by this constraint.
Where do the 450 Mbps of real-world throughput quoted for the NanoBeam 5AC Gen2 come from?
From the 256QAM modulation of the airMAX ac protocol, whereas the previous airMAX generation stopped at 64QAM. The TCP/IP throughput actually measured thus rises from about 150 Mbps to more than 450 Mbps. On top of that comes TDMA scheduling, which gives each client its own transmit window.
Can you analyse the 5 GHz spectrum without cutting the live link?
Yes. An independent processor and a second radio continuously scan the entire 5 GHz band: the airView analyser runs in the background and the link stays up during the measurement. You get constellation diagrams, the signal-to-noise ratio and the ambient noise without renting a spectrum analyser.
Does the NanoBeam 5AC Gen2 serve only as a client, or can it be the base station?
Both. airOS 8 offers a point-to-multipoint access point mode in mixed airMAX and a long-range point-to-point link mode. On a distribution network, you therefore find it both as subscriber equipment and facing a second NanoBeam, to connect two buildings with a dedicated link.
How does the NanoBeam 5AC Gen2 cope on a rooftop, in sun and wind?
Its plastic housing is UV-stabilised and it operates from -40 to 80 °C, at 5 to 95% humidity, non-condensing. It withstands winds of 200 km/h and has passed salt fog, driving rain, vibration, thermal shock and ultraviolet ageing tests: a seaside site falls within its operating range.
How much space and weight should you allow for installing the NanoBeam 5AC Gen2?
189 × 189 × 125 mm and 530 g, mount included. It is a compact disc, discreet enough to blend into a façade, and its measured wind load — 45.4 N at 200 km/h — remains modest: a light mast is enough where a dish would require a guyed support.
Is the NanoBeam 5AC Gen2 new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. The device has built-in ±24 kV electrostatic discharge protection, for both contact and air discharge, and complies with CE, FCC and IC markings. The full manufacturer document is available as a PDF.
