Epson TM-T20X Network Receipt Printer (C31CH26052)

200 mm/s on an 80 mm roll, with automatic margin reduction: the next receipt's logo prints before the cut and saves 12 mm of paper each time.

Speed 200 mm/s
Print width 80 mm
100 Base-TX/10 Base-T Ethernet interface
Automatic reduction of paper use
Cash drawer kick-out control
Mechanism life of 15 million lines
MTBF 360,000 hours
Weight 1.7 kg

Ref.: C31CH26052

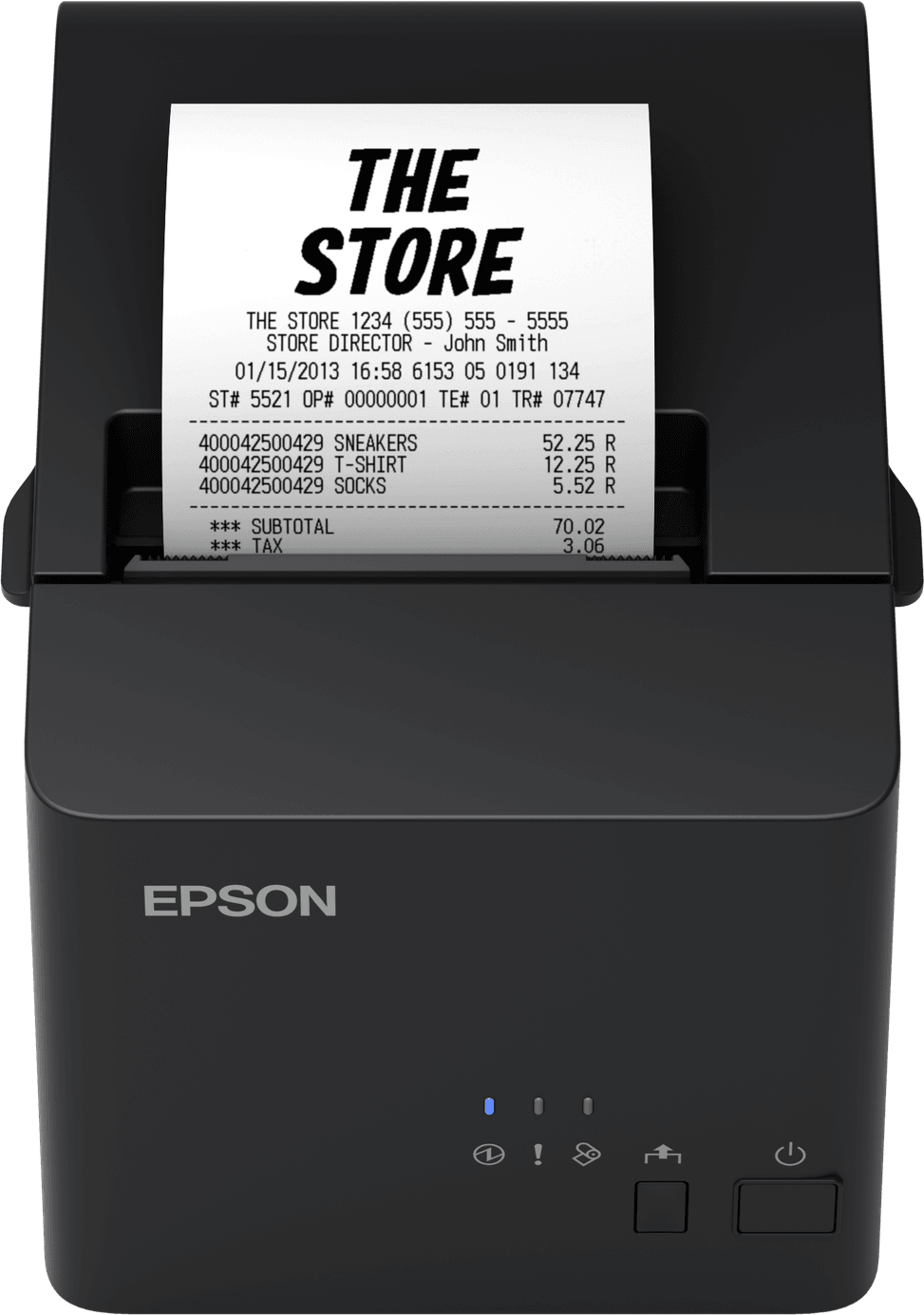

Epson TM-T20X Network Receipt Printer (C31CH26052) — image 1

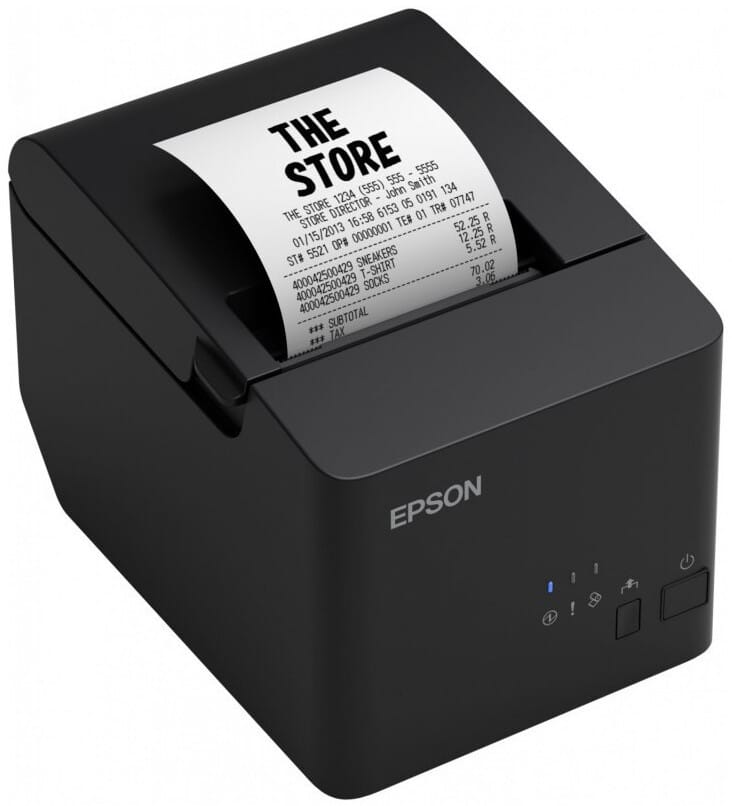

Epson TM-T20X Network Receipt Printer (C31CH26052) — image 2

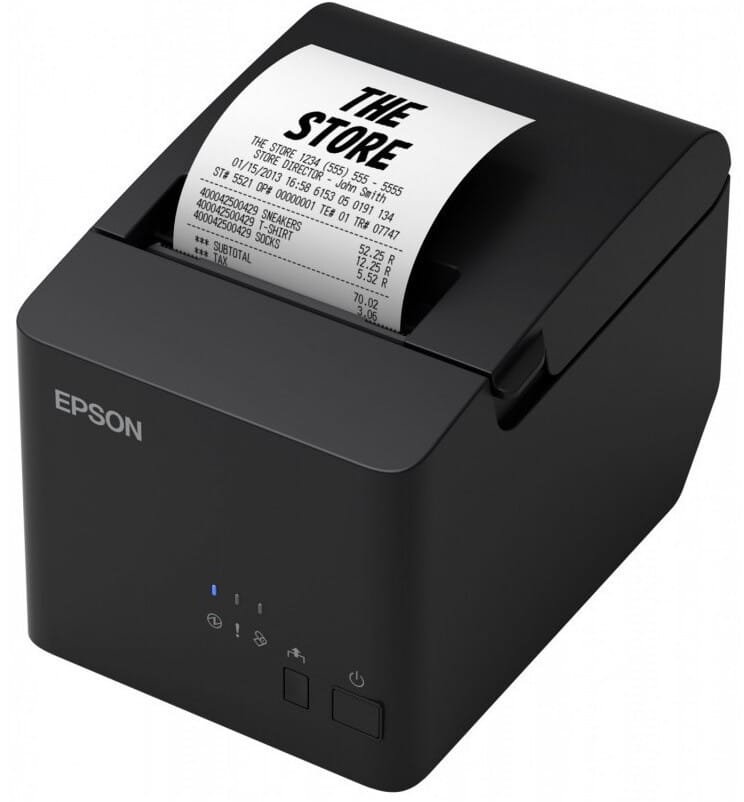

Epson TM-T20X Network Receipt Printer (C31CH26052) — image 3

1 299,00 DHincl. VAT

In stock

Quantity

Earn 13 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco

Free in-store collection: Casablanca (on site) · Témara (within 48 h)

1 year warranty — free repair in Morocco if it breaks down during the warranty period

100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque

Product overview

The Epson TM-T20X Network receipt printer is the ideal choice for your business. With its Ethernet interface, this thermal printer prints on thermal paper up to 80 mm wide. Compliant with Energy Star standards, it offers excellent print quality while saving energy. With its advanced paper feed design and automatic paper cutting in the event of a jam, it keeps things running without a hitch. With a print speed of 200 mm/s, it will meet all your business needs.

See all the specifications ↓

Request a quoteShare:

Technical specifications

Technical specifications
Supported media types	Thermal paper roll
Installed memory	4 KB or 45 bytes of buffer memory
Printing technology	Direct thermal
Keyboard	None (controlled from the computer)
Consumables	None (direct thermal: no ribbon or ink)
Print resolution	203 x 203 dpi
Roll outer diameter	83 mm
Print method	Thermal line printing
Print speed	Up to 200 mm/s
Maximum print width	72 ± 0.5 mm on 80 mm paper
Column capacity	48 or 64 columns on 80 mm paper
Character height	1.25 x 3 mm and 0.88 x 2.13 mm
Character set	95 alphanumeric characters, 18 international sets, 128 x 43 graphic characters
Colour printing	Monochrome (black)
Supported barcodes	1D: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF, Codabar, GS1-128, GS1 DataBar · 2D: PDF417, QR Code, MaxiCode, GS1 DataBar 2D, composite symbology
Copy capability	None (thermal printing, non-impact)
Label formatting	Not applicable (the device prints what the computer sends it)
Paper size	79.5 ± 0.5 mm wide roll, 53 to 75 µm thick
Connections	1 Ethernet port (100 Base-TX/10 Base-T), cash drawer kick-out
Power supply unit	Built-in power supply

Technical specifications (continued)
Operating voltage	100 to 240 V AC, 50/60 Hz
Installation	Horizontal
Multi-pin connector	Cash drawer kick-out (D.K.D. function, 2 drivers)
Reliability	MTBF 360,000 hours · Average print volume 60,000,000 lines
Auto-cutter life	1,500,000 cuts
Printhead life	100 km or 15,000,000 lines
Printer life	15,000,000 lines
Cutting unit	Automatic cutter, partial cut
Sensors	Roll end, cover open
Product dimensions	140 x 199 x 146 mm (width x depth x height)
Product weight	1.7 kg
Box contents	Printer, paper roll, information sheet, user guide, warranty document
Product colour	Epson Dark Grey
Noise level	55 dB(A) during operation
Operating temperature	5 to 45 °C (storage: -10 to 50 °C)
Printer type	Receipt printer
Connection	Ethernet, Serial (RS-232), USB
Cutter	Automatic
Warranty	1 year

Specific references

EAN	8715946669632

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions about this product

Does the Epson TM-T20X receipt printer use ink or a ribbon?

No. It is a direct thermal printer: it prints by heating thermal paper, with no ink, ribbon or toner. All you buy is rolls of thermal paper.

What paper width does the Epson TM-T20X accept, and how fast does it print?

It prints on thermal paper rolls up to 80 mm wide, at a speed of up to 200 mm/s, ideal for clearing checkout queues quickly.

How does this Network version of the TM-T20X connect?

This model (C31CH26052) has an Ethernet interface (100Base-TX / 10Base-T), as well as USB and serial interfaces. You can therefore connect it directly to your local network or to a POS terminal.

Does the TM-T20X cut receipts automatically?

Yes, it has an auto-cutter for the paper. Its paper-feed design also handles jams, for trouble-free operation at the checkout.

Can you connect a cash drawer to the Epson TM-T20X?

Yes. The printer has a “kick-out” output to trigger the opening of a cash drawer, a real plus at a point of sale.

How does the TM-T20X help save paper?

It has an automatic paper reduction function that reduces the top and bottom margins and prints the logo of the next receipt before cutting, reducing the top margin by a further 12 mm. You therefore use fewer rolls.

Is the Epson TM-T20X reliable for intensive in-store use?

Yes, it is designed for high volumes: an MTBF of 360,000 hours and a mechanism lifespan of approximately 15 million lines. Epson is also Europe's leading manufacturer of point-of-sale printers.

Is the Epson TM-T20X receipt printer noisy?

Its operating noise level is approximately 55 dB(A), a normal level for a receipt printer in a checkout environment. It is compact (140 × 199 × 146 mm) and weighs 1.7 kg.

What is in the box of the Epson TM-T20X, and what is the warranty?

The box contains the main unit, a paper roll, the user guide, an information sheet and the warranty document. The product is new and genuine, with a 1-year warranty; your iris.ma invoice serves as proof.
