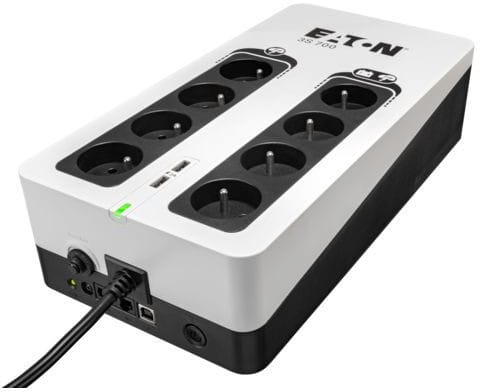

Eaton 3S Gen2 Off-Line UPS - 420 W / 700 VA - 8 FR outlets + 2 USB (3S700F)
An entry-level model where only 4 of the 8 outlets are backed by the battery, the other 4 offering surge protection only.
- 4 battery-backed outlets, 4 surge-protected
- USB link for automatic PC shutdown
- Audible noise < 25 dB
Ref.: 3S700F
1 479,00 DHincl. VAT
Configuration · Eaton 3S
- 550 VA 330 W 3 outlets
- Configuration shown: 700 VA 420 W 4 outlets
- 850 VA 510 W 4 outlets
In stock
Earn 15 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
Entry-level UPS to protect a home computer workstation: off-line technology and 700 VA / 420 W.
Technology & protection: when the power fails, it switches to battery within a few milliseconds and protects against surges — simple, affordable protection for everyday use.
Power: 700 VA for 420 W of usable power — a PC and its internet box, or a light workstation.

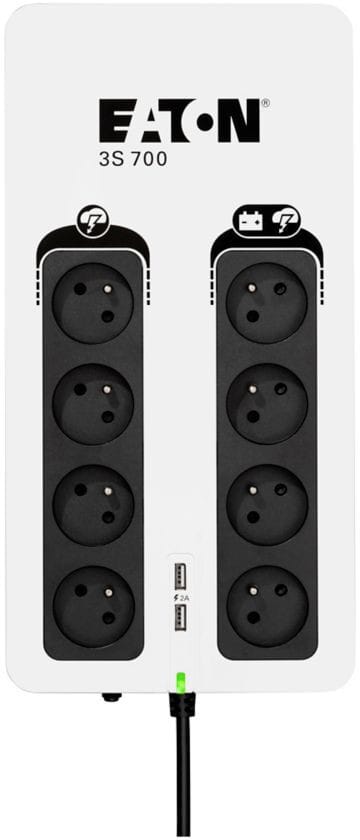

Outlets: 8 French outlets — 4 with battery backup, 4 with surge protection only — no adapter needed.
Management: 2 USB charging ports for your devices, and a USB link for automatic PC shutdown.
Ideal, for example, for a desktop computer, an internet box or a games console.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Request a quoteShare:
Technical specifications
| Output voltage | 230 V by default (220/230/240 V) |
|---|---|
| Output connections | 4 FR outlets with battery backup and surge protection + 4 FR outlets with surge protection only |
| Input voltage | 230 V by default (220/230/240 V) |
| Input frequency | 50/60 Hz (range 46 - 65 Hz) |
| Voltage range | Up to 161 - 284 V (adjustable) |
| Input circuit breaker rating | 10 A resettable circuit breaker |
| Battery type | Compact sealed lead-acid |
| Battery replacement | By the user |
| Battery management | Automatic battery test, deep discharge protection, LED replacement indicator |
| Interface port | 1 USB port (HID compatible, cable supplied) |
| User interface | Status LED (including battery replacement indicator) |
| Weight (kg) | 4 kg |
| Dimensions (W x D x H) (mm) | 335 x 170 x 86 mm |
| Technology | Off-line |
| Power (VA) | 700 VA |
| Voltage stabiliser | No |
| USB charging | 2 USB ports (2 A max) |
|---|---|
| Data line protection | Telephone / fax / modem / Internet and Ethernet line (RJ11 / xDSL) |
| Surge protection and filtering | Built-in surge protector compliant with IEC 61643-1 (IEC 61643-11 class T3) |
| Cold start | Yes |
| Audible noise | <25 dB at 1 metre |
| Certifications | IEC 62040-1 · IEC 62040-2 C2 · IEC 62040-3 · IEC 62040-4 · IEC 61643-11 T3 · CE · EAC · Ukr · Cm · CB report |
| Mounting | Placed on or under a desk · Wall-mounted (built-in system on all models) |
| Operating temperature | 0 to 40 °C |
| Phase (output/input) | Single-phase / Single-phase |
| Output type | FR outlets |
| Power (W) | 420 W |
| Runtime | 16 min for a desktop computer; 6 min for an advanced PC or an Internet router; 3 min for a games console + a TV + an Internet router |
| Form factor | Tower |
| Battery-backed outlets | 3 to 4 outlets |
| Control & communication | USB |
| Warranty | 1 year |
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Of the 3S700F's eight outlets, how many keep working during an outage?
Four. The other four FR outlets are protected against surges but switch off with the mains. Plug the desktop tower, the monitor and the router into the four battery-backed outlets, and keep the others for peripherals that can afford to shut down.
Why do 700 VA give only 420 W?
The power factor is 0.6: 700 × 0.6 = 420 W actually available. Add up the wattage of what you plug into the battery-backed outlets and stay below this ceiling — this is a UPS for a light workstation, a PC with its router, not for a complete office.
Does the 3S700F correct mains voltage fluctuations?
No, it has no AVR regulator: as an off-line unit, it passes grid power through as is and only switches to battery in the event of an outage or when the voltage goes out of range. On a grid that fluctuates constantly, a line-interactive model will spare the battery better.
Can you charge a phone directly on this UPS?

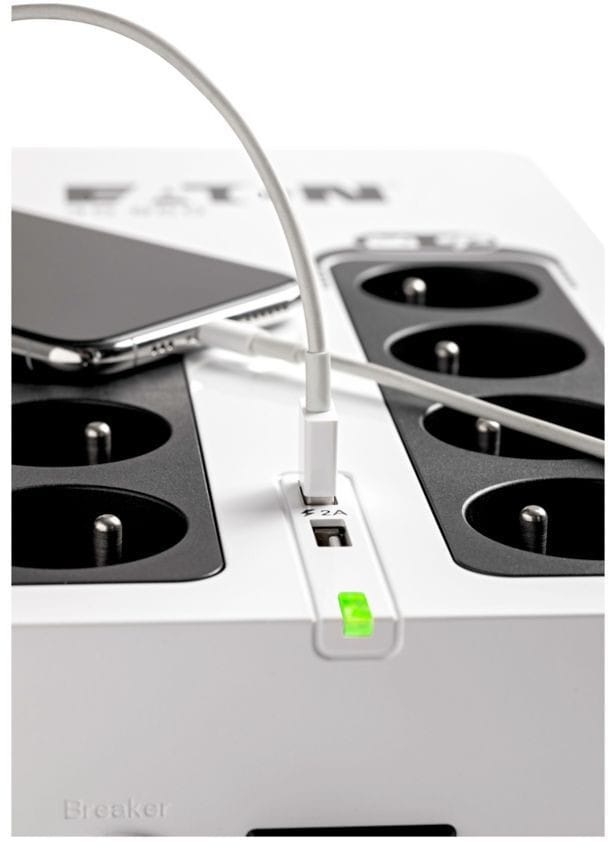

Yes, two USB charging ports are provided for mobile devices, in addition to the USB communication link with the PC. Charging a phone therefore takes up none of the eight power outlets.
Does the PC shut down on its own before the battery runs out?
Yes, the UPS's USB link triggers an automatic, clean shutdown of the computer, and the cable is included. This is what prevents an abrupt power cut in the middle of writing a file, which a basic UPS without communication can do nothing about.
Is the UPS noisy in a living room?
It stays below 25 dB measured at one metre, the level of a quiet room: it can sit next to a TV, a games console or a workstation without being heard.
How does the 3S700F plug in, and how much does it weigh?
Its input cord ends in a Schuko plug, and the unit weighs 4.2 kg in a tower format. It accepts an input of 220 to 240 V, with a wide frequency range of 46 to 70 Hz, and outputs 230 V, adjustable to 220 or 240 V.
Is the Eaton 3S Gen2 3S700F new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document. It is the entry-level model for power protection: switchover to battery in a few milliseconds, surge protection, and no regulation electronics to maintain.
