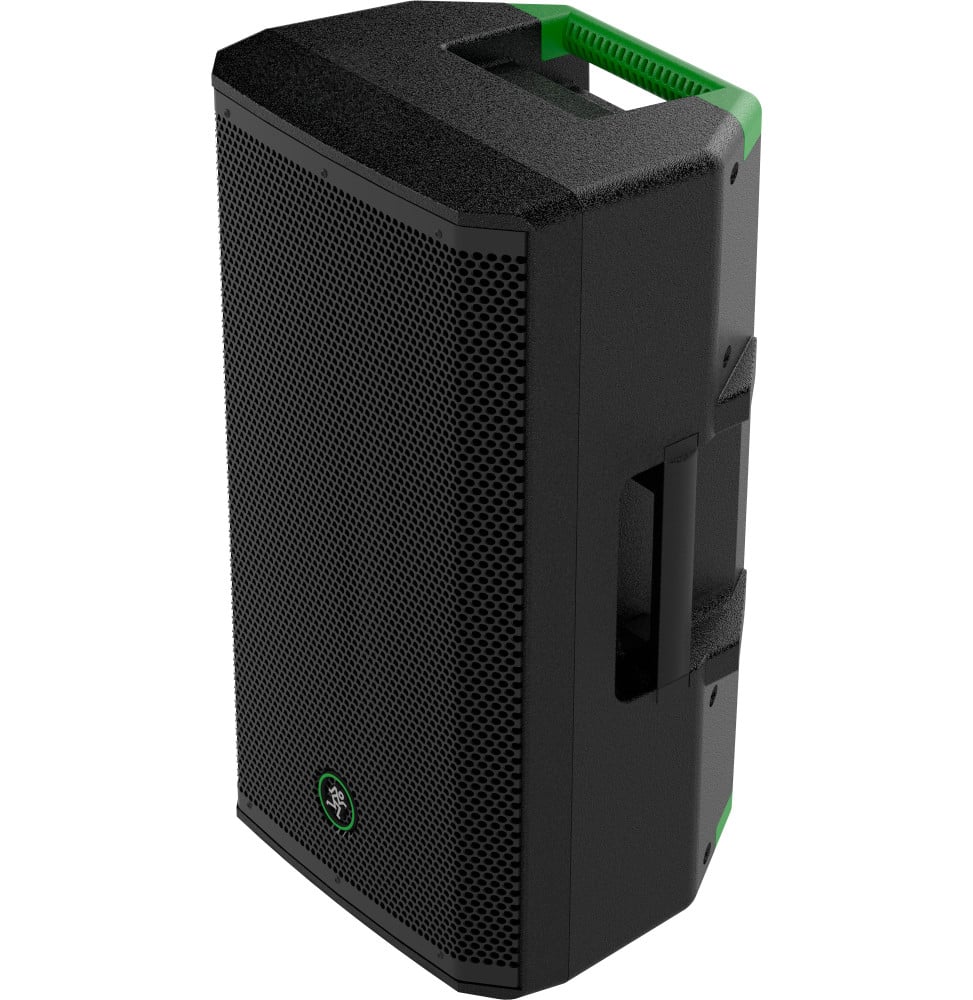

Mackie Thrash212 Active PA Speaker - 12" Woofer, 1,300 W Peak (2054320-01)
Mackie Thrash212 active PA speaker: 12-inch woofer and 1-inch titanium compression driver, 1,300 W peak class D amplification, 125 dB SPL. Two mic or line inputs, Mix Out to daisy-chain; on the floor as a stage monitor or on a stand.
- 1,300 W peak, class D
- 12" woofer + 1" titanium driver
- 52 Hz – 20 kHz (−10 dB)
- 125 dB SPL peak
- 2 XLR / jack combo inputs, mic or line
- XLR Mix Out to daisy-chain
- Floor monitor tilted at 45°
- 90° × 60° coverage
- 4 handles · 16.5 kg
Ref.: 2054320-01
New
1/8
5 004,00 DHincl. VAT
Limited quantity
Earn 51 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
12-inch active PA speaker for bands, singers and events: 1,300 W peak, mic or line inputs and floor monitor use.
Sound: 12" (305 mm) woofer and 1" titanium compression driver, 52 Hz – 20 kHz (−10 dB), 125 dB SPL peak
Inputs: 2 XLR / 6.35 mm jack combos, gain with Line and Mic marks
Output: XLR Mix Out to daisy-chain a second speaker or connect a subwoofer
Protection: peak and RMS limiter, subsonic filter, thermal protection
Setup: on the floor, as a monitor tilted at 45° or on a stand, 4 handles, 16.5 kg
A single speaker for front of house and for stage monitoring, instead of a dedicated model for each use.
Request a quoteShare:
Description
Mackie Thrash212 · Reference 2054320-01
Plug in, turn it up,
play.
The Thrash212 is a no-nonsense active PA speaker: a 12-inch woofer, a titanium-diaphragm compression driver, 1,300 W peak in class D, two inputs and a volume knob. It works front of house for a voice, a band or an event, then lies down on the floor to become a stage monitor.
- 1,300 Wpeak, class D
- 125 dBmaximum peak level
- 52 Hzto 20 kHz, at −10 dB
- 16.5 kg4 handles
Two amps, one per driver
The 12-inch ferrite-magnet woofer gets 1,000 W peak; the 1-inch titanium-diaphragm compression driver gets 300 W peak from its own amplifier. The filter that splits the frequencies between the two crosses over at 2.4 kHz, with a 24 dB per octave slope. Mackie publishes the peak power only: no RMS value is given for this model. The sound covers 90° horizontally and 60° vertically.
A mic, a mixer or both
Both combo sockets accept a microphone on XLR or a line source on a 6.35 mm jack. Each channel's gain knob has two marks: Line for a mixer or a keyboard, Mic when a microphone is plugged in directly. The XLR Mix Out sends the blend of both inputs to a second Thrash or to a powered subwoofer.
Standing for front of house, lying down as a monitor
Standing upright, on the floor or on a stand, it projects towards the audience. Laid on its angled side, it tilts at 45° towards the singer or musician: same cabinet, no accessory to add. The grille badge rotates to stay upright in both positions.

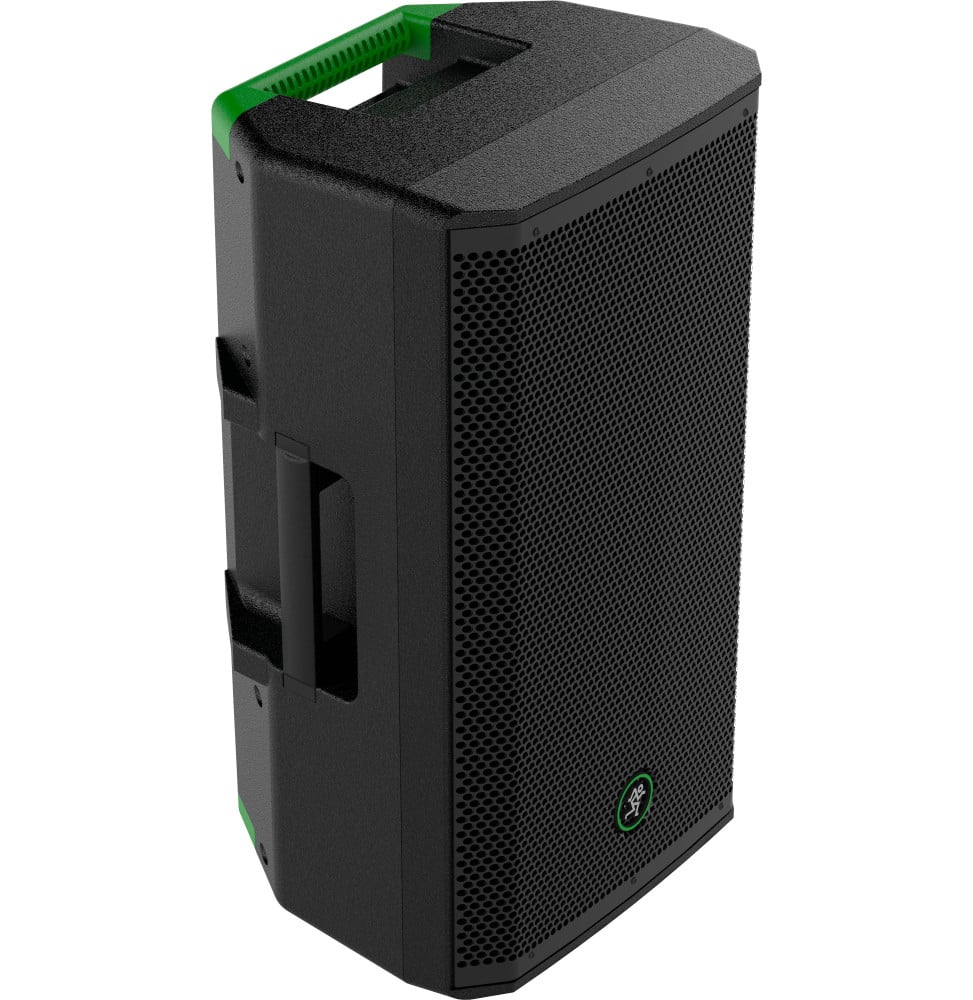

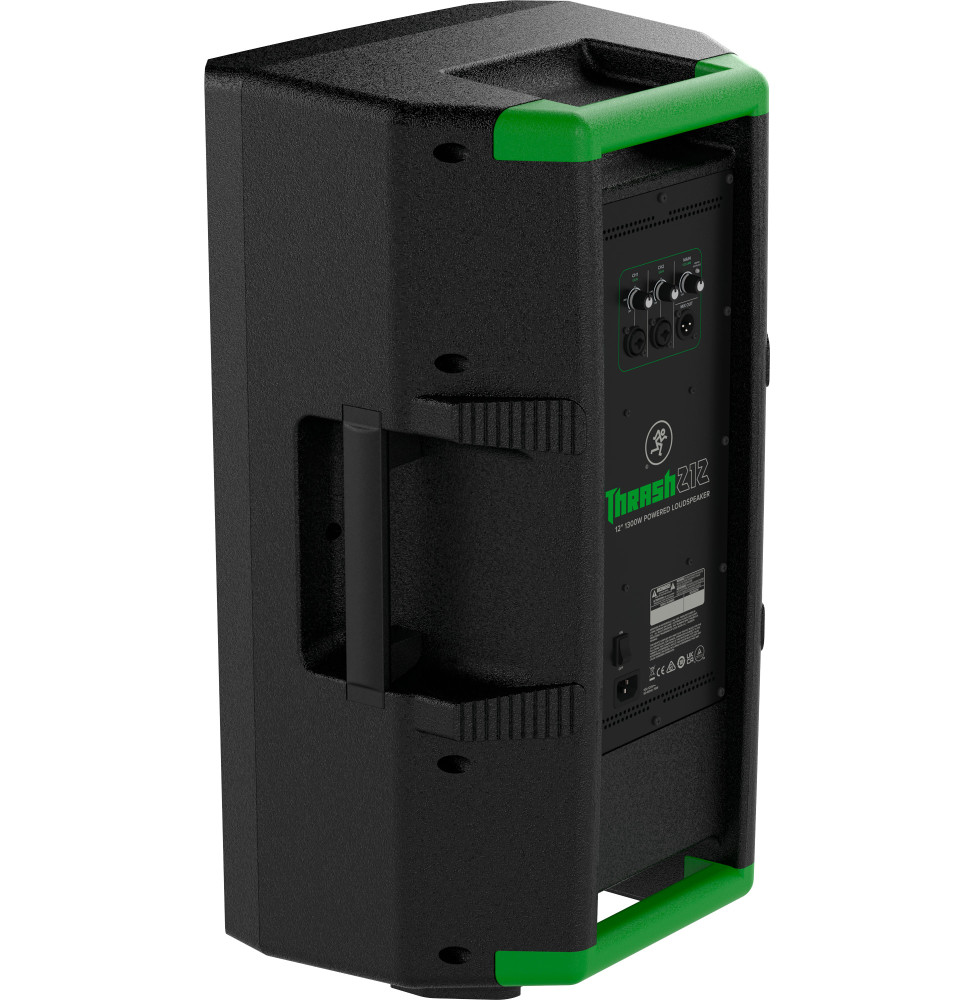

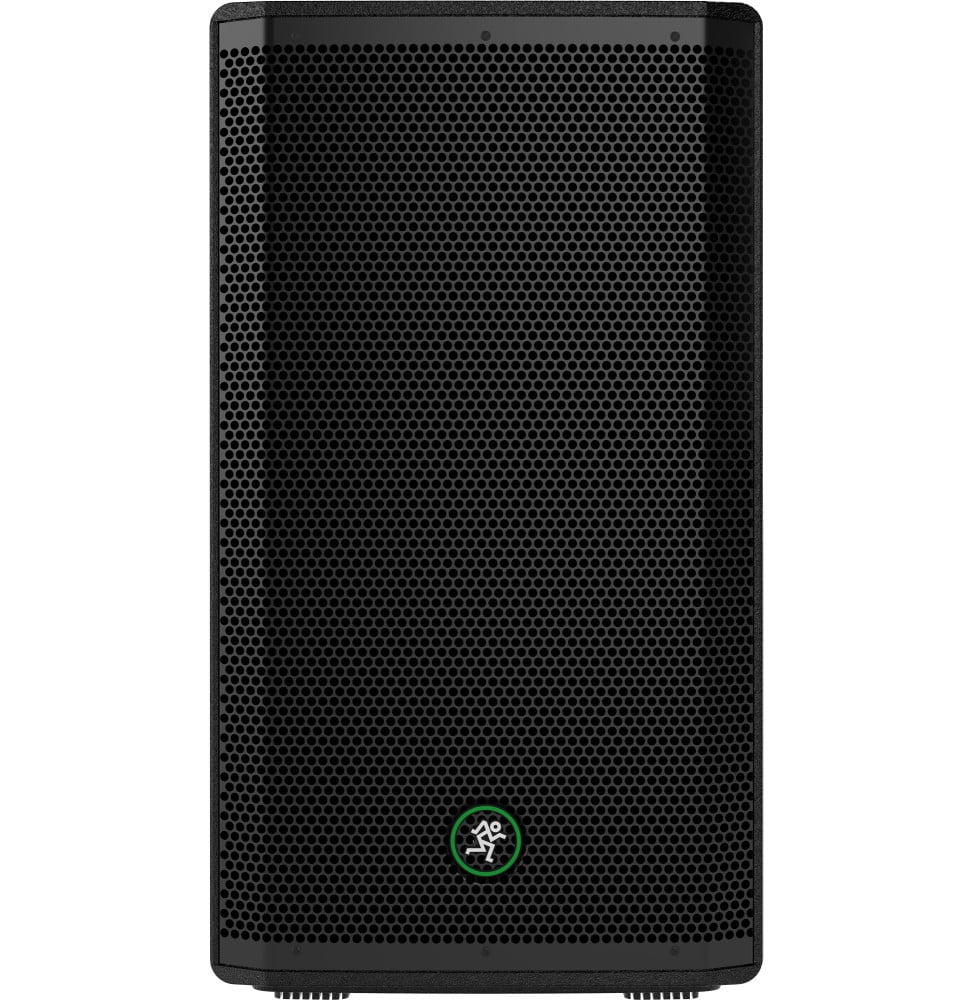

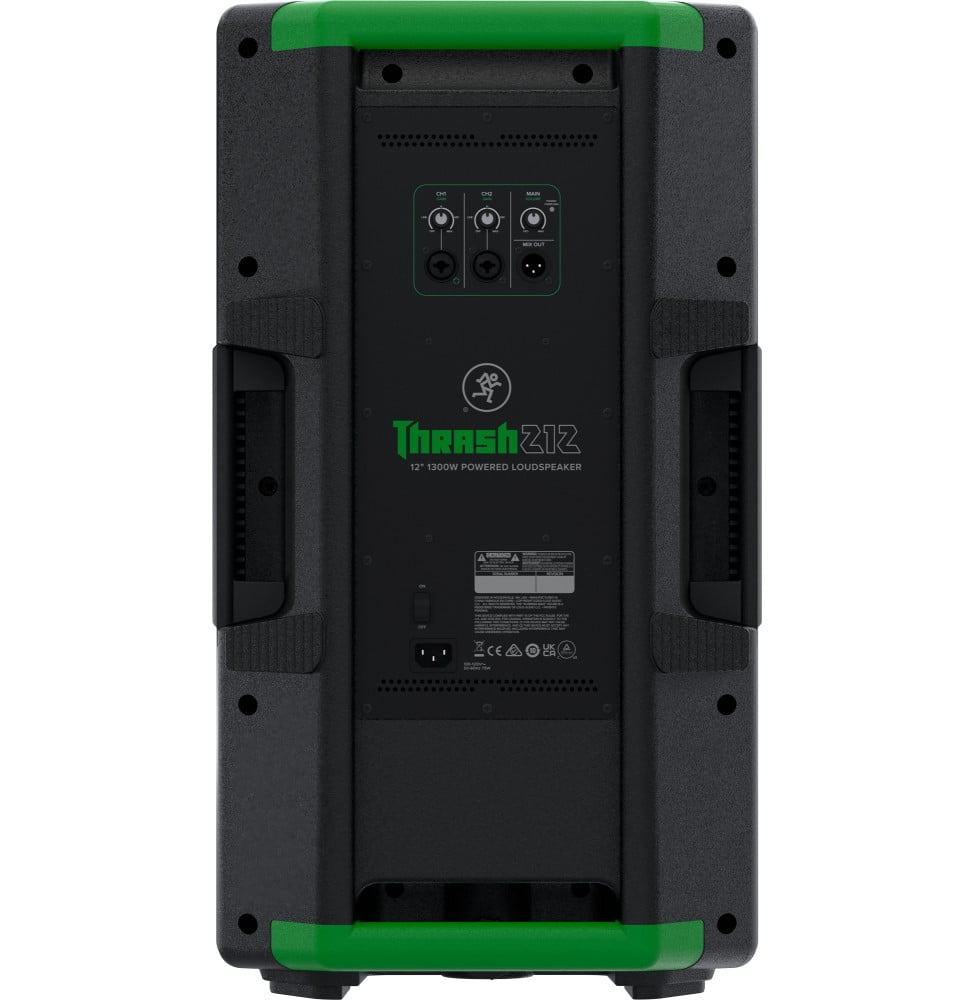

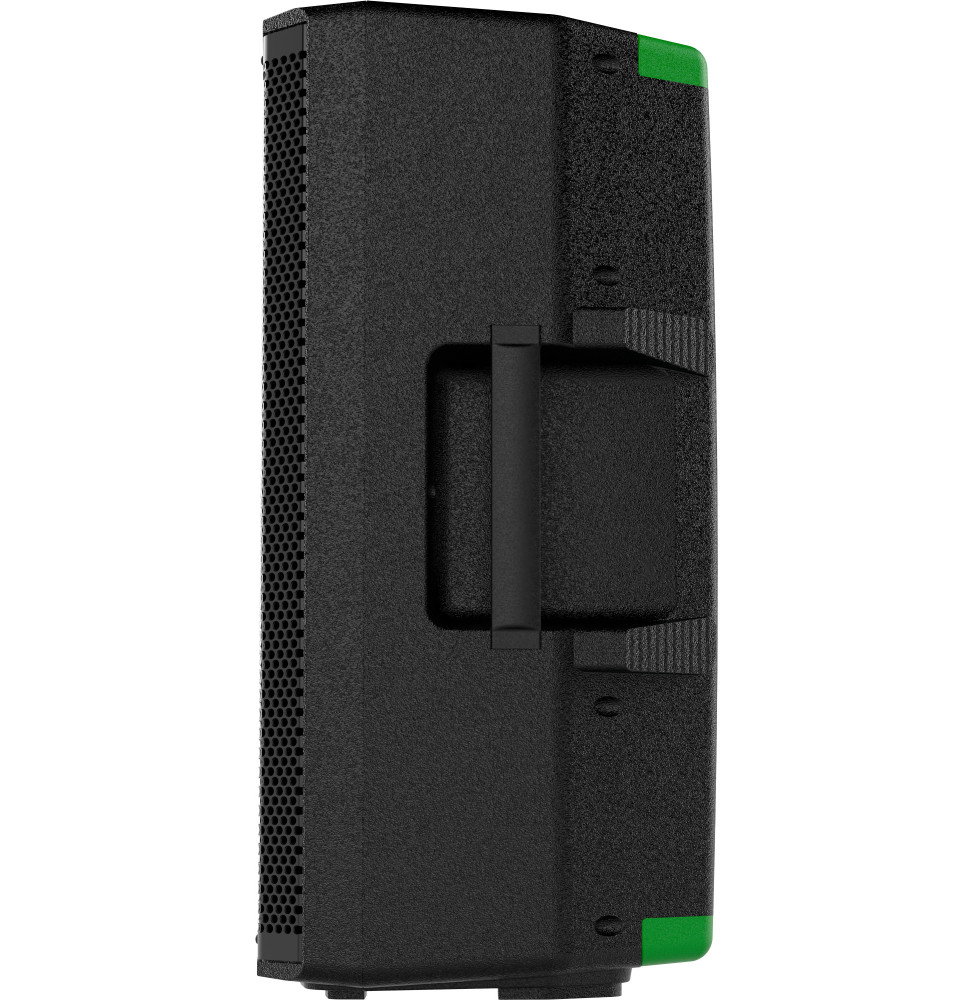

Front, side with the angled face, and back.Protection that works on its own
A peak and RMS limiter prevents the amplifiers from clipping; the rear LED turns from green to red when it acts, a sign to lower the gain. The high-frequency driver has its own compressor against transients, a subsonic filter keeps the woofer from bottoming out on infrasound, and thermal protection mutes the sound if the amplifier overheats, then restores it once cooled down.
Four handles and a stand socket
Two handles on the sides, two more at the top and bottom of the rear panel: you load it into a car without looking for a place to grab it. Under the cabinet, the socket takes a speaker stand. The Thrash212 has no rigging points, however: Mackie forbids flying it, even by its handles.

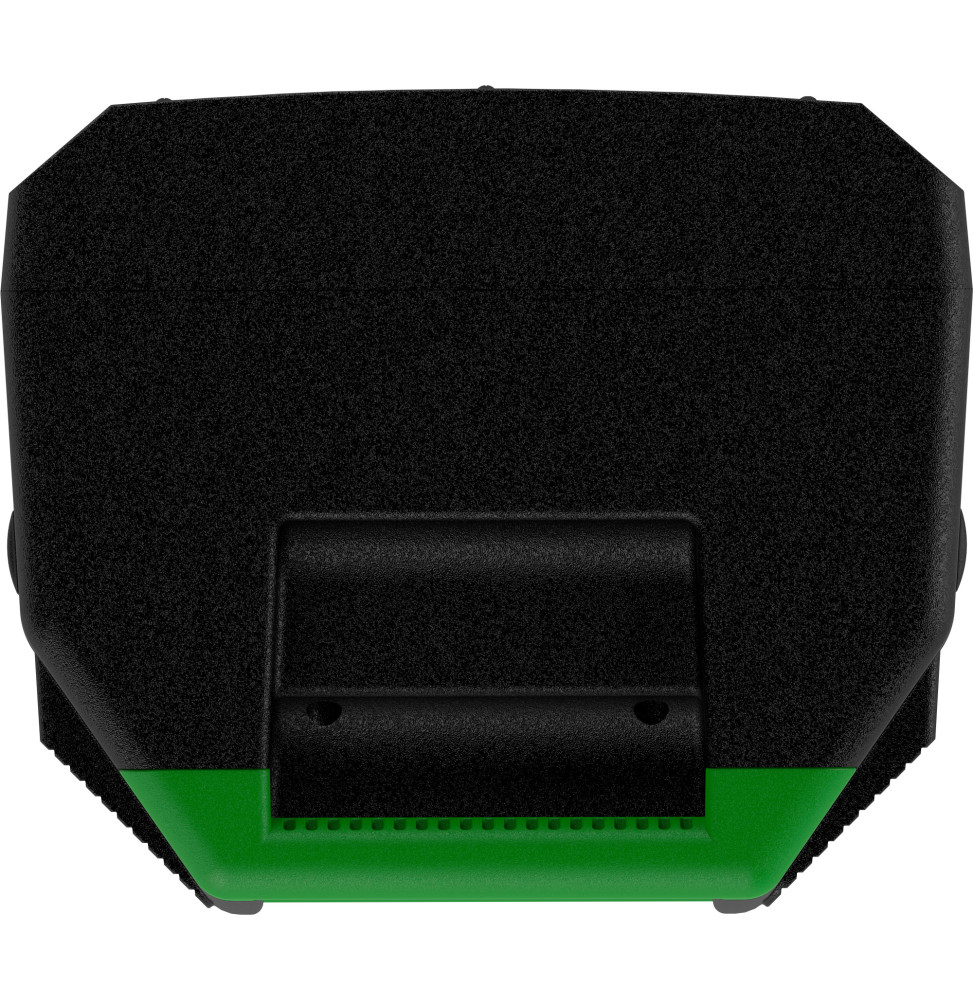

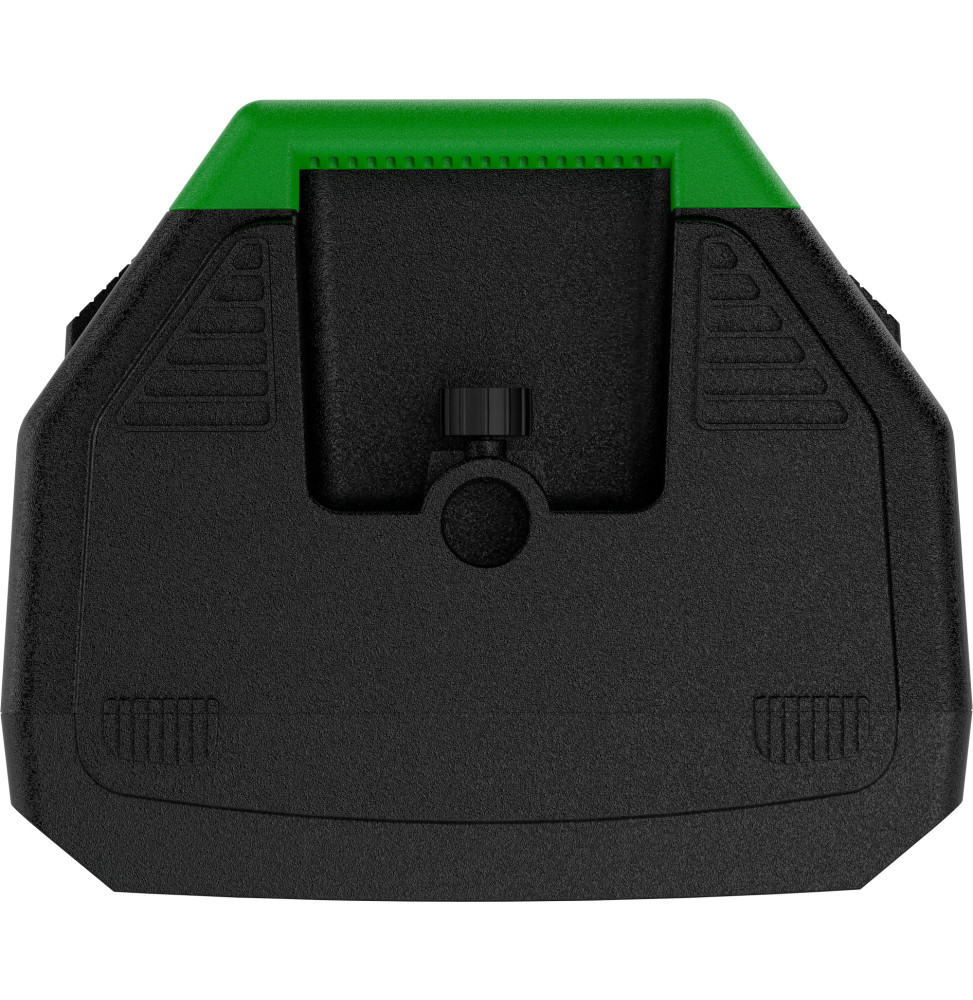

The top and its handle; the bottom and the stand socket.For a mixer, set the channel gain to the Line mark: this is the setting intended by Mackie. The Mic position is only for a microphone plugged in directly.
For vocals, see our microphones ; to compare, the other speakers in the PA and sound reinforcement range and the image and sounddepartment.
Values taken from the Mackie spec sheet and owner's manual for the Thrash series, and from the official Thrash212 page.
Technical specifications
| Weight (kg) | 16.5 kg |
|---|---|
| Amplification | Active: built-in class D amplifiers (low and high frequencies), convection cooling |
| Box contents | Speaker, detachable mains cord |
| Optional accessories | T100 speaker tripod stand (P/N 2052464), SPM200 pole mount (P/N 2035170) |
| Features | Dynamic bass response circuit, dedicated compressor for the high-frequency driver, rotatable grille badge |
| Dimensions (W x H x D) | 375 × 669 × 313 mm |
| Output harmonic distortion | Less than 1% (low- and high-frequency amplifiers) |
| Frequency response | 52 Hz – 20 kHz (−10 dB) · 65 Hz – 20 kHz (−3 dB) |
| Crossover frequency | 2.4 kHz, 24 dB/octave filter |
| Audio input | 2 XLR / 6.35 mm TRS jack combo inputs, mic or line depending on the gain position |
| Audio output | Balanced male XLR Mix Out (600 Ω): mix of the 2 inputs, to daisy-chain another speaker or connect a subwoofer |
| Peak power | 1,300 W peak (low-frequency amplifier 1,000 W peak, high-frequency amplifier 300 W peak) |
| Power consumption | 75 W |
| Product colour | Black, green handles |
| Power supply | Mains 220–240 V~, 50–60 Hz, 75 W, switch-mode power supply, IEC inlet and detachable mains cord |
|---|---|
| Mounting | On the floor, as a floor monitor (45° angled side) or on a stand via the built-in socket · 4 handles · no rigging points: cannot be flown |
| Product type | 2-way 12" active PA speaker for front of house or stage monitoring, sold individually |
| Gross packaging dimensions (W x H x D) | 447 × 772 × 391 mm |
| Gross weight (packaged) | 18.5 kg |
| Controls | Gain per channel with Line and Mic marks, master volume, on/off switch |
| Protections | Peak and RMS limiter, subsonic filter against woofer over-excursion, thermal protection of the power supply and amplifiers |
| Lighting and indicators | Power/Overload LED: green when on, red when the limiter is working |
| Input impedance | Mic 20 kΩ balanced · line 1 MΩ unbalanced (high impedance) |
| Drivers (transducers) | 12" (305 mm) woofer with ferrite magnet, 1" (25 mm) compression driver with titanium diaphragm |
| Maximum sound pressure level | 125 dB SPL peak |
| Coverage angle | 90° × 60° (H × V) |
| Warranty | 1 year |
Specific references
| EAN | 0663961064391 |
|---|---|
| MPN | 2054320-01 |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What is the RMS power of the Thrash212?
Mackie does not publish it: the only official figure is 1,300 W peak, of which 1,000 W for the low-frequency amplifier and 300 W for the high-frequency one. To compare two speakers, look instead at the maximum level of 125 dB SPL peak and the response from 52 Hz to 20 kHz at −10 dB.
Can you plug a microphone straight into the speaker?
Yes. Both combo inputs accept a microphone on XLR or a line source on a 6.35 mm jack, and each channel's gain knob has a Line mark and a Mic mark. For a mixer, set the gain to Line; for a microphone, turn it up gradually while watching the LED, which turns red when the limiter is working.
How do you connect two Thrash speakers?
By cable: the XLR Mix Out sends the blend of both inputs to the input of a second Thrash, then a third, in a chain. The same output can also feed a powered subwoofer. Then set the gain of the following speakers to the Line position.
Can the Thrash212 be used as a floor monitor?
Yes. Laid on the floor on its angled side, it tilts at 45° towards the musician: this is the monitor use planned by Mackie. Standing upright, it serves front of house, placed on the floor or mounted on a stand via the built-in socket under the speaker.
Can this speaker be flown?
No. The Thrash212 has no rigging points, and Mackie forbids flying it, including by its handles. It stands on the floor or goes on a stand able to carry its 16.5 kg.
What protection does it include?
A peak and RMS limiter prevents the amplifiers from clipping, a dedicated compressor protects the high-frequency driver, a subsonic filter stops the woofer from bottoming out, and thermal protection mutes the sound if the amplifier gets too hot, then restores it once cooled down. When the rear LED turns red, lower the gain.
What is the difference between the Thrash212 and the Thrash215?
The woofer: 12 inches on the Thrash212, 15 inches on the Thrash215. The response goes down to 52 Hz versus 38 Hz at −10 dB, for 125 dB versus 126 dB SPL peak and 16.5 kg versus 18.5 kg. The 1,300 W peak amplification, the inputs, the Mix Out and the floor monitor use are identical.
What is in the Thrash212 box?
The speaker and its detachable mains cord, which plugs into the IEC inlet on the rear (220 to 240 V). The T100 tripod and the SPM200 pole mount are Mackie accessories offered separately.
