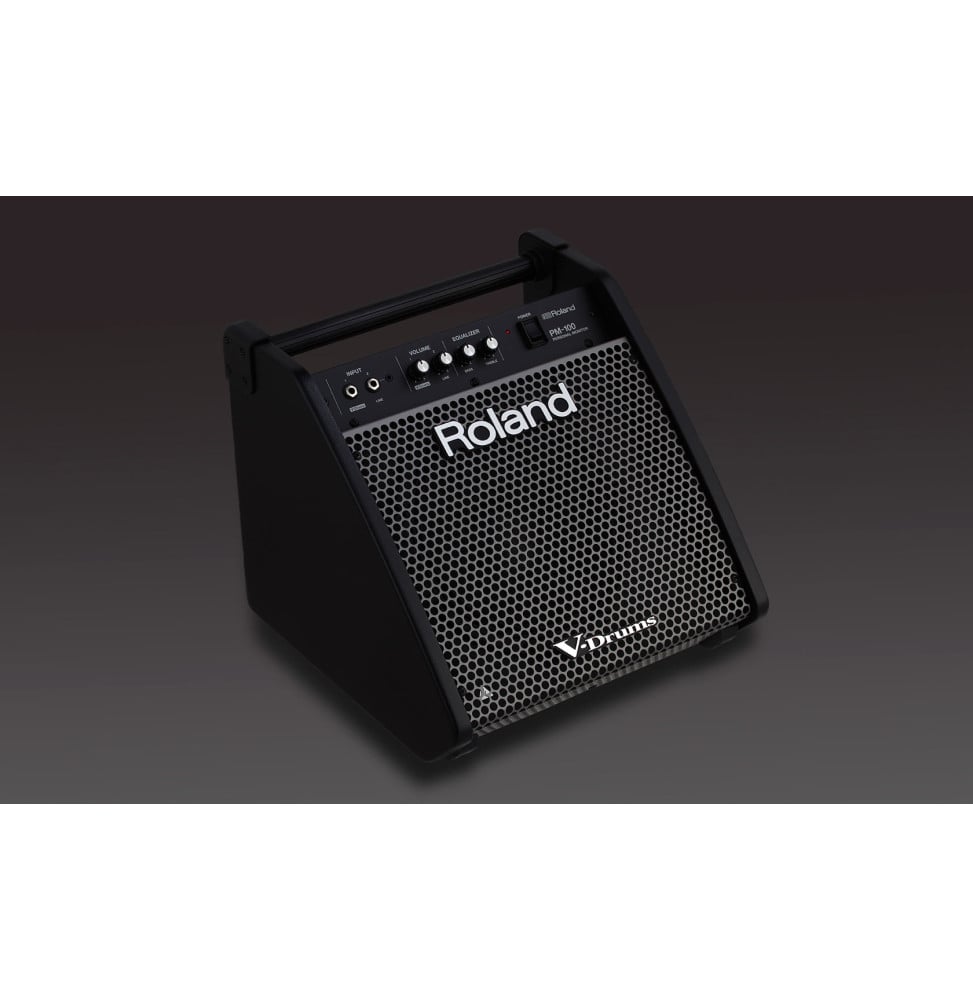

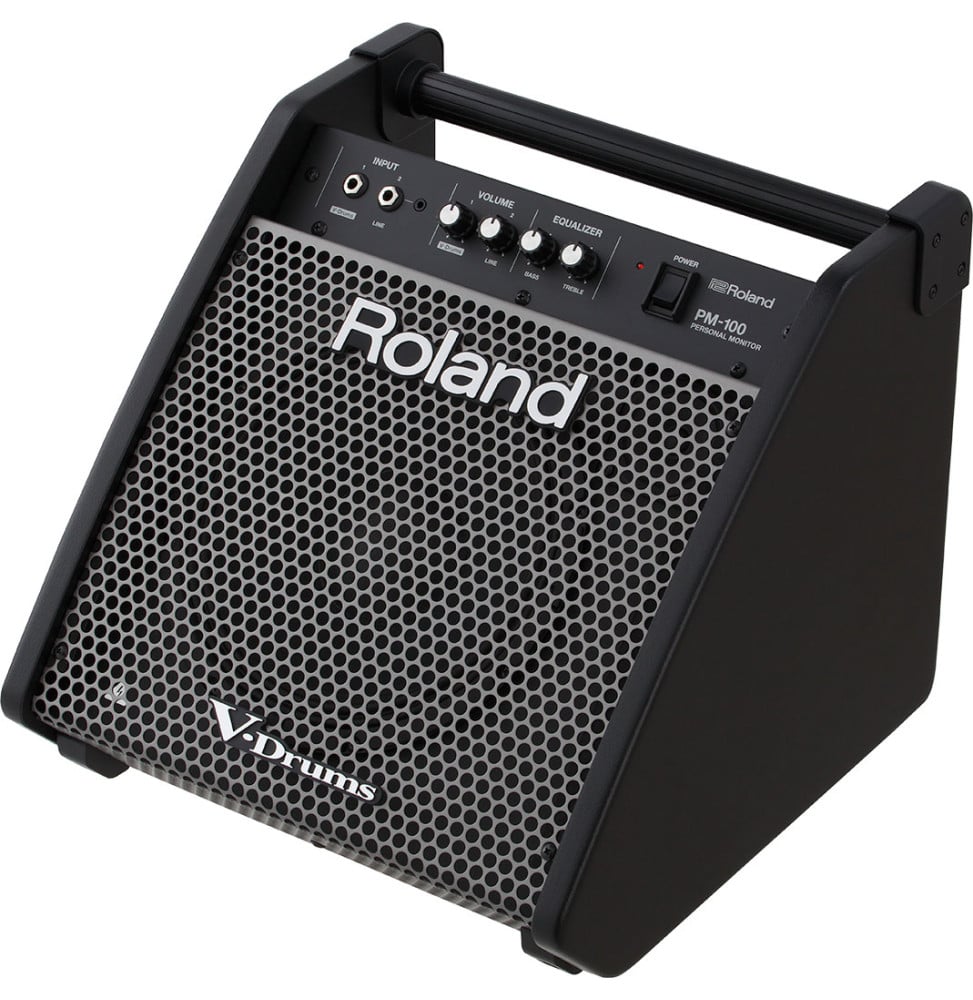

Monitor speaker for electronic drums Roland PM-100 - 80 W, 25 cm woofer
Roland PM-100 personal monitor for electronic drums: 80 W, 25 cm woofer and tweeter, dedicated V-Drums input and line inputs to play along with a track. Front panel angled towards the seated drummer, 2-band EQ and carrying handle.
- 80 W, 25 cm woofer + 5 cm tweeter
- V-Drums input, 6.35 mm jack
- Line inputs, 6.35 mm jack and mini jack
- Separate drum and music volumes
- BASS and TREBLE EQ
- Front panel angled towards the drummer
- Full-width handle
- 388 × 354 × 407 mm, 13.5 kg
Ref.: PM-100
New
1/4
5 220,00 DHincl. VAT
Limited quantity
Earn 53 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Electronic drum monitor to hear yourself play without headphones: 80 W, 25 cm woofer and tweeter, dedicated V-Drums input.
Sound: BASS and TREBLE EQ to adjust the sound to the room
Inputs: V-Drums 6.35 mm jack, 6.35 mm jack and mini jack line inputs to play along with a track
Mix: separate volumes for the drums and the music
Position: front panel angled towards the seated drummer, full-width handle
Size: 388 × 354 × 407 mm, 13.5 kg
Designed for Roland V-Drums, it also accepts the jack output of another drum module.
Request a quoteShare:
Description
Roland PM-100 · Reference PM-100
Hear your drums
without keeping the headphones on.
The PM-100 is a personal monitor designed for Roland V-Drums electronic drums: an 80 W amp, a 25 cm woofer and a tweeter in a cabinet angled towards the drummer, with one input for the module and another for music.
- 80 Wof rated power
- 25 cmwoofer, plus a tweeter
- 2inputs: drums and music
- 13.5 kgcarrying handle
Aimed at the seated drummer
The front panel is angled to direct the sound towards the drummer sitting behind the kit. The two-way system pairs a 25 cm woofer for the lows with a 5 cm tweeter for the highs, and a global two-knob EQ, BASS and TREBLE, adjusts the sound to the room. The speaker reproduces the sound in mono, even when the module sends a stereo signal.
Drums and music, each with its own volume
On the left of the panel, the V-Drums input takes the 6.35 mm jack output of the drum module. Next to it, two line inputs, on a 6.35 mm jack and a 3.5 mm mini jack, take a phone, an audio player or another electronic instrument, and can be used at the same time. Two separate volume knobs balance the backing track against the kit, without touching the module settings.

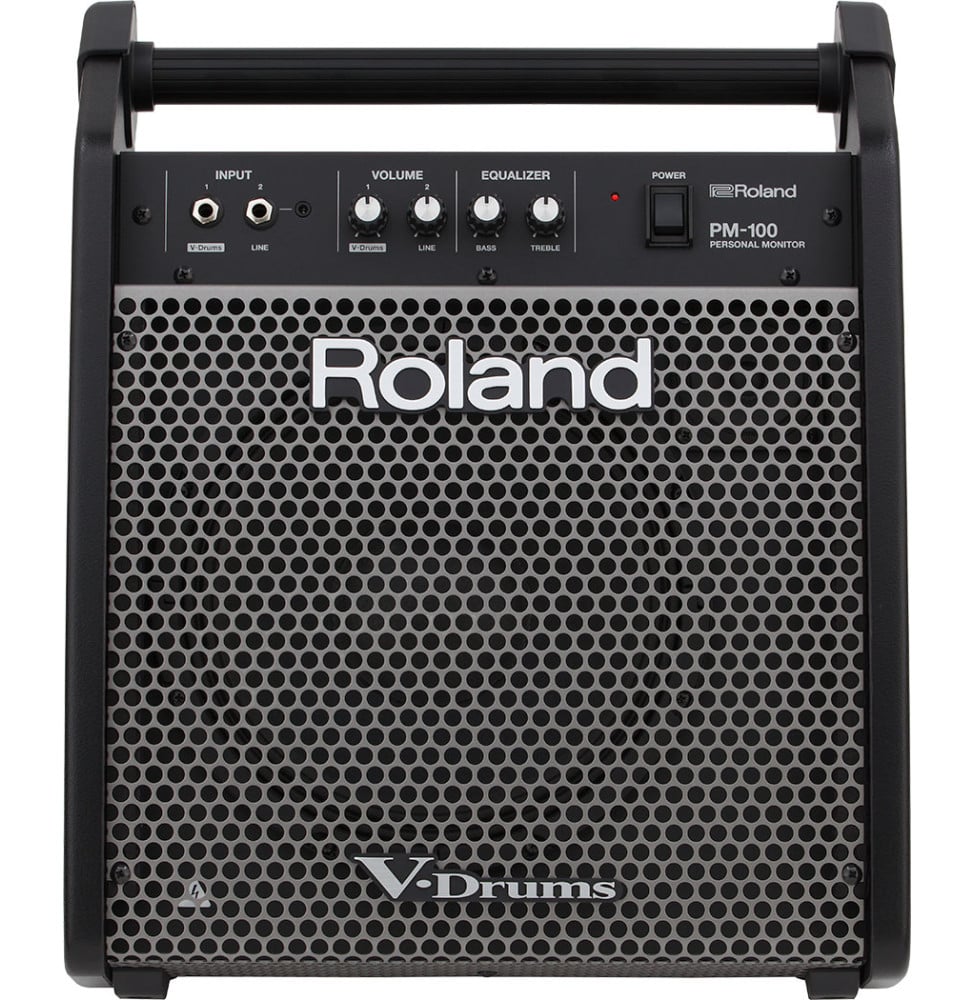

Inputs, separate volumes, EQ and power switch on the front panel.An input setting designed for quiet modules
Roland set the input sensitivity fairly high for sound modules that output a weak signal. With a high-output module, such as those of the TD series, the sound can distort if the volume is pushed too far: it is then best to raise it gradually. The input accepts the jack output of any drum sound module, V-Drums or not.
- Roland reference
- PM-100
- Playback
- mono
- Recommended clearance
- 20 cm in front and on the sides
- DIRECT OUT output
- on the PM-200 only
Switch on the drum module and the connected devices first, volumes at minimum, then the PM-100; when switching off, follow the reverse order.
To complete the setup: the PA and sound systems section, our headphones and earphones to play in silence, and the studio, podcast and music production range.
Specifications taken from the Roland PM-100 specification sheet and owner's manual.
Technical specifications
| Weight (kg) | 13.5 kg |
|---|---|
| Output power | 80 W (rated power) |
| Amplification | Active: built-in 80 W amplifier |
| EQ controls | Global 2-band EQ: bass (BASS) and treble (TREBLE) |
| Box contents | PM-100 monitor, power cord, owner's manual |
| Features | Built-in mixer with independent volumes · front panel angled towards the seated drummer · full-width handle to carry it and move it across the floor |
| Dimensions (W x H x D) | 388 × 354 × 407 mm |
| Audio input | V-Drums input, stereo 6.35 mm jack · line input, stereo 6.35 mm jack and stereo 3.5 mm mini jack (nominal level -6 dBu) |
| Product colour | Black |
| Power supply | Mains, AC IN socket (power cord included), 36 W consumption |
|---|---|
| Compatibility | Roland V-Drums electronic drums (dedicated input), electronic percussion pads, smartphones and audio players (line input) |
| Product type | Active personal monitor for V-Drums electronic drums |
| Controls | POWER switch, separate V-Drums and line volumes, BASS, TREBLE |
| Lighting and indicators | POWER indicator |
| Input impedance | 10 kΩ (V-Drums and line inputs) |
| Drivers (transducers) | 25 cm (10") woofer and 5 cm (2") tweeter, mono playback (stereo inputs accepted) |
| Warranty | 1 year |
Specific references
| EAN | 4957054511883 |
|---|---|
| MPN | PM-100 |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Does the PM-100 accept a drum module from another brand?
Yes. The V-Drums INPUT, a stereo 6.35 mm jack, takes the output of any drum sound module; Roland designed and tuned it for its V-Drums. Its sensitivity is high so that it also suits modules with a low output level.
Can you play along with a track from a phone?
Yes. The LINE INPUT inputs, on a 6.35 mm jack and a 3.5 mm mini jack, take an audio player, a phone or an electronic instrument, and can be used at the same time. The LINE VOLUME knob sets the music independently of the drum volume.
Does the PM-100 play in stereo?
No. Its inputs accept stereo jacks and mono or stereo sources, but the speaker reproduces the sound in mono. For stereo monitoring of the drums, you need two monitors or headphones connected to the module.
Can you connect the PM-100 to a PA system or a recorder?

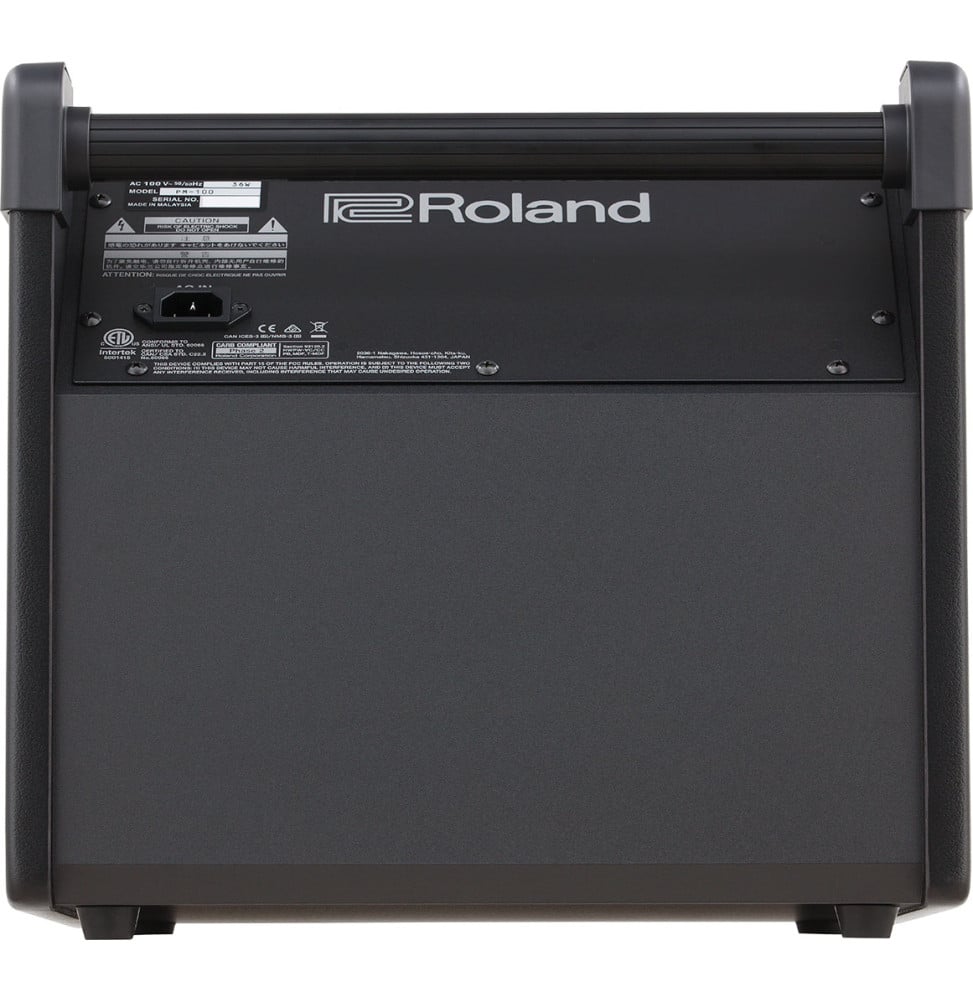

No. The XLR DIRECT OUT outputs are reserved for the PM-200; the PM-100 only has its mains socket on the rear. To amplify or record, start from the outputs of the drum module.
Why does the sound distort with some drum modules?
The PM-100 input is set fairly high for modules with a low output level. With a high-level module, such as those of the TD series, the sound can distort if the volume is turned up too far: lower the module's output volume or the V-Drums VOLUME knob.
How much space does the PM-100 need?
It is 388 mm wide, 407 mm deep and 354 mm high, for 13.5 kg. Roland recommends leaving at least 20 cm free in front and on the sides for ventilation. The full-width handle is used to carry it and move it across the floor.
