Mackie Thrash215 Active PA Speaker - 15" Woofer, 1,300 W Peak (2054321-01)
Mackie Thrash215 active PA speaker: 15-inch woofer and 1-inch titanium compression driver, 1,300 W peak class D amplification, 126 dB SPL. Two mic or line inputs, Mix Out to daisy-chain; on the floor as a stage monitor or on a stand.
- 1,300 W peak, class D
- 15" woofer + 1" titanium driver
- 38 Hz – 20 kHz (−10 dB)
- 126 dB SPL peak
- 2 XLR / jack combo inputs, mic or line
- XLR Mix Out to daisy-chain
- Floor monitor tilted at 45°
- 90° × 60° coverage
- 4 handles · 18.5 kg
Ref.: 2054321-01
New
1/8
5 760,00 DHincl. VAT
Limited quantity
Earn 58 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
15-inch active PA speaker for bands, singers and events: 1,300 W peak, mic or line inputs and floor monitor use.
Sound: 15" (381 mm) woofer and 1" titanium compression driver, 38 Hz – 20 kHz (−10 dB), 126 dB SPL peak
Inputs: 2 XLR / 6.35 mm jack combos, gain with Line and Mic marks
Output: XLR Mix Out to daisy-chain a second speaker or connect a subwoofer
Protection: peak and RMS limiter, subsonic filter, thermal protection
Setup: on the floor, as a monitor tilted at 45° or on a stand, 4 handles, 18.5 kg
A single speaker for front of house and for stage monitoring, instead of a dedicated model for each use.
Request a quoteShare:
Description
Mackie Thrash215 · Reference 2054321-01
Fifteen inches for the lows,
with no settings to learn.
The Thrash215 is the larger of the two Thrash speakers: the same electronics as the Thrash212, but a 15-inch woofer that goes down to 38 Hz. Two inputs, one volume knob, a daisy-chain output, and a cabinet that switches from front of house to stage monitor by laying it down.
- 38 Hzto 20 kHz, at −10 dB
- 1,300 Wpeak, class D
- 126 dBmaximum peak level
- 18.5 kg4 handles
What three extra inches bring
With the same amplification, the Thrash215's 15-inch woofer extends the bottom of the spectrum: the response starts at 38 Hz at −10 dB, versus 52 Hz for the Thrash212, and 55 Hz at −3 dB. A bass guitar, a kick drum or a DJ set gain deeper lows. In return, the cabinet is 711 mm tall and weighs 18.5 kg.
Two amps, one per driver
The ferrite-magnet woofer is driven by 1,000 W peak; the 1-inch titanium-diaphragm compression driver by 300 W peak. The filter crosses over at 2.4 kHz, at 24 dB per octave, and the sound spreads over 90° horizontally and 60° vertically. Mackie states the peak power only; no RMS value is published.
As a monitor, lying on its angled side
Resting on its bevelled side, the speaker faces the musician at a 45° angle and works as a stage monitor, with no part to add. In this role it receives an output from the mixer or the Mix Out of another Thrash, with its gain set to the Line mark.

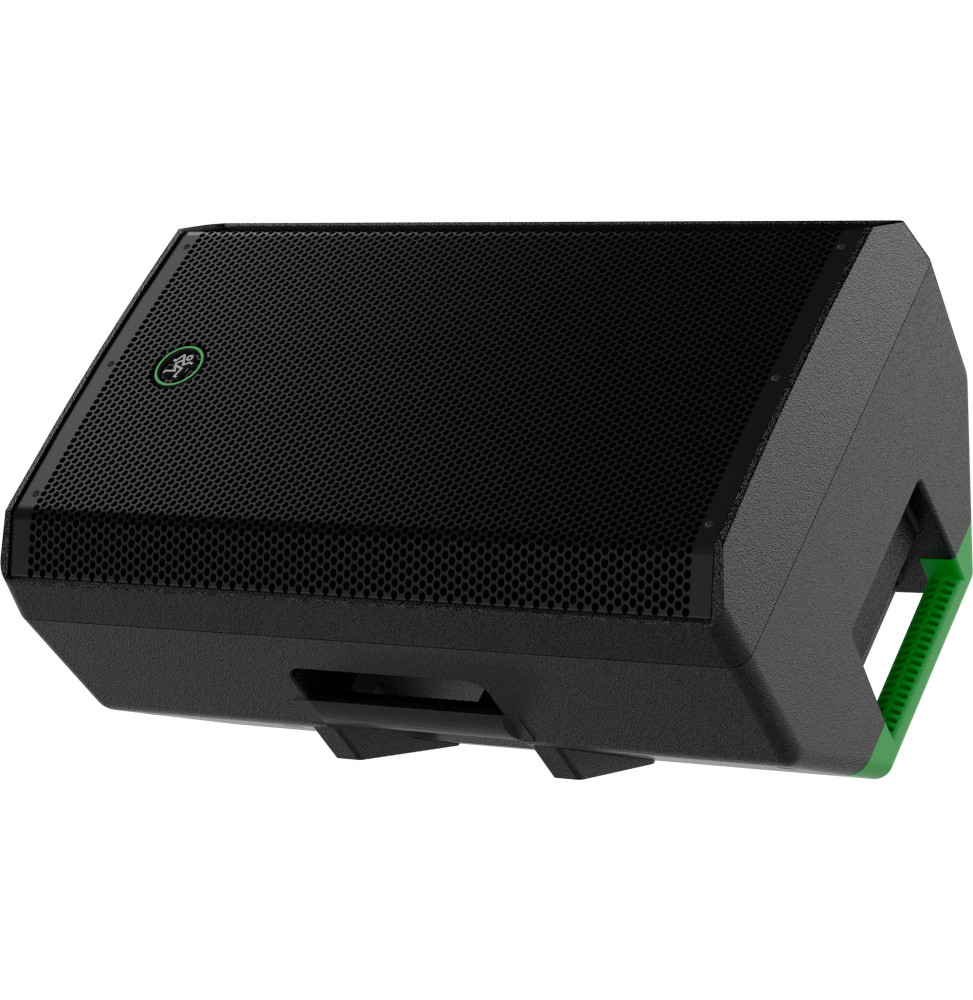

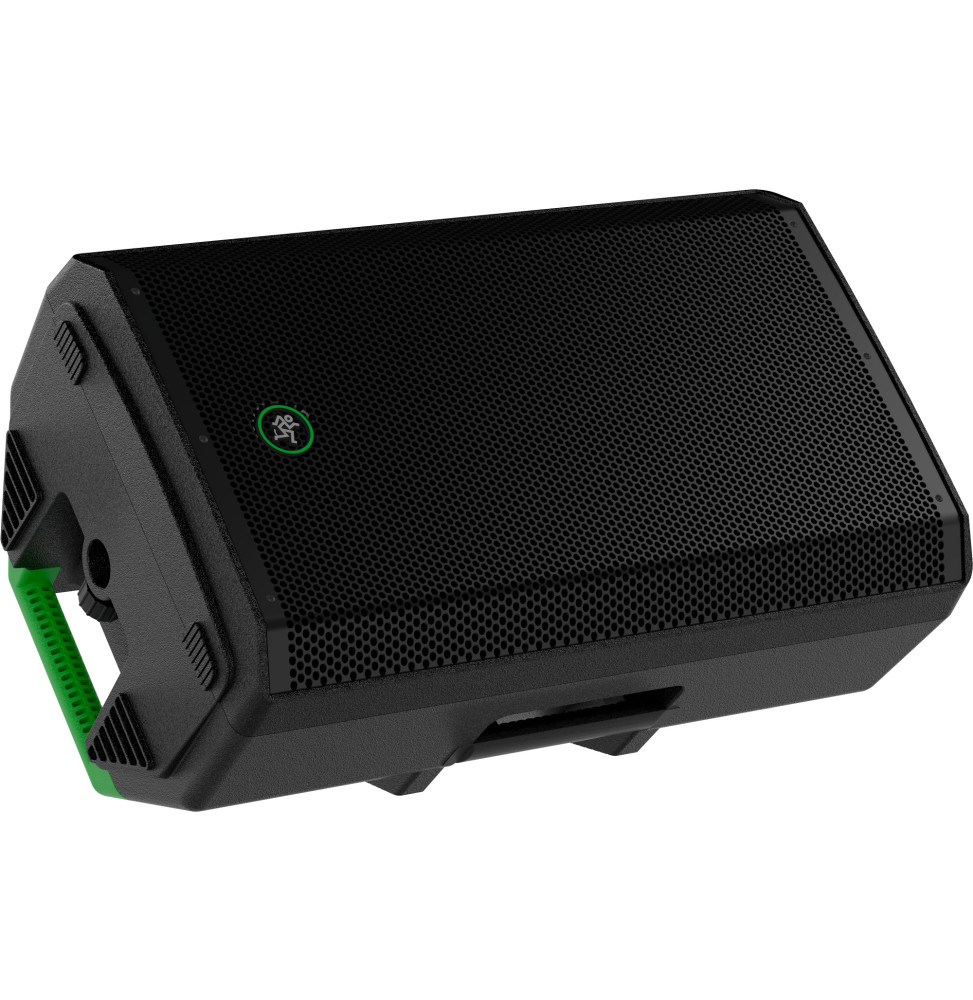

Lying on its angled side, it tilts at 45° towards the stage.On a stand, above the audience

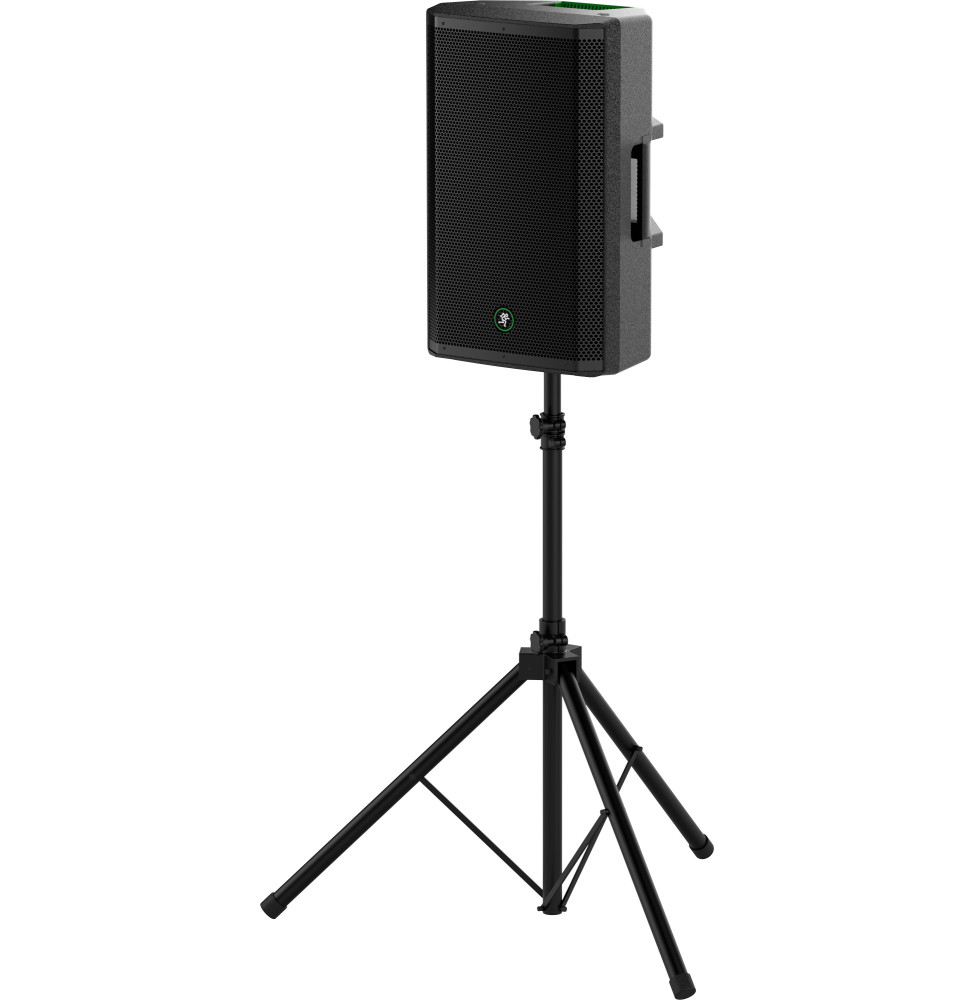

The built-in socket under the cabinet takes a standard speaker stand, to project the sound over the first rows. Check that the stand can carry the speaker's 18.5 kg. The Thrash215 has no rigging points: Mackie forbids flying it, even by its handles.
Two inputs, one output to daisy-chain
Each combo socket accepts a microphone on XLR or a line source on a 6.35 mm jack, with a gain marked Line and Mic. The XLR Mix Out passes the blend of both channels to a second Thrash or to a powered subwoofer. A peak and RMS limiter, a compressor on the high-frequency driver, a subsonic filter and thermal protection look after the drivers; the rear LED turns red when the limiter is working.

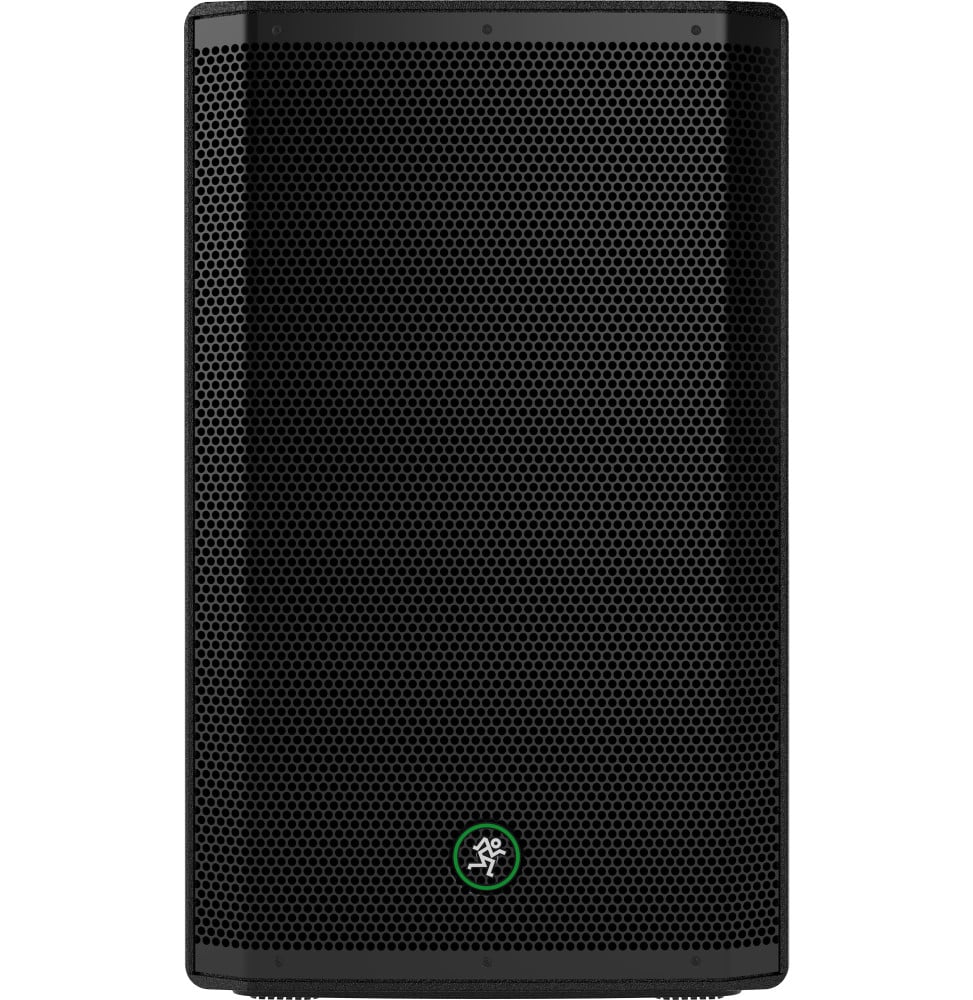

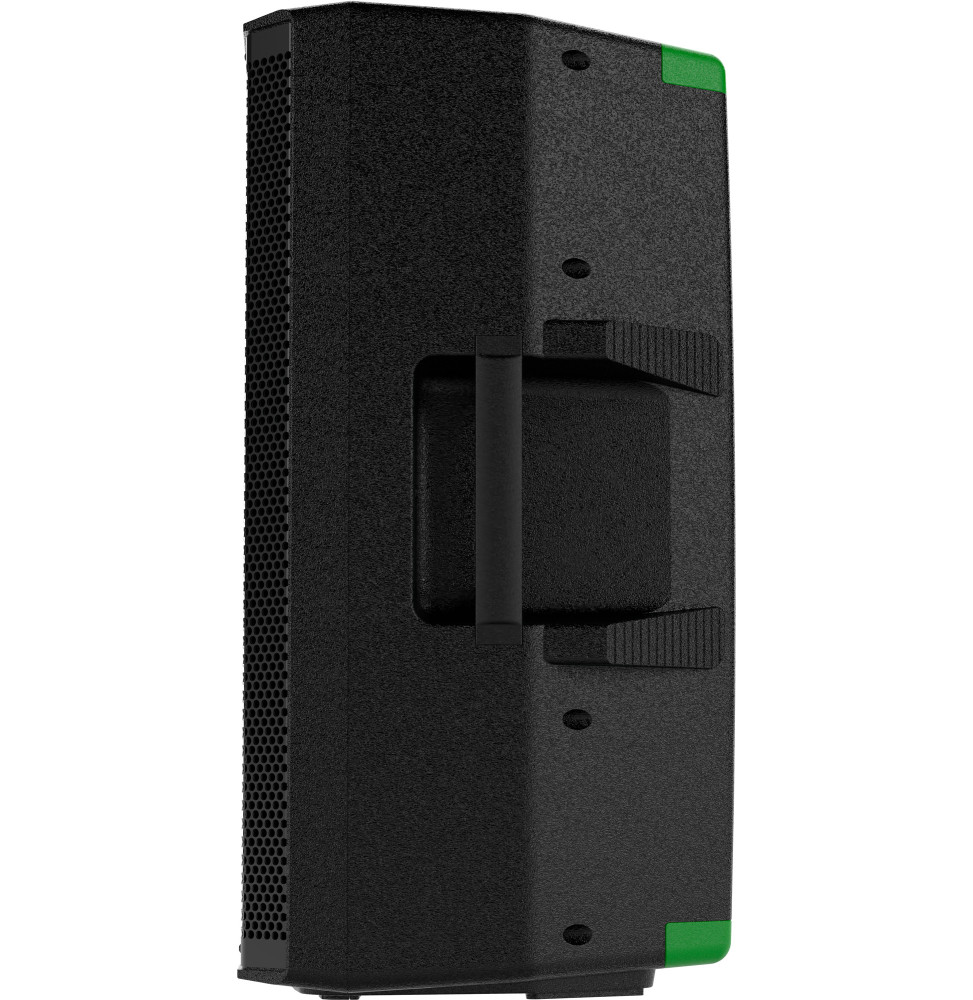

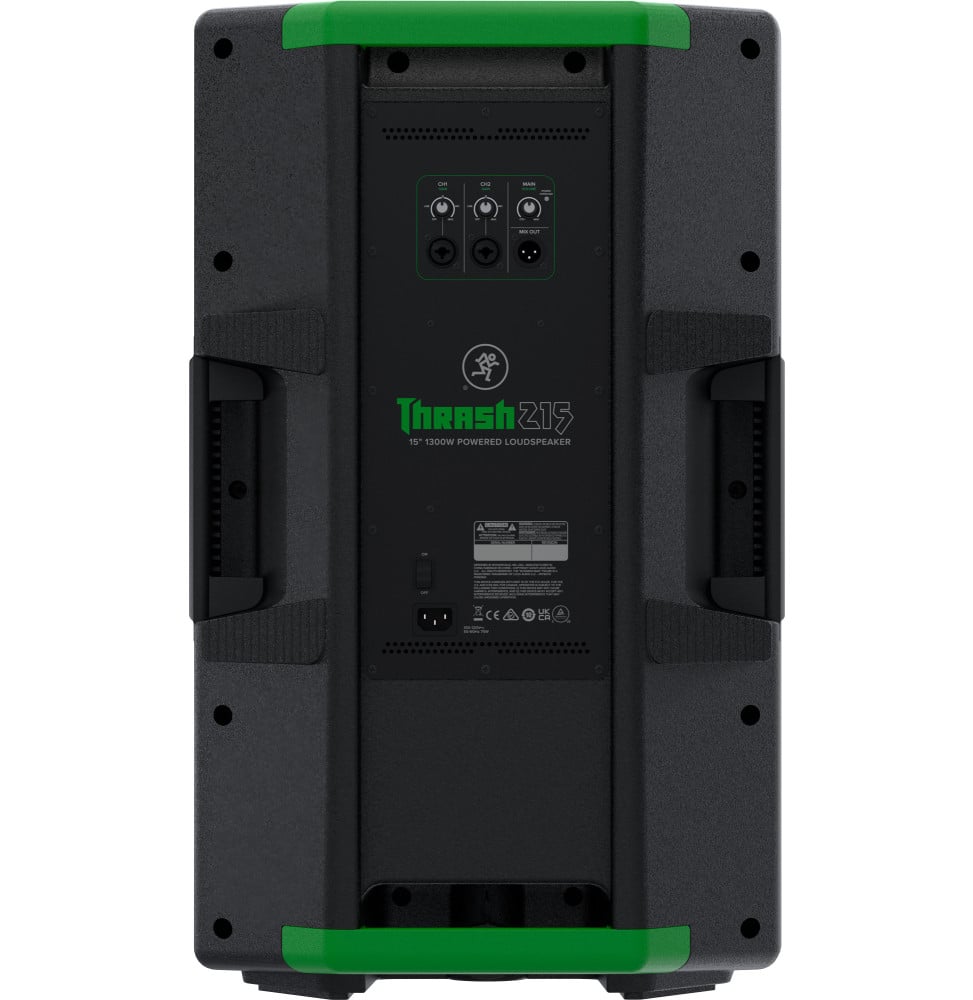

Front, side with the angled face, and back.The speaker connects with a standard IEC cord, at 220 to 240 V: the outlet must supply the voltage specified for the model. On a weak line, the speaker works but does not reach its full power.
For vocals, see our microphones ; to compare, the other speakers in the PA and sound reinforcement range and the image and sounddepartment.
Values taken from the Mackie spec sheet and owner's manual for the Thrash series, and from the official Thrash215 page.
Technical specifications
| Weight (kg) | 18.5 kg |
|---|---|
| Amplification | Active: built-in class D amplifiers (low and high frequencies), convection cooling |
| Box contents | Speaker, detachable mains cord |
| Optional accessories | T100 speaker tripod stand (P/N 2052464), SPM200 pole mount (P/N 2035170) |
| Features | Dynamic bass response circuit, dedicated compressor for the high-frequency driver, rotatable grille badge |
| Dimensions (W x H x D) | 434 × 711 × 363 mm |
| Output harmonic distortion | Less than 1% (low- and high-frequency amplifiers) |
| Frequency response | 38 Hz – 20 kHz (−10 dB) · 55 Hz – 20 kHz (−3 dB) |
| Crossover frequency | 2.4 kHz, 24 dB/octave filter |
| Audio input | 2 XLR / 6.35 mm TRS jack combo inputs, mic or line depending on the gain position |
| Audio output | Balanced male XLR Mix Out (600 Ω): mix of the 2 inputs, to daisy-chain another speaker or connect a subwoofer |
| Peak power | 1,300 W peak (low-frequency amplifier 1,000 W peak, high-frequency amplifier 300 W peak) |
| Power consumption | 75 W |
| Product colour | Black, green handles |
| Power supply | Mains 220–240 V~, 50–60 Hz, 75 W, switch-mode power supply, IEC inlet and detachable mains cord |
|---|---|
| Mounting | On the floor, as a floor monitor (45° angled side) or on a stand via the built-in socket · 4 handles · no rigging points: cannot be flown |
| Product type | 2-way 15" active PA speaker for front of house or stage monitoring, sold individually |
| Gross packaging dimensions (W x H x D) | 508 × 810 × 437 mm |
| Gross weight (packaged) | 20.5 kg |
| Controls | Gain per channel with Line and Mic marks, master volume, on/off switch |
| Protections | Peak and RMS limiter, subsonic filter against woofer over-excursion, thermal protection of the power supply and amplifiers |
| Lighting and indicators | Power/Overload LED: green when on, red when the limiter is working |
| Input impedance | Mic 20 kΩ balanced · line 1 MΩ unbalanced (high impedance) |
| Drivers (transducers) | 15" (381 mm) woofer with ferrite magnet, 1" (25 mm) compression driver with titanium diaphragm |
| Maximum sound pressure level | 126 dB SPL peak |
| Coverage angle | 90° × 60° (H × V) |
| Warranty | 1 year |
Specific references
| EAN | 0663961064483 |
|---|---|
| MPN | 2054321-01 |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What is the RMS power of the Thrash215?
Mackie does not publish it: the only official figure is 1,300 W peak, of which 1,000 W for the low-frequency amplifier and 300 W for the high-frequency one. To compare two speakers, look instead at the maximum level of 126 dB SPL peak and the response from 38 Hz to 20 kHz at −10 dB.
Can you plug a microphone straight into the speaker?
Yes. Both combo inputs accept a microphone on XLR or a line source on a 6.35 mm jack, and each channel's gain knob has a Line mark and a Mic mark. For a mixer, set the gain to Line; for a microphone, turn it up gradually while watching the LED, which turns red when the limiter is working.
How do you connect two Thrash speakers?
By cable: the XLR Mix Out sends the blend of both inputs to the input of a second Thrash, then a third, in a chain. The same output can also feed a powered subwoofer. Then set the gain of the following speakers to the Line position.
Can the Thrash215 be used as a floor monitor?
Yes. Laid on the floor on its angled side, it tilts at 45° towards the musician: this is the monitor use planned by Mackie. Standing upright, it serves front of house, placed on the floor or mounted on a stand via the built-in socket under the speaker.
Can this speaker be flown?
No. The Thrash215 has no rigging points, and Mackie forbids flying it, including by its handles. It stands on the floor or goes on a stand able to carry its 18.5 kg.
What protection does it include?
A peak and RMS limiter prevents the amplifiers from clipping, a dedicated compressor protects the high-frequency driver, a subsonic filter stops the woofer from bottoming out, and thermal protection mutes the sound if the amplifier gets too hot, then restores it once cooled down. When the rear LED turns red, lower the gain.
What is the difference between the Thrash215 and the Thrash212?
The woofer: 15 inches on the Thrash215, 12 inches on the Thrash212. The response goes down to 38 Hz versus 52 Hz at −10 dB, for 126 dB versus 125 dB SPL peak and 18.5 kg versus 16.5 kg. The 1,300 W peak amplification, the inputs, the Mix Out and the floor monitor use are identical.
What is in the Thrash215 box?
The speaker and its detachable mains cord, which plugs into the IEC inlet on the rear (220 to 240 V). The T100 tripod and the SPM200 pole mount are Mackie accessories offered separately.
