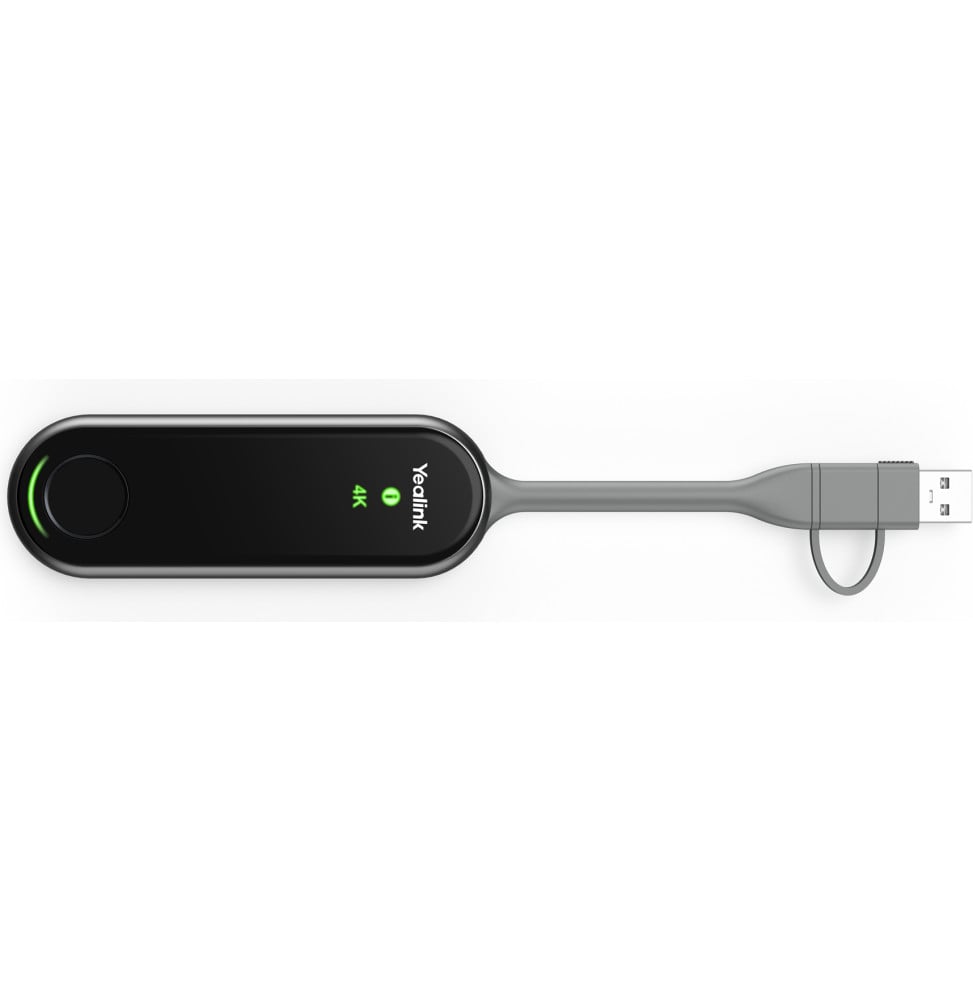

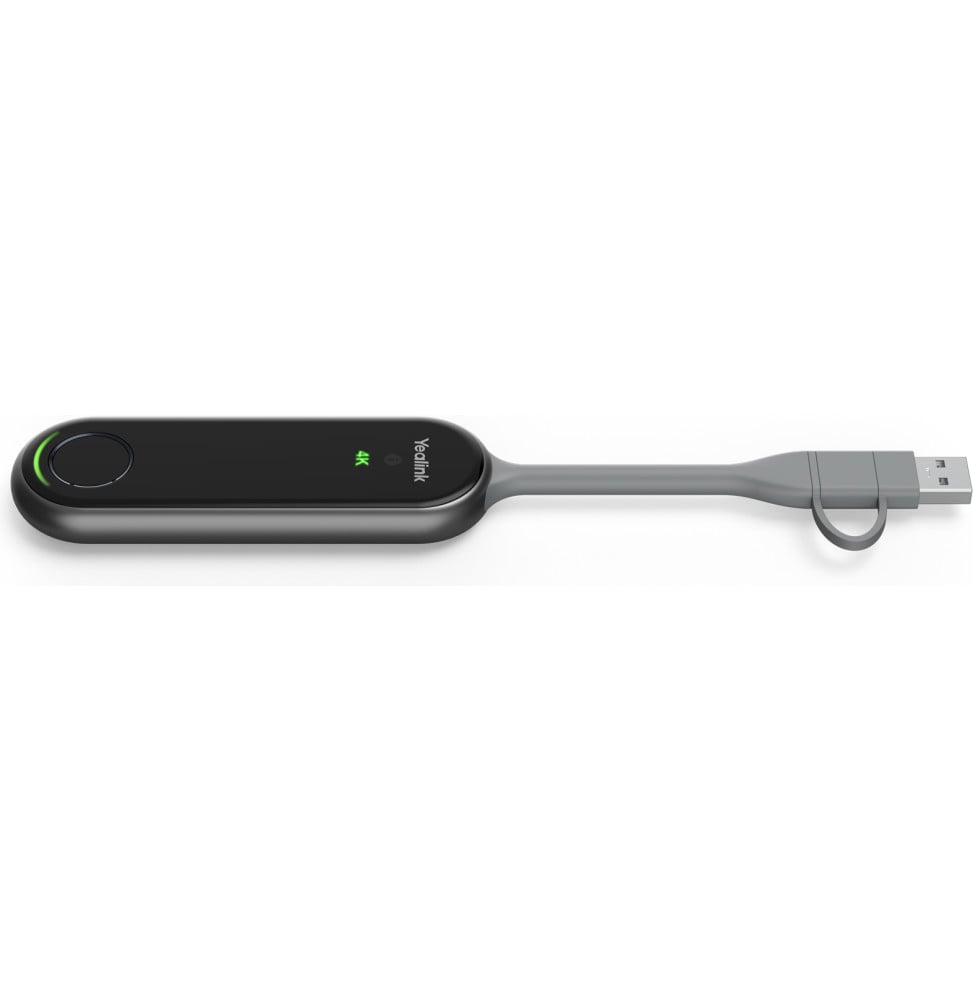

Yealink PA20 4K Wireless Screen Sharing Transmitter USB-C and USB-A (1303185)
A wireless pod that plugs into a laptop via USB-C or USB-A and shares its screen in up to 4K on a Yealink room display, with no software or driver to install.
- Wireless screen sharing up to 4K 30 fps
- No software or driver
- Full-featured USB-C + USB-A adapter included
- Dual-band Wi-Fi 6, 2x2 MIMO
- Up to 4 streams displayed together
- Windows and macOS
- 75 g, 220 x 38 x 16 mm
Ref.: 1303185
New
1/3
3 499,00 DHincl. VAT
In stock
Earn 35 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Mon 5 Oct and Wed 7 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
2 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
A wireless presentation pod to share a laptop screen in a Yealink room: 4K at 30 fps, no software or driver and a single button.
Image: sharing up to 4K 30 fps, hardware encoding, low latency
Connection: full-featured USB-C, USB-A adapter included
Link: dual-band 2.4 and 5 GHz Wi-Fi 6, 2x2 MIMO, AES encryption
Meetings: up to 4 streams displayed together, duplicated or extended desktop, annotation
Compatibility: Windows 10 and 11, macOS 10.10 and later; MeetingBoard and RoomCast
Instead of an HDMI cable trailing across the table: every participant presents from their seat.
Request a quoteShare:
Description
Yealink PA20 · Reference 1303185
Plug in, press,
the screen goes up on the wall.
This small transmitter plugs into the laptop and sends its screen, wirelessly and up to 4K, to a Yealink MeetingBoard or RoomCast. No software to install, no HDMI cable to run across the table.
- 4K 30 fpsscreen sharing
- 0software or driver to install
- 4streams shown together
- 75 gfor 220 mm in length
Encoding happens in the transmitter
The PA20 carries its own software and a hardware encoding chip: nothing needs installing on the computer and its processor is not put to work. It plugs into a full-featured USB-C port or, with the supplied adapter, into a USB-A port. The 2x2 MIMO Wi-Fi 6 module, on 2.4 or 5 GHz, carries the image at up to 4K at 30 fps with low latency, under AES and WPA2-PSK encryption.

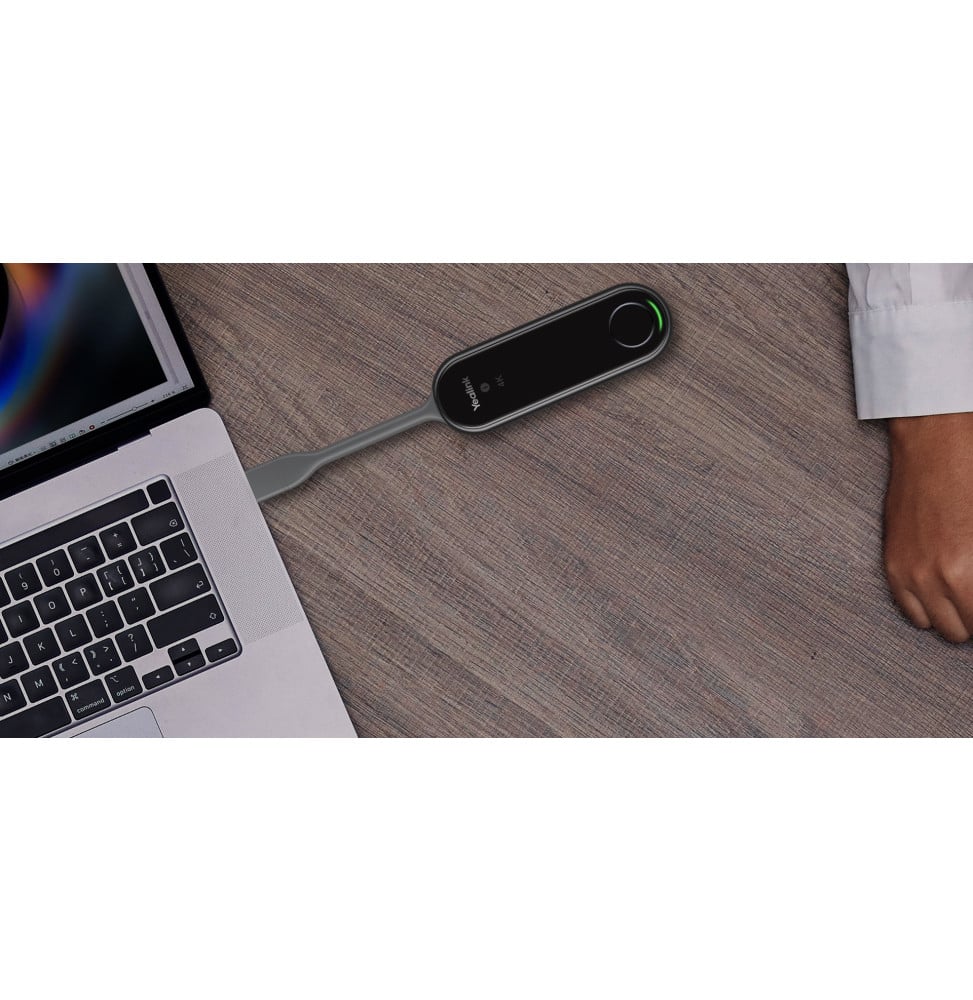

Plugged into the laptop, the PA20 shares the screen at the press of a button.Several presenters, one screen
Each participant keeps their transmitter: a press of the START/STOP button takes or hands back control. The room display can show up to four streams at the same time, in duplicated or extended desktop, with annotation and remote control. Three LEDs show 4K sharing, connection status and any error.
- Compatible displays
- MeetingBoard, RoomCast
- Systems
- Windows 10 and 11, macOS 10.10+
- Power
- Via USB, 5 V 600 mA
- Consumption
- 2.2 W typical
- Dimensions
- 220 x 38 x 16 mm
- Temperature
- -10 to 40 °C
The PA20 pairs with a Yealink room display: it works with the MeetingBoard and the RoomCast, which receive its image.
Compatible room displays and bars are gathered in our video conferencing department and among Yealink products.
Values taken from the Yealink PA20 datasheet.
Technical specifications
| Dimensions (W x D x H) | 220 x 38 x 16 mm |
|---|---|
| Compatible operating systems | Windows 7, 8, 10 and 11 (Windows 7 and 8 not supported from firmware 270.357.0.5); macOS 10.10 or later |
| Features | IP BYOD, duplicated or extended desktop, annotation, remote control, multiple simultaneous screen sharing (up to 4 streams) |
| Video resolution | Sharing up to 4K at 30 fps, hardware encoding |
| Wireless technology | Dual-band 2.4 and 5 GHz Wi-Fi 6 (802.11a/b/g/n/ac/ax, 2x2 MIMO) |
| Security | WPA-PSK / WPA2-PSK, AES encryption |
| Weight | 75 g |
| Power supply | Through the computer's USB port: 5 V, 600 mA; typical consumption 2.2 W |
| Operating temperature | -10 to 40 °C |
|---|---|
| Operating humidity | 0 to 90 % non-condensing |
| Product type | 4K wireless presentation pod (IP BYOD) |
| Controls | START/STOP button; 3 LEDs (4K, system error, status) |
| Operating mode | Plugged into the computer, it shares the screen with no software or driver to install |
| Compatible products | Yealink MeetingBoard and RoomCast |
| Connectivity | Full-featured USB-C, USB-C to USB-A adapter included |
| Warranty | 2 years |
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Do you need to install software to use the PA20?
No: the PA20 embeds its own software and encodes the video itself. You plug it into the computer's USB-C port, or into a USB-A port with the supplied adapter, then press its button to present. The computer's processor is not used.
Which Yealink displays does the PA20 work with?
With Yealink MeetingBoard displays and the RoomCast presentation system, which pair it as a sharing pod and display the screen of the computer it is plugged into.
Does the PA20 work on a Mac?
Yes: it is compatible with macOS 10.10 and later as well as Windows 10 and 11. Windows 7 and 8 are no longer supported from firmware 270.357.0.5 onwards. On a recent Mac, it plugs straight into USB-C.
Can several people present at the same time?
Yes: the room display can show up to four simultaneous content streams, one per pod. Each presenter keeps their PA20 plugged in and takes over with the START/STOP button.
What wireless connection and range does the PA20 use?
The PA20 embeds a dual-band 2.4 and 5 GHz Wi-Fi 6 2x2 MIMO module, which sends the image at up to 4K at 30 fps with low latency. The link is protected by WPA-PSK or WPA2-PSK and AES encryption. It draws 2.2 W from the computer's USB port.
