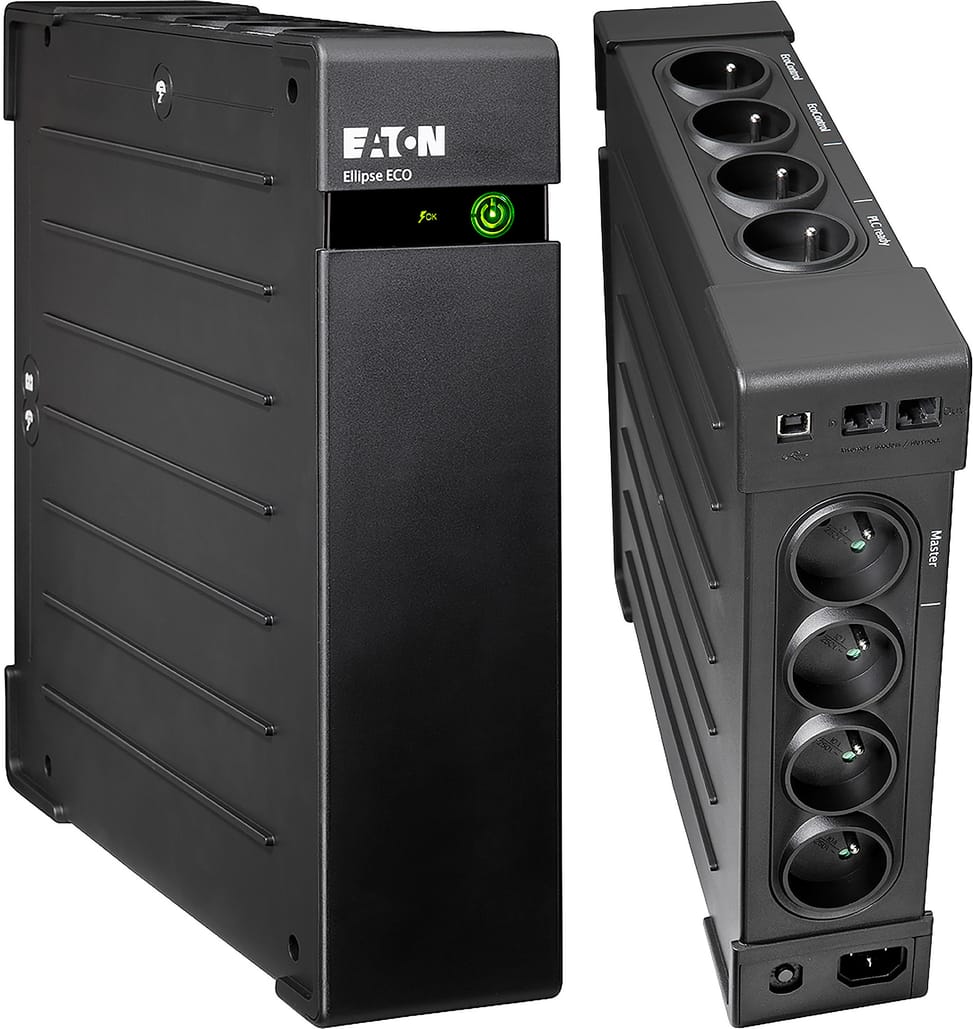

Eaton Ellipse ECO EL1600USBFR Off-Line UPS - 1000 W / 1600 VA - 8 FR outlets
Eleven minutes of runtime at half load (500 W), enough to save and close before shutting down. Four of the eight outlets are battery-backed, and the Eaton software shuts the PC down over USB when an outage drags on.
- Runtime 11 minutes at 50% load (500 W), 6 minutes at 70% (700 W)
- 4 battery-backed outlets and 4 surge-protected outlets for peripherals
- USB port with cable included and Eaton software: automatic shutdown, alerts, history
- EcoControl: automatic power-off for peripherals on standby
- Built-in surge protection compliant with IEC 61643-1
- Protection for telephone, modem, Internet and Ethernet lines
- Replaceable sealed lead-acid battery, with periodic self-test
- Cold start possible with no mains supply
- Resettable circuit breaker after overload or short circuit

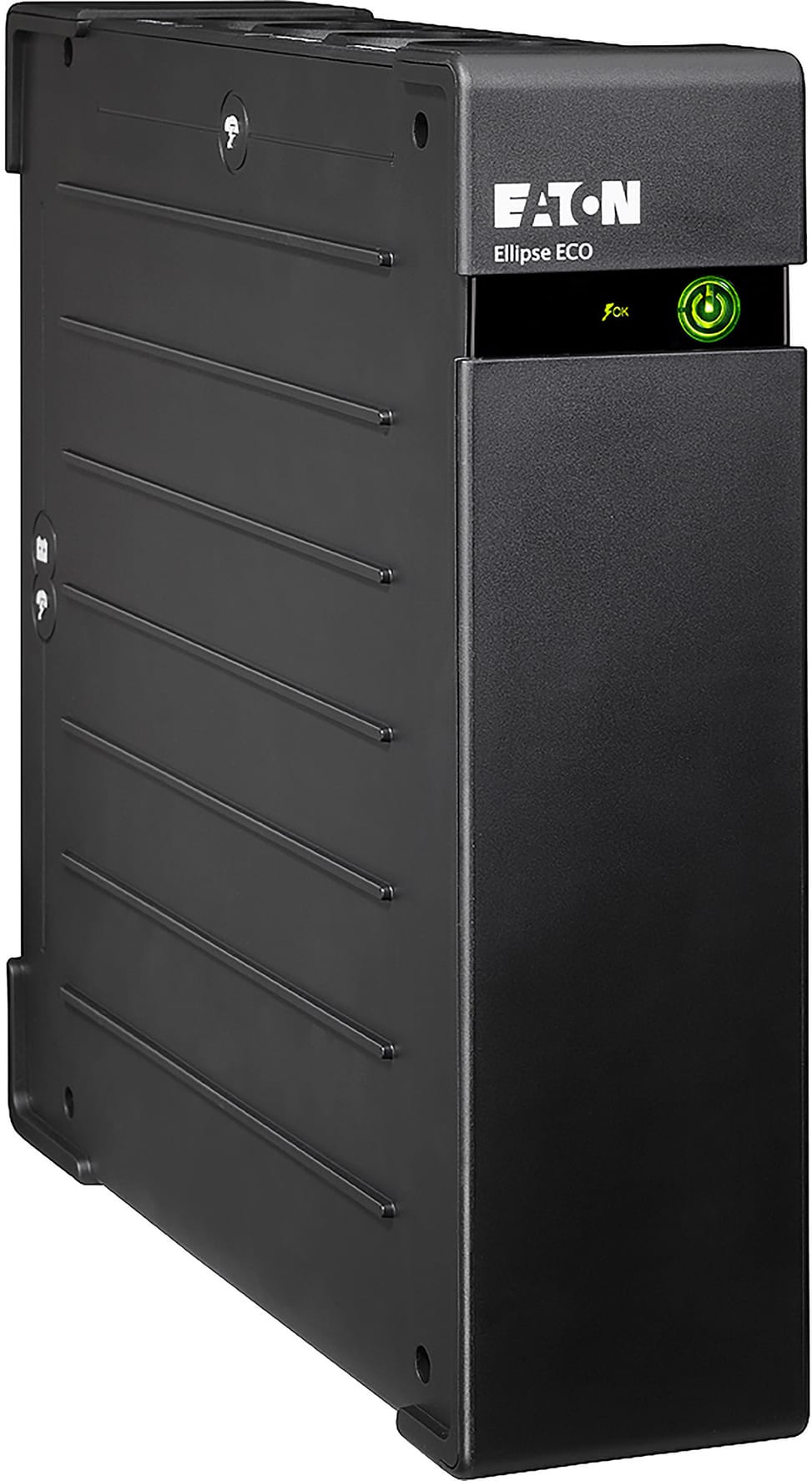

- Extra-flat 81 mm housing, to stand vertically or horizontally
- Operation below 25 dBA
- Weight 7.8 kg
Ref.: EL1600USBFR
3 899,00 DHincl. VAT
Out of stock
Manufacturer's datasheetView the PDF · 212 Ko — downloadable
Product overview
Entry-level UPS to protect a complete workstation: off-line technology and 1600 VA / 1000 W.
Technology & protection: when the power fails, it switches to battery within a few milliseconds and protects against surges.
Power: 1600 VA for 1000 W of usable power — a PC, one or two monitors and their accessories.
Runtime: approx. 11 minutes at half load (500 W).

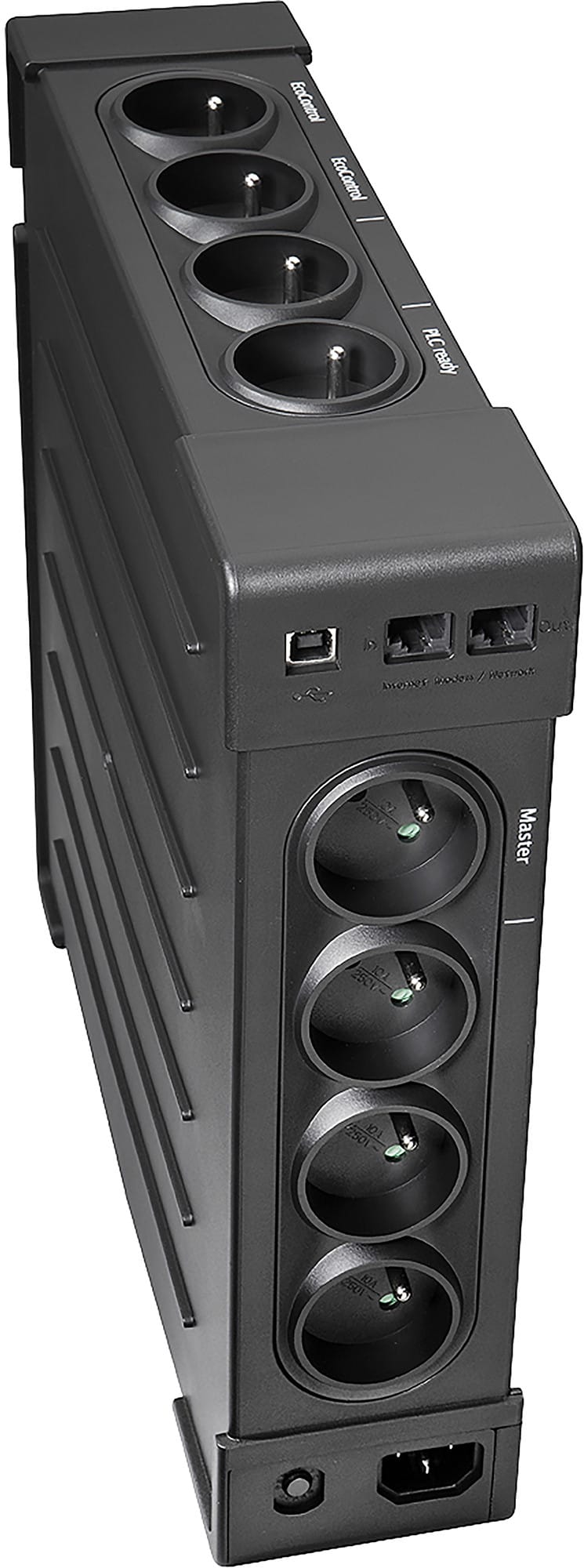

Outlets: 8 French outlets — 4 with battery backup, 4 with surge protection only — no adapter needed.
Management: USB port for automatic PC shutdown. Very quiet operation (below 25 dB).
Ideal, for example, for a home computer workstation, an internet box or a point of sale.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Request a quoteShare:
Technical specifications
| Output voltage | 230 V (adjustable to 220 V, 230 V, 240 V) |
|---|---|
| Output connections | 4 FR outlets with battery backup and surge protection + 4 FR outlets with surge protection only; 2 EcoControl outlets and 1 powerline-compatible outlet |
| Input voltage | 230 V |
| Input frequency | 50-60 Hz (auto-selecting) |
| Input connections | IEC-320-C14 |
| Voltage range | 184 - 264 V (adjustable from 161 to 284 V) |
| Input circuit breaker rating | Resettable circuit breaker |
| Battery type | Compact sealed lead-acid |
| Battery replacement | By the user |
| Battery management | Automatic self-test, deep discharge protection (4 h), LED replacement indicator and audible alarm |
| Interface port | 1 USB port (HID compatible, cable supplied) |

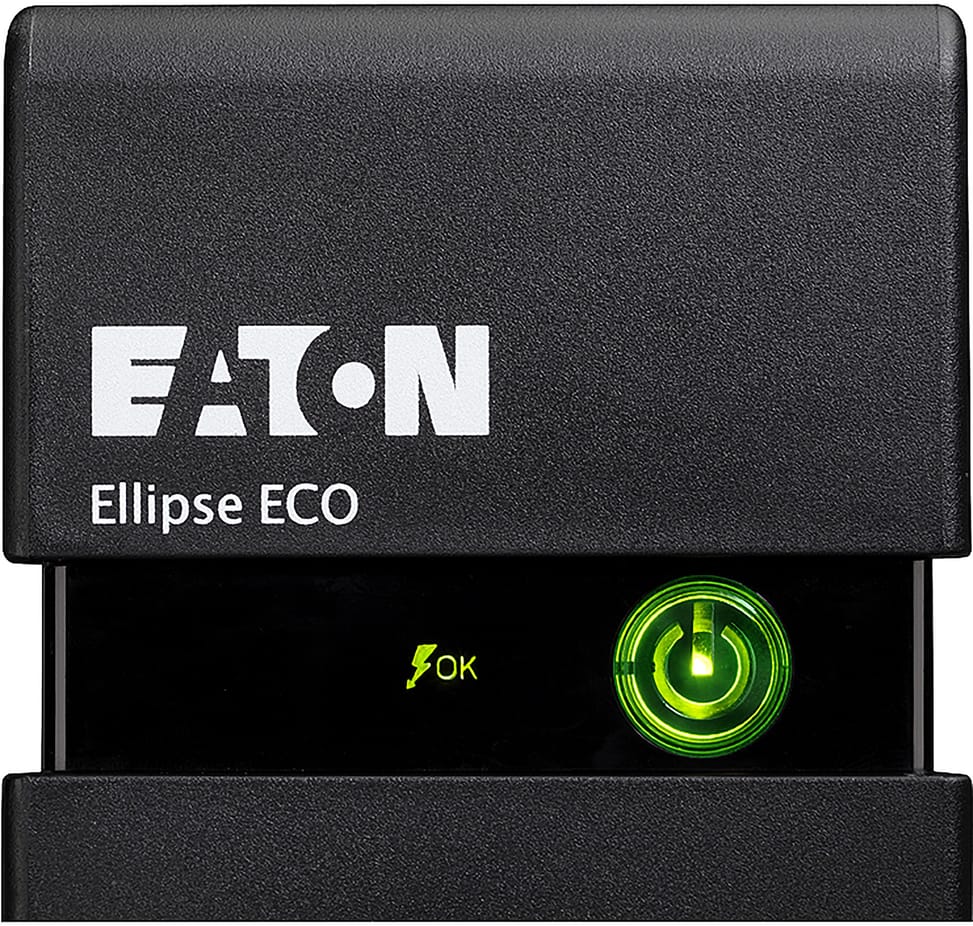

| User interface | Status LEDs (including battery replacement indicator) |
| Audible alarm | Audible battery replacement alarm |
| Power management software | Eaton Intelligent Power software supplied as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
| Weight (kg) | 7.8 |
| Dimensions (W x D x H) (mm) | 81 x 312 x 305 |
| Technology | Off-line |
| Power (VA) | 1,600 VA |
| Voltage stabiliser | No |
|---|---|
| Box contents | Power cord · USB cable · User manual in 20 languages · Safety instructions |
| Data line protection | Telephone / fax / modem / Internet and Ethernet line |
| Rack height | 2U with the ELRACK 19-inch rack kit (optional) |
| Surge protection and filtering | Built-in surge protector compliant with IEC 61643-1 |
| Cold start | Yes |
| Audible noise | < 25 dBA |
| Certifications | IEC 62040-1 · IEC 60950-1 · IEC 62040-2 · IEC 61643-1 · CB report · CE marking |
| Mounting | Vertical · Horizontal · Wall (optional ELWALL kit) · 19-inch rack, 2U (optional ELRACK kit) |
| Output frequency | 50-60 Hz |
| Phase (output/input) | Single-phase / Single-phase |
| Output type | FR outlets |
| Power (W) | 1,000 W |
| Runtime | 11 min at 50% load (500 W); 6 min at 70% (700 W) |
| Form factor | Tower |
| Battery-backed outlets | 3 to 4 outlets |
| Control & communication | USB |
| Warranty | 2 years |
Downloads
Customer reviews
Write a review
5
2 customer reviews
Parfait
De très bonne facture et efficace techno logiquement parlant Tient suffisamment la charge pour pouvoir arrêter convenablement une petite usineuse ainsi que l' unité centrale qui la commande - Sinons accuser les micro coupure , sans embarrasser celle ci -
Frank
Frequently asked questions about this product
How long does the EL1600USBFR run on battery?
11 minutes at 50% load, i.e. 500 W, and 6 minutes at 70%, i.e. 700 W. Enough to save your work, close applications and properly shut down a complete workstation.
How many of the eight outlets are battery-backed?
Four. The other four are surge-only outlets for peripherals: protected against surges, but off during a power cut. Split your devices accordingly — PC, monitor and internet box on one side, printer and speakers on the other.
Can the Eaton software shut down the PC automatically?
Yes, via the supplied USB cable: the Eaton software, included as standard, handles automatic shutdown, alerts and event history. It runs on Windows, macOS and Linux, with no special configuration.
Why does 1600 VA give only 1000 W?
The power factor is 0.625: 1600 × 0.625 = 1000 W actually available. That ceiling in watts is the one to respect — a PC with one or two monitors and their accessories fits comfortably within it.
What does the EcoControl function do on this UPS?
It automatically switches off peripherals on standby when the master device shuts down. A workstation turned off at night thus stops its monitor, printer and speakers from drawing power — a continuous saving, not just during power cuts.
Does the UPS protect the telephone line and the network?
Yes, its built-in surge protection, compliant with the IEC 61643-1 standard, also covers data lines: telephone, modem, internet and Ethernet. That is where the surges you do not see coming arrive.
Does the EL1600USBFR regulate the mains voltage?
No, it has no AVR regulator: as an off-line model, it passes mains power through as long as it stays within the 184-264 V range — adjustable from 161 to 284 V — and switches to battery outside it. Where the voltage fluctuates constantly, a line-interactive UPS is easier on the battery.
How do you install this 81 mm extra-flat unit?

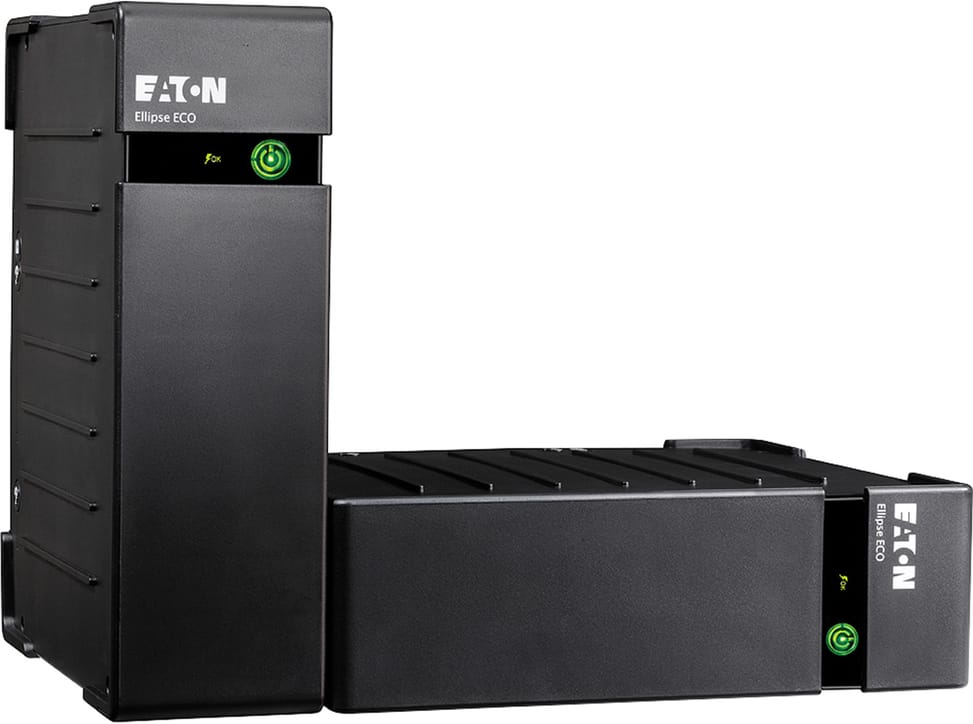

Vertically under a desk or horizontally under a monitor: both positions are catered for. It is 81 mm thick, measures 312 × 305 mm and weighs 7.8 kg — the weight comes from the lead-acid battery.
Can the battery be replaced, and does the UPS start without mains power?
Yes to both: the sealed lead-acid battery is easily replaceable, with an automatic periodic self-test that detects the problem before a failure; and the cold start function lets you switch the UPS on from the battery with no power present.
Is the Eaton Ellipse ECO EL1600USBFR new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years on a standard-exchange basis, batteries included. It runs below 25 dBA and has a resettable circuit breaker to get going again after an overload. The datasheet compares the models.
