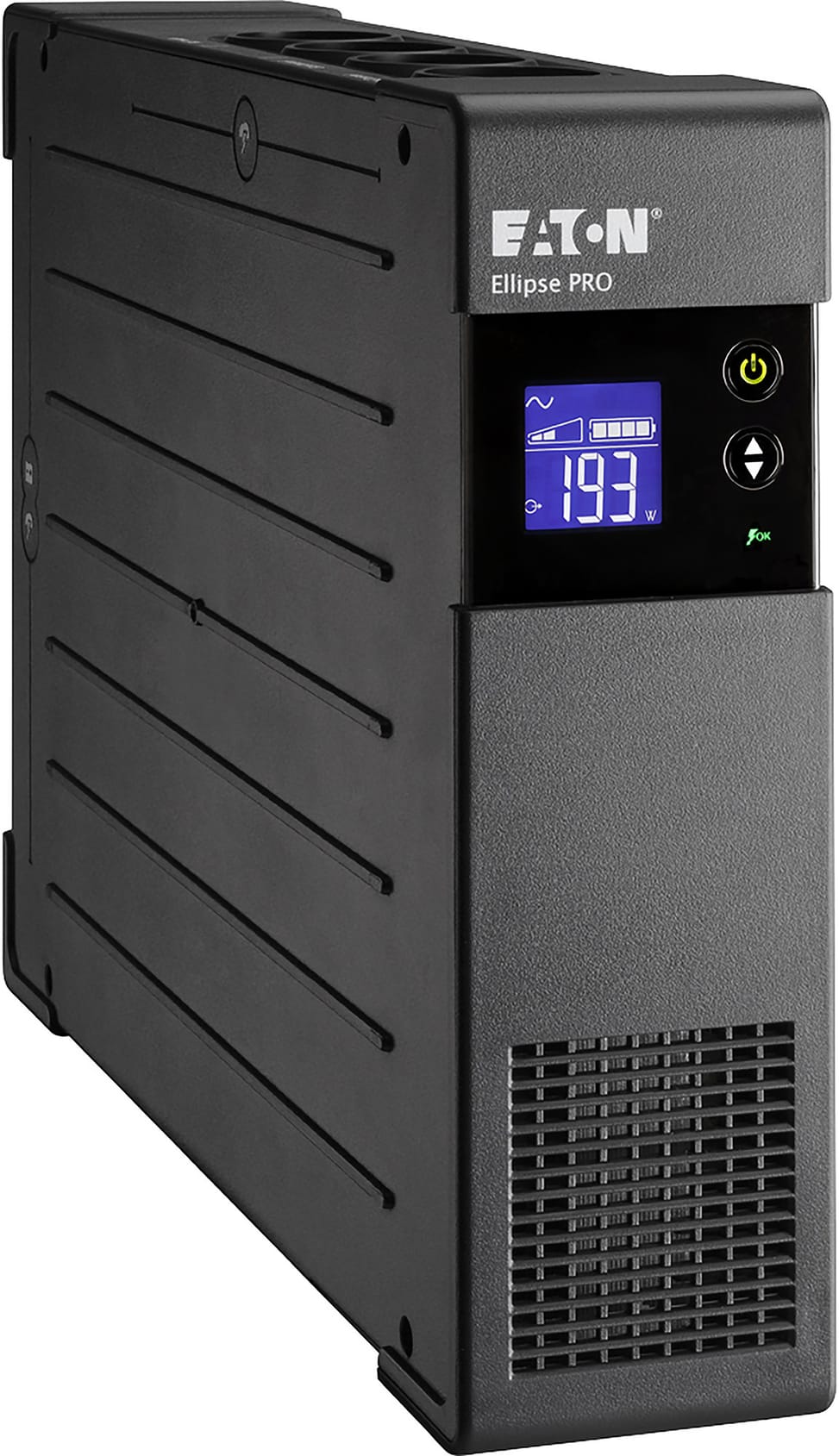

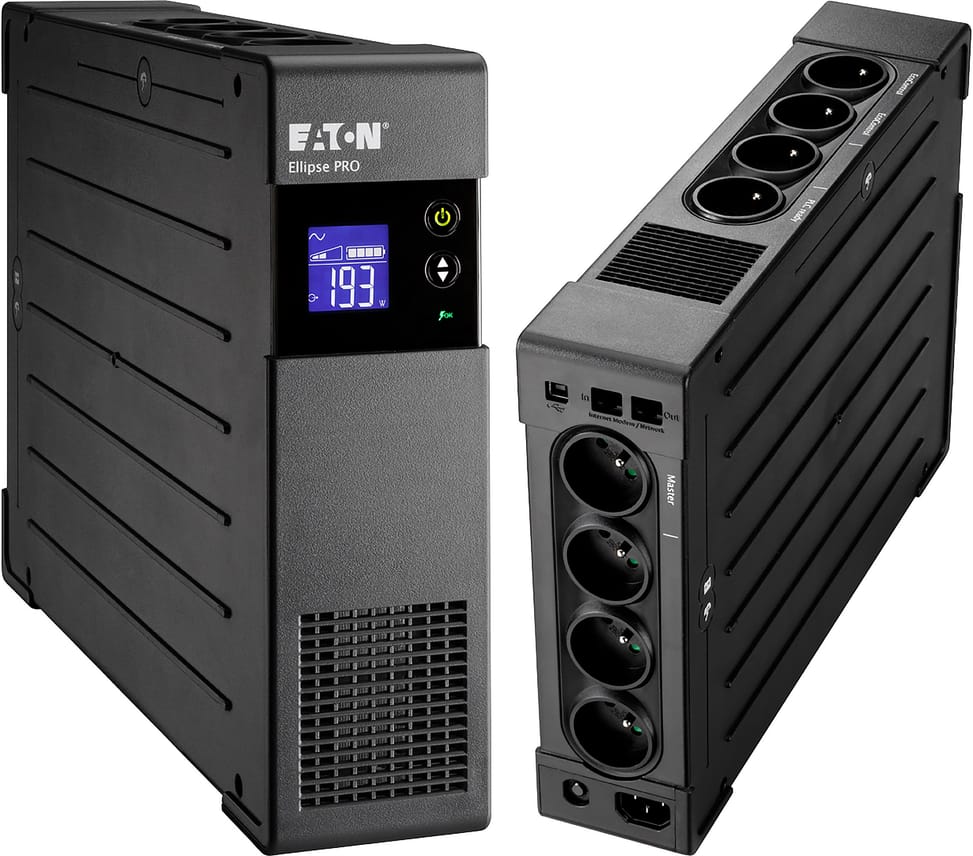

Eaton Ellipse PRO ELP1200FR Line-Interactive UPS - 750 W / 1200 VA - 8 FR outlets
Desktop UPS with automatic voltage regulation: it corrects drops and surges in the mains without drawing on the battery. Very quiet operation, designed for a workstation and its peripherals.
- Runtime around 9 minutes at half load (5 minutes at 70%)
- 8 French outlets, 4 of them battery-backed and 4 surge-protected
- USB port for automatic PC shutdown (Eaton UPS Companion software included)
- Also protects the data line (telephone, internet, Ethernet) against surges
- LCD display with power consumption reading
- Noise below 27 dB
- User-replaceable battery
- 3-year warranty, batteries included
Ref.: ELP1200FR
3 559,00 DHincl. VAT
Configuration · Eaton Ellipse PRO
- 650 VA 400 W 3 outlets
- 850 VA 510 W 3 outlets
- Configuration shown: 1200 VA 750 W 4 outlets
- 1600 VA 1000 W 4 outlets
In stock
Earn 36 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — free delivery all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
3 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Desktop UPS to protect a workstation and its peripherals: line-interactive with automatic voltage regulation (AVR) and 1200 VA / 750 W.
Technology & protection: it switches to battery the moment the power fails, absorbs surges and automatically corrects voltage dips and spikes without drawing on the battery.
Power: 1200 VA for 750 W of usable power — a PC, a monitor and their accessories.
Runtime: about 9 minutes at half load (5 minutes at 70%).

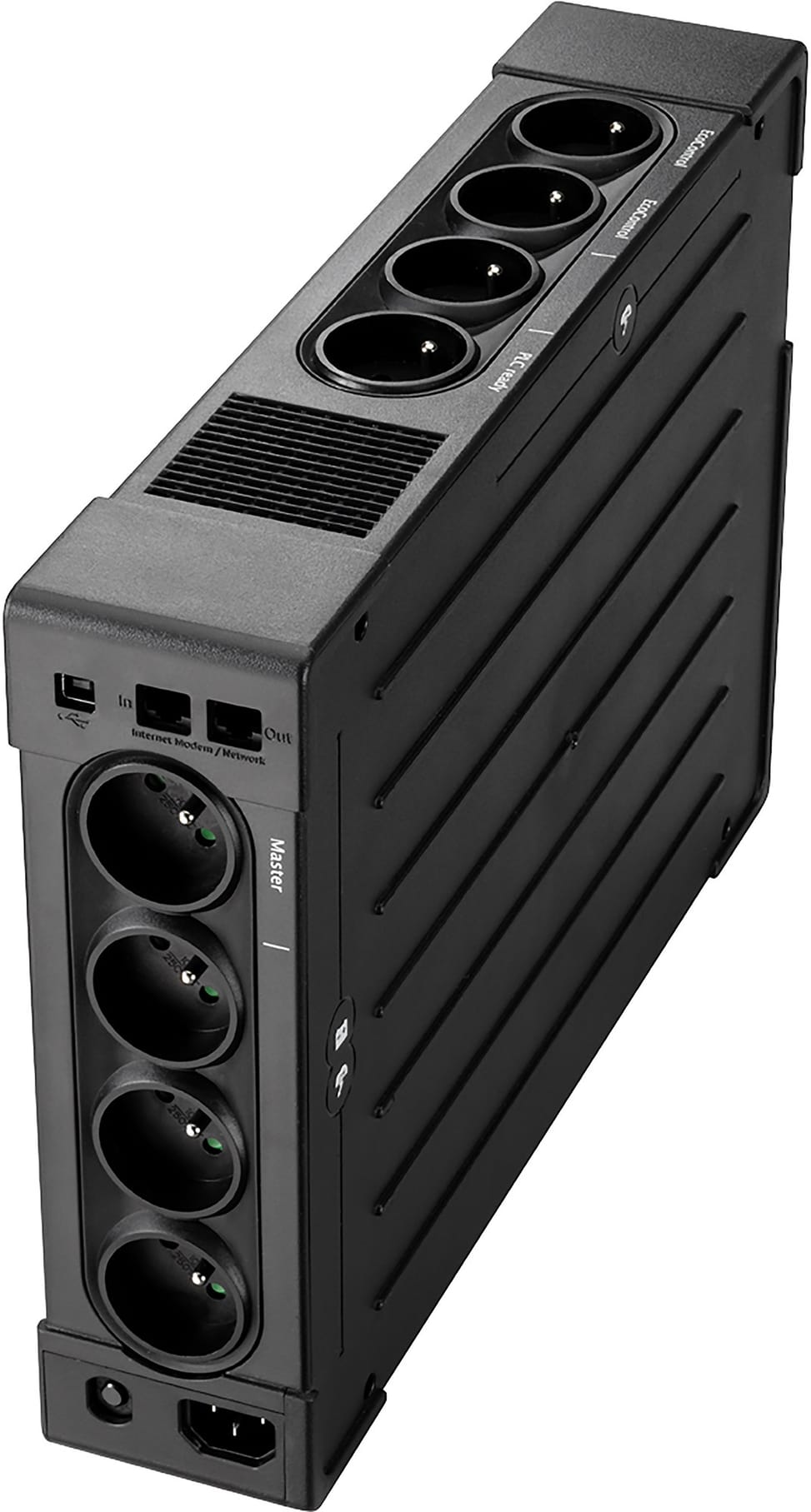

Outlets: 8 French outlets — 4 with battery backup, 4 with surge protection — no adapter needed.
Very quiet operation, ideal on a desk.

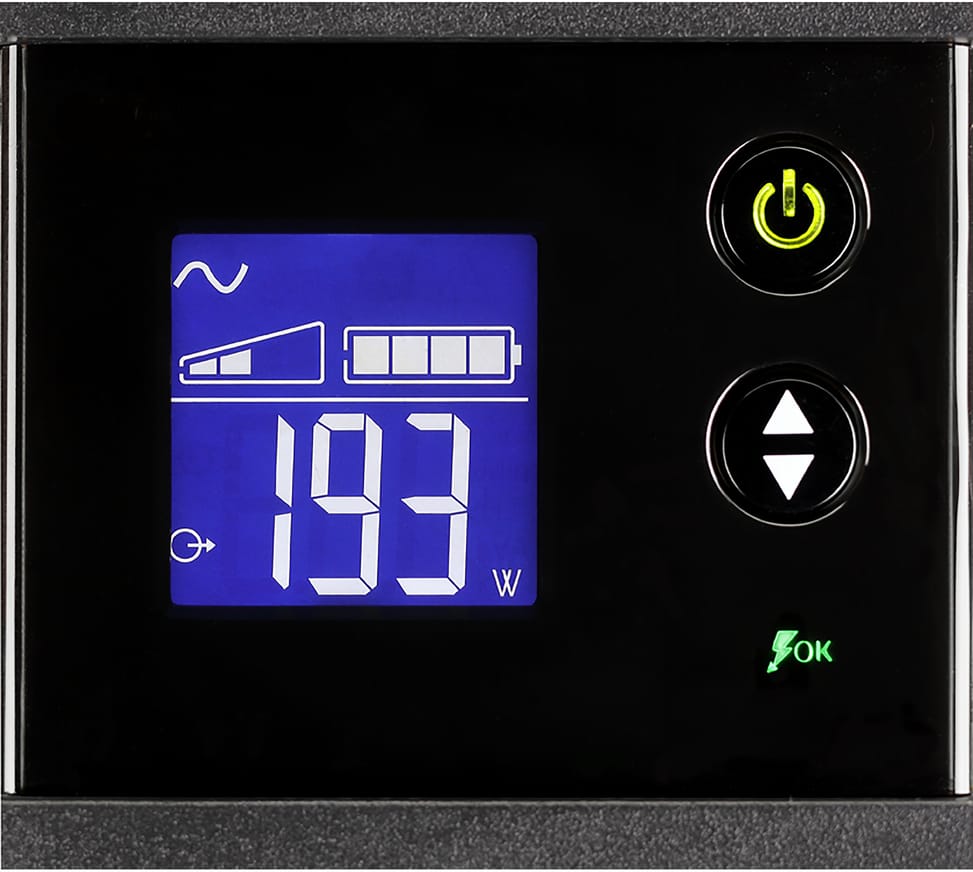

LCD display: shows the UPS status, battery level, remaining runtime and even the measured power draw of your devices — clear monitoring without any software.
Ideal, for example, for an office workstation, an internet box or a point of sale.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Request a quoteShare:
Technical specifications
| Output voltage | 230 V (adjustable to 220 V - 230 V - 240 V) |
|---|---|
| Output connections | (4) French, (4) French, surge only |
| Input voltage | 230 V |
| Input frequency | 50-60 Hz (auto-selection) |
| Input connections | (1) IEC-320-C14 |
| Voltage range | 165-285 V (adjustable to 150-285 V) |
| Automatic voltage regulation (AVR) | AVR boost and buck (booster and fader), input range 165 - 285 V |
| Input circuit breaker rating | Resettable circuit breaker |
| Battery replacement | By the user |
| Battery management | Automatic self-test, deep discharge protection |
| Interface port | USB port (cable included) |
| User interface | LCD screen (status and measurements, UPS configuration) |
| Power management software | Eaton UPS Companion on CD-ROM (safe system shutdown, power consumption measurement and UPS settings) |
| Weight (kg) | 9.9 |
| Dimensions (W x D x H) (mm) | 82 x 390 x 275 mm |
| Technology | Line Interactive |
| Power (VA) | 1,200 VA |
| Voltage stabiliser | Yes |
|---|---|
| Box contents | Power cord USB cable User manual in 20 languages Safety instructions |
| Communication card slot | None |
| Data line protection | Phone, fax, modem, internet and Ethernet protection sockets |
| Surge protection and filtering | Built-in IEC 61643-1 certified surge protector |
| Cold start | Yes |
| Audible noise | < 27 dBA |
| Output frequency | 50-60 Hz |
| Phase (output/input) | 1 / 1 |
| Output type | FR outlets |
| Power (W) | 750 W |
| Runtime | 50% load (375 Watts): 9 minutes / 70% load (525 Watts): 5 minutes |
| Form factor | Tower |
| Battery-backed outlets | 3 to 4 outlets |
| Control & communication | USB |
| Warranty | 3 years |
Specific references
| EAN | 743172437716 |
|---|
Downloads
Customer reviews
Write a review
5
1 customer review
Frequently asked questions about this product

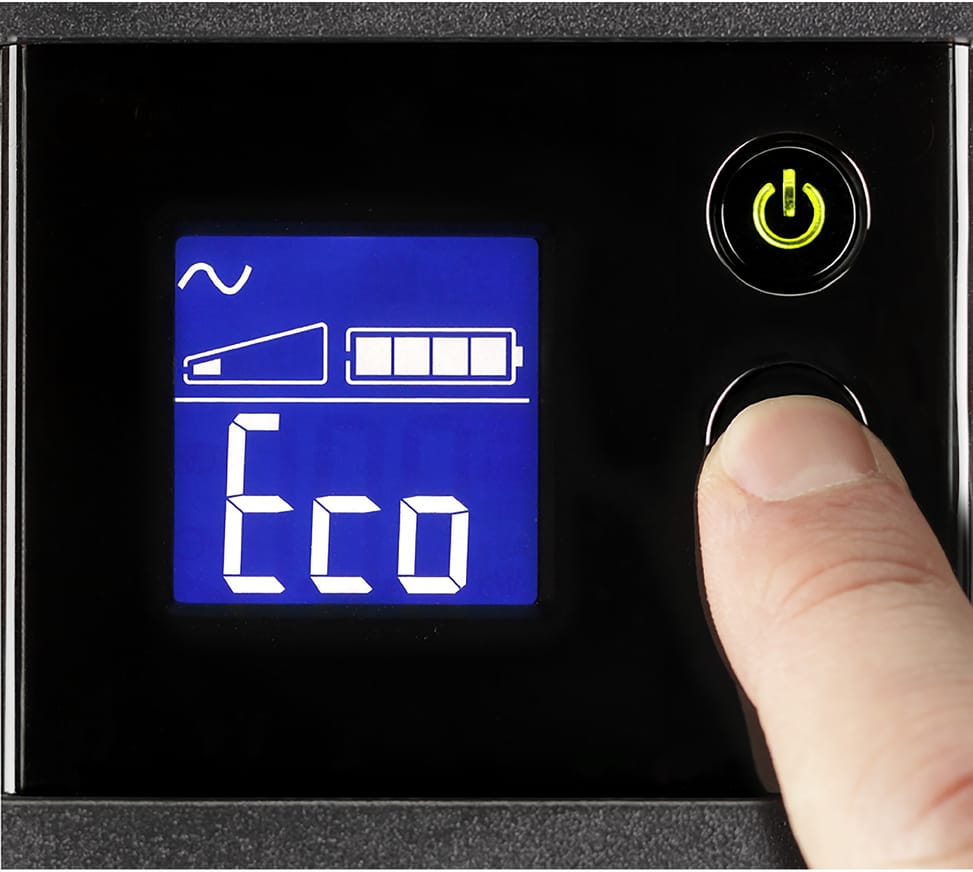

What is the EcoControl function of the Ellipse PRO 1200 for?
It automatically switches off peripherals when the master device shuts down: the monitor, printer and speakers no longer stay on standby all night just because the PC is off. Eaton claims up to 20% energy savings, and the 1200 model has two EcoControl outlets.
How long does the Ellipse PRO 1200 run on battery?

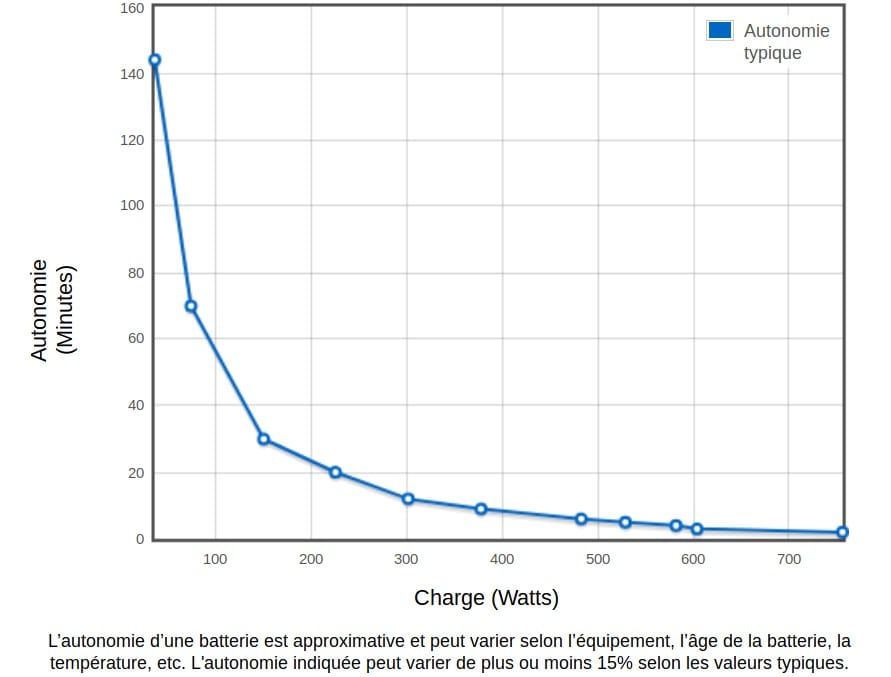

9 minutes at 50% load and 5 minutes at 70%. These runtimes are given at a power factor of 0.7 and remain approximate: they vary with the protected equipment, the temperature and the age of the batteries.
Can the Ellipse PRO 1200 be mounted under a desk, under a monitor or in a rack?

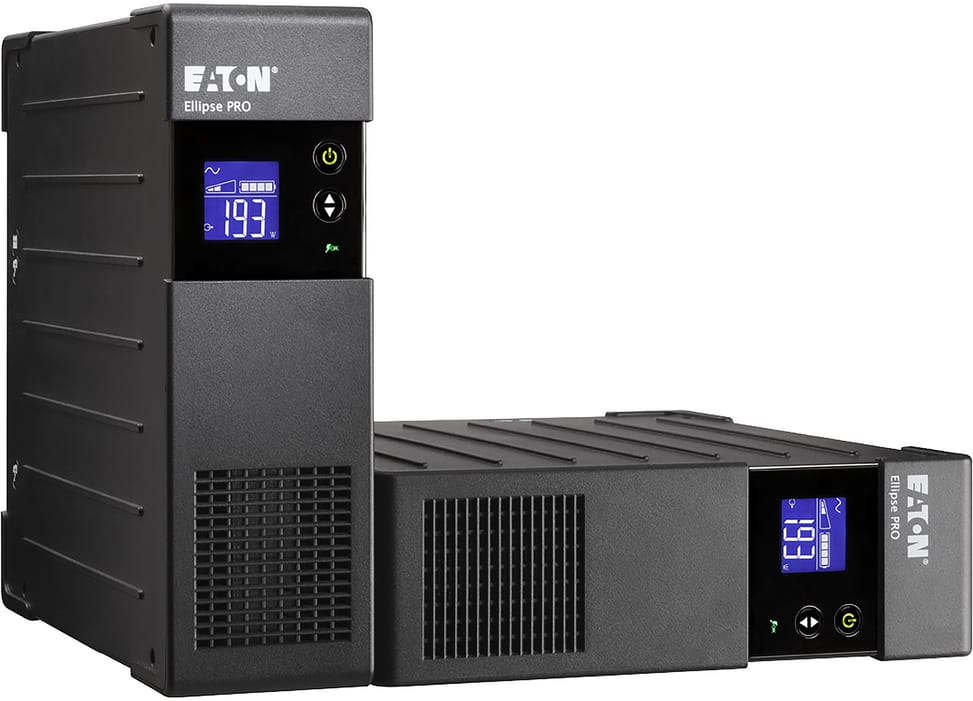

All four positions are catered for thanks to its ultra-slim 82 mm design: upright under a desk, flat under a monitor, in a 19-inch rack taking 2U with the ELRACK kit, or on the wall with the ELWALL kit. Both kits are sold as options.
How many of the eight outlets are battery-backed?
Four French outlets are surge-protected and battery-backed; the other four are surge-protected only and go off with the mains. Two of them are the EcoControl outlets, the ones the UPS deliberately switches off when the main workstation shuts down.
Does the UPS protect the phone line and the network?
Yes, its IEC 61643-1 certified surge protection also covers data lines: phone, fax, modem, internet and Ethernet. A surge coming in through the line is a common, and often overlooked, cause of destroyed internet boxes or network cards.
What can you read on the Ellipse PRO's display?
The UPS status, measurements — including the actual power consumption of your devices — and the unit's settings: output voltage, audible alarm, sensitivity. Measuring the connected load is rare in this price range, and it is what lets you check that you stay below 750 W.
What does the AVR correct, and over what voltage range?
A boost and buck regulator raises low voltages and lowers high voltages without switching to battery, between 165 and 285 V — a range adjustable down to 150-285 V. Where the grid fluctuates constantly, this is what avoids wearing out the battery for nothing.
What is in the ELP1200FR box?
The UPS, its power cord, a USB cable, the manual in 20 languages and the safety instructions. The Eaton UPS Companion software completes the package: safe system shutdown, power consumption measurement and UPS configuration.
What happens if you plug too many devices into the Ellipse PRO?
A resettable circuit breaker cuts the power and is reset with a button, with no fuse to replace. Remember to unplug the excess device before resetting: the 750 W of usable power correspond to the 0.625 power factor of the stated 1200 VA.

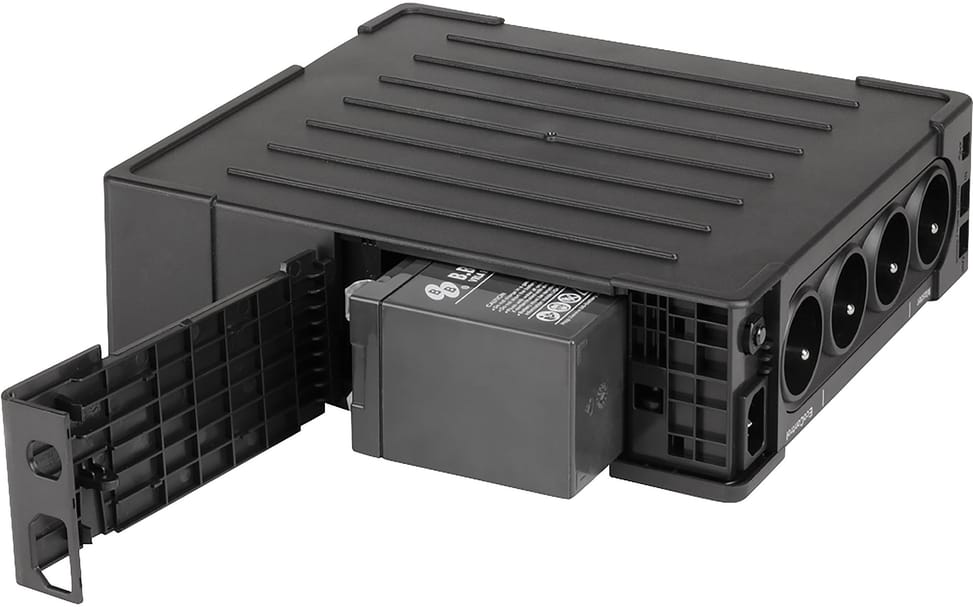

Is the Ellipse PRO's battery replaceable, and do you get a warning?
Yes, it is easy to replace, and an automatic periodic self-test detects the problem before it occurs. The UPS also protects the battery against deep discharge and can start on battery, with no mains power present.
Is the Ellipse PRO 1200 noisy, and how much does it weigh?
Less than 27 dBA: it can sit on a desk without being noticed. Allow for 9.9 kg in a 275 × 82 × 390 mm enclosure — the weight comes from the lead-acid batteries, something to bear in mind if you plan to wall-mount it.
Is the Eaton Ellipse PRO ELP1200FR new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 3 years on a standard-exchange basis, batteries included. The datasheet lists the runtimes, the voltage range and the IEC/EN 62040-1 and 62040-2 standards it meets.
