Audio-Technica AT-One ATW-11/P Wireless System - ATR35cW Lavalier Mic, UHF DE3 Band (ATW-11/PDE3)

A UHF wireless system with a lavalier mic: ATW-T1 bodypack transmitter, ATR35cW omnidirectional lavalier mic and half-rack ATW-R1 receiver. DE3 band (482 to 512 MHz), 60 m typical range, 10 h on 2 AA batteries; case and rack kit included.

ATR35cW omnidirectional lavalier mic
ATW-T1 bodypack transmitter, 10 mW
Half-rack ATW-R1 receiver, antenna diversity
DE3 band: 482-492 and 495-512 MHz
2 groups of 4 frequencies
60 m typical range
Up to 10 h on 2 AA batteries
Case, rack kit and AC adapter included

Ref.: ATW-11/PDE3

Audio-Technica AT-One ATW-11/P Wireless System - ATR35cW Lavalier Mic, UHF DE3 Band (ATW-11/PDE3)

Audio-Technica AT-One ATW-11/P Wireless System - ATR35cW Lavalier Mic, UHF DE3 Band (ATW-11/PDE3) – view 2

Audio-Technica AT-One ATW-11/P Wireless System - ATR35cW Lavalier Mic, UHF DE3 Band (ATW-11/PDE3) – view 3

Audio-Technica AT-One ATW-11/P Wireless System - ATR35cW Lavalier Mic, UHF DE3 Band (ATW-11/PDE3) – view 4

3 000,00 DHincl. VAT

Limited quantity

Quantity

Earn 30 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

3 ways to get it

Delivery anywhere in Morocco

In stockReceive it between Thu 1 Oct and Sat 3 Oct ·

Casablanca store

Free pickup

Available within 24 hWe bring it there and call you when it arrives

Témara pickup point

Free pickup

Available within 48 hWe bring it there and call you when it arrives

1 year warranty — free repair in Morocco if it breaks down during the warranty period

100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque

Manufacturer's datasheetView the PDF · 2,1 Mo — downloadable

Product overview

A UHF wireless system to speak hands-free: omnidirectional lavalier mic, bodypack transmitter and half-rack receiver.
Frequencies: DE3 band, 482 to 492 MHz and 495 to 512 MHz, 2 groups of 4 channels
Mic: clip-on ATR35cW, 1.4 m cable, locking 4-pin connector
Transmitter: ATW-T1, 10 mW, adjustable gain and -10 dB pad, up to 10 h on 2 AA batteries
Receiver: ATW-R1, antenna diversity, XLR and 6.35 mm jack outputs
Range: 60 m typical; supplied with case, rack kit, antennas and AC adapter
An entry-level wireless system for presentations, classes and video.

See all the specifications ↓

Request a quoteShare:

Description

Audio-Technica AT-One · Reference ATW-11/PDE3

Speak hands-free,
with no cable to the desk.

The ATW-11/P combines an ATR35cW omnidirectional lavalier mic, an ATW-T1 bodypack transmitter and a half-rack ATW-R1 receiver. It is the AT-One system for speech: presentations, classes, video. This version operates in the DE3 band, from 482 to 512 MHz.

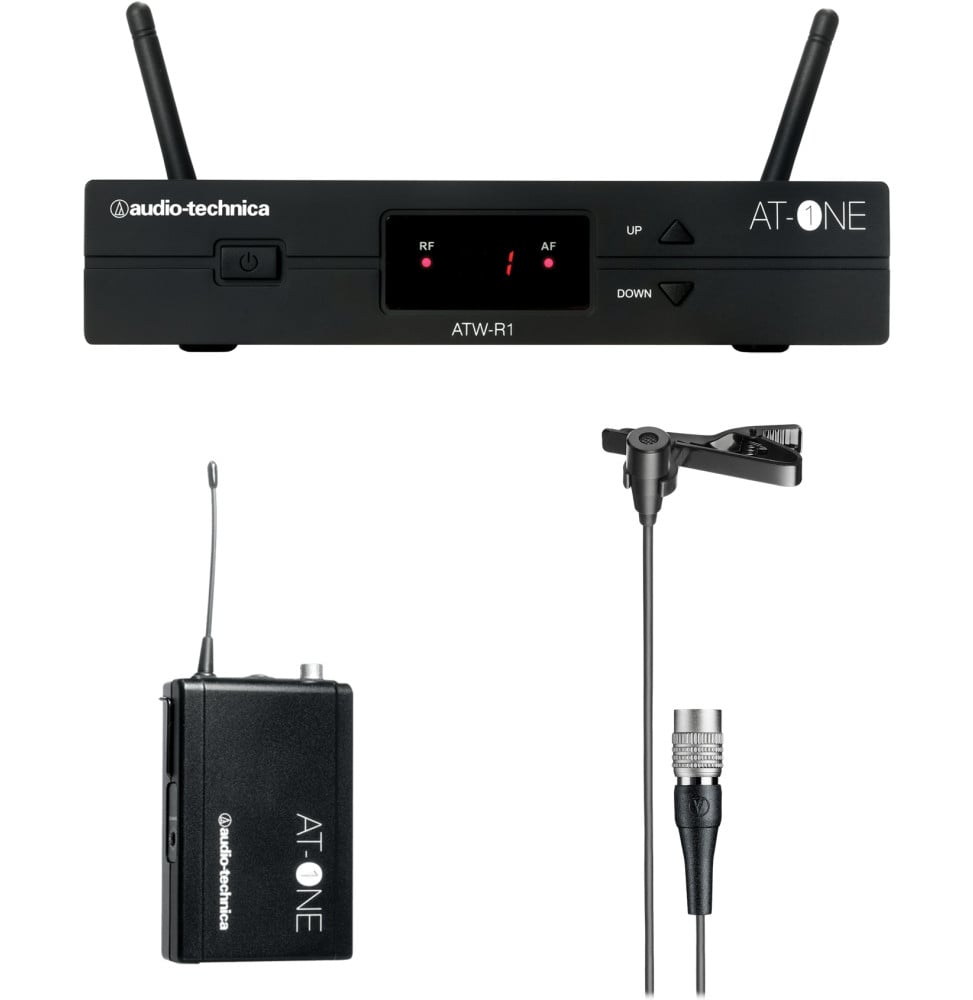

AT-One ATW-11/P system: ATW-R1 receiver, ATW-T1 bodypack transmitter and ATR35cW lavalier mic

60mTypical range
10hOn 2 AA batteries
71gTransmitter without batteries
6gLavalier mic

A 6 g mic on the collar

The ATR35cW is an omnidirectional electret lavalier mic in presenter style: it picks up the voice intelligibly and accurately without having to be aimed, and stays discreet on camera. It attaches with its clip and is protected from breath by its foam windscreen. Its 1.4 m cable ends in a 4-pin connector that locks onto the transmitter.

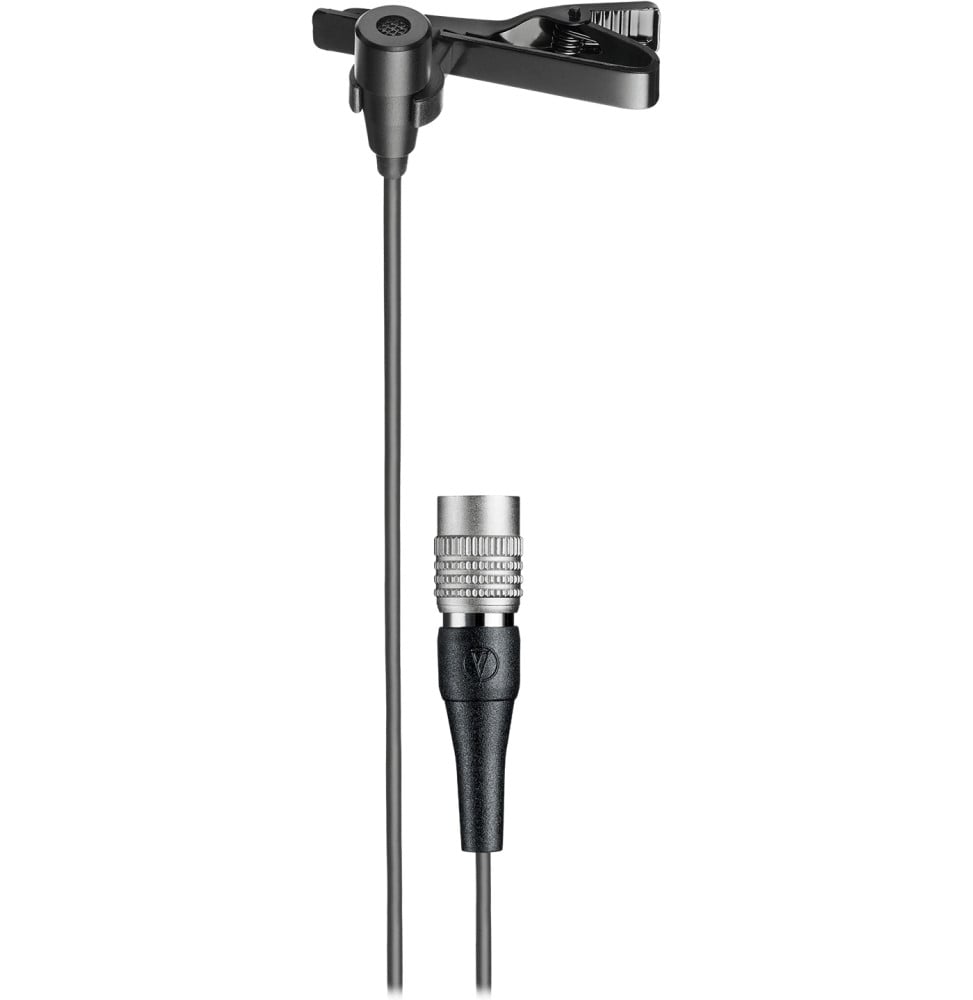

ATR35cW lavalier mic with its clip and 4-pin connector

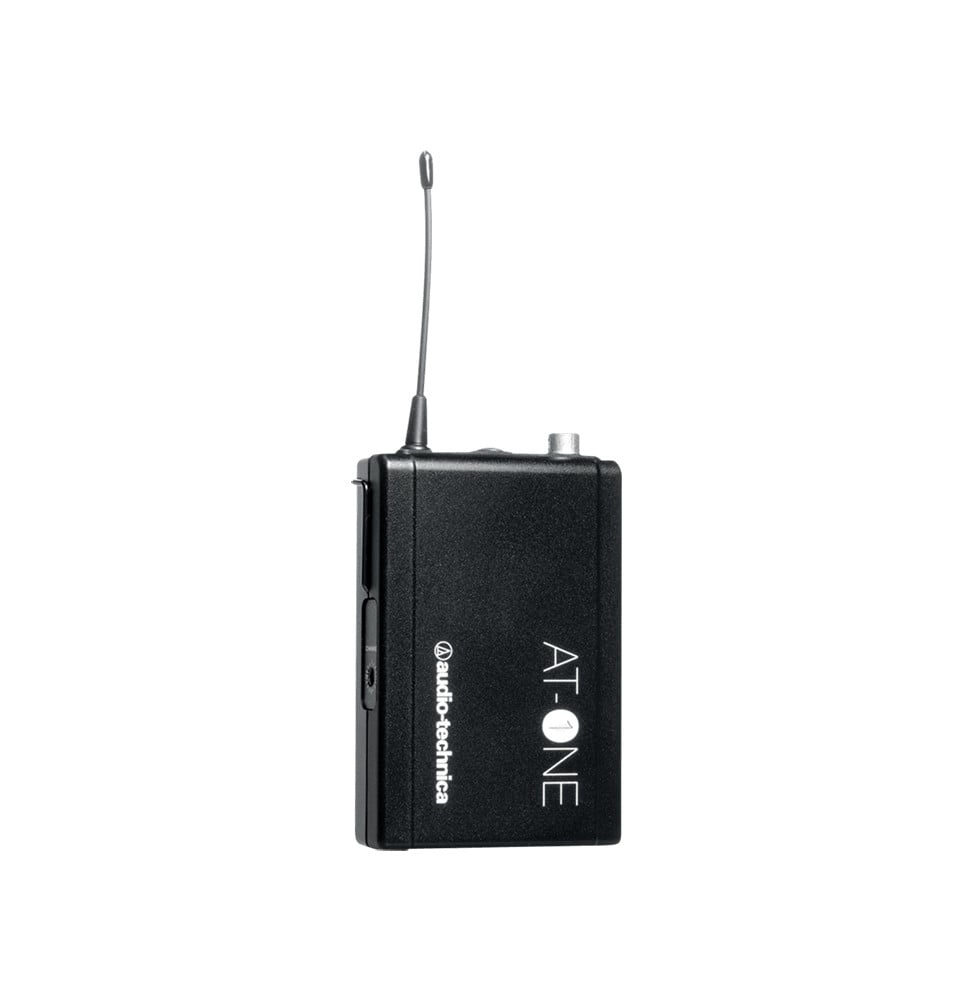

An adjustable transmitter on the belt

The ATW-T1 bodypack transmitter weighs 71 g without batteries and transmits at 10 mW for up to 10 hours on two AA batteries. A gain control and a -10 dB pad match it to the connected mic: its connector also accepts Audio-Technica cW-style headworn mics and cables.

A receiver that fits in a rack

The ATW-R1 receiver shows the channel, indicates radio reception and audio signal, and works in diversity on its two detachable antennas. It outputs on balanced XLR or 6.35 mm jack, at mic or line level, and mounts in a 19-inch rack with the supplied kit. Up to four AT-One systems can share a room if they stay in the same frequency group.

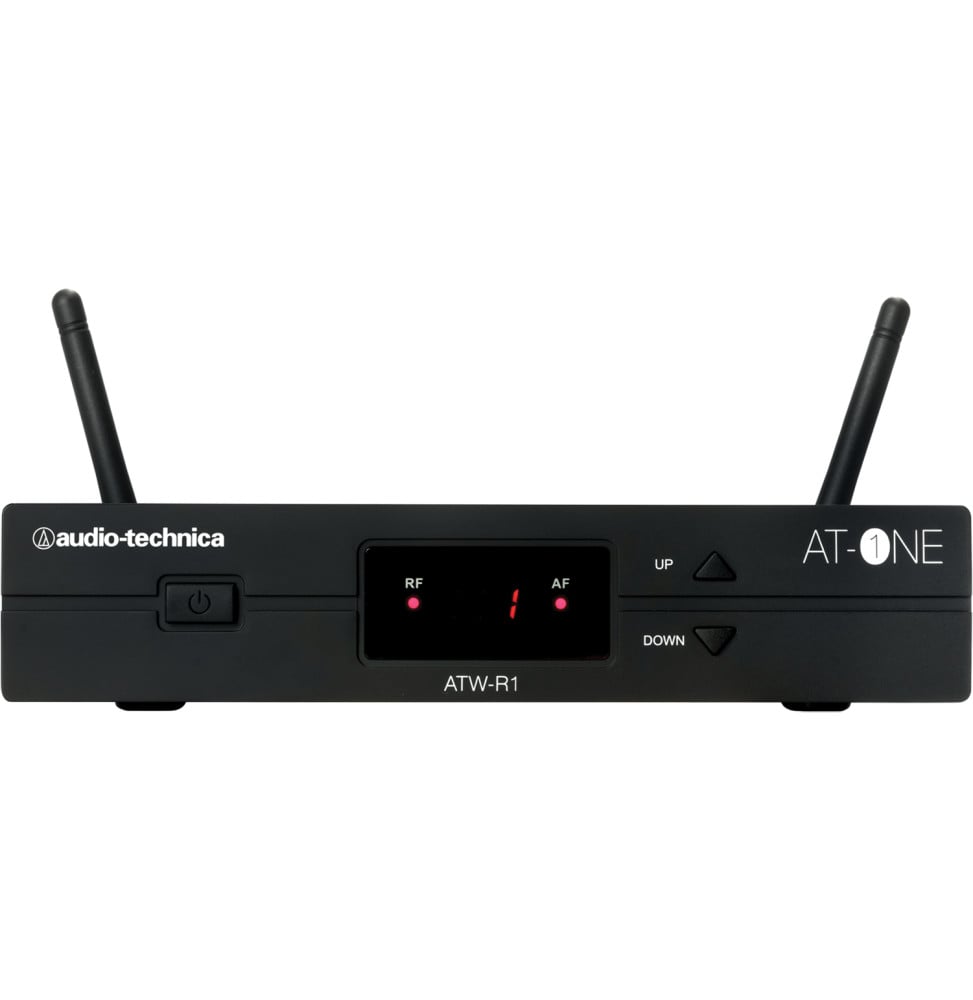

AT-One ATW-R1 receiver from the front, antennas and channel display

Band DE3: 482 to 492 MHz and 495 to 512 MHz. The use of these frequencies depends on national regulations: check them with the relevant authority before first use.

Find it alongside the other microphones in the Microphone category and the Audio-Technica range.

Values taken from the AT-One user manual, its quick start guide and the manufacturer's ATR35cW page.

Technical specifications

Technical specifications
Dimensions (W x D x H)	Receiver: 200 x 122 x 42 mm; transmitter: 66 x 98 x 22 mm
Features	Antenna switching diversity reception; 12 V (100 mA) power for active antennas
Microphone frequency response	60 Hz to 16 kHz (complete system)
Polar pattern selection	Fixed (omnidirectional)
Cable length	1.4 m (lavalier mic, 4-pin connector)
Microphone connection	UHF radio link to the receiver; balanced 3-pin XLR and 6.35 mm jack outputs
Headphone output	None
Audio output	Balanced XLR at +4 dBV and unbalanced 6.35 mm jack at -2 dBV, mic or line level (0 / -20 dB)
Wireless technology	Analogue UHF with frequency modulation, PLL synthesis
System components	1 ATW-R1 receiver, 1 ATW-T1 bodypack transmitter and 1 ATR35cW lavalier mic
Frequency bands	DE3 band: 482 to 492 MHz and 495 to 512 MHz
Available radio channels	2 groups of 4 frequencies; up to 4 simultaneous systems within a group
Antennas	2 detachable antennas with BNC connectors, antenna switching diversity
Maximum transmit power	10 mW
Box contents	ATW-R1 receiver, ATW-T1 bodypack transmitter, ATR35cW lavalier mic with clip and foam windscreen, 2 detachable antennas, AC adapter, rack-mount kit, carrying case
Pop and shock protection	Foam windscreen supplied for the lavalier mic
Weight	Receiver: 418 g; transmitter: 71 g without batteries; lavalier mic: 6 g
Product colour	Black
Power supply	Transmitter: 2 x 1.5 V AA batteries; receiver: 12 V DC 500 mA AC adapter

Technical specifications (continued)
Phantom power required	No (bodypack transmitter running on 2 AA batteries)
Compatibility	ATW-T1 transmitter: locking 4-pin connector for Audio-Technica cW-style mics and cables
Mounting	Half-rack receiver, 19-inch rack-mount kit supplied; clip-on lavalier mic
Operating temperature	+5 to +45 °C
Product type	UHF wireless system: ATW-R1 receiver, ATW-T1 bodypack transmitter and ATR35cW lavalier mic
Runtime	Up to 10 h per transmitter (2 AA alkaline batteries)
Microphone type	Lavalier microphone
Capsule technology	Condenser
Polar pattern	Omnidirectional
Microphone use	Conference & meetings
Power supply included	AC adapter supplied for the receiver; transmitter batteries not supplied
Wireless range	60 m typical
Internal recording	None
Controls	Receiver: power, channel up/down, squelch, mic/line level; transmitter: power/mute, channel, gain, -10 dB pad
Lighting and indicators	Receiver: LED channel display, RF and AF indicators; transmitter: status and battery indicator
Conversion resolution	None (analogue radio link, no converter)
Management software	None
Dynamic range	103 dB with the bodypack transmitter (at maximum deviation)
Warranty	1 year

Specific references

MPN	ATW-11/PDE3

Downloads

Manuel d'utilisation(PDF)

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions about this product

What is the frequency band of the ATW-11/PDE3?

The DE3 band: 482 to 492 MHz and 495 to 512 MHz, split into two groups of four frequencies, channels 11 to 14 and 21 to 24. It differs from the European F version, at 824 to 831 MHz and 863 to 865 MHz. The use of these frequencies is subject to national regulations: check with the relevant authority before use.

How many AT-One systems can be used at the same time?

Up to four, as long as they stay within the same frequency group: each group brings together four channels designed to work together without interference. In two separate rooms, group 1 can be used in one and group 2 in the other. Each transmitter is set to the channel chosen on the receiver.

Can another microphone be connected to the bodypack transmitter?

Yes. Its locking 4-pin connector accepts Audio-Technica cW-style lavalier mics, headworn mics and cables. A gain control matches the transmitter's sensitivity to the connected mic or instrument, and a switch adds 10 dB of attenuation if the signal is too strong.

What battery life does the bodypack transmitter have?

Up to 10 hours on two 1.5 V AA alkaline batteries, depending on the battery type and use; the batteries are not supplied. The transmitter indicator flashes when they run low. The receiver runs on the 12 V AC adapter supplied in the box.

How do I connect the receiver to a mixer?

Through its balanced XLR output, at +4 dBV, or its unbalanced 6.35 mm jack output, at -2 dBV, with a standard cable, never both at once. A switch sets the output to mic level (-20 dB) or line level (0 dB) depending on the input used. No audio cable is supplied in the box.

What is the range between transmitter and receiver?

60 m in typical conditions. To make the most of it, place the receiver at least 1 m above the floor and 1 m from a wall or metal surface, keep at least 3 m between transmitter and receiver, and set the squelch as low as possible, since raising it reduces the range.

What is in the ATW-11/PDE3 box?

The ATW-R1 receiver with its two detachable antennas, its AC adapter and its rack kit, the ATW-T1 bodypack transmitter and the ATR35cW lavalier mic with its clip and foam windscreen, all in a carrying case. Two AA batteries and an XLR or jack cable still need to be provided.
