Yealink MeetingBar A40-031 4K Video Conferencing Bar with CTP25 Touch Console (1206676)
An Android video conferencing bar for small and medium rooms, supplied with the CTP25 touch console. Two 48 MP cameras, eight microphones picking up voices at 6 m and native Teams or Zoom, with no PC in the room.

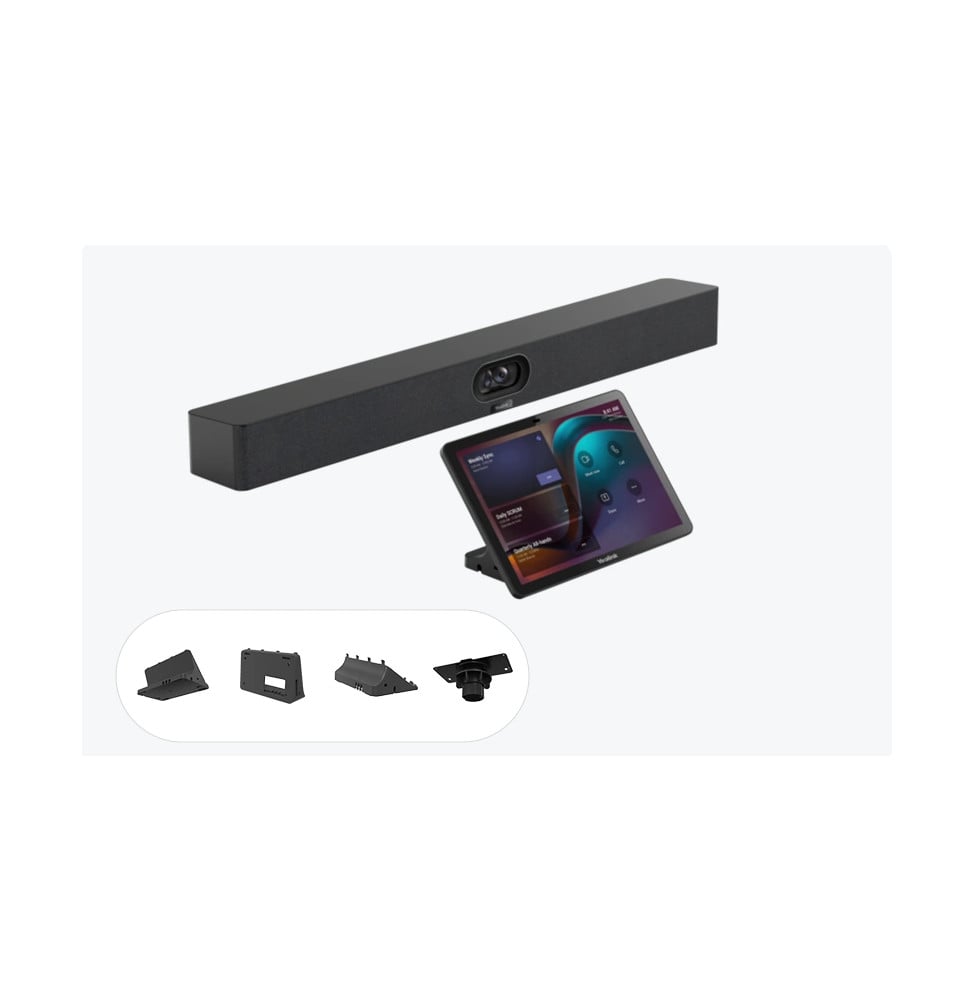

- A40-031 kit: A40 bar + CTP25 touch console
- 2 x 48 MP dual camera, 4K video
- 120° diagonal field of view, 6x digital zoom
- 8 MEMS microphones, pickup up to 6 m
- 2 x 10 W speakers
- Android 13: native Teams and Zoom
- Wi-Fi 6 and Bluetooth 5.0
- 10.1" console connected by a network cable
Ref.: 1206676
New
1/6
28 699,00 DHincl. VAT
Limited quantity
Earn 287 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
free
In stockReceive it between Mon 5 Oct and Wed 7 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
2 years warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Certified cheque
Product overview
An all-in-one video conferencing bar to equip a small or medium room without a PC: 2 x 48 MP dual camera, 8 microphones and a CTP25 touch console included.
Video: two 48 MP lenses, up to 4K, 120° diagonal field of view, 6x digital zoom
Audio: 8 MEMS microphones picking up voices up to 6 m, 2 x 10 W speakers, AI noise reduction
Platforms: Android 13, native Microsoft Teams and Zoom, USB BYOD mode
Control: 10.1-inch CTP25 touch console connected by a network cable
Connectivity: 2 HDMI outputs, Gigabit Ethernet, Wi-Fi 6 and Bluetooth 5.0
The complete kit to turn a meeting room into a Teams or Zoom room, with no computer to maintain.
Request a quoteShare:
Description
Yealink MeetingBar A40 · A40-031 kit · Reference 1206676
A Teams or Zoom room,
with no computer to manage.
The bar runs Android 13 and launches Microsoft Teams or Zoom on its own. Mount it under the display, put the CTP25 touch console on the table, and the room joins its meetings with a single tap.
- 2 x 48 MPtwo lenses combined
- 120°diagonal field of view
- 6 mvoice pickup range
- 10.1 inchestouch console included

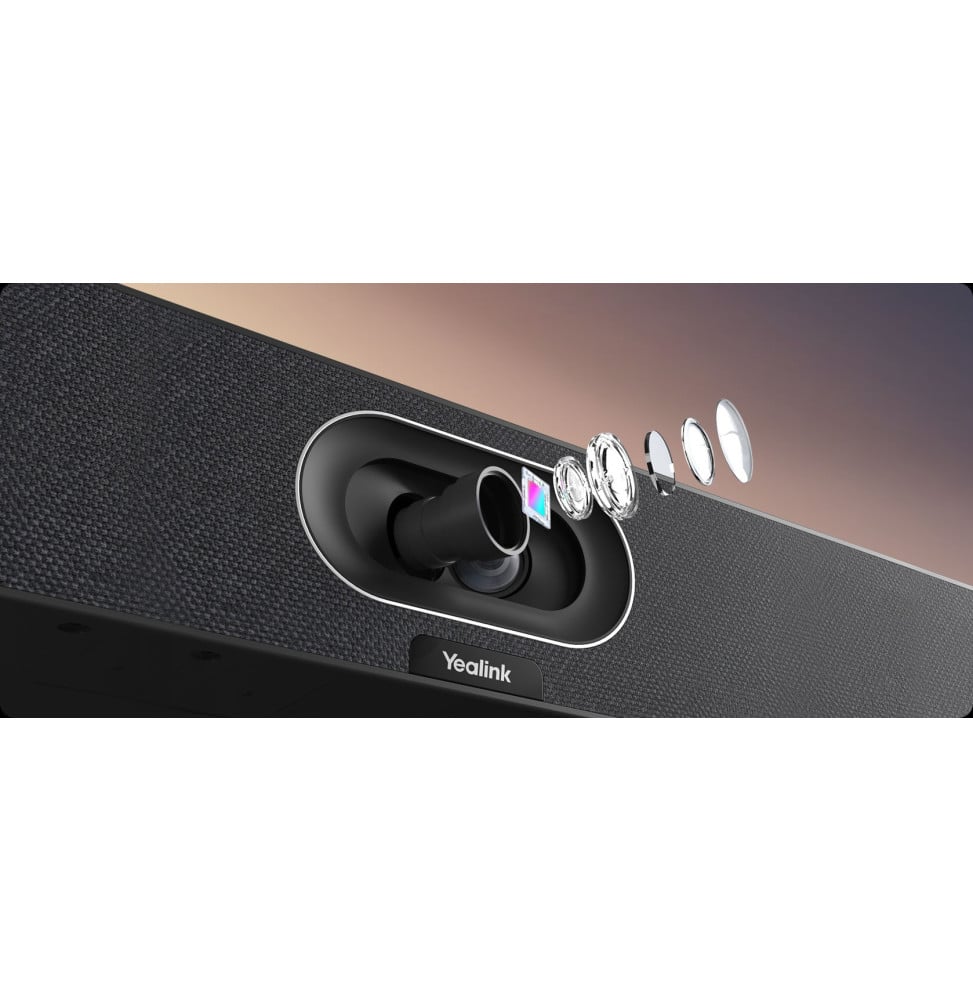

Two lenses for one sharp image
In the centre of the bar, two fixed-focus 48 MP sensors see the same scene; their images are merged to gain pixel density. The bar films in up to 4K and covers 110° horizontally. Digital zoom goes up to 6x, and this reserve of definition is what auto framing, speaker tracking and IntelliFocus, which isolates up to four faces, work with. Outside meetings, an electric cover closes over the lens.
The MeetingBar A40 dual lens.The whole table heard, no microphone to place
Eight MEMS microphones pick up voices up to 6 m, including 4 m at optimal quality, with full duplex over 3 m: people can talk over each other without the sound cutting out. Echo cancellation, gain control and AI-assisted noise reduction clean up the audio; two 10 W speakers play back remote participants. For a longer table, the bar accepts two expansion microphones.

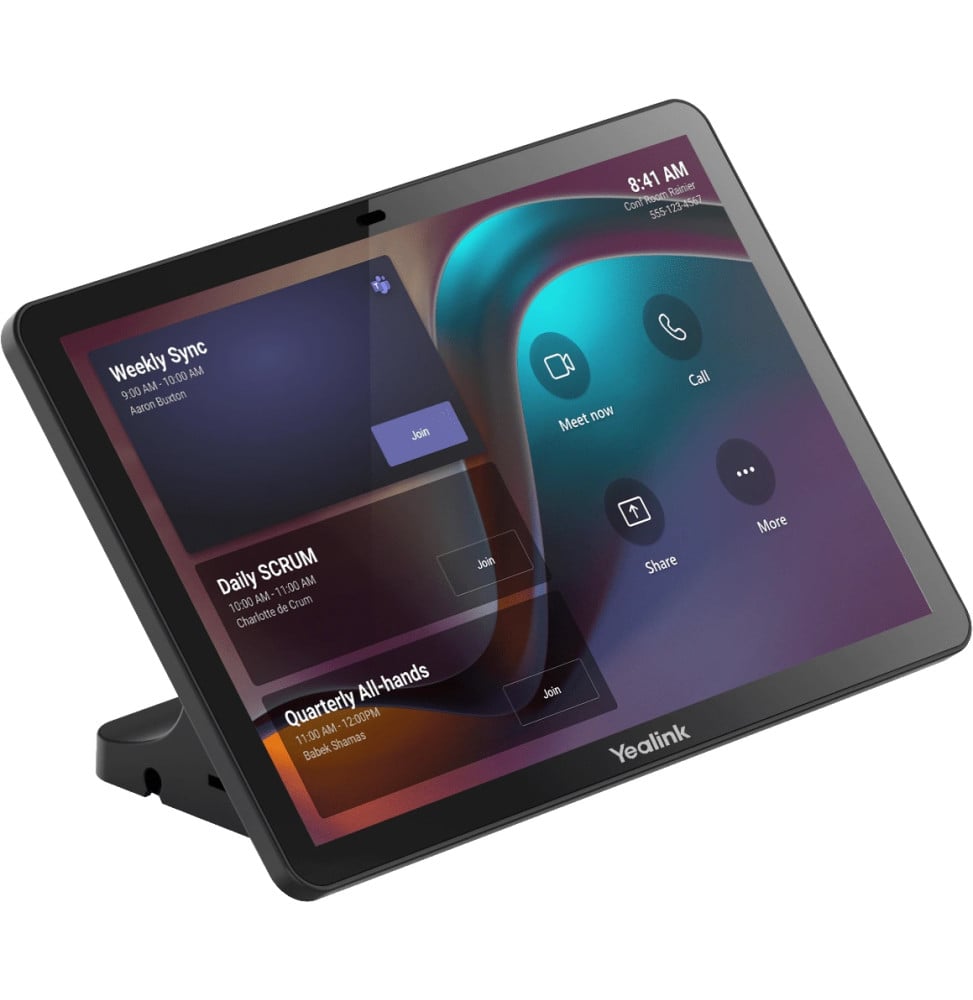

The CTP25 console is in the box
The A40-031 reference pairs the bar with the CTP25 touch console: a 10.1-inch IPS screen at 1280 x 800, anti-glare and anti-fingerprint. A single 7.5 m network cable links it to the bar, and signing in to the Teams account is done only once. Its USB-C port shares a laptop screen and charges it, thanks to the supplied 65 W PD adapter.
Designed for small and medium meeting rooms.- Platforms
- Native Teams and Zoom, BYOD
- Video outputs
- 2 HDMI, 4K 30 fps, CEC
- Network
- Gigabit, Wi-Fi 6, Bluetooth 5.0
- Bar
- 650 x 62 x 80 mm
- Mounts included
- Wall and TV
- Management
- Yealink, Teams Admin Center
Table placement requires the VB-TabletopMount-01 stand, sold separately: the box contains the wall mount and the TV mount.
Other room solutions are in our video conferencing department, and the full Yealink room range is on the Yealink brand page.
Values taken from the Yealink datasheets of the MeetingBar A40 and the CTP25 console.
Technical specifications
| Operating system | Android 13, based on Microsoft Device Ecosystem Platform (MDEP) |
|---|---|
| Dimensions (W x D x H) | Bar: 650 x 62 x 80 mm; CTP25 console: 242.95 x 27.5 x 161.95 mm |
| Video resolution | Up to 3840 x 2160 (4K); video output 4K at 30 fps or 1080p at 60 fps |
| Field of view | 120° diagonal, 110° horizontal, 54° vertical |
| Camera range | Depth of field from 1 to 5 m |
| Microphone frequency response | 100 Hz to 20 kHz |
| Audio power | 2 x 10 W rated (2 x 12 W maximum) |
| Digital zoom | 6x |
| Camera sensor | Two 48 MP cameras combined into a single image |
| Auto framing | Auto framing, speaker tracking, IntelliFocus (up to 4 portraits), people counting, picture-in-picture |
| Camera motorisation | Electronic pan-tilt, 9 presets; electric lens cover |
| Wireless technology | Dual-band 2.4 and 5 GHz Wi-Fi 6 (802.11a/b/g/n/ac/ax, 2x2 MIMO) and Bluetooth 5.0 |
| Video codecs | H.264 High Profile, H.264 SVC, H.264 |
| Security | Full-disk AES-128 and AES-256 encryption, keys protected by Arm TrustZone, device attestation |
| Microphone type | Array of 8 built-in MEMS microphones, expandable with 2 optional extra microphones |
| Microphone pickup range | 6 m (4 m for high-quality pickup); full duplex over 3 m |
| Built-in display | CTP25 touch console included: 10.1-inch IPS screen 1280 x 800, multi-point capacitive touch |
| Box contents | MeetingBar A40 bar, mains adapter, 2 x 1.8 m HDMI cables, 3 m network cable, TV mount, wall mount, cable covers; CTP25 console with 65 W PD adapter, 7.5 m network cable, 1.2 m USB-C cable, high stand and cable cover |
| Weight | Bar: 5.54 kg net; CTP25 console: 0.683 kg |
|---|---|
| Power supply | Mains adapter with 3.5 m cable; CTP25 console powered by 65 W PD adapter or PoE 802.3af |
| Mounting | Wall mount and TV mount included; table placement with the optional VB-TabletopMount-01 stand |
| Operating temperature | 0 to 40 °C |
| Operating humidity | 10 to 95% |
| Product type | All-in-one Android video conferencing bar with touch console |
| Recommended room size | Small and medium meeting rooms |
| Audio processing | Full duplex, acoustic echo cancellation, automatic gain control, AI-assisted noise reduction |
| Controls | CTP25 touch console included, connected to the bar by a network cable |
| Platform certifications | Native Microsoft Teams and Zoom; general mode (BYOM) for other applications |
| Operating mode | Standalone on Android 13 (Microsoft Teams Rooms, Zoom Rooms) or USB peripheral in BYOD mode |
| Calling protocols | H.323 and SIP in general mode (BYOM); dual stream H.239 / BFCP; FECC H.224/H.281 |
| Management software | Yealink Device Management Platform, Yealink Management Cloud Service, Microsoft Teams Admin Center / Intune, Zoom Device Management |
| Compatible products | Yealink expansion microphones (2 maximum), VCH51 wired sharing kit |
| Audio bandwidth | Speaker frequency response 100 Hz to 16 kHz; ARES audio codec at 24 kHz bandwidth |
| Connectivity | Bar: 1 USB-A 2.0, 2 USB-C 2.0, 1 USB-C 3.0 (video input up to 4K 30 fps), 2 HDMI outputs (CEC), 1 Gigabit RJ-45, 1 VCH port (RJ-45), 3.5 mm line in and line out, security slot |
| Signal-to-noise ratio | Camera above 63 dB; microphones 72 dB at 1 kHz |
| Warranty | 2 years |
Specific references
| MPN | A40-031 |
|---|
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Do you need a computer in the room to use the MeetingBar A40?
No: the bar runs Android 13 and launches Microsoft Teams or Zoom natively. The supplied CTP25 touch console is used to join and control the meeting. A laptop can also be plugged in, in BYOD mode, to use the camera, microphones and speakers with another application.
What exactly does the A40-031 reference include?
The MeetingBar A40 bar and the CTP25 touch console. The bar comes with its adapter, two HDMI cables, a 3 m network cable, a wall mount and a TV mount; the console with a 65 W PD adapter, a 7.5 m network cable, a USB-C cable and its high stand.
What room size is the MeetingBar A40 designed for?
For small and medium rooms. Its eight microphones pick up voices up to 6 m, including 4 m at high quality, and two optional expansion microphones cover a longer table. The camera's field of view reaches 120° diagonally.
How does the MeetingBar A40 zoom work?
The zoom is digital, up to 6x: two fixed 48 MP lenses are combined into a single high-definition image, which the bar crops. Auto framing, speaker tracking and IntelliFocus, which isolates up to four faces, rely on this definition, with nine preset positions.
How do you connect the bar to the room display?
Via HDMI: the bar has two HDMI outputs, up to 4K at 30 fps, with the display's CEC control, and two 1.8 m cables are supplied. It mounts on the wall or on the TV with the included brackets; table placement requires the VB-TabletopMount-01 stand, sold separately.
