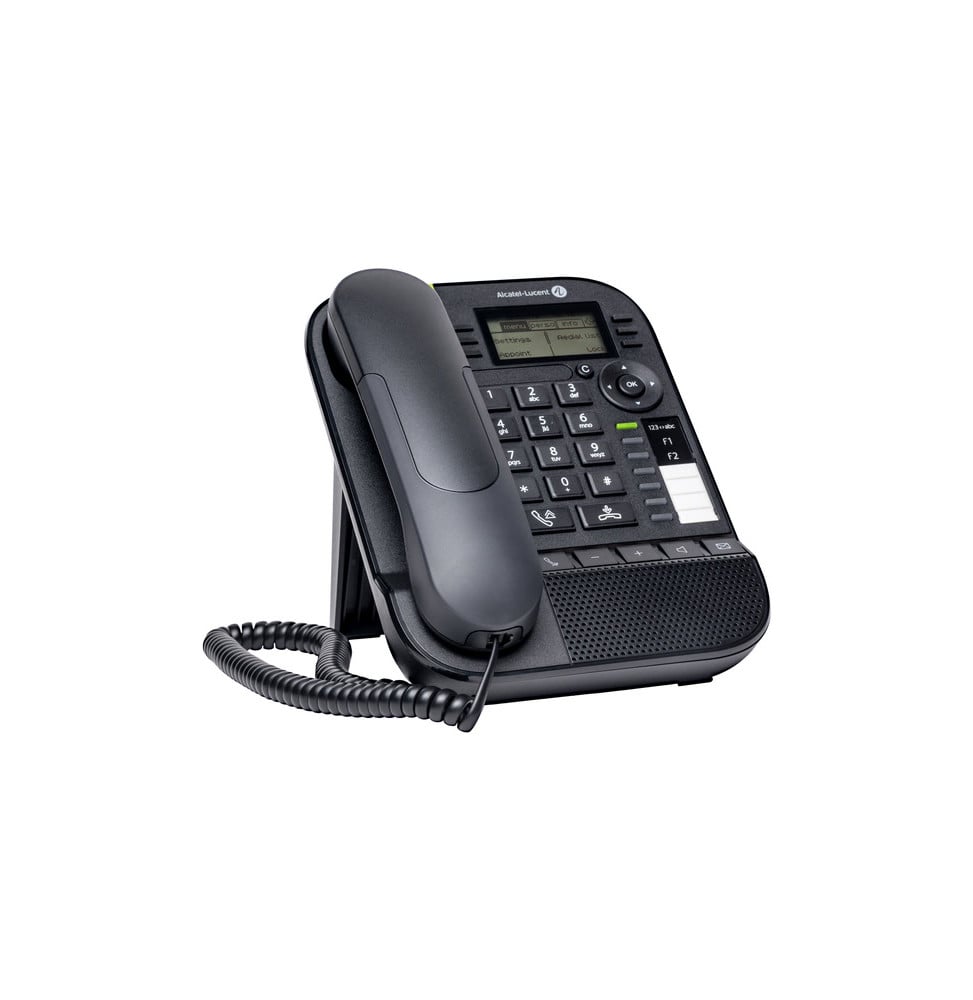

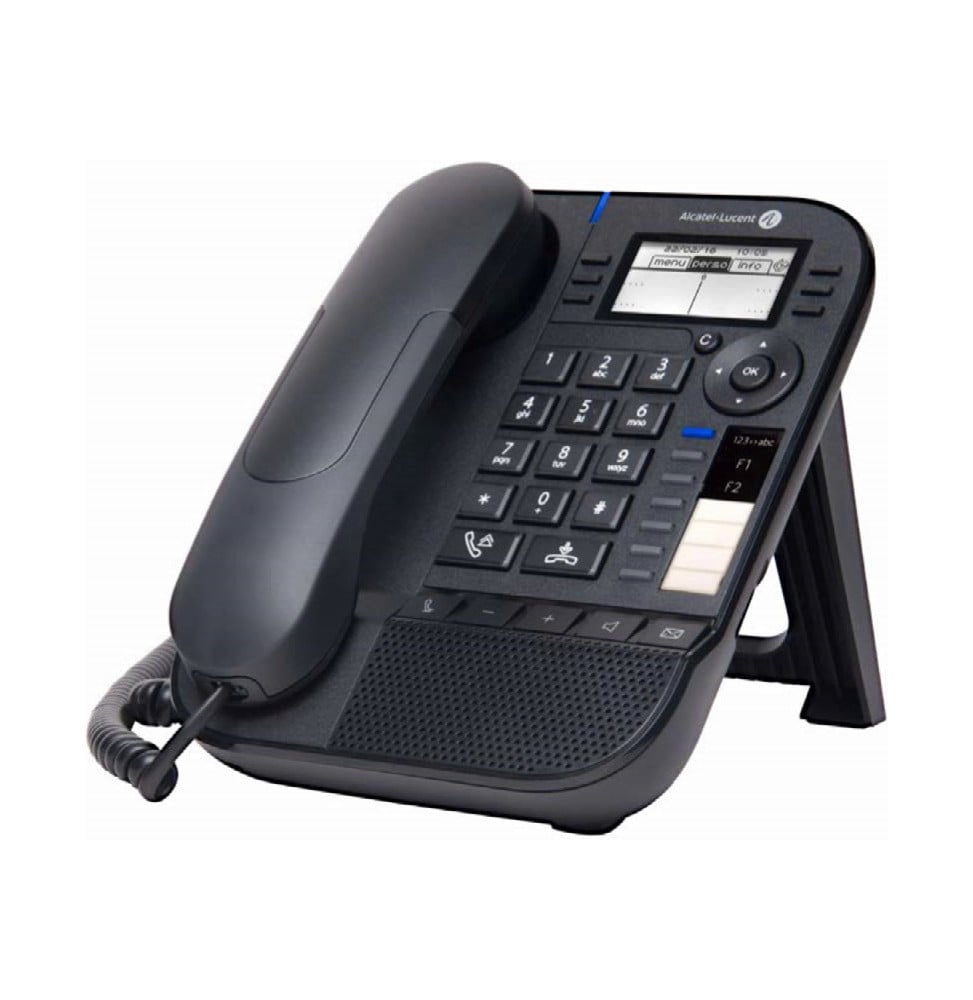

Alcatel-Lucent Enterprise 8018 DeskPhone PoE IP phone (3MG27201AA)

Alcatel-Lucent Enterprise · Reference 3MG27201AA

The simple phone
of an Alcatel-Lucent network.

The 8018 DeskPhone is a compact IP phone: a readable display, true hands-free and everything it takes to register on an OXO Connect or an OmniPCX. It suits a private office, a reception desk or a hotel room.

• 675 ghandset included
• 2.4 inches128 x 64 backlit display
• 2 portsEthernet 10/100/1000
• 3.84 Wat most, on PoE class 1

A single cable to the desk

The phone draws its power from the network socket, under the 802.3af standard: plugged into a PoE switch, it needs no power brick. Its second RJ-45 port connects the computer next to it to the network, through the built-in switch. One wall socket is therefore enough for both the phone and the PC.

The headset plugs in over USB

The side of the 8018 carries a USB port designed for audio: a headset, a speaker or a hands-free kit connect to it, and the same port slowly charges a smartphone. Without a headset, the wideband loudspeaker works in full duplex, with noise reduction and echo cancellation: both parties can speak at the same time without cutting each other off.

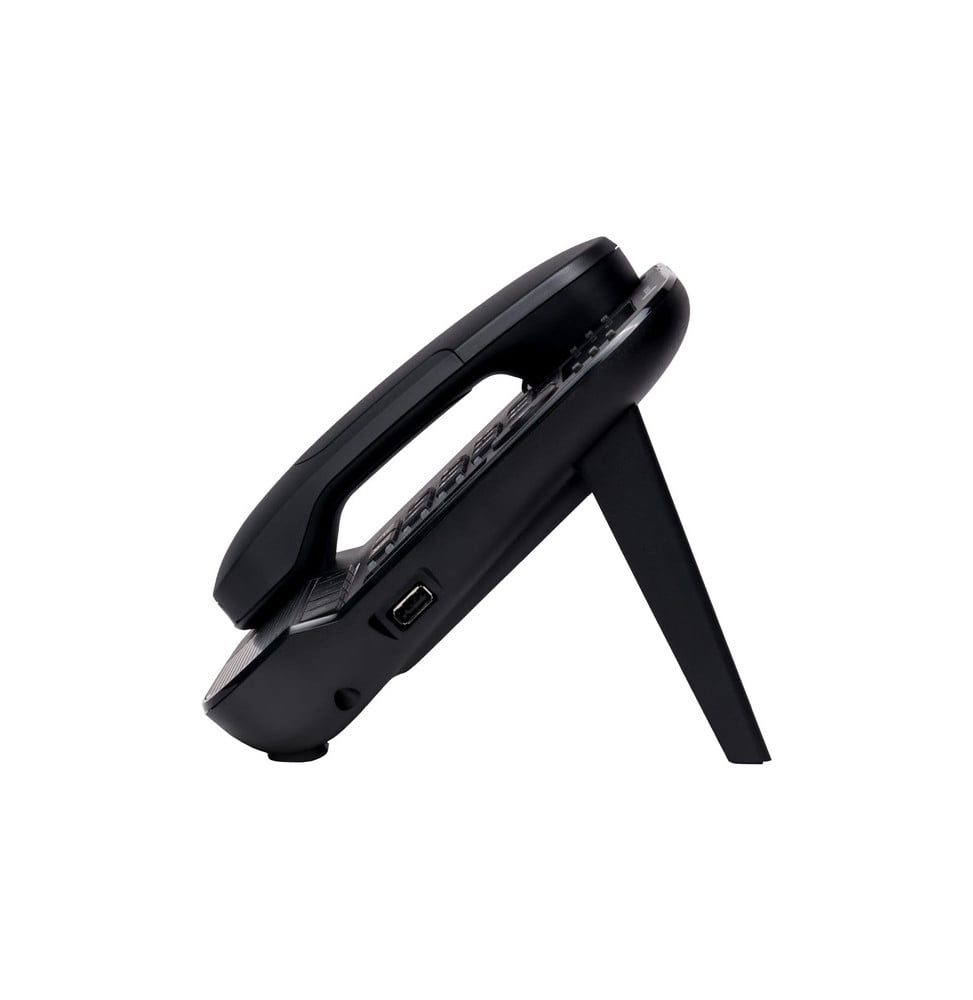

The USB port, on the side of the phone, and the stand that tilts the display at 45°.

Six keys around the display, four at your command

The 2.4-inch display is framed by six soft keys that change role with the call. The four-way navigator, the OK and cancel keys and the 123 ↔ abc key let you call a colleague by name. Four programmable keys with LED, under their clear cover, take the most used numbers or features, with their paper label.

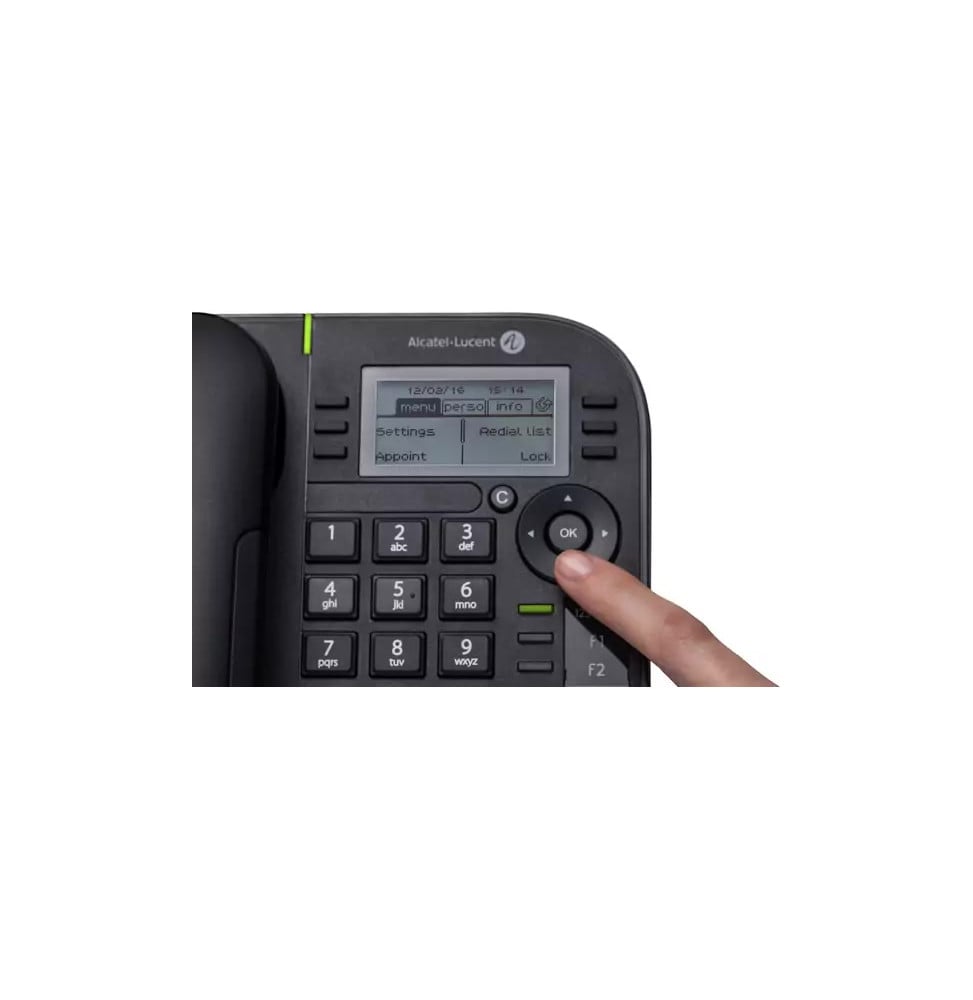

The backlit display and the four-way navigator.

In the colours of the hotel or the company

The clip and faceplate of the 8018 can be customised with the establishment's logo, which makes it a natural bedside phone for a hotel or hospital room. On the wall, with its mounting kit, it protrudes only 100 mm, handset included.

Supported servers

OXO Connect, OmniPCX Office RCE and Enterprise

Protocols

IP NOE or SIP

Call LED

visible from front and back

On the wall

100 mm deep, 3MG27210AA kit

In the box

phone, handset, stand, Ethernet cable

The 8018 registers on an Alcatel-Lucent Enterprise server: you need OXO Connect version 2 or later, OmniPCX Office RCE 10.3 or later, or OmniPCX Enterprise 11.2.1 or later. Check your PBX version before ordering, and plan for the 3MG27006xx adapter if your switch does not provide PoE.

All desk phones are gathered in the IP & VoIP phones department, and the brand's range on the Alcatel-Lucent Enterprise page. For other fixed phones, see the Telephony department.

Values taken from the Alcatel-Lucent Enterprise datasheet of the 8018 DeskPhone.
