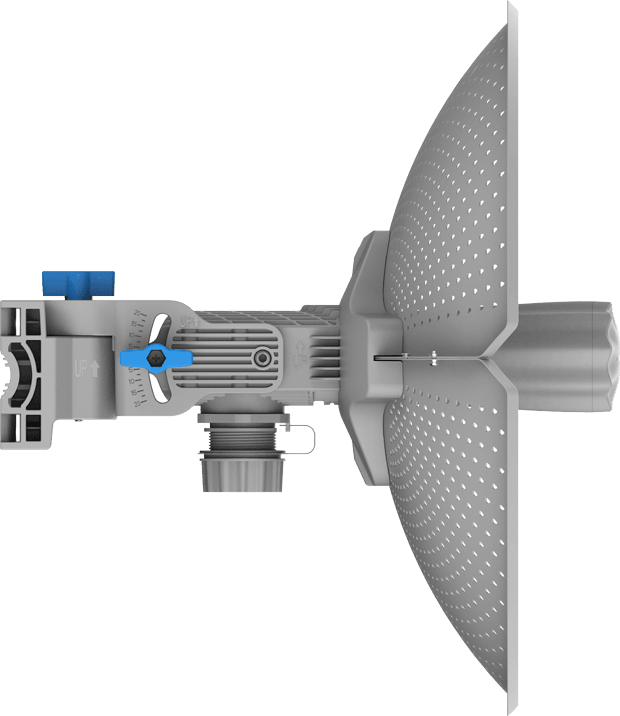

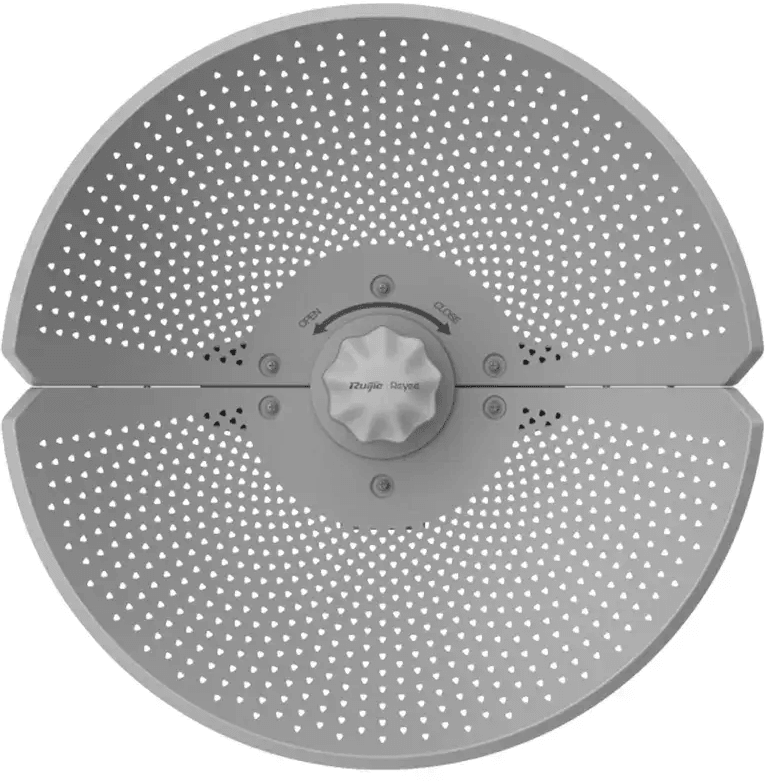

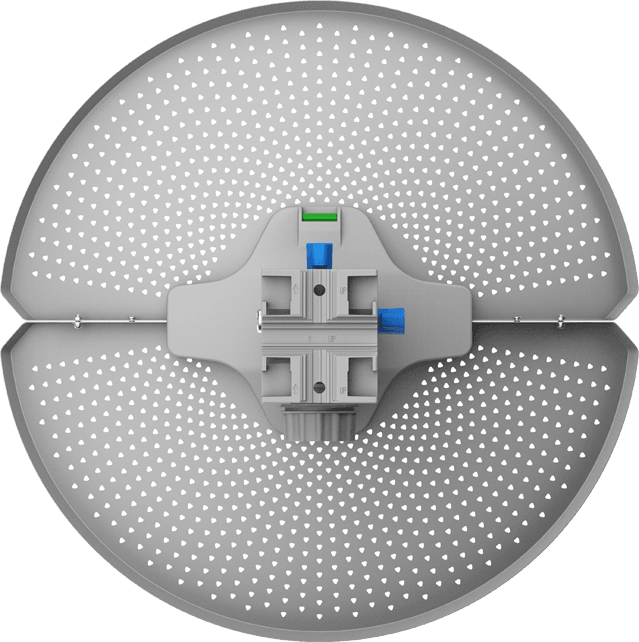

Reyee RG-AirMetro Series CPE Wi-Fi Bridges - PTP 15 km (RG-AIRMETRO460G)
23 dBi built-in antenna, a weatherproof housing and wind resistance up to 220 km/h: the link takes bad weather. Pairing in 30 seconds, assisted alignment, cloud management and a 24 V PoE injector included.
- 23 dBi built-in antenna
- Up to 867 Mbps on the 5 GHz band
- Up to 32 links in point-to-multipoint
- IP65 outdoor housing
- Wind resistance up to 220 km/h
- 6 kV surge protection and ±24 kV electrostatic discharge
- 1 Gigabit Ethernet port
- 24 V passive PoE power, injector included
- Power draw under 12 W
- One-button pairing, around 30 seconds
- Alignment tools, spectrum analysis and heat map
- Cloud management and web interface
- Operates from -40 to 70 °C
- Mount, clamps and reflectors included
Ref.: RG-AIRMETRO460G
1 169,00 DHincl. VAT
Limited quantity
Earn 12 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
Set up stable, powerful long-range links with the Reyee RG-AirMetro Wi-Fi bridge. Designed for PTP installations of up to 15 km, it delivers throughput of up to 867 Mbps on the 5 GHz band, ideal for smooth data transfers between two distant sites. With 23 dBi of gain and an IP65 housing, it withstands extreme weather, winds of up to 220 km/h and power surges. Quick 30-second pairing and intuitive Cloud management make deployment simple. Powered via 24 V PoE, this Wi-Fi bridge delivers performance, ruggedness and efficiency in demanding environments.
Request a quoteShare:
Technical specifications
| MTBF | Over 400,000 hours |
|---|---|
| Package contents | 1 wireless bridge, 1 PoE injector (24 V, 0.5 A), 1 power cord, 2 reflectors, 1 mounting bracket set, 1 user manual, 1 warranty card, 2 metal clamps |
| Number of units included | 1 bridge |
| IP protection rating | IP65, 6 kV surge protection |
| Wind resistance | 220.32 km/h (137 mph) |
| Electrostatic discharge protection | ±24 kV contact and air |
| Interfaces | 1 RJ45 port (10/100/1000 Mbps), 1 reset/WPS button |
| Network standards | IEEE 802.11a/n/ac on 5 GHz, IEEE 802.11b/g/n on 2.4 GHz |
| Advanced Wi-Fi technologies | Adaptive modulation from MCS0 (BPSK) to MCS9 (256-QAM 5/6) |
| Proprietary link protocol | TDMA, fixed or flexible mode |
| Maximum channel width | 20/40/80 MHz |
| Maximum Wi-Fi throughput per band | 867 Mbps on 5 GHz |
| Management modes | Local web interface, Ruijie Reyee app, cloud management |
| Installation and alignment tools | One-touch pairing, antenna alignment, spectrum scan and link optimisation, AI heat map, site survey tool |
| Cloud management platform | Ruijie Cloud |
| Layer 2 features | VLAN packet passthrough, storm control, WMM, DHCP server |
| Power consumption | Less than 12 W |
| Dimensions (diameter x length) | Ø 368.5 x 271 mm, mounting kit included |
|---|---|
| Frequency bands | 5 GHz link, 2.4 GHz management radio |
| Dedicated management radio | 2.412 to 2.472 GHz |
| Operating frequency range | 5 GHz (802.11a/n/ac): 5.150 to 5.350 GHz, 5.470 to 5.725 GHz and 5.725 to 5.850 GHz; 2.4 GHz (802.11b/g/n): 2.4000 to 2.483 GHz |
| Antennas | Built-in dual-polarised circular antenna (H and V ports), 23 dBi gain |
| Antenna beamwidth | 9° horizontal, 9° vertical |
| Stated range | 15 km |
| Number of PTMP links | Up to 32 PTMP links |
| Maximum transmit power | Adjustable from 0 to +26 dBm in 1 dB steps |
| Receiver sensitivity | 20 MHz channel: -95 dBm (MCS0) to -77 dBm (MCS7) · 40 MHz channel: -91 dBm to -73 dBm (MCS7) · 80 MHz channel: -89 dBm (MCS0) to -64 dBm (MCS9) |
| Security features | WPA2-PSK encryption, SSID hiding |
| Power supply | 24 V passive PoE, 24 V PoE injector included |
| Status indicators | 3 signal strength LEDs, 1 LAN LED, 1 system LED |
| Operating temperature | -40 to 70 °C; 60 °C maximum when the power adapter is used |
| Operating humidity | 5 to 95% non-condensing |
| Operating mode | Base station or CPE, PTP and PTMP links |
| Warranty | 1 year |
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
What distance does the Reyee RG-AirMetro 460G bridge cover?
Up to 15 km in a point-to-point link, thanks to a built-in 23 dBi antenna. Antenna gain is what gives the range: the higher it is, the narrower the beam, and the more precise the alignment has to be.
Can the Reyee RG-AirMetro 460G bridge withstand wind?
It is rated for wind resistance up to 220 km/h, in an IP65 housing, and operates from -40 to 70 °C. On a tower, it is wind load that decides whether the equipment survives, before the electronics do.
Is the Reyee RG-AirMetro 460G bridge protected against lightning?
It offers 6 kV surge protection and ±24 kV electrostatic discharge protection. On an outdoor link between two buildings, it is induced surges that destroy equipment, far more often than a direct strike.
Is the PoE injector supplied with the Reyee RG-AirMetro 460G?
Yes: the 24 V passive PoE injector is included, along with the bracket, clamps and reflectors. Nothing extra to order to set up the link, which is not always the case with this type of equipment.
How long does pairing the Reyee RG-AirMetro 460G take?
About 30 seconds, with one-touch pairing. The two ends recognise each other automatically: it is the mechanical alignment of the antennas that will take time, not the radio configuration.
How do you align the Reyee RG-AirMetro 460G bridge correctly?
It has alignment tools, spectrum analysis and a heat map. The heat map shows signal quality by orientation: you find the best aiming position on screen, instead of fumbling by ear.
How much power does the Reyee RG-AirMetro 460G bridge draw?
Less than 12 W, on a single Gigabit Ethernet port. This low consumption means the link can be powered at a remote site, including from a properly sized solar panel.
Does the Reyee RG-AirMetro 460G bridge work in point-to-multipoint mode?
Yes, with up to 32 links. A single station can therefore serve several remote sites, not just link two buildings — which changes the possible architecture of a wide-area network.
Is the Reyee RG-AirMetro 460G Wi-Fi bridge new and under warranty?
New, part number RG-AIRMETRO460G, in original Reyee packaging, with its injector and mounting hardware. The invoice serves as the warranty document for 1 year.
