Visit the Eaton store4.8(13 reviews)

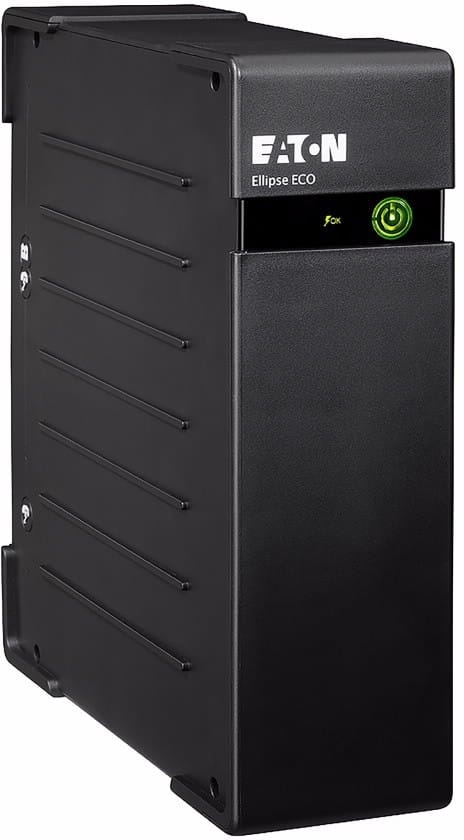

Eaton Ellipse ECO EL650USBFR Off-Line UPS - 400 W / 650 VA - 4 FR outlets
Nine minutes of runtime at half load, and the USB port lets the Eaton software switch the PC off if the outage lasts. Three outlets out of four battery-backed, the fourth against surges.
- Runtime 9 minutes at 50% load (200 W), 6 minutes at 70% (280 W)
- 3 battery-backed outlets and 1 surge-protected outlet
- USB port with cable included and Eaton software: automatic shutdown, alerts, history
- EcoControl: automatic power-off for peripherals on standby
- Built-in surge protection compliant with IEC 61643-1
- Protection for telephone, modem, Internet and Ethernet lines
- Replaceable sealed lead-acid battery, with periodic self-test
- Cold start possible with no mains supply
- Resettable circuit breaker after overload or short circuit
- Extra-flat 81 mm housing, vertical or horizontal placement
- Operation below 25 dBA
- Weight 3.6 kg
Ref.: EL650USBFR
1 299,00 DHincl. VAT
Out of stock
Manufacturer's datasheetView the PDF · 212 Ko — downloadable
Product overview
Compact entry-level UPS to protect a computer workstation: off-line technology and 650 VA / 400 W.
Technology & protection: when the power fails, it switches to battery within a few milliseconds and protects against surges.
Power: 650 VA for 400 W of usable power — a PC and its monitor.
Runtime: approx. 9 minutes at half load (200 W).

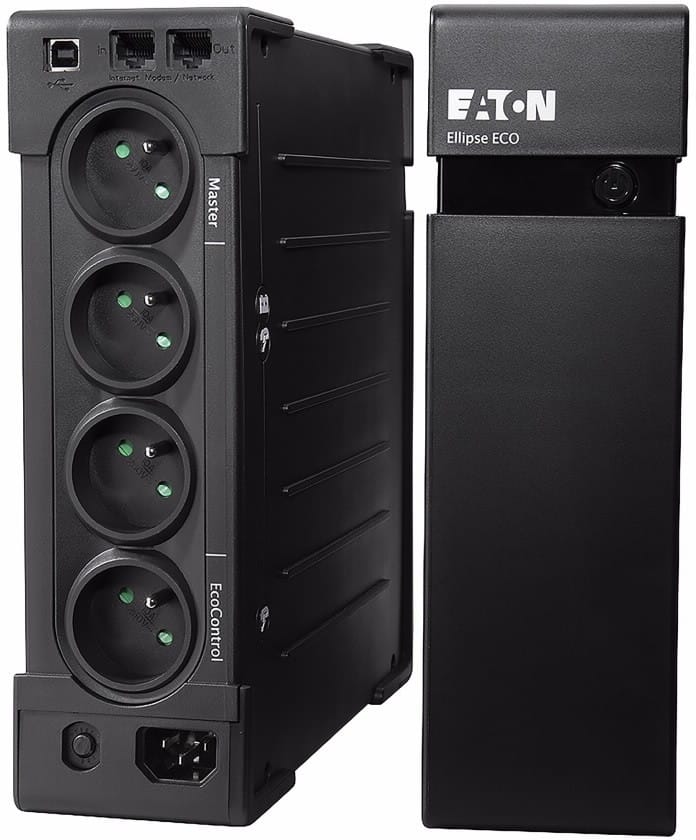

Outlets: 4 French outlets — 3 with battery backup, 1 with surge protection only — no adapter needed.
Management: USB port for automatic PC shutdown. Very quiet operation (below 25 dB).
Ideal, for example, for a desktop computer, an internet box or a camera.
Remember to check how much power your equipment draws and to choose the capacity according to the runtime you need.
Request a quoteShare:
Technical specifications
| Output voltage | 230 V (adjustable to 220 V, 230 V, 240 V) |
|---|---|
| Output connections | 3 FR outlets with battery backup and surge protection + 1 FR outlet with surge protection only; 1 EcoControl outlet and 1 powerline-compatible outlet |
| Input voltage | 230 V |
| Input frequency | 46-70 Hz |
| Input connections | (1) IEC-320-C14 |
| Voltage range | 184 - 264 V (adjustable from 161 to 284 V) |
| Input circuit breaker rating | Resettable circuit breaker |
| Battery type | Compact sealed lead-acid |
| Battery replacement | By the user |
| Battery management | Automatic self-test, deep discharge protection (4 h), LED replacement indicator and audible alarm |
| Interface port | 1 USB port (HID compatible, cable supplied) |

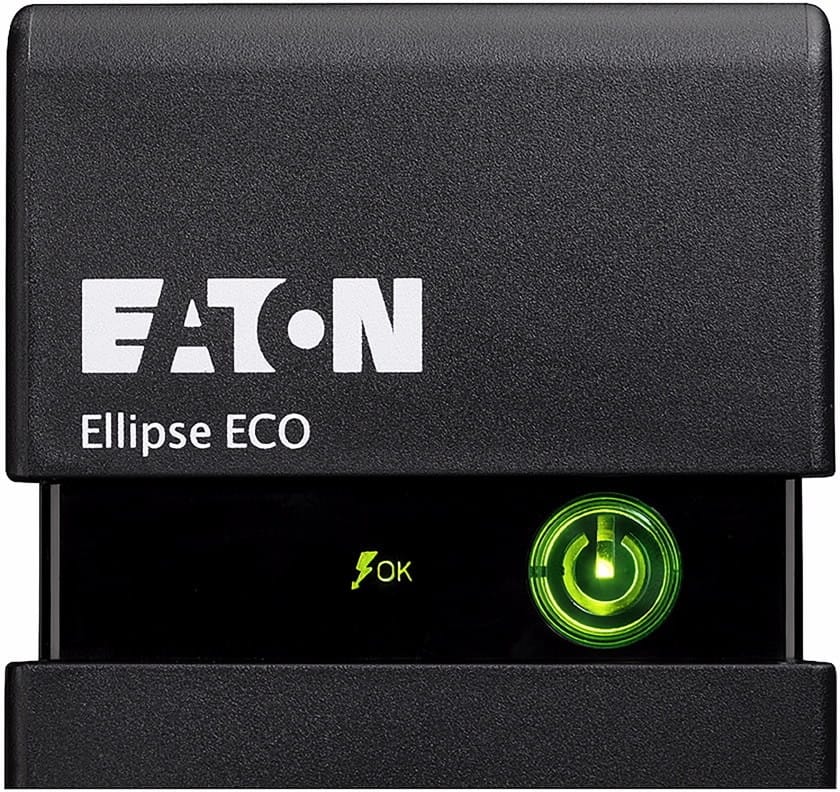

| User interface | Status LEDs (including battery replacement indicator) |
| Audible alarm | Audible battery replacement alarm |
| Power management software | Eaton Intelligent Power software supplied as standard (compatible with: Windows 7/Vista/XP, Mac OS X, Linux) |
| Weight (kg) | 3.6 kg |
| Dimensions (W x D x H) (mm) | 81 x 235 x 263 mm |
| Technology | Off-line |
| Power (VA) | 650 VA |
| Voltage stabiliser | No |
|---|---|
| Box contents | Power cord · USB cable · User manual in 20 languages · Safety instructions |
| Data line protection | Telephone / fax / modem / Internet and Ethernet line |
| Rack height | 2U with the ELRACK 19-inch rack kit (optional) |
| Surge protection and filtering | Built-in surge protector compliant with IEC 61643-1 |
| Cold start | Yes |
| Audible noise | < 25 dBA |
| Certifications | IEC 62040-1 · IEC 60950-1 · IEC 62040-2 · IEC 61643-1 · CB report · CE marking |
| Mounting | Vertical · Horizontal · Wall (optional ELWALL kit) · 19-inch rack, 2U (optional ELRACK kit) |
| Output frequency | 50-60 Hz |
| Phase (output/input) | Single-phase / Single-phase |
| Output type | FR outlets |
| Power (W) | 400 W |
| Runtime | 9 min at 50% load (200 W); 6 min at 70% (280 W) |
| Form factor | Tower |
| Battery-backed outlets | 3 to 4 outlets |
| Control & communication | USB |
| Warranty | 2 years |
Specific references
| EAN | 3553340620713 |
|---|
Downloads
Videos
Customer reviews
Write a review
4.8
13 customer reviews
Sécurité et tranquillité
Il remplit pour l'instant les fonctions pour lequel je l'ai commandé. RAS. Je l'utilise pour ma télévision et ses périphériques.
Rodriguez Vincent
Impeccable....
Indispensable des que l’ordinateur est utilisé professionnellement Indispensable aussi pour proteger un NAS et son précieux contenu. Economique et fiable, tout en étant parfaitement silencieux.
Atacama Atacama
Excellent onduleur.
Onduleur parfait pour mon usage. Mon ordi ne s'arrête plus intempestivement suite aux baisses de tension . Tout fonctionne mieux. Aucun regret pour cet achat.
giacomel viviane
Bon produit
Cet onduleur est vraiment pratique, peu encombrant et d'une puissance suffisante pour votre pc, imprimante et tout les périphériques qui vont avec.Bien il ne tien pas des heures mais bien un bon quart d'heure..
Narasoy Blackjack
Génial
Il est rapide à installer. Il est très discret et très design.Je le recommande vivement.Nombre de prises correctes.
lolo
Frequently asked questions about this product
What is the USB port on the Ellipse ECO EL650USBFR for?
It lets the Eaton software shut down the PC properly if the power cut goes on: automatic shutdown, alerts and event history. The USB cable is supplied, and the software is compatible with Windows, macOS and Linux. This is what sets this version apart from the model without USB in the same range.
What does the EcoControl function of this UPS do?
It automatically switches off peripherals on standby when the master device shuts down: the monitor, printer and speakers no longer draw power all night because the PC is off. This function is only available on the USB models in the range.
How long does the EL650USBFR run on battery?
9 minutes at 50% load, i.e. 200 W, and 6 minutes at 70%, i.e. 280 W. These are the two benchmarks to compare with your setup: it is the load actually plugged in, not the 650 VA in the name, that determines the runtime.

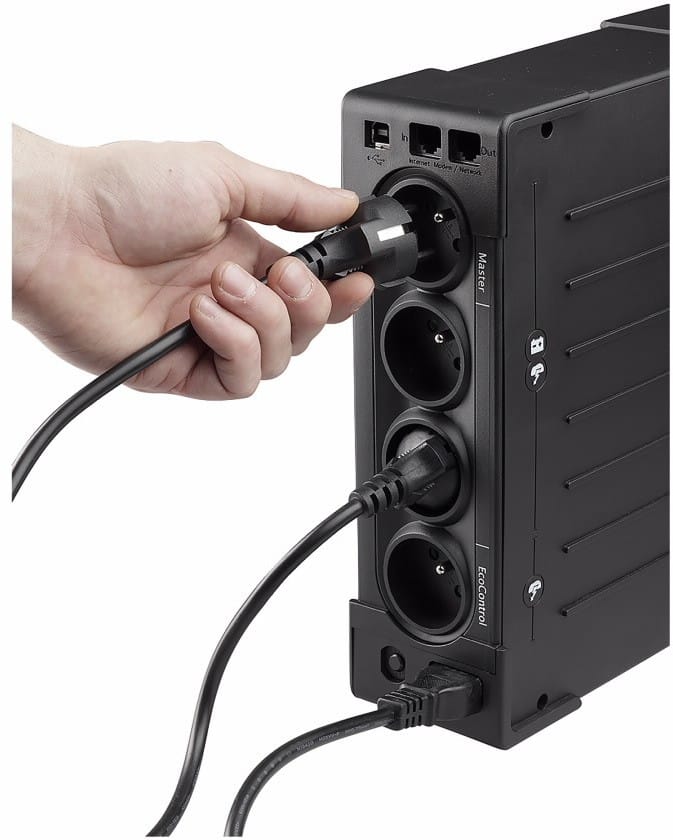

Are all four outlets battery-backed?
No: three French outlets run on battery; the fourth is surge-only. Keep the first three for the desktop tower, the monitor and the internet box, and save the fourth for a device that can switch off without consequences.
Does the UPS protect the telephone and internet line?
Yes, its built-in surge protection, compliant with the IEC 61643-1 standard, also covers data lines: telephone, modem, internet and Ethernet. A surge arriving through the line destroys an internet box just as surely as a spike on the mains.

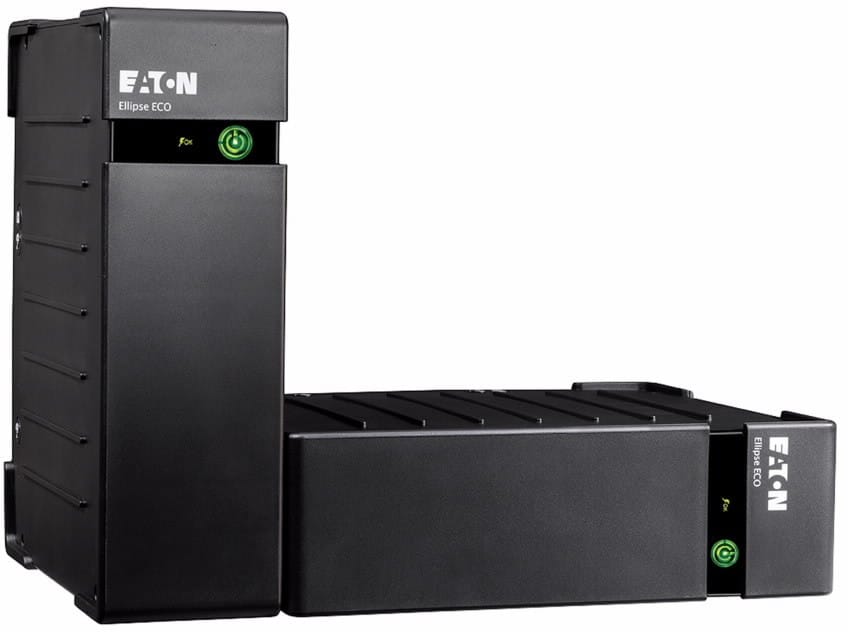

How do you install a unit that is 81 mm thick?
Vertically under a desk, flat under a monitor, or wall-mounted — the extra-flat Ellipse ECO format is designed for all three. It measures 263 mm high, 81 wide and 235 deep: one of the most compact UPS units in its category.
Does this UPS regulate the mains voltage?
No, it has no AVR regulator: as an off-line model, it passes mains power through as long as it stays within the 184-264 V range — adjustable from 161 to 284 V — and switches to battery outside it. On a highly fluctuating grid, a line-interactive UPS is easier on the battery.

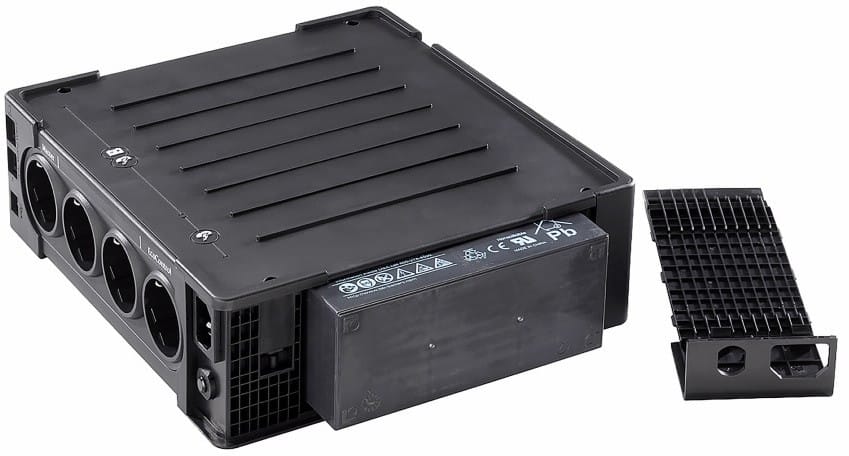

Can the battery be replaced, and does the UPS give warnings?
Yes, the sealed lead-acid battery is replaceable, and an automatic periodic self-test detects the problem before it happens. LED indicators and an audible alarm complete the signalling.
What happens in the event of an overload, and does the UPS start without mains power?
A resettable circuit breaker cuts the power and is brought back into service at the press of a button, with no fuse to change. And yes, the unit supports cold start: it switches on from the battery even with no power present.
What is in the box of the EL650USBFR?
The UPS, its power cord, the USB cable, the manual in 20 languages and the safety instructions. The Eaton power management software is supplied as standard: nothing extra to order for automatic shutdown.
Is the Eaton Ellipse ECO EL650USBFR new and under warranty?
Yes, new equipment, with the invoice serving as the warranty document, for 2 years on a standard-exchange basis, batteries included. It runs below 25 dBA and its output is adjustable to 220, 230 or 240 V. The datasheet compares the models in the range.
