TP-Link Omada 4G+ Cat6 WiFi AX3000 Gigabit VPN Router (ER706W-4G)

Two Nano SIM slots take over from the fixed line, or replace it, with 300 Mbps downstream. Seven ports including an SFP, five removable antennas and a deep packet inspection firewall, all driven from the Omada cloud.

  • Up to 2,402 Mbps on the 5 GHz band and 574 Mbps on 2.4 GHz
  • 2 Nano SIM slots: up to 300 Mbps down, 50 Mbps up
  • 1 SFP WAN/LAN port, 1 WAN port and 4 Gigabit WAN/LAN ports
  • 5 removable antennas: 3 for Wi-Fi, 2 for the mobile network
  • IPsec VPN (100 tunnels), SSL, WireGuard, OpenVPN, PPTP, L2TP and GRE
  • Deep packet inspection, over 2,400 applications recognised
  • DoS defence, URL filtering by category and stateful access lists
  • 150,000 simultaneous sessions
  • Guest network, WPA3 personal and enterprise encryption
  • Omada mesh with compatible EAP access points
  • Sending and receiving SMS from the interface
  • Centralised management through the Omada cloud or the app
  • 4 kV surge protection
  • Desk, wall or rack mounting (kit not included)
Ref.: ER706W-4G

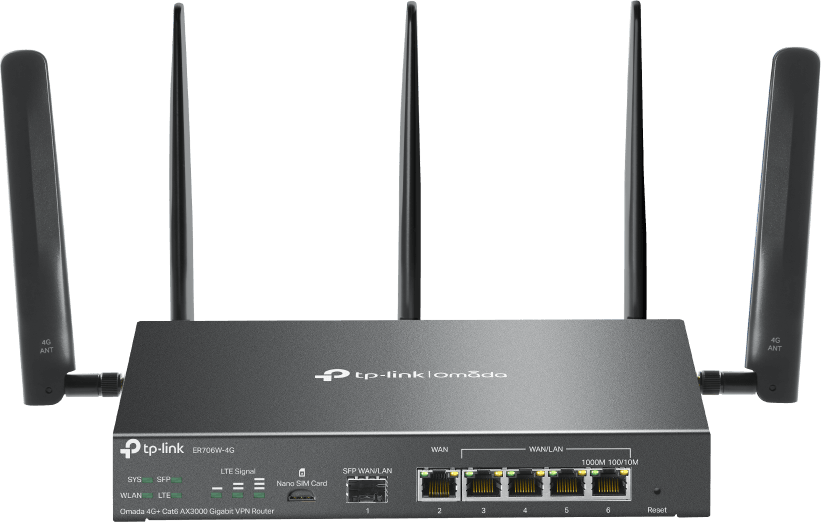

TP-Link Omada 4G+ Cat6 WiFi AX3000 Gigabit VPN Router (ER706W-4G) — image 1

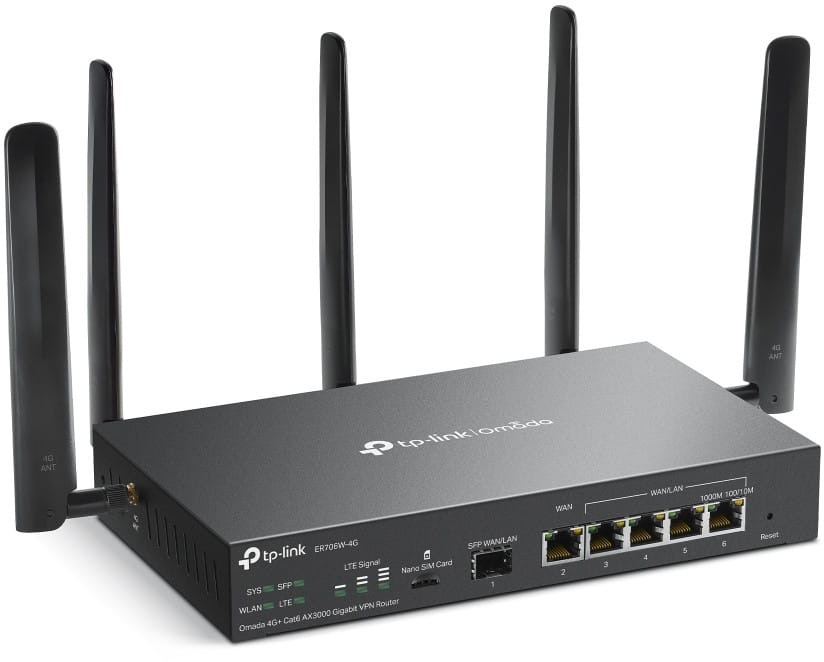

TP-Link Omada 4G+ Cat6 WiFi AX3000 Gigabit VPN Router (ER706W-4G) — image 2

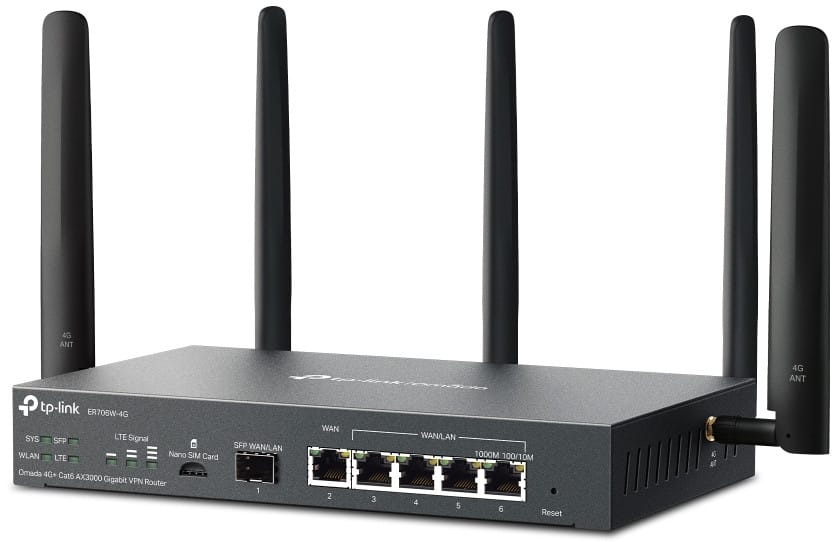

TP-Link Omada 4G+ Cat6 WiFi AX3000 Gigabit VPN Router (ER706W-4G) — image 3

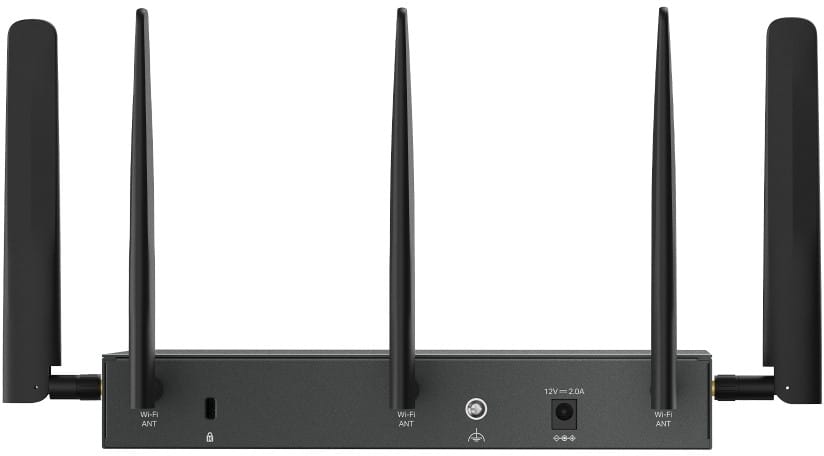

TP-Link Omada 4G+ Cat6 WiFi AX3000 Gigabit VPN Router (ER706W-4G) — image 4

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/4
4 659,00 DHincl. VAT

Out of stock

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 2,1 Mo — downloadable

Product overview

Unleash the full power of your network with the TP-Link Omada 4G+ Cat6 WiFi AX3000 Gigabit VPN router. Built for demanding environments, it combines speed, security and reliability. With 4G+ Cat6, enjoy up to 300 Mbps from a single Nano SIM card, while dual-band WiFi 6 delivers smooth throughput of up to 3 Gbps. Its 6 Gigabit ports provide stable connections, and its 5 high-gain antennas extend coverage seamlessly. With Omada cloud management, control your network remotely with ease. Finally, its advanced VPN protocols provide professional-grade security, ideal for businesses and remote workers in Morocco.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
Package contentsER706W-4G gateway, power adapter, rubber feet, quick installation guide; neither an Ethernet cable nor a rack-mount kit is supplied
Product typeOmada-managed business 4G+ Wi-Fi 6 VPN gateway, mains-powered
Number of SSIDs16 SSIDs in total, 8 per radio
Internal memory512 MB DDR4 RAM, 256 MB NAND flash memory
Interfaces1 Gigabit SFP WAN/LAN port, 1 Gigabit RJ45 WAN port, 4 Gigabit RJ45 WAN/LAN ports, 2 Nano SIM slots, reset button
Concurrent sessions150,000 concurrent sessions, 5,100 new sessions per second
Rated routing throughput943 Mbps upload and 941 Mbps download in NAT with a static IP; 933 Mbps TCP and 927 Mbps UDP with application inspection
Supported WAN technology4G+ cellular WAN on two SIM cards, RJ45 Ethernet WAN and SFP WAN, with intelligent load balancing and scheduled or automatic link backup
Network standardsIEEE 802.11a/b/g/n/ac/ax, IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.1q
Advanced Wi-Fi technologiesOFDMA, beamforming, MU-MIMO, band steering, airtime fairness, load balancing
Maximum Wi-Fi throughput per band574 Mbps at 2.4 GHz, 2,402 Mbps at 5 GHz
Management modesLocal web interface, remote management, Omada app, hardware or software Omada controller, SNMP v1/v2c/v3, command-line interface, syslog
Cloud management platformOmada: hardware controller, software controller or Omada Central (cloud)
Layer 2 features802.1Q VLAN, bridge VLAN, IPTV with IGMP v2/v3 proxy, quality of service, mDNS repeater, local DNS, stateful access control lists
Roaming and meshSeamless roaming and Omada Mesh technology, with compatible EAP access points
Power consumption15.4 W maximum
Weight0.96 kg
Dimensions (W x D x H)226 x 131 x 35 mm, excluding antennas
Technical specifications (continued)
Frequency bandsDual-band: 2.4 GHz and 5 GHz
Antennas2 detachable external omnidirectional 4 dBi 4G LTE antennas; 3 detachable external dual-band Wi-Fi antennas, 5 dBi on 5 GHz and 3.5 dBi on 2.4 GHz
External antenna connectors2 external 4G LTE antenna connectors (detachable antennas); connector type not published by the manufacturer
Security featuresWPA, WPA2 and WPA3 Personal and Enterprise, RADIUS accounting, MAC authentication, SSID hiding, captive portal
SIM format2 Nano SIM slots
Power supplyExternal power adapter 12 V DC / 2 A
FirewallDefence against TCP/UDP/ICMP flood attacks, blocking of TCP scans and pings from the WAN, URL and web category filtering, IPv4/IPv6 and country-based access control lists, ARP inspection
Compatible mobile networks4G LTE (FDD and TDD), 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA
LTE categoryLTE Cat 6 (4G+, with carrier aggregation)
Rated maximum cellular throughput300 Mbps download and 50 Mbps upload
Supported cellular bands4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz); 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz); 3G: B1/B3/B5/B8 (2100/1800/850/900 MHz) — European market bands
Carrier aggregation2 aggregated carriers, European market: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41, B3+B3/B5/B7/B8/B20/B28/B38/B40/B41, B5+B5/B7/B38/B40/B41, B7+B7/B8/B20/B28/B32, B8+B32/B38/B40/B41, B20+B32/B38/B40, B28+B32/B38/B40/B41, B38+B38, B40+B40, B41+B41
Status indicatorsSYS, WLAN, SFP, LTE1, LTE2, LTE signal, WAN, WAN/LAN
VPNIPsec, PPTP, L2TP and OpenVPN server and client; GRE, WireGuard, SSL and SD-WAN
Concurrent VPN tunnels100 IPsec tunnels, 50 PPTP tunnels, 50 L2TP tunnels, 55 OpenVPN tunnels, 50 SSL tunnels
Operating temperature0 to 40 °C
Operating humidity10 to 90% non-condensing
Warranty1 year
