Several internet lines combined, with automatic failover if one drops. Up to 100 IPSec tunnels, a captive portal for guests and monitoring through the Omada platform, in the cloud or on site.

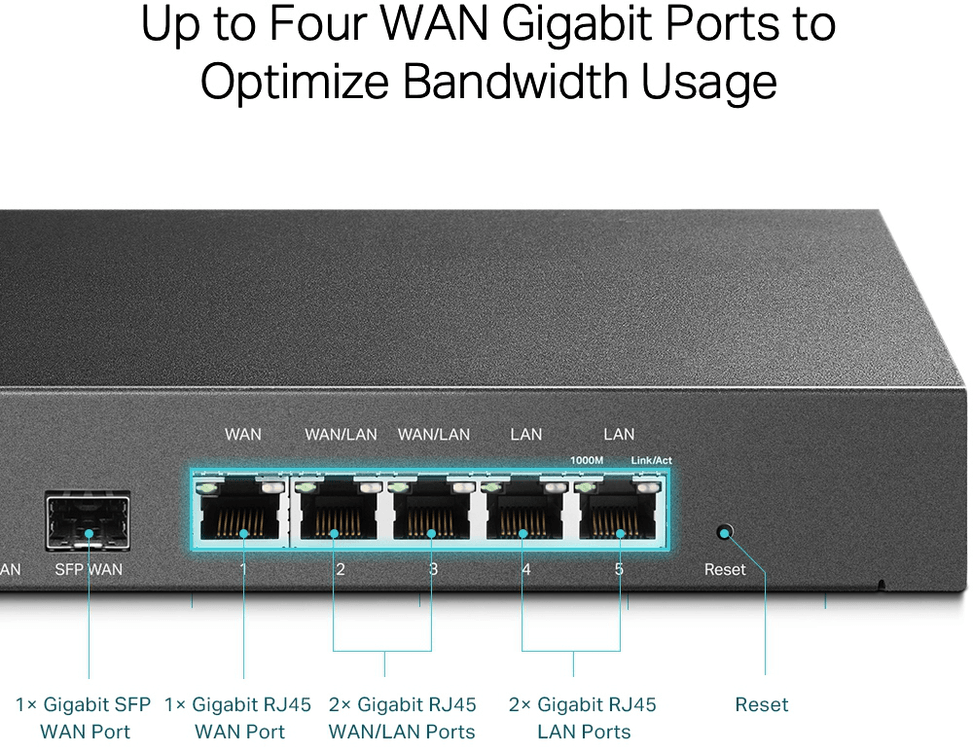

1 SFP fibre WAN port, 1 RJ45 WAN port, 2 configurable WAN/LAN ports and 2 LAN ports
Load balancing across several internet lines and automatic failover
Up to 100 IPSec VPN tunnels
OpenVPN, PPTP, L2TP and L2TP over IPSec servers
150,000 concurrent sessions
NAT throughput measured at 940 Mbps
Captive portal for guest authentication
Bandwidth control and session limit per IP address
Flood attack defence, URL filtering and access control
Centralised Omada management, in the cloud or on site

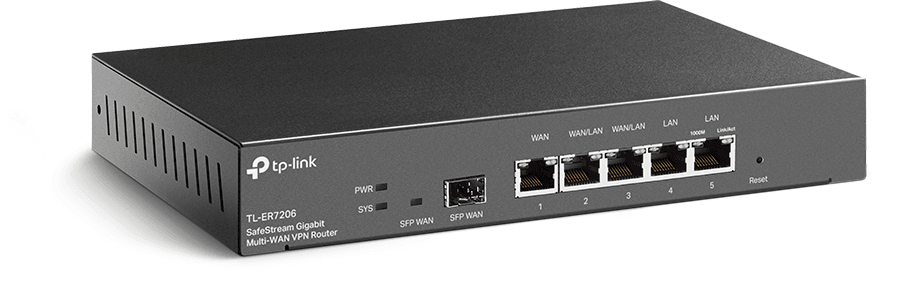

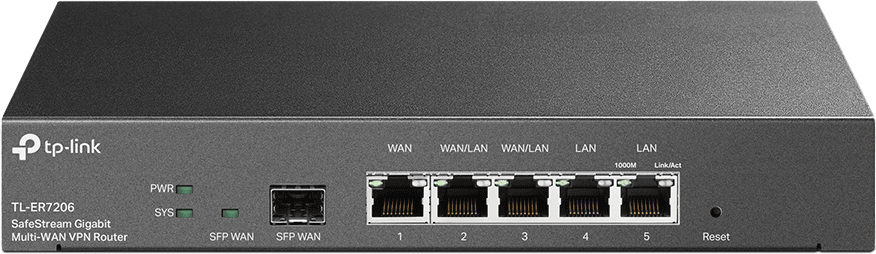

TP-Link ER7206 SafeStream Gigabit Multi-WAN VPN router: make your business Internet access more secure and more reliable. Ports:Gigabit ports, Multi-WAN to combine bandwidth or fail over automatically when a line goes down. VPN: numerous IPSec, PPTP, L2TP and OpenVPN tunnels to link sites and remote workers. Security: firewall, DoS defence, filtering and access control. Management: centralised via Omada SDN, cloud or on-premises. Use cases: SMEs, shops, multi-site branches. A robust VPN gateway for a business network that never stops.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many Internet connections can this TP-Link router aggregate?
Up to four: 1 SFP fibre WAN port, 1 RJ45 WAN port and 2 configurable WAN/LAN ports, plus 2 LAN ports. Load balancing spreads the traffic and failover is automatic if a line goes down.

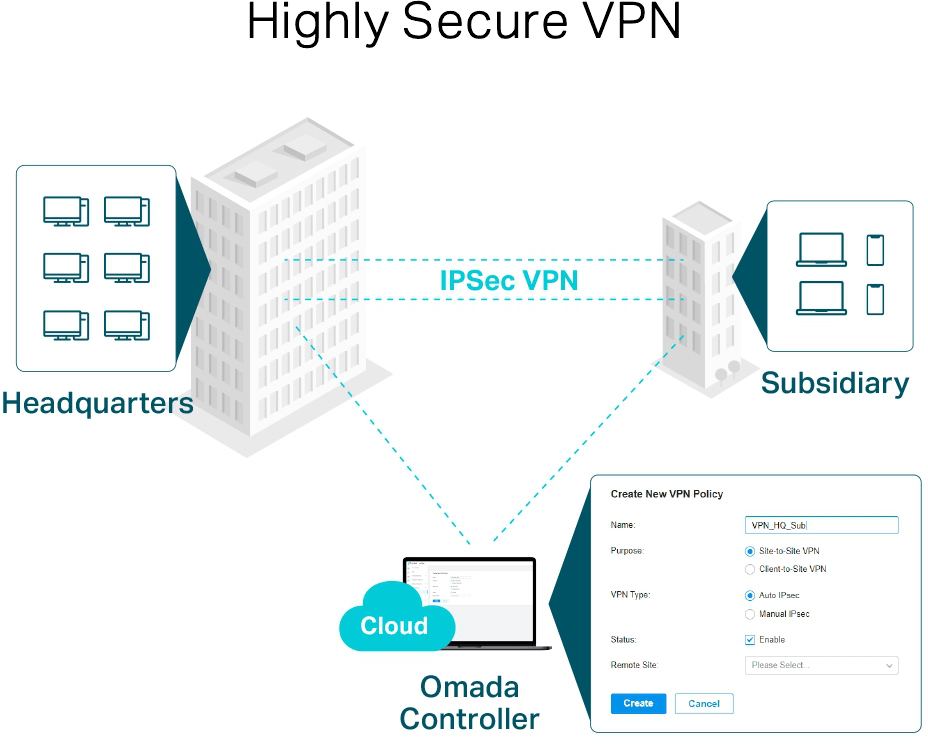

How many VPN tunnels does this SafeStream router support?
Up to 100 IPSec tunnels. It also includes OpenVPN, PPTP, L2TP and L2TP over IPSec servers — enough to connect remote sites as well as mobile workers.
How many users can this router serve?
It handles 150,000 concurrent sessions and has a measured NAT throughput of 940 Mbps. These are the two figures that determine the size of network it can serve, more than the number of ports.
Can this router manage a guest network?
Yes: a captive portal handles guest authentication, with bandwidth control and a limit on the number of sessions per IP address. This is what prevents a single device from saturating the line.

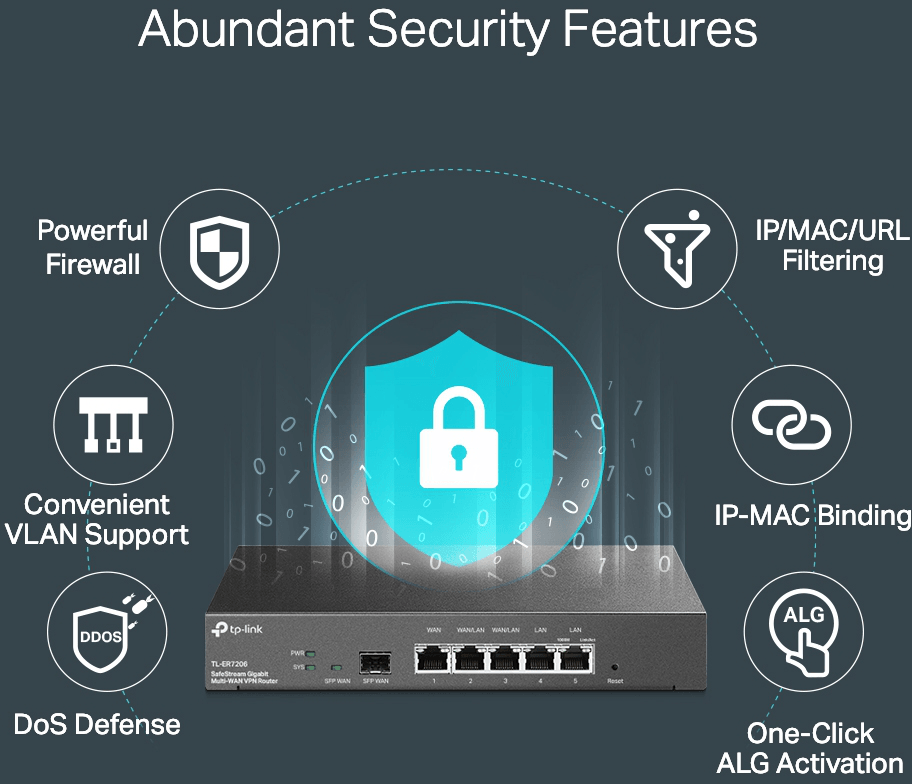

What protections does this router include?
Defence against flood attacks, URL filtering and access control. On the hardware side, lightning protection up to 4 kV protects the input ports.

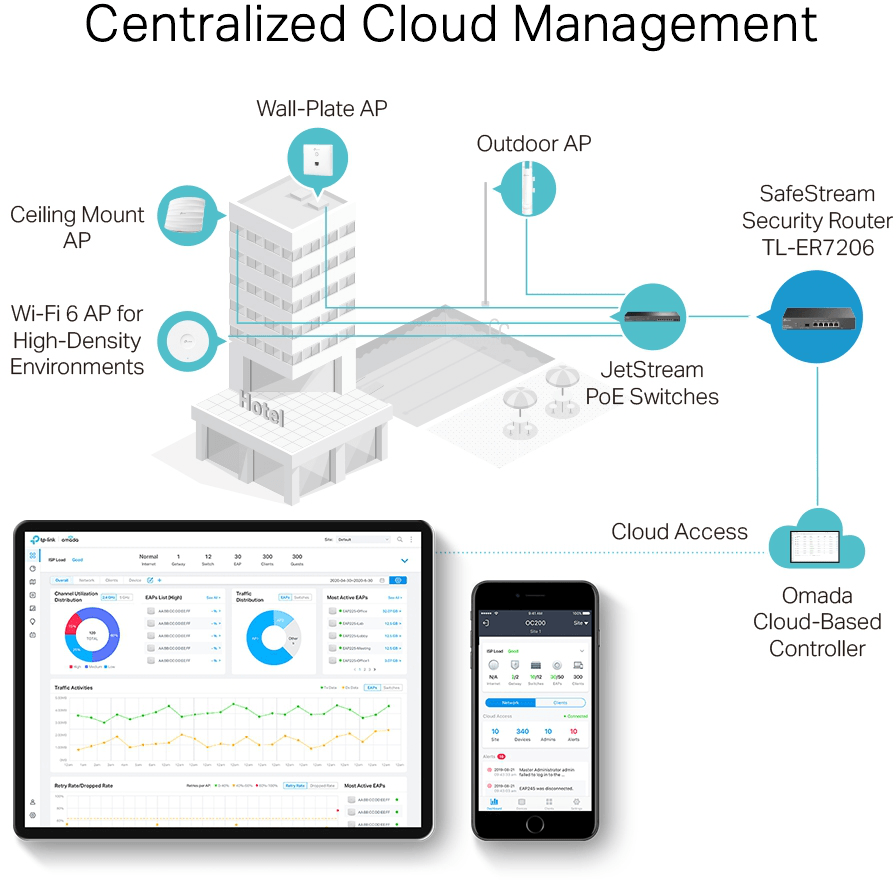

Can this router be managed remotely?
Yes: through Omada centralised management, in the cloud or on-premises. This is what lets you manage several sites from a single console.
Is this TP-Link ER7206 router new and under warranty?
Yes, it is a new TP-Link product, reference ER7206, a Gigabit multi-WAN VPN router from the SafeStream range. The invoice serves as the warranty document, for a period of 1 year. Datasheet: TP-Link ER7206.
