Reyee RG-EG105GW(T) Wi-Fi 5 Business Router 1267 Mbps

One button is enough to extend coverage over Reyee Mesh, with no extra cabling. 867 Mbps on the 5 GHz band and 400 Mbps on 2.4 GHz, up to 4 balanced WAN links and free cloud management from the app.

Up to 867 Mbps on the 5 GHz band
Up to 400 Mbps on the 2.4 GHz band
Up to 150 recommended network clients, 60 simultaneous wireless clients
Recommended range of around 40 m per band, measured in a laboratory
5 Gigabit ports, 3 of them switchable, up to 4 WAN ports
Multi-WAN load balancing and automatic failover
Reyee Mesh: network extension at the press of a button
2x2 MIMO on both bands, internal omnidirectional antennas
IPSec, L2TP, PPTP and OpenVPN VPN
Customisable captive portal and authentication by SMS or password
Application identification and prioritisation, flow control
Stateful firewall, web filtering, IP-MAC binding and anti-attack defences
Free Ruijie Cloud management with a mobile app
USB 2.0 port, IP30 rating, passive cooling
Mounting on a desk flat, upright or on a wall

Ref.: RG-EG105GW(T)

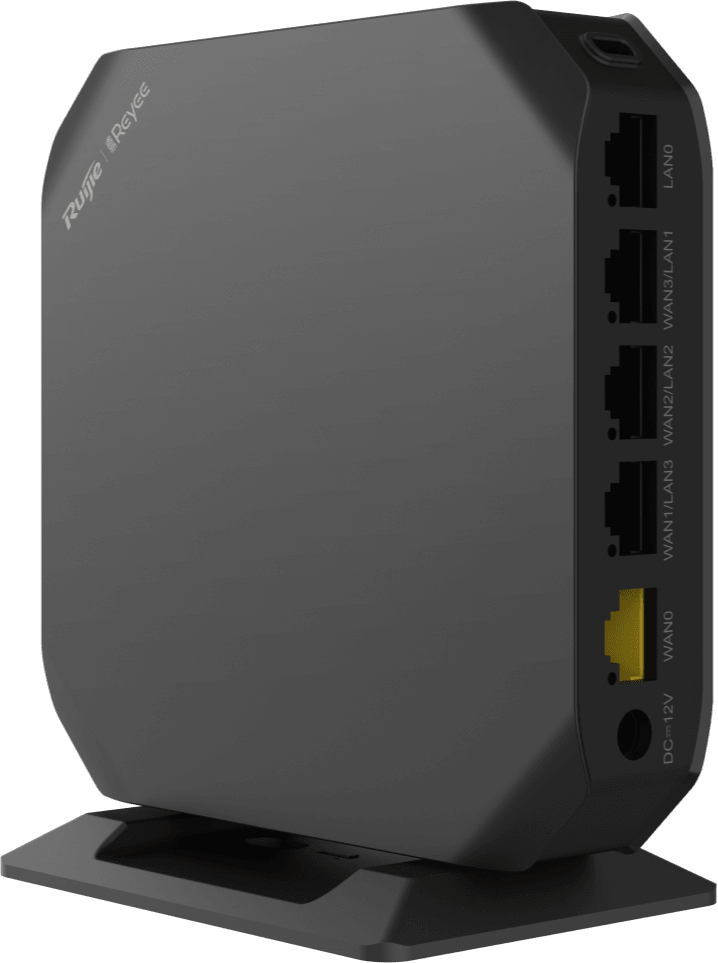

Reyee RG-EG105GW(T) Wi-Fi 5 Business Router 1267 Mbps — image 1

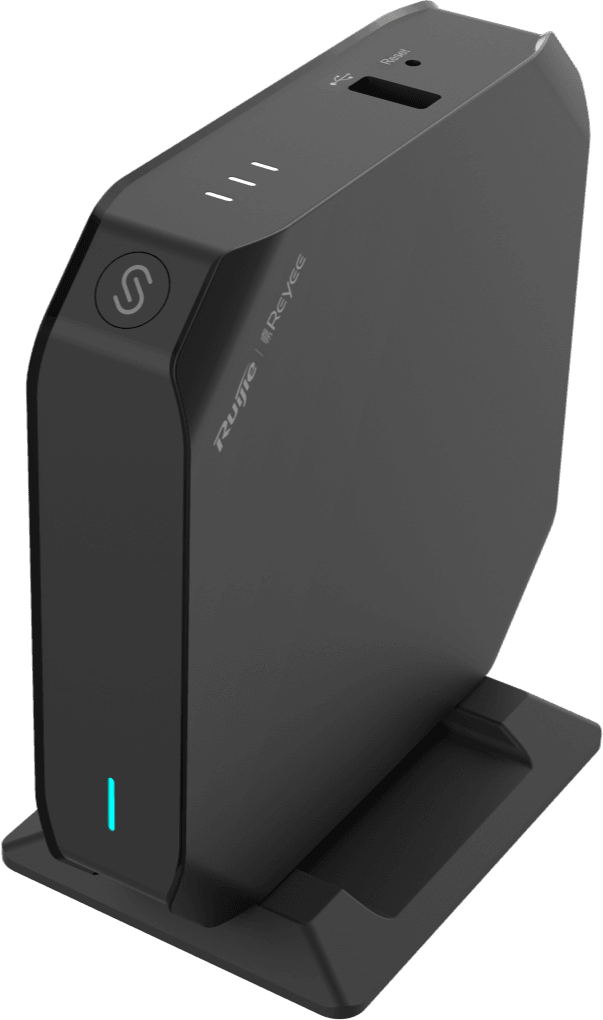

Reyee RG-EG105GW(T) Wi-Fi 5 Business Router 1267 Mbps — image 2

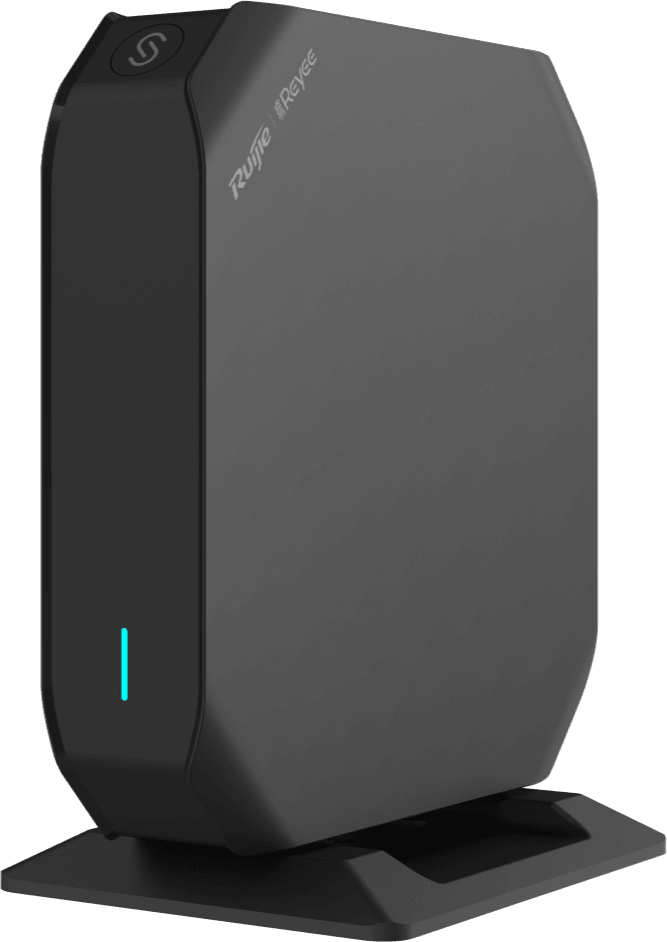

Reyee RG-EG105GW(T) Wi-Fi 5 Business Router 1267 Mbps — image 3

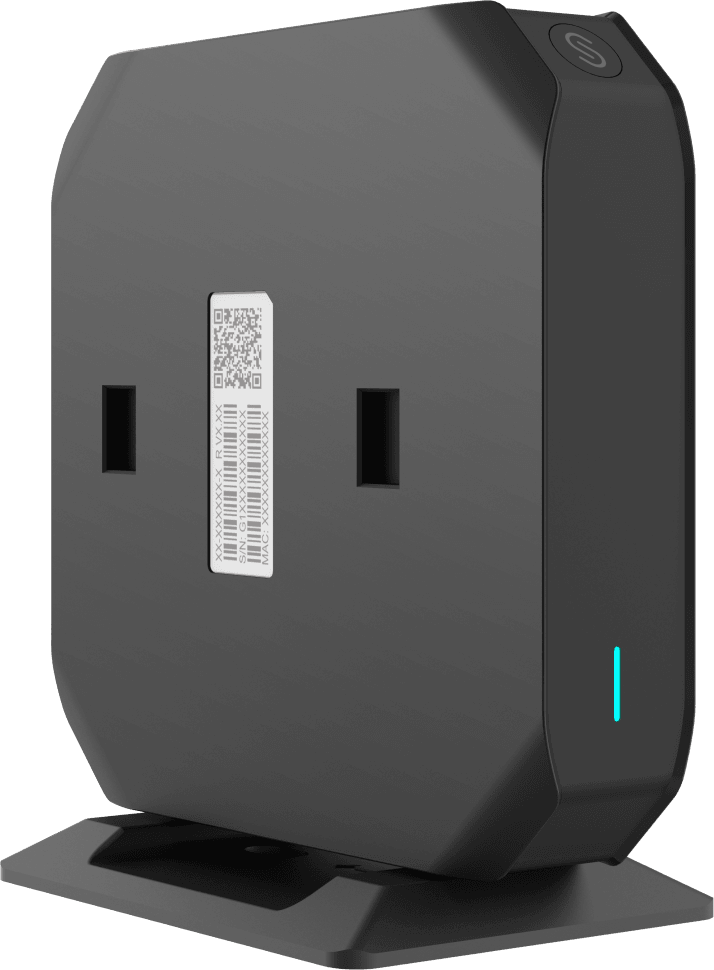

Reyee RG-EG105GW(T) Wi-Fi 5 Business Router 1267 Mbps — image 4

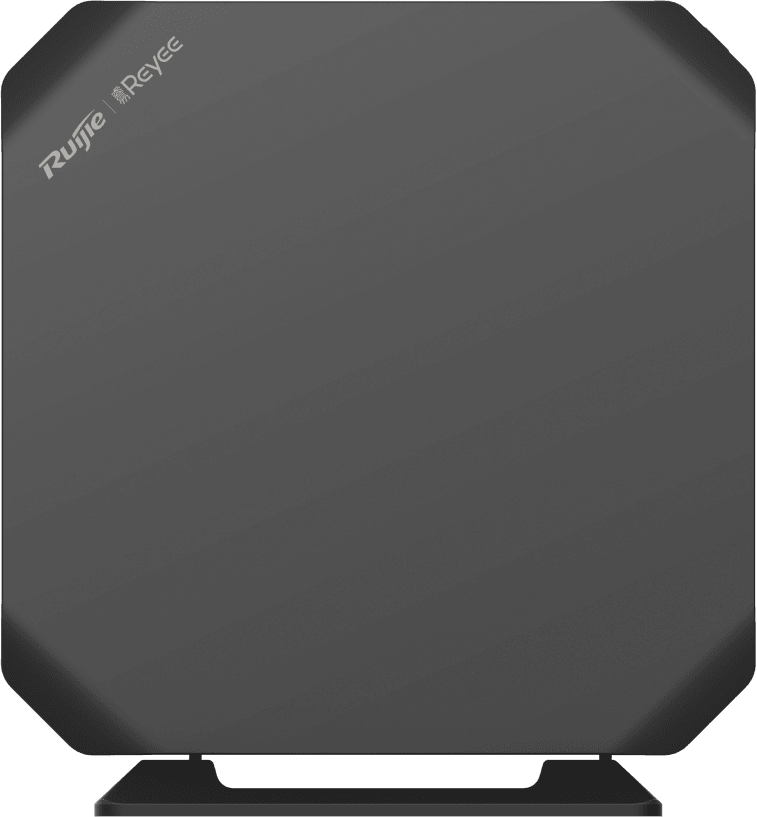

Reyee RG-EG105GW(T) Wi-Fi 5 Business Router 1267 Mbps — image 5

969,00 DHincl. VAT

In stock

Quantity

Earn 10 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.

Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco

Free in-store collection: Casablanca (on site) · Témara (within 48 h)

1 year warranty — free repair in Morocco if it breaks down during the warranty period

100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque

Manufacturer's datasheetView the PDF · 3,3 Mo — downloadable

Product overview

Streamline your business connectivity with this powerful, reliable Reyee Wi-Fi 5 router. With built-in Mesh technology, you can set up your network in one click and enjoy stable coverage without complex cabling. Offering speeds of up to 1267 Mbps and capacity for 150 users, it keeps things running smoothly for small organisations. Its 4 WAN ports with load balancing keep you connected at all times, while free Cloud management makes remote monitoring simple. Compact, powerful and secure, this router is the ideal tool for businesses looking for network efficiency and flexibility.

See all the specifications ↓

Request a quoteShare:

Technical specifications

Technical specifications
Package contents	Router, power adapter, mounting bracket with 4 pads
IP protection rating	IP30, ±4 kV surge protection on the ports
Internal memory	256 MB RAM, 32 MB SPI NOR flash memory
Interfaces	1 Gigabit RJ45 WAN port, 3 Gigabit RJ45 WAN/LAN ports, 1 Gigabit RJ45 LAN port, 1 USB 2.0 port, 1 reset button
Concurrent sessions	12,000 concurrent connections, 1,024-entry ARP table
Rated routing throughput	600 Mbps; 80 Mbps in SD-WAN
Supported WAN technology	Ethernet 10/100/1000BASE-T
Network standards	IEEE 802.11a/b/g/n, 802.11ac Wave 2, 802.3, 802.3u, 802.3ab, 802.1Q
Advanced Wi-Fi technologies	OFDM, DSSS and MIMO-OFDM modulations up to 256-QAM, transmit power adjustment
Maximum channel width	80 MHz on 5 GHz, 40 MHz on 2.4 GHz
Spatial streams and MU-MIMO	2×2 on 2.4 GHz, 2×2 on 5 GHz, 2 spatial streams per band
Maximum Wi-Fi throughput per band	400 Mbps at 2.4 GHz, 867 Mbps at 5 GHz
Management modes	eWeb web interface over HTTPS, Ruijie Cloud app, SNMP, self-organising network (SON)
Cloud management platform	Ruijie Cloud
Managed access points	150 devices in router mode
Layer 2 features	Port-based 802.1Q VLAN with priority, up to 16 VLANs, bandwidth aggregation, IPTV, port forwarding
Roaming and mesh	Reyee Mesh, push-button pairing
Power consumption	15 W maximum
Weight	0.251 kg
Dimensions (W x D x H)	120 x 120 x 28 mm (without the mounting plate)

Technical specifications (continued)
Processor	880 MHz
Number of ports	5 ports or fewer
Frequency bands	Dual-band: 2.4 GHz and 5 GHz
Antennas	Internal omnidirectional antennas, gain 3.0 dBi at 2.4 GHz and 4.0 dBi at 5 GHz
Stated range	40 m on 2.4 GHz and 40 m on 5 GHz (laboratory measurement with no obstacles)
Maximum transmit power	26 dBm on 2.4 GHz, 26 dBm on 5 GHz
Security features	Customisable captive portal, RSSI threshold at association and eviction of low-RSSI clients
Power supply	External power adapter 12 V DC 1.5 A
Firewall	Stateful firewall, website filtering and auditing, defence against Fraggle, Teardrop, Land attacks, IP-MAC binding, MAC filtering, session limiting
Status indicators	1 system LED and 3 mesh LEDs
VPN	Site-to-site and client-to-site IPsec, OpenVPN, PPTP, L2TP
Concurrent VPN tunnels	8 IPsec tunnels, 8 PPTP, 8 L2TP, 8 OpenVPN, 24 SD-WAN tunnels to 8 sites, 100 universal VPN accounts
Operating temperature	0 to 40 °C
Operating humidity	5 to 95% non-condensing
Wi-Fi standard	Wi-Fi 5
Port speed	1 Gbps (Gigabit)
Router type	Wi-Fi router
Simultaneously connected devices	150 recommended clients, 60 concurrent wireless clients (16 at 2.4 GHz, 64 at 5 GHz)
Warranty	1 year

Specific references

EAN	6971693272958

Downloads

Fiche technique(PDF)

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review

Frequently asked questions about this product

How many ports does the RG-EG105GW(T) really have, and how are they split?

5 Gigabit RJ45 ports in total: 1 fixed WAN, 1 fixed LAN and 3 switchable LAN/WAN ports. You can therefore set up as many as 4 WAN or as many as 4 LAN, never both at once. A USB 2.0 port rounds out the set; beyond 4 wired devices, you will need to add a switch.

What Internet throughput can this router really handle?

Its forwarding throughput is 600 Mbps: beyond that, the router becomes the bottleneck, not the line. Its 880 MHz processor and 256 MB of memory handle 12,000 concurrent connections and an ARP table of 1,024 entries, which suits a very small business or a busy shop.

Does the VPN keep up with the same throughput as the Internet connection?

No, and the gap is significant: 24 Mbps with IPSec and OpenVPN, versus 140 Mbps with L2TP and PPTP, far below the 600 Mbps of routing. Allow for 8 tunnels per protocol and up to 100 VPN accounts: enough for application access and monitoring between sites, less so for large file transfers.

How many devices can it handle, and how many over Wi-Fi?

Here again, two different figures: 150 recommended network clients in total, and 150 devices managed in router mode, but only 60 concurrent wireless clients on its radios. It is this second figure that matters if all your computers connect over Wi-Fi.

Is this router's Wi-Fi Wi-Fi 6?

No, it is Wi-Fi 5 (802.11ac Wave 2), as 802.11ax is not supported: 1,267 Mbps combined, i.e. 867 Mbps on 5 GHz and 400 Mbps on 2.4 GHz, in 2×2 MIMO on each band.

Is the advertised 40 m range realistic?

It is a value measured in the lab, with no obstacles, on both bands: in premises with partition walls, expect noticeably less. The antennas are built into the case (3 dBi on 2.4 GHz, 4 dBi on 5 GHz), and it is Reyee Mesh, enabled at the push of a button, that extends coverage without re-cabling.

What's in the box?

The router, its 12 V / 1.5 A power adapter and a mounting kit with 4 feet. It can lie flat, stand upright or be wall-mounted, and is cooled without a fan — 120 × 120 × 28 mm for 251 g.

Can this router power cameras or access points over PoE?

No, none of its ports supplies PoE. To power IP cameras or access points over the network cable, you need to insert a PoE switch or injectors between the router and the devices. The router itself draws 15 W at most and has ±4 kV surge protection on its ports.

Can I access an on-site NVR or camera remotely?

Yes, even with a dynamic or private IP from the ISP. Free Reyee DDNS, port forwarding (up to 256 rules, with NAT loopback) and Ruijie Cloud let you reach an internal device from outside. So you do not need to subscribe to a static IP to monitor a site.

Can I set up a Wi-Fi access portal for the customers of a café or hotel?

Yes: customisable captive portal, authentication by SMS, by password or in one click, with RADIUS client and proxy. The built-in PPPoE server handles up to 50 accounts, and website filtering and traffic auditing keep usage in check.

What does this router protect the company network against?

Stateful firewall, ACLs (including time-based and IPv6 ACLs), IP-MAC binding, MAC address filtering and WAN/LAN ping blocking. On top of that come dedicated defences against SYN Flood, Smurf, Teardrop, Land and Fraggle attacks and malformed packets, with security logs that can be exported to a log server.

Can it run several Internet connections as backups for one another?

Yes, up to 4 WAN, with automatic failover in case of an outage and load balancing by session, by IP or by actual load. Link detection continuously monitors each connection to trigger failover, and SD-WAN (24 tunnels, 8 sites, 80 Mbps) completes the multi-site setup.

Is this Reyee router new and under warranty?

Yes: the product is new and sealed, supplied with its invoice, which serves as the warranty document for 1 year. Details of the ports, VPN throughputs and security features are given in the manufacturer's datasheet (PDF).
