Designed for a head office or a branch, it brings routing, switching, VPN and firewall together in a 1U chassis. Eight Gigabit sockets switchable to WAN, MPLS, IPS and URL filtering, with Wi-Fi access point management built in.
8 Gigabit LAN ports, switchable to WAN ports
64-bit ARM processor with 4 cores and a non-blocking switching architecture
Built-in access point controller (CAPWAP protocol, radio management and Wi-Fi security)
IPSec, GRE, DSVPN, L2TP and L2TPv3 VPNs
MPLS: LDP, L3 VPN, VLL, PWE3, MPLS TE and FRR mechanisms
Stateful firewall, IPS, URL filtering and 802.1X authentication
IPv4 and IPv6 routing: static, RIP, OSPF, IS-IS and BGP
Hierarchical quality of service with intelligent application control
2 USB ports and RJ45 console port
SNMP v1/v2c/v3, NETCONF/YANG, web interface and CLI administration
1U rack format, 442 mm wide, 3.2 kg
100-240 V mains power, maximum consumption of 33 W

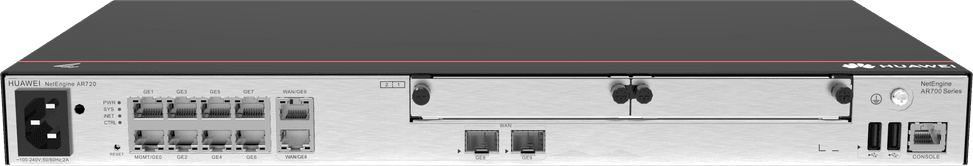

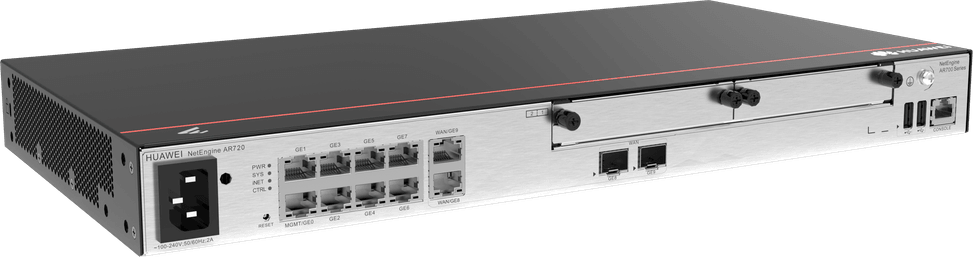

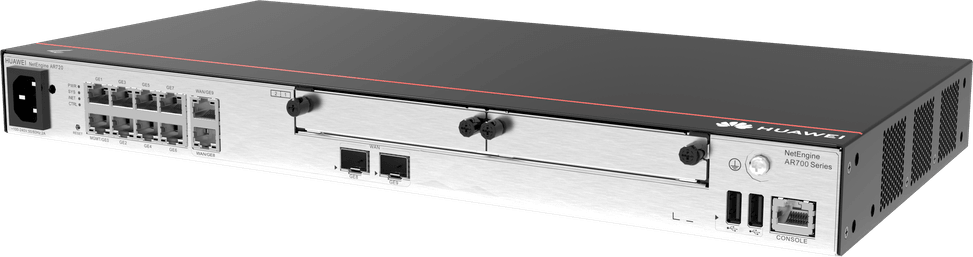

Take your business network further with the Huawei NetEngine AR700 router, built for unrivalled performance and reliability. With a 1.4 GHz multi-core ARM processor, 8 GE LAN ports and a non-blocking switching architecture, this router delivers speeds twice the average. With advanced features such as VPN, MPLS and security built in, it meets the needs of today's businesses. Compact (1U) and rugged (IP20), it adapts to a wide range of professional environments with optimum energy efficiency.
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many ports does this Huawei NetEngine AR700 router offer?
8 Gigabit LAN ports, switchable to WAN ports as needed. These are joined by 2 USB ports and an RJ45 console port for local administration.
Can this router manage Wi-Fi access points?
Yes: it has a built-in access point controller (CAPWAP protocol), with radio and Wi-Fi security management. One less device to buy for a business network.
Which VPNs does this Huawei router support?
IPSec, GRE, DSVPN, L2TP and L2TPv3. DSVPN is what allows tunnels between branch offices to be set up automatically, without configuring them one by one.
Is this router suitable for a carrier or multi-site network?
Yes: it handles MPLS (LDP, L3 VPN, VLL, PWE3, MPLS TE and FRR mechanisms) and full IPv4 and IPv6 routing — static, RIP, OSPF, IS-IS and BGP. That is the feature set of a carrier-grade router.
What protections does this Huawei router include?
A stateful firewall, an intrusion prevention system (IPS), URL filtering and 802.1X authentication of the workstations that connect to it.
Does this router fit in a 19-inch rack?
Yes: it comes in a 1U rack format, 442 mm wide, weighing 3.2 kg. It runs on 100-240 V and draws 33 W at most.
How is this router managed?
Via SNMP v1, v2c and v3, NETCONF/YANG, a web interface and a command line. NETCONF/YANG is what allows it to be integrated into automated management of a device fleet.
Is this Huawei NetEngine AR700 router new and under warranty?
Yes, it is a new Huawei product, part number 02354GBG-001, with a 64-bit 4-core ARM processor and a non-blocking switching architecture. The invoice serves as the warranty document for 1 year. Datasheet: Huawei NetEngine AR700.
