Visit the TP-Link store

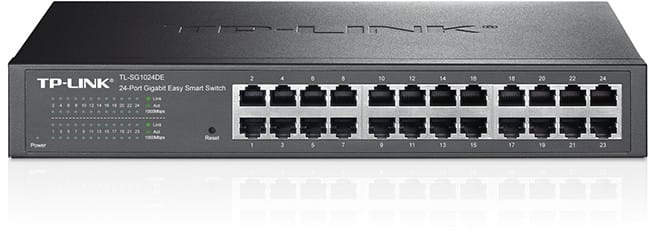

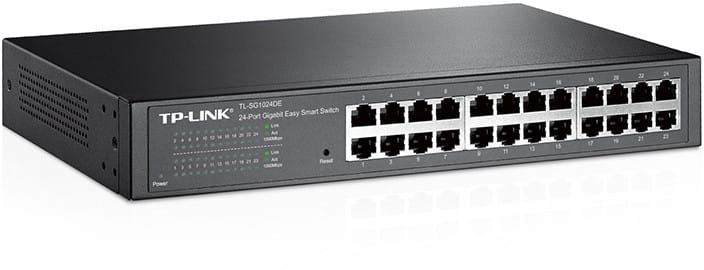

TP-Link 24-Port Gigabit Easy Smart Switch (TL-SG1024DE)
Rack-mountable Easy Smart switch for an SME that wants to segment and secure its network with VLANs and QoS, without the complexity of a fully managed switch — configurable from a simple web interface.
- 802.1Q VLANs, port-based and MTU (up to 128 simultaneous VLANs)
- Per-port QoS and 802.1p/DSCP to prioritise voice and video
- IGMP Snooping, static link aggregation (up to 8 groups)
- Rack-mountable 19-inch steel casing (1U)
- Fanless
- Switching capacity 48 Gbps, throughput 35.7 Mpps
- 8K MAC table
Ref.: TL-SG1024DE
1 169,00 DHincl. VAT
Configuration · TP-Link Easy Smart TL-SG1016DE / 1024DE
- 16 × RJ45
- Configuration shown: 24 × RJ45
In stock
Earn 12 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
TP-Link TL-SG1024DE Easy Smart switch: 24 Gigabit ports with simple management, designed for SMBs that want to segment and secure their network without moving to a fully managed switch.
Ports: 24 × 10/100/1000 Mbps RJ45 ports, Auto MDI/MDIX; 19-inch rack-mountable steel case (1U) and fanless operation — unobtrusive in the rack.
Management: web interface and Easy Smart Configuration Utility (Windows); 802.1Q/port/MTU VLAN (up to 128 VLANs at once), port-based and 802.1p/DSCP QoS to keep voice and video smooth, IGMP snooping, port mirroring, static link aggregation (up to 8 groups), loop prevention.
Also: 48 Gbit/s switching capacity, 35.7 Mpps throughput, 8K MAC table, 512 KB buffer memory, Green Technology — energy saving based on port status and cable length.
Request a quoteShare:
Technical specifications
| MAC table size | 8,000 entries |
|---|---|
| Number of VLANs | 128 simultaneous VLAN groups (802.1Q, port-based, MTU) |
| Interfaces | 24 RJ45 10/100/1000 Mbps ports, auto-negotiation, Auto MDI/MDIX |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| Switching capacity | 48 Gbps |
| Forwarding rate | 35.7 Mpps |
| Packet buffer | 512 KB |
| Management modes | Web interface and Easy Smart Configuration Utility (Windows) |
| Cloud management platform | None |
| Layer 2 features | IGMP snooping v1/v2/v3, link aggregation, port mirroring, cable diagnostics, loop prevention, 9 KB jumbo frames |
| IP routing | None |
| Quality of service (QoS) | Port-based priority, 802.1p and DSCP, 4 queues, rate limiting, storm control |
| Power consumption | 15.56 W maximum (220 V/50 Hz) |
|---|---|
| Dimensions (W x D x H) | 294 x 180 x 44 mm |
| Number of ports | 19 to 28 ports |
| Managed | Yes |
| Security features | None |
| Power supply | Internal 100-240 V AC power supply, 50/60 Hz |
| Cooling system | Fanless |
| PoE power | No |
| Port speed | 1 Gbps (Gigabit) |
| Management level | Web interface (Smart) |
| Fibre slots (SFP) | No |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Specific references
| EAN | 6935364021245 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many VLANs can be created on the TL-SG1024DE?
128 simultaneous VLANs, chosen from the 4,000 IDs of the 802.1Q standard. Three modes coexist: port-based VLAN, 802.1Q tagged VLAN and MTU VLAN, which is handy for isolating subscribers who should only see the uplink.
How is an Easy Smart switch configured?
Through a web interface or the Easy Smart Configuration Utility, which manages several switches in the range at once. Note: this utility only runs on Windows. It adds traffic monitoring, port mirroring and cable diagnostics.
Does this switch detect a cabling loop?
Yes, loop prevention is built in, along with an Ethernet link diagnostic that locates a break or short circuit on the cable. Storm control also limits the broadcast bursts that saturate a flat network.
Can voice traffic be prioritised on this switch?
Yes, by port, by 802.1p tag or by DSCP marking, spread across four queues. Per-port rate limiting rounds out the set. DSCP marking does, however, require hardware revision V2 or later: check the label under the housing.
Can several ports be aggregated towards a server?
Yes, with static aggregation, up to eight groups: several ports form a single logical link to a server or another switch, multiplying the bandwidth. Port mirroring also lets you analyse traffic on a dedicated computer.
What is in the box, and how is the switch mounted?

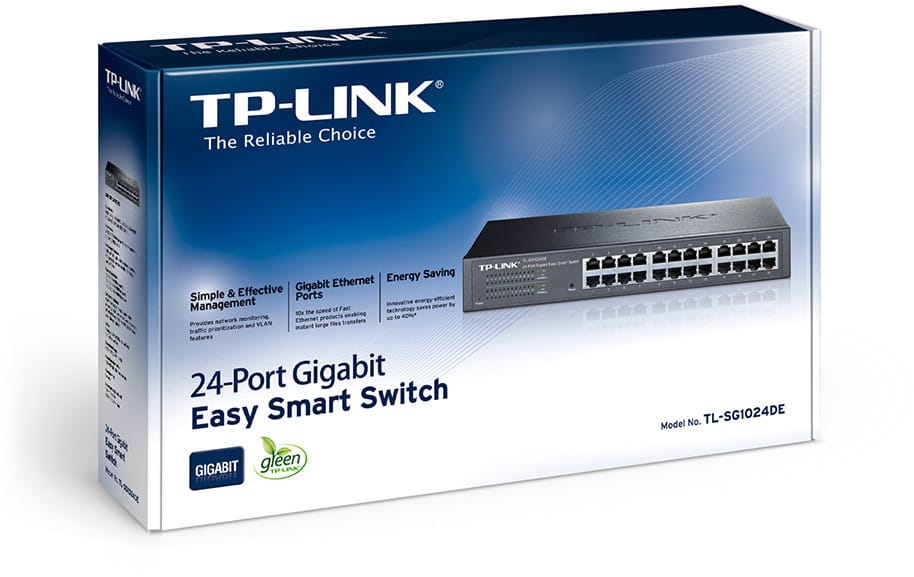

The box contains the switch, the power cord, the installation guide, a resource CD, the rack-mount kit and the rubber feet. The housing measures 294 × 180 × 44 mm, i.e. 1U high, and runs without a fan.
What internal performance does this 24-port model offer?
48 Gbps switching capacity and 35.7 Mpps, with an 8,000-entry MAC address table and a 512 KB buffer. Jumbo frames go up to 9 KB, IGMP snooping v1, v2 and v3 filters multicast, and store-and-forward mode discards damaged frames.
How much power does this switch draw, and how is it powered?
14.86 W maximum at 220 V/50 Hz, from a built-in power supply accepting 100 to 240 V: a mains cord is all it takes. Energy-saving technology shuts down idle ports and adjusts power to the length of the connected cable.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. The fanless steel housing and built-in power supply limit mechanical failures on equipment meant to stay in a rack unattended.
