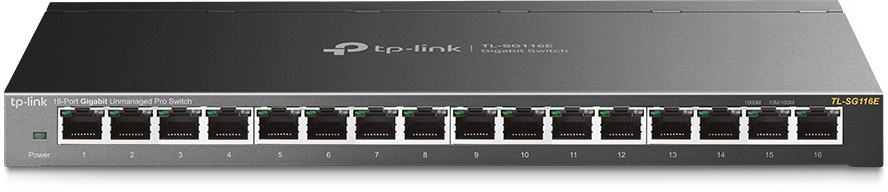

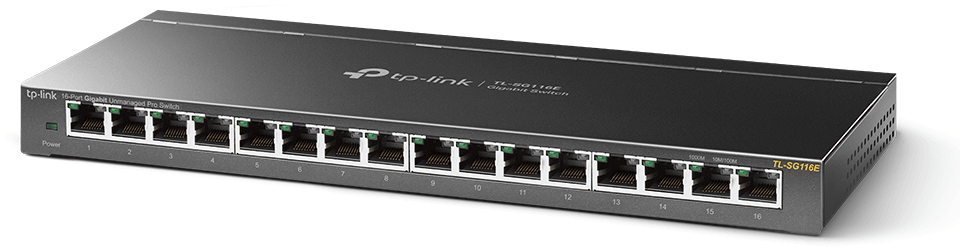

TP-Link TL-SG116E Easy Smart Pro 16-Port Gigabit Desktop Switch
Desktop switch in a sturdy metal casing, with a web interface to prioritise traffic and create VLANs — a sound balance between simplicity and control for a small network.
- Web interface and management utility to prioritise traffic and create VLANs
- 802.1Q, port-based and MTU VLANs (up to 32 simultaneous VLANs)
- 802.1p/DSCP QoS, IGMP Snooping
- Sturdy, compact metal casing
- Fanless
- 32 Gbps switching capacity, 8K MAC address table
Ref.: TL-SG116E
Best seller
1/3
Back to school
-4%859,00 DHincl. VAT899,00 DH
You save 40,00 DH incl. VAT
Final hours, ends in 7 hours and 50 minutes
In stock
Earn 9 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 300 DH by card or bank transfer) · Certified cheque
Product overview
TP-Link TL-SG116E desktop switch: 16 Gigabit ports in a compact metal casing, with a web management interface to prioritise traffic and segment the network — the right balance between simplicity and control.
Ports: 16 x 10/100/1000 Mbps RJ45 ports, Auto MDI/MDIX; sturdy metal casing (286 × 111.7 × 25.4 mm) that sits on a desk or worktop; fanless operation.
Management: web interface and downloadable utility (Windows); 802.1Q/port/MTU VLANs (up to 32 simultaneous VLANs), 802.1p/DSCP QoS for lag-free voice and video, IGMP snooping, port mirroring, static link aggregation, loop prevention, cable diagnostics.
Also: switching capacity 32 Gbps, throughput 23.81 Mpps, 8K MAC table, 4.1 MB packet buffer, Green Technology — power consumption adjusted to port status and cable length.
Request a quoteShare:
Technical specifications
| MAC table size | 8,000 entries |
|---|---|
| Number of VLANs | 32 simultaneous VLAN groups (802.1Q, port-based, MTU) |
| Interfaces | 16 RJ45 10/100/1000 Mbps ports, auto-negotiation, Auto MDI/MDIX |
| PoE ports | None |
| Total PoE budget | None |
| Network standards | IEEE 802.3i, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p |
| Switching capacity | 32 Gbps |
| Forwarding rate | 23.81 Mpps |
| Packet buffer | 4.1 Mbit |
| Management modes | Web interface and Windows utility |
| Cloud management platform | None |
| Layer 2 features | IGMP snooping v1/v2/v3, static link aggregation, port mirroring, cable diagnostics, loop prevention |
| IP routing | None |
| Quality of service (QoS) | Port-based priority, 802.1p and DSCP, 4 queues, rate limiting, storm control |
| Power consumption | 10 W maximum (220 V/50 Hz) |
|---|---|
| Dimensions (W x D x H) | 286 x 111.7 x 25.4 mm |
| Number of ports | 11 to 18 ports |
| Managed | Yes |
| Security features | None |
| Power supply | External AC adapter 9 V DC, 0.6 A |
| Cooling system | Fanless |
| PoE power | No |
| Port speed | 1 Gbps (Gigabit) |
| Management level | Web interface (Smart) |
| Fibre slots (SFP) | No |
| Mounting | Desktop |
| Warranty | 1 year |
Specific references
| EAN | 6935364084301 |
|---|
Downloads
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
The TL-SG116E is described as unmanaged: can it still be configured?
Yes. It starts up plug and play, with no configuration at all, but it also has a web interface and a downloadable utility for creating VLANs, prioritising traffic or enabling IGMP snooping. You plug it in and it works; configuration remains available the day you need it.
How many VLANs can be created on the TL-SG116E?
Up to 32 simultaneous VLANs, taken from 4,096 IDs, as 802.1Q, port-based or MTU VLANs. Enough to isolate a guest network, telephony or cameras on a single desktop switch.
Does the configuration utility run on a Mac?
The downloadable utility requires Microsoft Windows. Otherwise, management goes through the switch's web interface, and nothing is mandatory: the device starts switching as soon as it is powered on, and the advanced features remain optional.
Can it power a camera or a Wi-Fi access point over the Ethernet cable?
No, there are no PoE ports on this model: each device keeps its own power adapter. The switch itself runs on an external power adapter, to be fitted into the space available behind the furniture or desk.
How much power does it draw, and can it be left on continuously?
10 W maximum (220 V/50 Hz), and often less: power consumption adjusts automatically according to the link status and the length of the connected cable, without any setting on your part.
Is it noisy, and where can it be placed?
No noise at all: it runs fanless. Its metal case, measuring 286 × 111.7 × 25.4 mm and validated by extensive reliability testing, sits on a desk or a workbench and handles a range of 0 to 40 °C.
What is in the box, and which cables do you need to provide?
The switch, its power adapter, the installation guide and rubber feet. RJ45 cables are not included: use Cat 5e or Cat 6 for Gigabit, up to 100 m per link. Auto MDI/MDIX removes any need for a crossover cable.
Is it suitable for IP telephony and IPTV?
Yes: 802.1p/DSCP QoS and its 4 priority queues keep audio and video applications clear and free of lag, and IGMP snooping v1/v2/v3 optimises the distribution of multimedia traffic, especially for IPTV.
How much traffic and how many devices can it handle?
Its switching capacity reaches 32 Gbps at 23.81 Mpps, with a table of 8,000 MAC addresses and 4.1 Mb of packet buffer. Switching is done in Store-And-Forward mode.
What happens if a cable is accidentally plugged in to form a loop?
The switch has loop prevention, backed by cable diagnostics and port mirroring to identify the faulty link. These features are controlled from the web interface.
Is this TP-Link TL-SG116E switch new and under warranty?
Yes: new equipment, model TL-SG116E (EAN 6935364084301), CE, FCC and RoHS certified, supplied with its invoice, which serves as the warranty document for 1 year. Details are given in the TP-Link datasheet (PDF).
