Visit the HP store

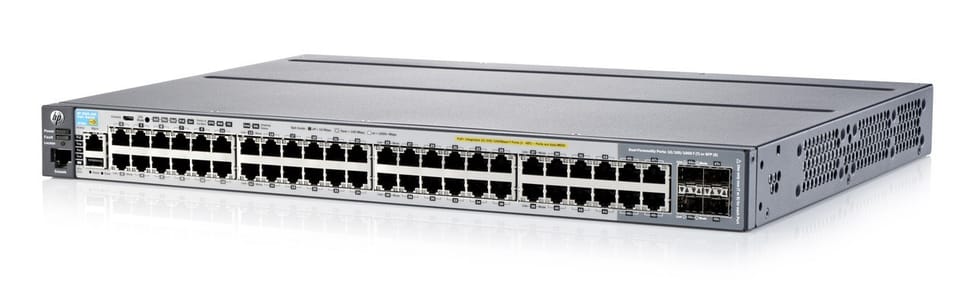

HP 2920-48G-PoE+ Managed Switch (J9729A)
A managed enterprise switch that powers IP cameras, Wi-Fi access points and phones on every one of its ports, with no mains socket. Switching capacity 176 Gbps, stackable, upgradable to fibre.
- 44 Gigabit PoE+ RJ-45 ports + 4 dual-personality PoE+ ports (48 PoE+ ports in total)
- Powers IP cameras, Wi-Fi access points and IP phones over the network cable, with no mains socket
- Switching capacity 176 Gbps, throughput up to 130.9 Mpps
- MAC address table of 16 000 entries
- Stackable (dedicated stacking module)
- 2 slots for expansion modules
- Dedicated out-of-band management port
- Weight 5.7 kg
Ref.: J9729A
2 979,00 DHincl. VAT
Configuration · Aruba 2920
- 20 × RJ45
- Configuration shown: 44 × RJ45
In stock
Earn 30 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
Receive it between Wed 23 Sept and Fri 25 Sept — delivery 40 DH incl. VAT all over Morocco
Free in-store collection: Casablanca (within 24 h) · Témara (within 48 h)
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery (deposit of 450 DH by card or bank transfer) · Certified cheque
Request a quoteShare:
Technical specifications
| MAC table size | 16,000 entries |
|---|---|
| Number of VLANs | 4,094 VLAN IDs (802.1Q), 256 simultaneous VLANs |
| Internal memory | 512 MB SDRAM, 1 GB flash memory |
| Interfaces | 44 auto-sensing RJ-45 10/100/1000 PoE+ ports, 4 RJ-45 dual-personality 10/100/1000 PoE+ ports, 1 USB 1.1 port |
| PoE ports | 48 PoE+ ports (IEEE 802.3at) |
| Total PoE budget | 370 W |
| Network standards | IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), 802.3ab (1000BASE-T), 802.3at (PoE+), 802.3az |
| Switching capacity | 176 Gbps |
| Forwarding rate | 130.9 Mpps |
| Packet buffer | 11.25 MB (6.75 MB dynamic on egress, 4.5 MB on ingress) |
| Management modes | Web interface, CLI, Telnet, SSH, SNMP, RMON1, FTP, IMC, dual-function RJ-45 or USB micro-B console port, out-of-band management via RJ-45 or RS-232C serial |
| Cloud management platform | None |
| Layer 2 features | 802.1p prioritisation (8 queues), jumbo frames up to 9,220 bytes, LLDP 802.1AB, RPVST+ |
| IP routing | Static routing, RIP and Access OSPF, table of 2,048 IPv4 and 256 IPv6 routes |
| Stacking and expansion | 2 expansion module slots, 1 stacking module slot |
| Quality of service (QoS) | Yes |
| Power consumption | 487 W maximum, 46 W idle |
| Weight | 5.7 kg |
|---|---|
| Dimensions (W x D x H) | 442.5 x 336 x 43.9 mm |
| Latency | 100 Mb: < 9 µs · 1000 Mb: < 3.2 µs · 10 Gbps: < 3.2 µs (64-byte FIFO packets) |
| Processor | Triple-core ARM1176 at 625 MHz |
| Number of ports | 29 ports or more |
| Managed | Yes |
| Security features | 802.1X, MAC or web authentication, RADIUS/TACACS+, SSH, SSL, source port filtering |
| Power supply | Internal modular 100-240 V AC power supply, 50/60 Hz |
| PoE power | Yes |
| Port speed | 1 Gbps (Gigabit) |
| Management level | Web interface (Smart) |
| PoE standard | PoE+ (802.3at, up to 30 W/port) |
| PoE budget | 251 to 400 W |
| Fibre slots (SFP) | No |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Are all the ports on the 2920-48G-PoE+ powered?
Yes, all 48. Forty-four auto-sensing Gigabit PoE+ RJ45 ports, plus four dual-personality ports that are also PoE+, each compliant with 802.3at and able to deliver up to 30 W. Two expansion module slots come on top of that.
How much electrical power does this chassis require?
487 W maximum, including the power supplied to PoE devices. This is the figure to use when sizing the UPS and the circuit in the wiring closet: a 48-port PoE switch draws as much from the power supply as a small server.
How does this switch scale up to 10 Gigabit fibre?
Through its two module slots: you add the uplink ports you need after purchase, according to the fibre infrastructure actually in place. A separate slot is reserved for the stacking module.
How do you regain control of this switch when the network is down?
Three physical access points: a dedicated RJ-45 out-of-band management port, a dual-personality console (RJ-45 or USB micro-B) and a USB 1.1 port. The configuration therefore remains accessible when the production network stops responding.
What latency and performance does this chassis offer?
176 Gbps of switching capacity and 130.9 Mpps, with latency below 3.2 µs at both Gigabit and 10 Gigabit, and 9 µs at 100 Mbps — measured on 64-byte packets. The MAC address table holds 16,000 entries.
How much rack space does this switch take up?
44.25 × 33.6 × 4.39 cm and 5.7 kg: 1U high, but nearly 34 cm deep and fairly heavy. Check the usable depth of the rack and plan for rails — this is not a chassis you hold up with one hand.
What kind of management does this model offer?
A web interface for everyday configuration — VLANs, quality of service, port monitoring — backed by the out-of-band console for troubleshooting. Quality of service is available to prioritise voice and video.
Is the switch new and covered by a warranty?
Yes, new equipment, with the invoice serving as the warranty document. This is part number J9729A from the HP 2920 series, a fixed-port enterprise access switch that is expandable with modules and stackable with other units of the same series.
