Fast PoE instantly powers cameras, Wi-Fi access points and IP phones over the network cable, with no break on restart. Four 10G links absorb traffic to the network core. Web, cloud app or command line control, built-in DoS/802.1X security.
Switching capacity 128 Gbps, 95 Mpps
4 SFP+ 10 Gbps uplinks
Fast PoE and Perpetual PoE (continuity during restarts)

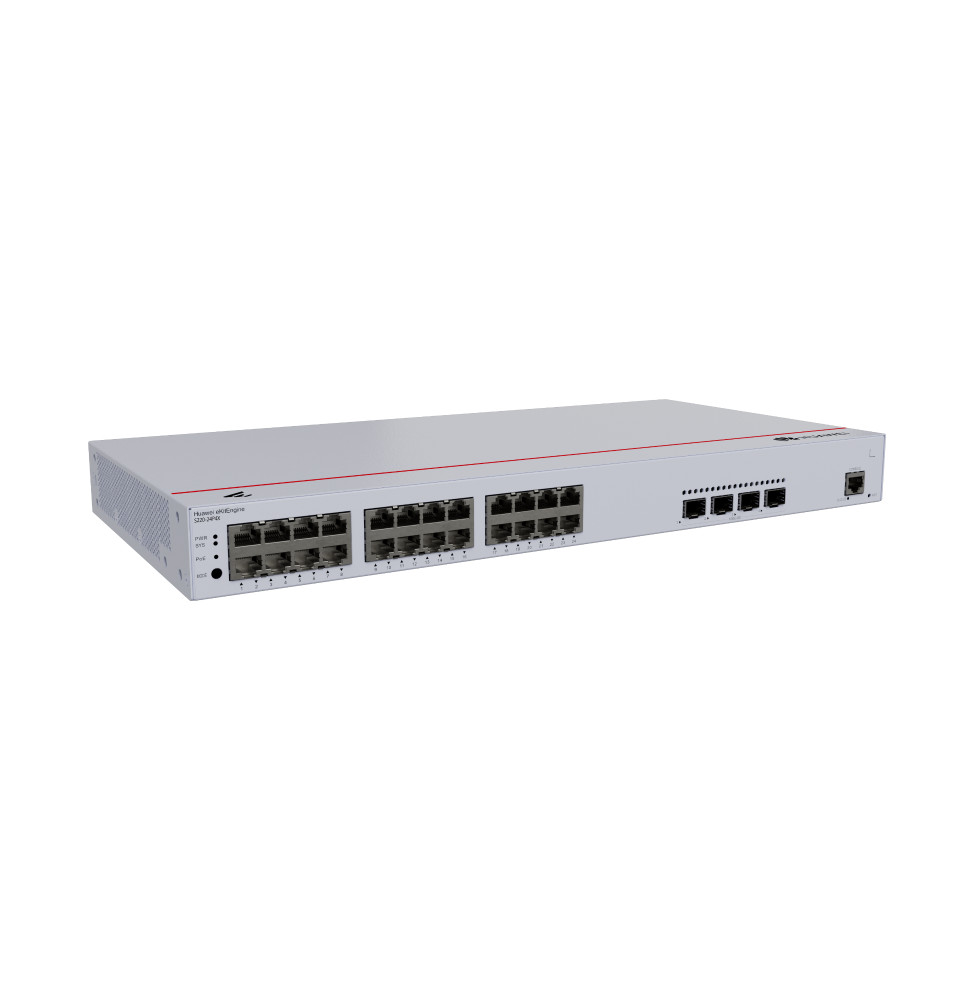

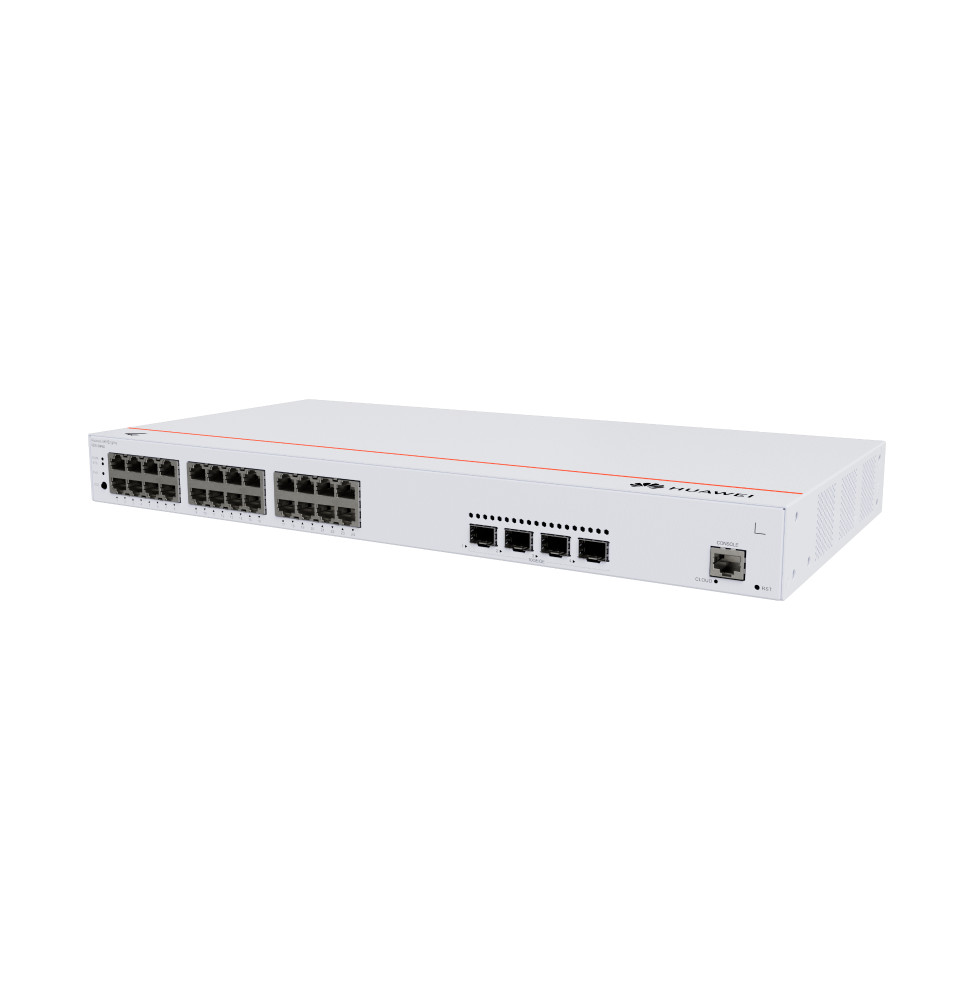

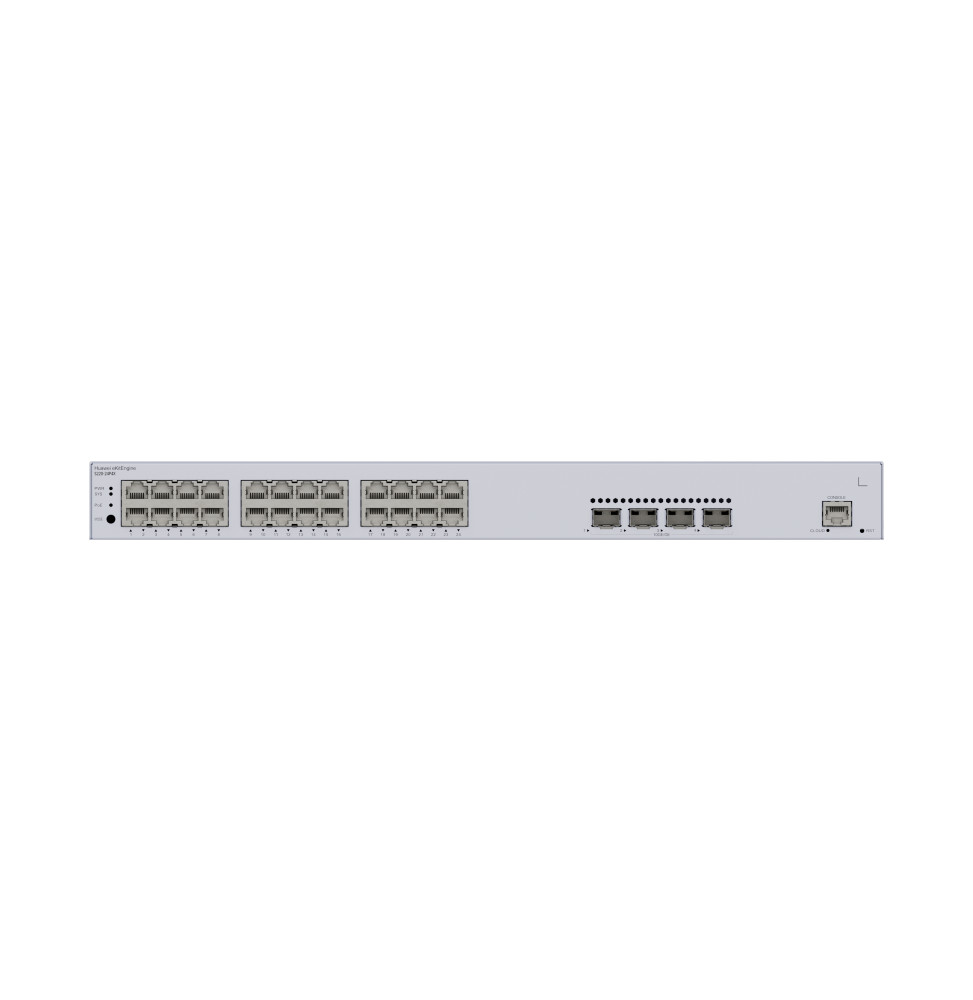

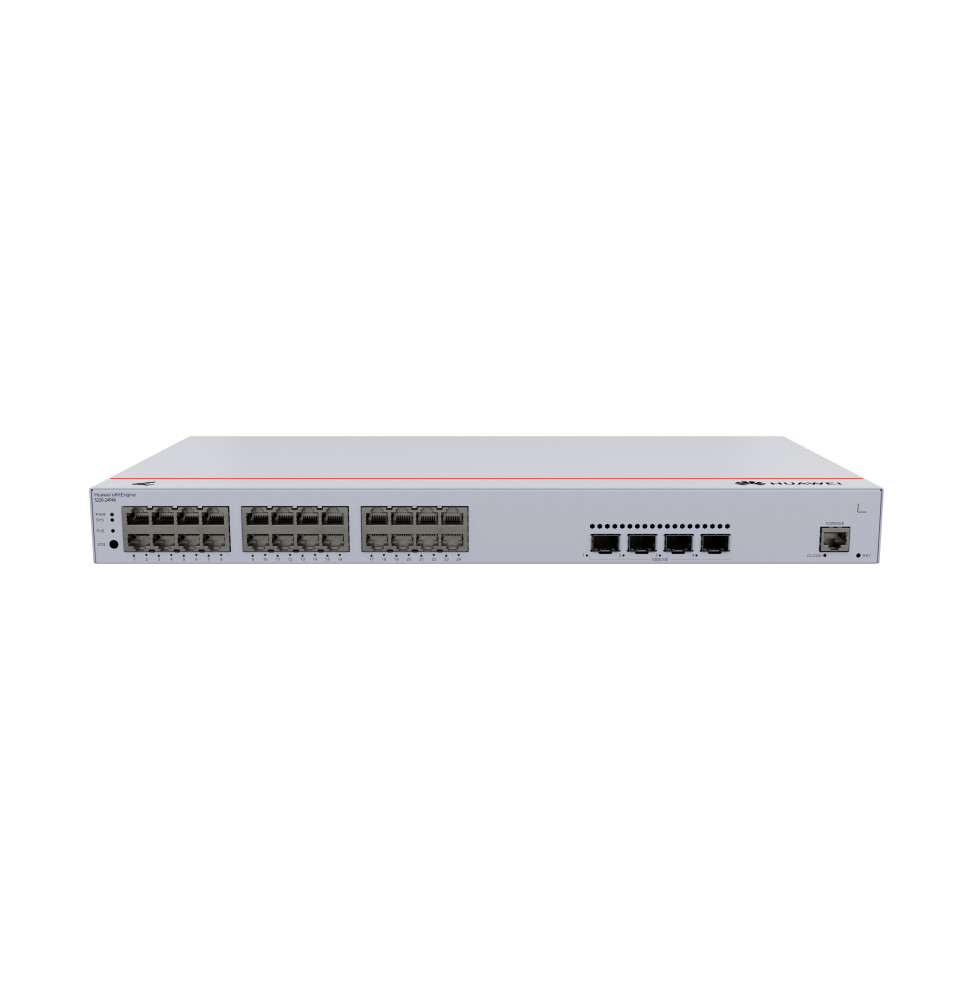

Huawei eKitEngine S220-24P4X managed switch: 24 Gigabit PoE+ ports, a 400 W budget and 4 10G SFP+ uplinks — deploy a complete network infrastructure with built-in power for cameras, Wi-Fi access points and IP phones. Ports:24 Gigabit PoE+ RJ45 ports that power devices over the network cable and 4 × 10 Gbit/s SFP+ ports for high-speed uplinks. PoE:400 W budget (802.3at) across the 24 PoE+ ports; Fast PoE and Perpetual PoE keep power flowing while the switch reboots. Management: manageable via web interface, HUAWEI eKit App (cloud or local), CLI, HTTPS and SSH v2.0 — VLAN, QoS, ACL, DHCP snooping, advanced network security. Form factor:1U rack-mount chassis, active cooling with automatic fan speed. Also: 128 Gbit/s switching capacity, 95 Mpps, 16K MAC table, 4,094 VLANs, LACP, IGMP snooping, ERPS, anti-DoS protection.
Defence against DoS, ARP and ICMP attacks, DHCP snooping, secure boot
Power supply
Internal AC power supply 100-240 V AC, 50/60 Hz
Cooling system
Variable-speed fans
PoE power
Yes
Port speed
1 Gbps (Gigabit)
Management level
Web interface (Smart)
PoE standard
PoE+ (802.3at, up to 30 W/port)
PoE budget
251 to 400 W
Fibre slots (SFP)
Yes
Mounting
19-inch rack-mountable
Warranty
1 year
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
Is this switch new, with a manufacturer's warranty?
Yes, new, sold with its invoice serving as the warranty document. The manufacturer covers the device for 1 year.
Do I need a separate PoE injector to power my cameras or Wi-Fi access points?
No. Each of the 24 Gigabit ports has built-in PoE+ (802.3at) power, up to 30 W per port, within the limit of the 400 W total budget shared across all ports.
Do powered devices go down when the switch restarts?
No. Perpetual PoE keeps the ports powered during a reboot or an update, and Fast PoE restores power within a few seconds when the switch is powered back on, instead of the usual 1 to 3 minutes.
Can this switch be connected to the rest of the network at 10 Gbps?
Yes, via its 4 SFP+ 10 Gbps ports dedicated to uplinks to a core switch or a server, separate from the 24 Gigabit ports intended for workstations and PoE devices.
Can this switch route traffic between several VLANs?
No, it is a pure Layer 2 switch: it segments the network into VLANs, up to 4,094 of them, but does not route traffic between them. That function requires a separate Layer 3 device.
Do you need a subscription to manage this switch with the HUAWEI eKit app?
No. The HUAWEI eKit app is free to set up, in either cloud or fully local mode, as you prefer. The switch can also be managed without it, via the web interface, CLI or SSH v2.0.
Is this switch silent enough to sit on a desk in an open-plan office?
No. Its active cooling, with automatically adjusted fan speed, does not make it a silent desktop unit. It belongs in a rack or a wiring closet rather than in an open room.
Can it be installed in a wiring closet without air conditioning?
Yes, its operating range is -5 °C to +50 °C, which covers most wiring closets in Morocco without dedicated air conditioning.
How much space does it take up in a server rack?
A standard 19-inch 1U height, measuring 442 × 220 × 43.6 mm and weighing approximately 3.79 kg with its packaging.
