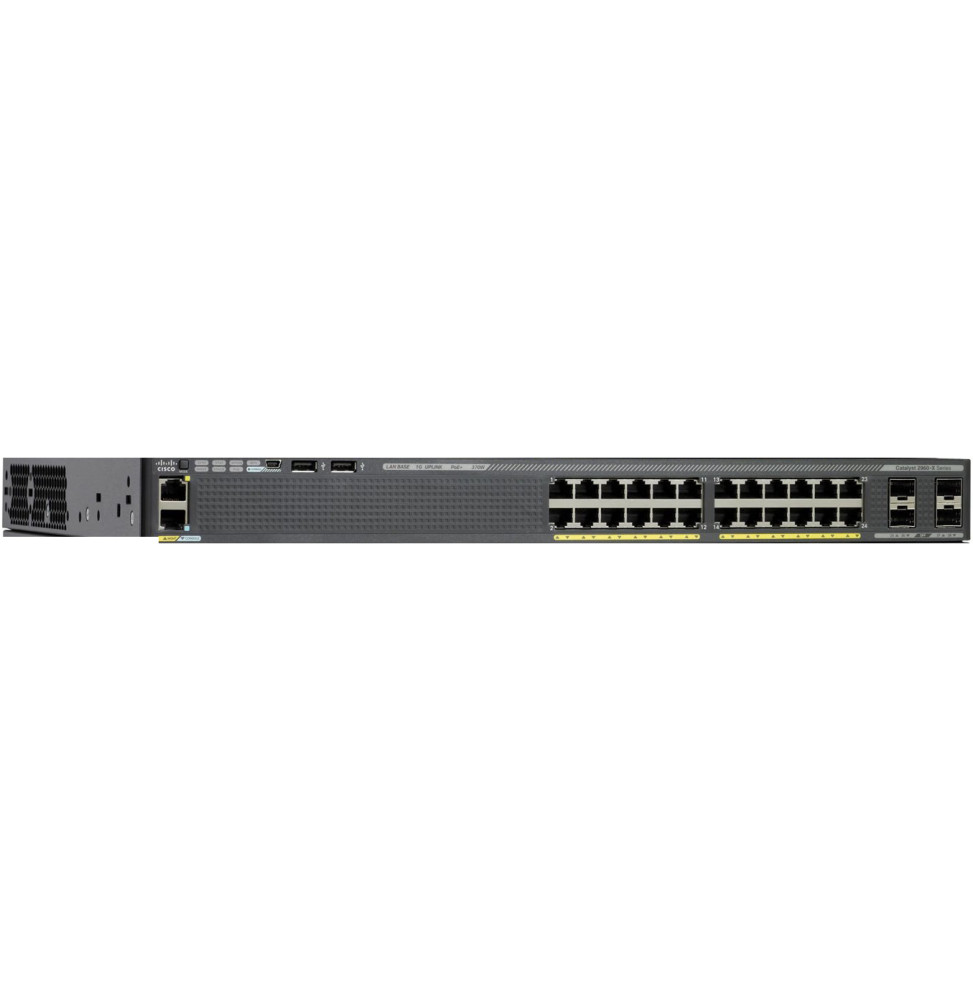

Cisco Catalyst 2960-X managed switch, 24 Gigabit PoE+ ports 370 W and 4 SFP (WS-C2960X-24PS-L)
Cisco Catalyst 2960-X managed switch with LAN Base image: 24 Gigabit PoE+ ports with a 370 W budget, 4 SFP 1 Gbps uplink ports and FlexStack-Plus stacking of up to 8 switches. 1U, 5.8 kg, for a 19-inch rack.
- 24 Gigabit PoE+ ports
- 370 W PoE budget
- 4 SFP 1 Gbps ports
- LAN Base software image
- Stackable up to 8 (optional module)
- 216 Gbps switching
- 1U rack-mountable
- 5.8 kg
Ref.: WS-C2960X-24PS-L
New
2 359,00 DHincl. VAT
In stock
Earn 24 DH in loyalty credit with this purchaseHow does it work?Loyalty credit capped at 300 DH per order.
3 ways to get it
Delivery anywhere in Morocco
40 DH incl. VAT
In stockReceive it between Thu 1 Oct and Sat 3 Oct ·
Casablanca store
Free pickup
Available within 24 hWe bring it there and call you when it arrives
Témara pickup point
Free pickup
Available within 48 hWe bring it there and call you when it arrives
1 year warranty — free repair in Morocco if it breaks down during the warranty period
100% secure payment: Bank transfer · Bank card · Cash on delivery · Certified cheque
Product overview
Cisco managed switch to deliver network and PoE power across an office floor: 24 Gigabit PoE+ ports, 370 W PoE budget and 4 SFP 1 Gbps uplinks.
PoE: up to 12 devices in PoE+ at 30 W or 24 in PoE at 15.4 W
Software: LAN Base image, IPv4 and IPv6 static routing, 802.1X, ACL, QoS with 8 queues per port
Performance: 216 Gbps switching, 71.4 Mpps
Stacking: up to 8 switches with the optional FlexStack-Plus module
Form factor: 1U for 19-inch rack, 5.8 kg
A Catalyst access switch to power IP phones, Wi-Fi access points and cameras without an injector next to each device.
Request a quoteShare:
Description
Cisco Catalyst 2960-X · Reference WS-C2960X-24PS-L
One cable per device,
power included.
The Catalyst 2960X-24PS-L connects 24 workstations at Gigabit speed and powers the floor's IP phones, Wi-Fi access points and cameras over the same cable. Four SFP ports link it to the network core, and the LAN Base software image gives it the toolkit of an enterprise access switch.
- 24Gigabit PoE+ ports
- 370 WPoE budget
- 4SFP 1 Gbps ports
- 216 Gbpsswitching capacity
Twelve devices in PoE+, or twenty-four in PoE
The 370 W budget is shared between the ports. It covers up to 12 devices in PoE+ at 30 W, or all 24 ports in standard PoE at 15.4 W: the actual consumption of the connected devices sets the split. PoE power is maintained during a switch reload, so connected devices do not switch off at every update.
A stack of eight, managed as one switch
With the FlexStack-Plus C2960X-STACK module, optional on this reference, eight Catalyst 2960-X switches come together under a single management address, with 80 Gbps between stack members. Ports are added as needs grow without multiplying the devices to configure, and an aggregated link can spread its cables across several switches in the stack.
Access security built into the switch
802.1X authentication, port security, dynamic ARP inspection and IPv4 and IPv6 access control lists filter what enters the network right at the wall socket. Quality of service with 8 queues per port keeps priority for voice and video.
- Software image
- LAN Base, static routing
- Forwarding
- 71.4 Mpps
- Memory
- 512 MB DRAM, 128 MB flash
- Power supply
- Internal 100-240 V
- Footprint
- 1U, 445 x 368 x 45 mm
- Weight
- 5.8 kg
The four SFP ports take 1 Gbps optical or copper modules, to be chosen according to the distance and the type of fibre to the network core.
Compare with the other models in the managed switch category, or browse the Cisco range.
Values taken from the Cisco data sheet for the Catalyst 2960-X and 2960-XR.
Technical specifications
| MAC table size | 16,000 MAC addresses |
|---|---|
| Number of VLANs | 1,023 active VLANs, 4,096 VLAN IDs |
| Internal memory | 512 MB DRAM, 128 MB flash memory |
| Interfaces | 24 RJ-45 10/100/1000 ports, 4 SFP 1 GbE uplink ports, 1 RJ-45 10/100 management port, RJ-45 and USB consoles, 1 USB type A port for a storage drive |
| PoE ports | 24 PoE ports: up to 12 ports in PoE+ at 30 W or 24 ports in PoE at 15.4 W |
| Total PoE budget | 370 W |
| Network standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ad, 802.3af, 802.3at, 802.3az, 802.3ah, 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1X, 802.1AB (LLDP) |
| Switching capacity | 216 Gbps (forwarding bandwidth: 108 Gbps) |
| Forwarding rate | 71.4 Mpps (64-byte packets) |
| Management modes | Web interface, command line (CLI), SNMP, RJ-45 or USB console; Cisco Prime, Cisco Network Plug and Play and Cisco DNA Center |
| Layer 2 features | RSTP and MSTP (802.1w, 802.1s), PVRST+, Flex Links, cross-stack EtherChannel, LACP (802.3ad), PAgP, UDLD, IGMP and MLD snooping, voice VLAN, VTP, RSPAN, 9,216-byte jumbo frames |
| IP routing | IPv4 and IPv6 static routing (LAN Base image: 2,000 direct routes and 1,000 indirect routes) |
| Stacking and expansion | Stackable with the FlexStack-Plus C2960X-STACK module (optional): up to 8 switches, 80 Gbps stack bandwidth |
| Quality of service (QoS) | 8 egress queues per port, strict priority queuing, SRR and WTD scheduling, up to 256 policers per port, 802.1p and DSCP, Auto-QoS |
| Power consumption | 49 W weighted average (41.4 W with no traffic, 49.2 W at 100% traffic) |
| Weight | 5.8 kg |
| Dimensions (W x D x H) | 445 x 368 x 45 mm |
| Package contents | Catalyst WS-C2960X-24PS-L switch and rack-mount kit |
|---|---|
| Processor | APM86392 dual-core at 600 MHz |
| Number of ports | 19 to 28 ports |
| Managed | Yes |
| Security features | 802.1X and flexible authentication, Port Security, dynamic ARP inspection, IP Source Guard, IPv6 first-hop security, IPv4 and IPv6 ACLs, private VLANs, SSH, SNMPv3, TACACS+ and RADIUS, BPDU Guard, Root Guard, Cisco TrustSec |
| Power supply | Internal 100-240 V AC, 50-60 Hz power supply; optional external Cisco RPS 2300 redundant power system |
| Operating temperature | -5 to 45 °C (up to 1,500 m altitude) |
| Operating humidity | 10 to 95%, non-condensing |
| PoE power | Yes |
| Port speed | 1 Gbps (Gigabit) |
| Management level | Layer 2+ |
| PoE standard | PoE+ (802.3at, up to 30 W/port) |
| PoE budget | 251 to 400 W |
| Fibre slots (SFP) | Yes |
| Mounting | 19-inch rack-mountable |
| Warranty | 1 year |
Specific references
| MPN | WS-C2960X-24PS-L |
|---|
Customer reviews
No reviews yet
Be the first to review this product and help other customers.
Write a review
Frequently asked questions about this product
How many devices can this switch power over PoE?
The 370 W budget is shared between the ports: up to 12 devices in PoE+ at 30 W each, or all 24 ports in standard PoE at 15.4 W. Beyond that, what counts is the actual consumption of the IP phones, Wi-Fi access points or cameras connected, not the number of ports.
Can this switch be stacked with other Catalyst 2960-X switches?
Yes, with the FlexStack-Plus C2960X-STACK module, optional on this reference: up to 8 switches brought together under a single management address, with 80 Gbps of stack bandwidth. Mixed with 2960-S switches, the stack drops to 4 members and 40 Gbps.
Can the Catalyst 2960X-24PS-L route between VLANs?
The LAN Base image supports static routing for both IPv4 and IPv6, with tables of 2,000 direct routes and 1,000 indirect routes. It is a Layer 2+ access switch, designed to distribute the network to workstations, not to replace a core router.
Can the power supply be made redundant in case of failure?
The switch has a single internal power supply, from 100 to 240 V. Redundancy is provided by the Cisco RPS 2300 external redundant power system, connected to the dedicated connector at the rear and sold separately.
How is this switch managed?
Through a web interface, from the command line (CLI) or via SNMP, with an RJ-45 or USB console and a dedicated 10/100 management port. It also integrates with Cisco Prime, Network Plug and Play and DNA Center to manage a fleet of several devices.
How much space should be planned in the rack?
One rack unit: the chassis measures 445 x 368 x 45 mm and weighs 5.8 kg, in the 19-inch rack format, and it comes with its rack-mount kit. Also plan for the rear: the power cord, the optional redundant power supply cable and, if you stack, the module and its stack cable connect there.
