Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W

A PoE+ access switch (802.3af/at standard) to power IP cameras, Wi-Fi access points and VoIP phones over the network cable. 128 Gbps switching capacity, L2+ features and management through Ruijie Cloud.

  • 24 Gigabit PoE+ ports (802.3af/at standard)
  • 4 SFP+ 10 Gbps ports (uplinks)
  • L2+ features: VLAN, STP/RSTP/MSTP, link aggregation (LACP)
  • Advanced security: IP Source Guard, Anti-ARP Spoofing, DHCP Snooping
  • 128 Gbps switching capacity, 96 Mpps throughput
  • 16,000-entry MAC table
  • Managed through Ruijie Cloud or a local web interface
  • Automatic IP camera detection
  • 19" rack format (1U), adaptive-speed fan, noise below 45 dB
  • 6 kV surge protection
Ref.: NBS3200-24GT4XS-P-V2

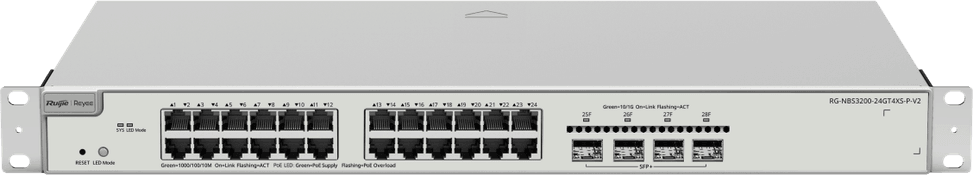

Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 1
Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 2

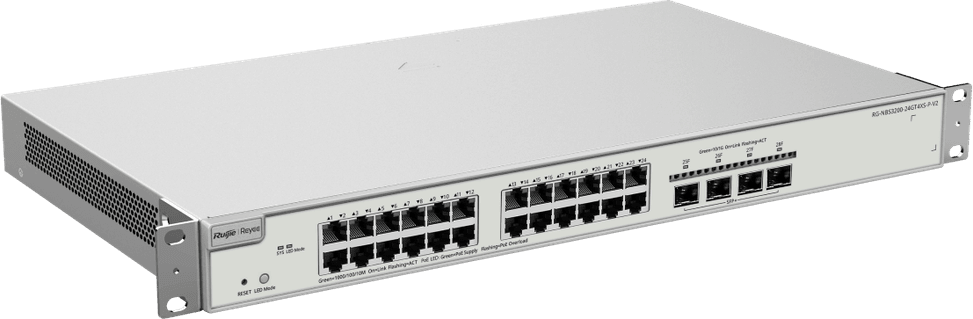

Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 3

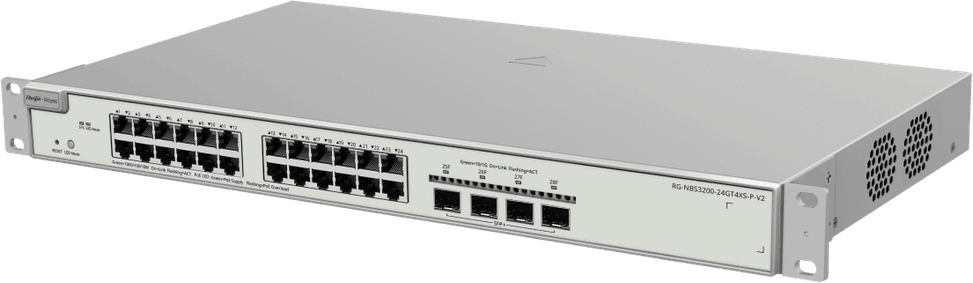

Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 4

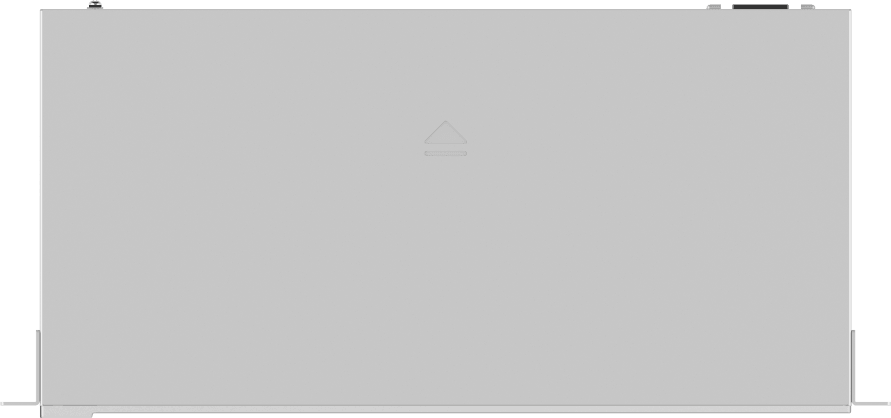

Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 5

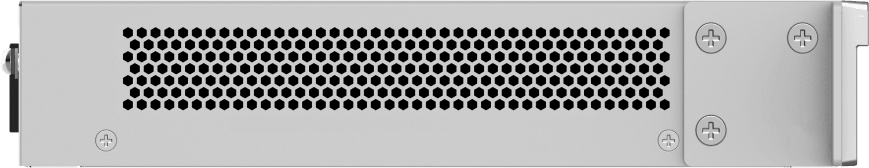

Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 6

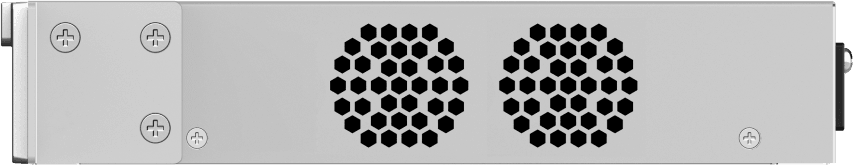

Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 7
Reyee NBS3200-24GT4XS-P-V2 L2+ Managed Switch 24 ports / 4 SFP 370W — image 8

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Ports : the number and type of ports (RJ45, SFP, PoE) differ between models of a single series, which nevertheless shares one photo.
  • Antennas : their number, gain and whether they can be removed depend on the reference.
  • Modules and cables : SFP modules, transceivers, DAC cables, PoE injectors and rack-mounting kits are not included unless stated.
  • Power : some equipment is powered over PoE and shipped without a power adapter.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

(+212) 05 30 31 64 21+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/8
4 899,00 DHincl. VAT

Configuration · Reyee NBS3200

On its way — back in stock soon

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Can’t wait?

Ask for an alternative on WhatsApp

Quick reply

Manufacturer's datasheetView the PDF · 4,1 Mo — downloadable

Product overview

L2+ managed rack-mountable switch with 24 Gigabit PoE+ ports and 4 × 10G SFP+ uplinks, combining high-power centralised PoE with core-network performance.
The NBS3200-24GT4XS-P-V2 features 24 PoE+ 802.3af/at RJ45 ports and 4 × 10G SFP+ ports for high-speed uplinks. The overall PoE budget reaches 370 W. Non-blocking switching reaches 128 Gbps at 96 Mpps, with a 16,000-entry MAC table.
The L2+ feature set covers port-based and advanced VLANs, STP/RSTP/MSTP, IGMP snooping, LACP and a security suite: IP Source Guard, Anti-ARP Spoofing, DHCP Snooping. Surge protection goes up to 6 kV. Centralised management is handled via Ruijie Cloud or the local web interface.
Form factor: 19″ rack (440 × 267.5 × 43.6 mm) — PoE budget: 370 W — Switching: 128 Gbps — Forwarding rate: 96 Mpps — Uplinks: 4 × 10G SFP+.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
MAC table size8,000 entries
Number of VLANs4,094 VLANs (port-based, MAC-based, IP-based, voice VLAN)
Internal memory512 MB RAM, 256 MB flash memory
Interfaces24 x 10/100/1000BASE-T PoE+ ports, 4 SFP+ 10GE ports
PoE ports24 PoE+ ports (802.3af/at)
Total PoE budget370 W
Network standardsIEEE 802.1d, 802.1w, 802.1s, 802.1Q, 802.1X, 802.1AB
Switching capacity128 Gbps
Forwarding rate96 Mpps
Management modesHTTP and HTTPS web management, SNMP v1/v2c/v3, ping and traceroute
Cloud management platformRuijie Cloud
Layer 2 featuresSTP, RSTP, 16 aggregation groups (8 members), port mirroring, RLDP, LLDP-MED, IGMP snooping, jumbo frames of 9,216 bytes
IP routingNone
Quality of service (QoS)Ingress and egress per-port rate limiting, storm suppression
Power consumption430 W maximum at full PoE load, 30 W without PoE load
Weight2.88 kg
Technical specifications (continued)
Dimensions (W x D x H)440 x 222.6 x 44 mm
Package contentsSwitch, 4 rubber feet, 1 power cord retention clip, 6 M4 x 8 mm screws, 1 grounding cable (1 m), 1 power cord (1.5 m)
ProcessorSingle-core 800 MHz processor integrated into the switching chip
Number of ports19 to 28 ports
ManagedYes
Security featuresIP and MAC ACL (1,900 entries), IP Source Guard, ARP anti-spoofing, DHCP snooping, loop prevention
Power supplySingle fixed internal power supply 100-240 V AC, 6 A
Cooling system2 fixed fans
PoE powerYes
Port speed1 Gbps (Gigabit)
Management levelLayer 2+
PoE standardPoE+ (802.3at, up to 30 W/port)
PoE budget251 to 400 W
Fibre slots (SFP)Yes
Mounting19-inch rack-mountable
Warranty1 year

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

What is the difference between this model and the NBS3100 from the same range?
The uplinks and internal capacity: this NBS3200 offers 4 10 Gbps SFP+ slots and 128 Gbps of switching capacity, compared with 4 Gigabit SFP slots and 56 Gbps on the NBS3100. The 370 W PoE budget and the 24 access ports are identical.
How are the 370 W of PoE+ shared across 24 ports?
370 W shared by all 24 ports, all PoE+. Twenty-four cameras at 12 W consume less than 300 W and therefore fit without any trade-off; around fifteen power-hungry Wi-Fi access points, on the other hand, use up the budget. The calculation is based on actual consumption.
How many VLANs does this switch support?
4,094 VLANs, across the full ID range, with a table of 16,000 MAC addresses — twice that of the entry-level model. Jumbo frames go up to 9,216 bytes.
How is this switch managed day to day?
Locally via a web interface over HTTPS or via SNMP, and remotely through the free Ruijie cloud. The self-organising network and automatic recognition of IP cameras simplify commissioning, especially on multi-site deployments.
What protections does this switch apply to the network?
IP Source Guard, DHCP snooping, ARP spoofing protection and advanced access control lists, backed up by loopback detection and notification. Everything is set up without complex configuration, from the interface or the cloud.
Is this chassis noisy, and how much space does it take up?
An adaptive-speed fan keeps the noise level below 45 dB, with energy efficiency compliant with the EEE standard. The 1U chassis measures 440 × 357.6 × 43.6 mm: allow for a rack with at least 36 cm of usable depth.
What electrical protection does this switch offer?
6 kV surge protection, in a rugged chassis designed for demanding environments — a point that matters when outdoor cameras are cabled into the building. The equipment is CE and RoHS certified.
Is this switch suitable for a video surveillance installation?
That is what it is designed for: native IP camera recognition, traffic prioritisation and a generous PoE+ budget to power dome cameras, recorders and Wi-Fi access points. The 10 Gigabit links also prevent video streams from saturating the uplink to the recorder.
Is the switch new, and where can I view its datasheet?
Yes, new equipment, with the invoice serving as the warranty document. The manufacturer's document details the NBS3200-24GT4XS-P, its L2+ features and its environmental conditions: datasheet (PDF).
