Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0)

A compact 8.6 L tool-free chassis, tested to MIL-STD-810H. A Core i7 with 20 cores, RAM expandable up to 128 GB and a free PCIe x16 slot for a graphics card.

  • Compact chassis (8.6 L), tool-free, tested to MIL-STD-810H
  • Intel Core i7-14700 (20 cores / 28 threads, up to 5.3 GHz)
  • RAM 16 GB dual-channel DDR5, expandable up to 128 GB (4 slots)
  • Integrated Intel UHD 770 graphics
  • 512 GB PCIe 4.0 NVMe SSD
  • FreeDOS — supplied without an operating system
  • Free PCIe x16 slot for a dedicated graphics card
  • USB-C, USB-A, DisplayPort, HDMI, VGA, RJ-45
  • Tri-band Wi-Fi 6E and Bluetooth
  • TPM 2.0 security, Kensington lock slot
  • SD/MMC card reader
Ref.: 90PF05N1-M03TR0
New

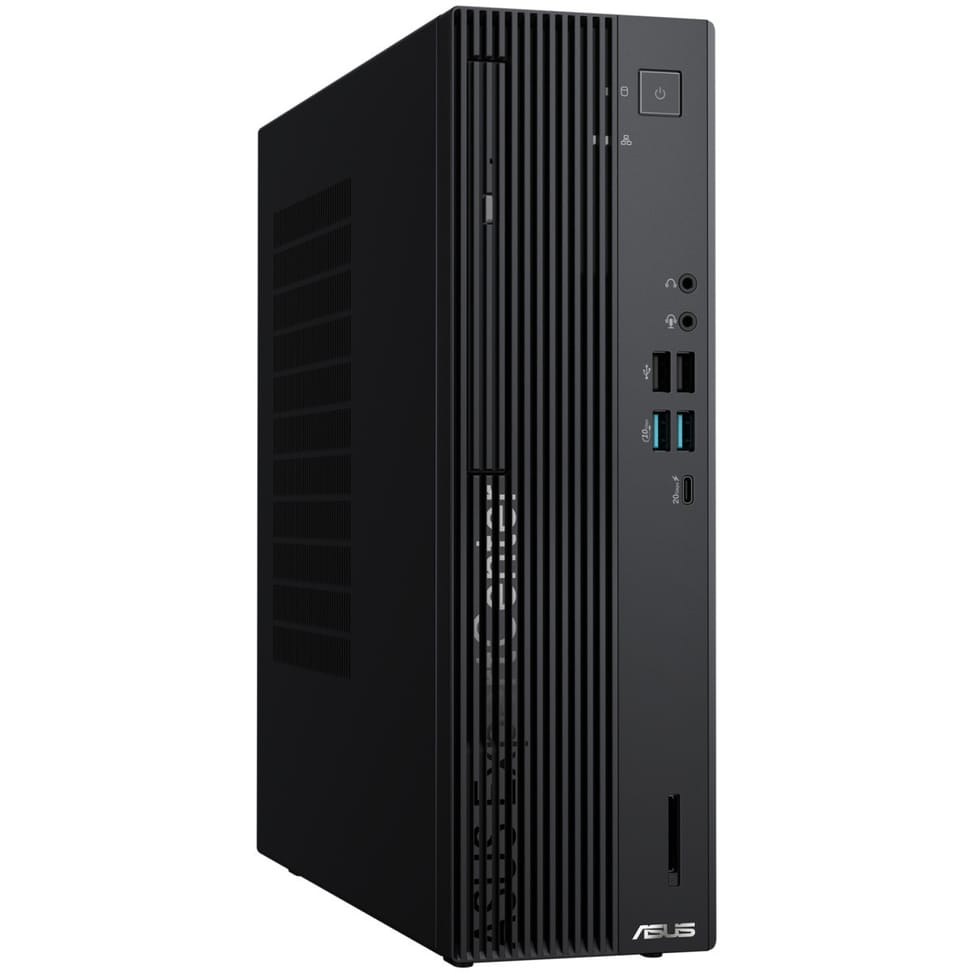

Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0) — image 1

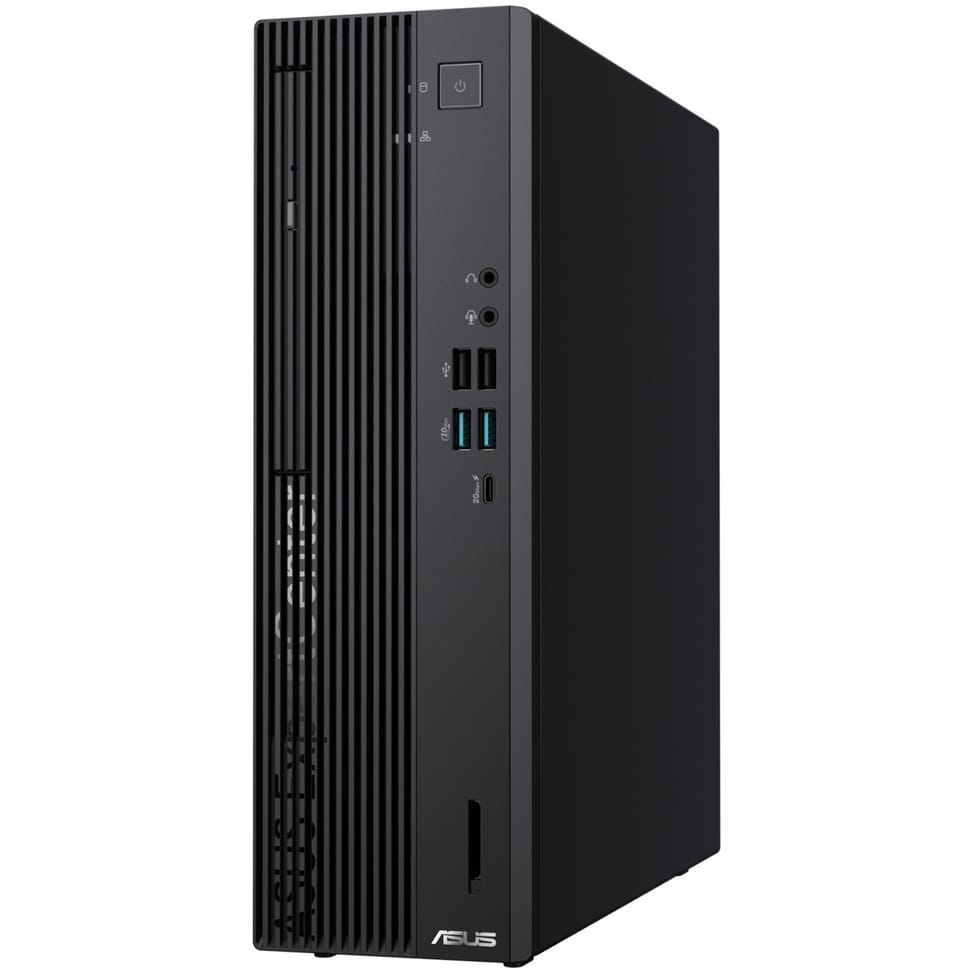

Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0) — image 2

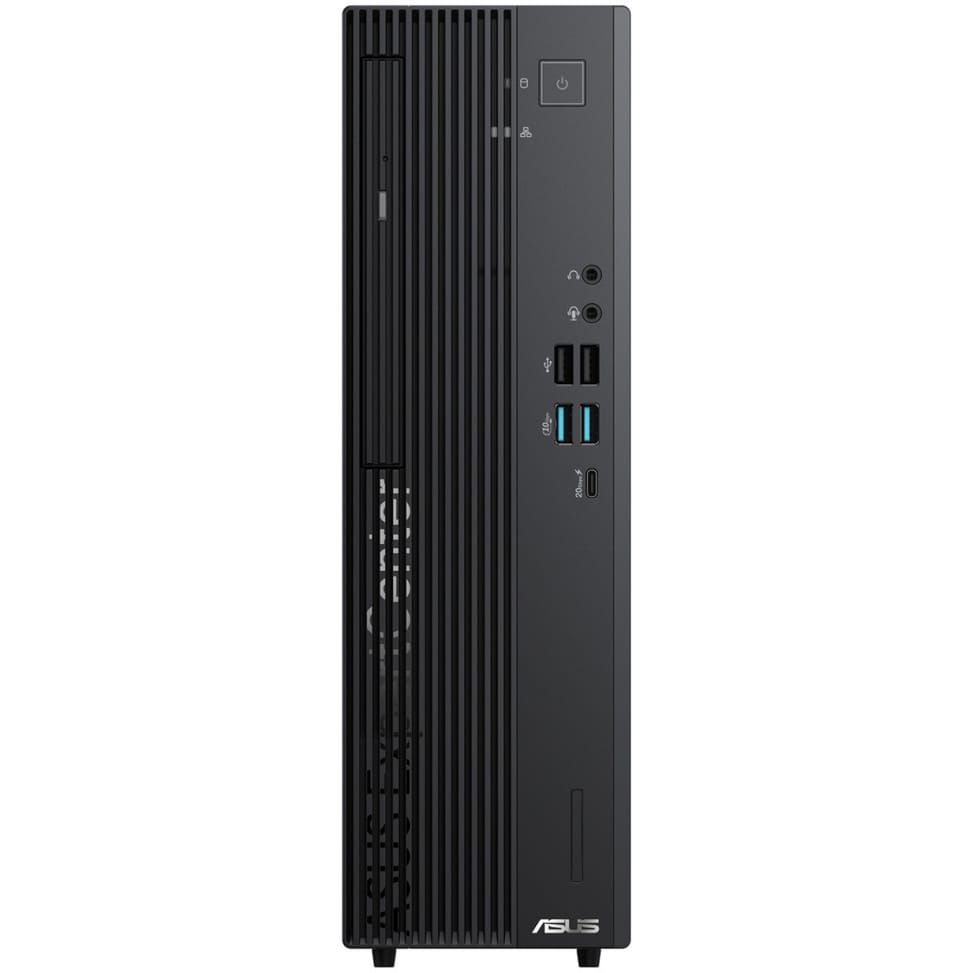

Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0) — image 3

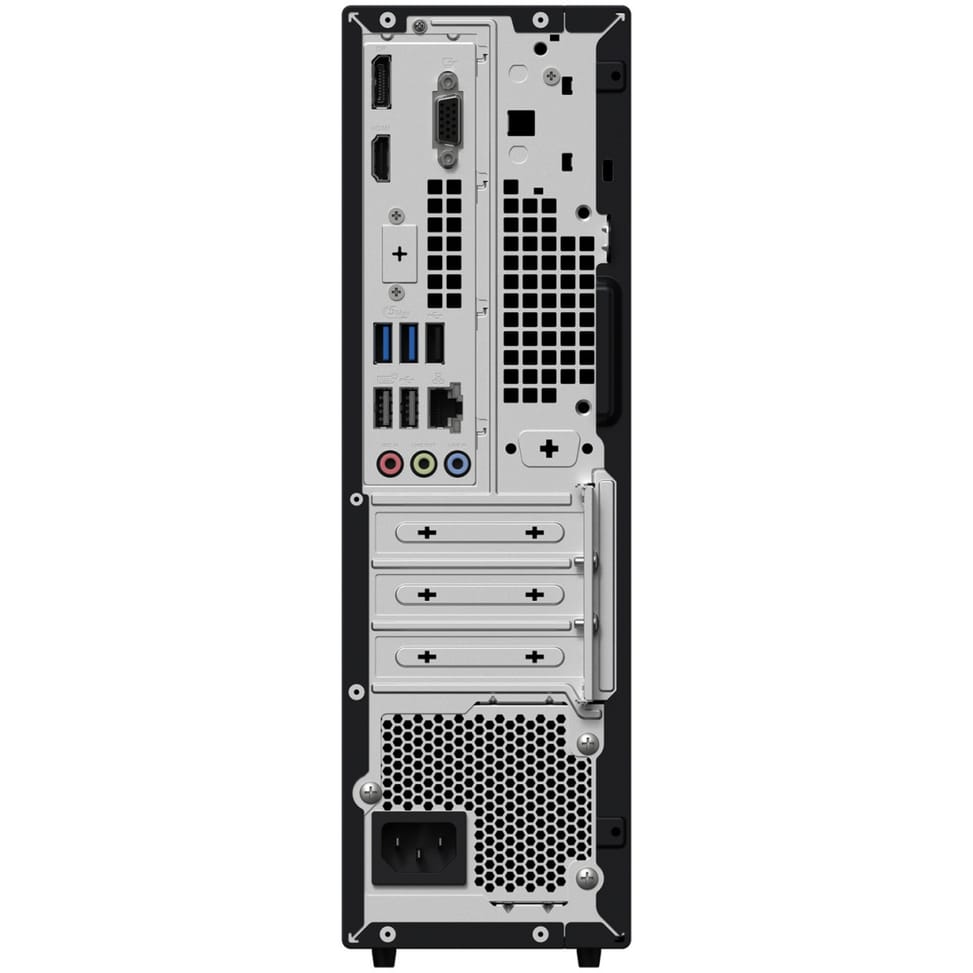

Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0) — image 4

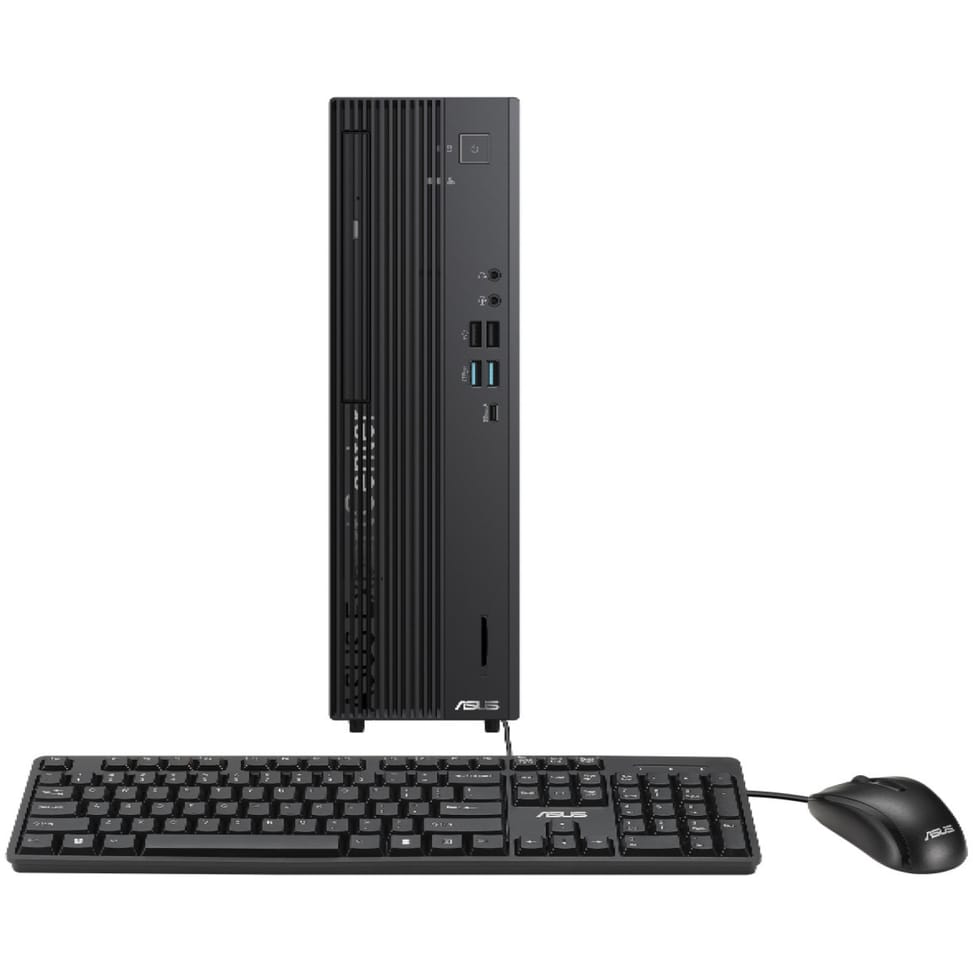

Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0) — image 5

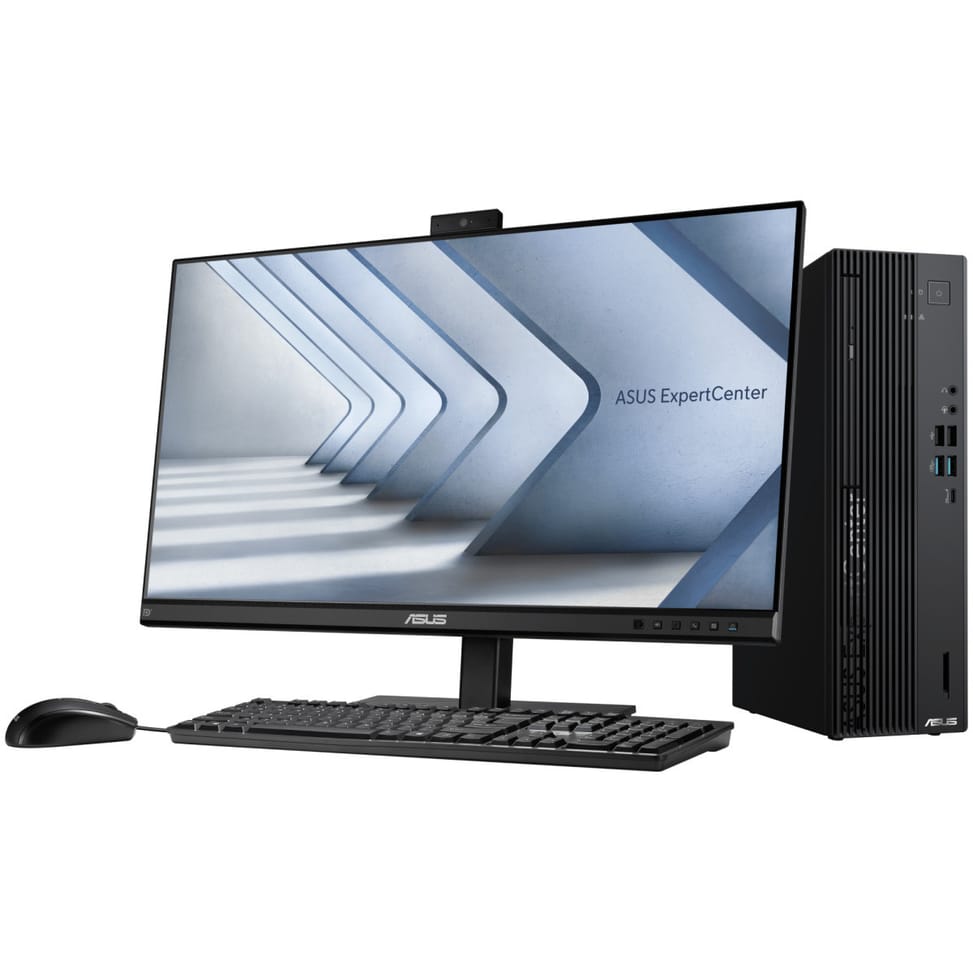

Asus ExpertCenter D7 SFF D701SER Desktop PC (90PF05N1-M03TR0) — image 6

Non-contractual photos

The visuals on this page are supplied by the manufacturer. They are frequently produced for a whole range — not for the exact model you are viewing: what you see in the photo is never a promise of what is included.

No exchange, return or cancellation will be accepted on the grounds that something seen in a photo (accessory, port, colour, keyboard layout, packaging…) is not found on the delivered product. Only the specifications written on the page are binding for the order.

What the image does not guarantee:

  • Monitor, keyboard and mouse : photographed to illustrate use, they are not included unless explicitly stated in the title or the specifications.
  • Internal configuration : the components visible through a window (graphics card, memory modules, fans, RGB lighting) illustrate the case, never the configuration sold.
  • Bays, drives and power supplies : the number of drives, populated bays and power supply units, along with the rail kit, are those of the specifications, not those of the photo.
  • Keyboard supplied : when a keyboard is included, it ships in AZERTY (French), even if the photo shows a QWERTY one.
  • Colour : one image often serves several colours, and the shade you see depends on studio lighting as much as on your screen settings; the colour sold is the one in the title and the specifications.
  • Props and accessories : the items shown around the product (cables, stands, decorative objects, content displayed on screen) are not included unless explicitly stated.
  • Packaging : boxes, labels and bundles change with the manufacturer's revisions: the packaging delivered may differ from the one in the photo.

What is binding: the product title, this page's technical specifications, the description and, when provided, the manufacturer's PDF datasheet available in the downloads.

The slightest doubt about a specification? Contact us before ordering and we will check for you.

+212 6 64 10 46 24service.client@iris.ma

See our terms and conditions of sale.

1/6

No longer sold

We no longer sell this product. Its page stays online for its specifications and technical documentation.

Manufacturer's datasheetView the PDF · 2,0 Mo — downloadable

Product overview

The Asus ExpertCenter D7 SFF D701SER pairs a 20-core, 28-thread Intel Core i7-14700 processor with 16 GB of DDR5 memory in a compact chassis designed for the workstation. Its 512 GB PCIe 4.0 NVMe SSD delivers instant start-ups and fast transfers, while the TPM 2.0 chip and a chassis tested to the MIL-STD-810H standard meet the demands of professional environments. Wi-Fi 6E, USB-C and a full set of ports — DisplayPort, HDMI, VGA and Gigabit Ethernet — make it easy to integrate into your existing IT estate. The machine ships without an operating system, ready for the environment of your choice. A versatile desktop PC for demanding office work, management and business applications.

See all the specifications ↓
Request a quoteShare:

Technical specifications

Technical specifications
ProcessorIntel Core i7-14700
Processor details20 cores, 28 threads, 2.1 GHz, up to 5.3 GHz, 33 MB cache
Processor frequency2.1 GHz, up to 5.3 GHz
External cache memory33 MB
Installed RAM16 GB DDR5 U-DIMM
Maximum RAMUp to 128 GB DDR5
Hard drive capacity512 GB
Hard drive typeM.2 2280 NVMe PCIe 4.0 SSD
Optical driveNo optical drive
Graphics cardIntel® UHD Graphics 770 (integrated into the processor)
Video outputs1 DisplayPort 1.4, 1 HDMI 1.4, 1 VGA (Intel UHD Graphics 770 chipset)
Weight (kg)5.00 kg
Memory card readerSD / MMC card reader
Built-in webcamNone
Audio7.1-channel High Definition Audio
Ethernet network cardRJ45 Gigabit Ethernet 10/100/1000 Mbps
BluetoothBluetooth 5.4
Wireless communicationTri-band Wi-Fi 6E (802.11ax) + Bluetooth 5.4
ConnectorsFront: 1x USB-C 3.2 Gen 2x2 (20 Gbps), 2x USB-A 3.2 Gen 2 (10 Gbps), 2x USB-A 2.0, 1x 3.5 mm combo audio jack, SD/MMC card reader Rear: 2x USB-A 3.2 Gen 1 (5 Gbps), 3x USB-A 2.0, 1x DisplayPort 1.4, 1x HDMI 1.4, 1x VGA, 1x RJ45 Gigabit Ethernet, 7.1 audio (line-in / line-out / mic)
Battery type / battery lifeNone (mains powered)
Technical specifications (continued)
Operating systemFreeDOS (shipped without an operating system)
Dimensions (W x D x H) (mm)93 x 296 x 309 mm
Box contentsSystem unit, Asus wired keyboard, Asus wired mouse
DisplayNo display
Product colourBlack
Pointing deviceAsus wired mouse
Special featuresMulti-channel cooling with separate chambers, fan control via MyASUS
Security managementTPM 2.0 (firmware), Kensington security slot, padlock loop, password protection
KeyboardAsus wired keyboard
Memory slots4 DDR5 U-DIMM slots (dual-channel)
Expansion slots1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x M.2 2280 (storage), 1x M.2 2230 (storage), 1x M.2 (Wi-Fi)
ChipsetIntel® B760
Storage typeSSD
Included accessoriesAsus wired keyboard and mouse
Form factorSFF — Small Form Factor
With built-in AINo
Front ports1 USB-C 20 Gbps, 2 USB-A 10 Gbps, 2 USB-A 2.0, 1 combo jack (3.5 mm), SD/MMC card reader
Graphics card typeIntegrated graphics
Desktop PC form factorTower
Warranty3 years

Specific references

EAN4711636476188

Downloads

Customer reviews

No reviews yet

Be the first to review this product and help other customers.

Write a review
Your rating
5/5

Shown publicly with your review.

Never published — a confirmation email will be sent to you.

Tell us about the product — in a few lines:

  • what you liked in everyday use;
  • the quality and performance you found;
  • who you would recommend it to, and why.

A question about an order, a delivery or a payment? Write to us and we will reply to you directly.

Under Law 09-08, you have the right to access, rectify and object to the processing of your personal data. This processing has been authorised by the CNDP under no. D-CE-389/2015. Learn more

Frequently asked questions about this product

Is Windows preinstalled on this Asus ExpertCenter D7?
No: it comes with FreeDOS, so without an operating system. Windows and its licence must be purchased separately.
How much memory can this Asus take?
128 GB, across 4 slots, up from the 16 GB of dual-channel DDR5 fitted as standard. That is double the usual ceiling for this type of machine.
Can a graphics card be added to this ExpertCenter D7?
Yes: a PCIe x16 slot is free, intended for a dedicated graphics card. The machine comes with integrated Intel UHD 770 graphics.
How good is the Intel Core i7-14700 processor in this Asus?
20 cores and 28 threads, up to 5.3 GHz. It is a workstation-class configuration in a compact chassis — the cores are there for computation and heavy multitasking.
Is this compact chassis rugged?
It is tested to the MIL-STD-810H standard and opens tool-free, with a volume of 8.6 litres and dimensions of 93 × 296 × 309 mm. A Kensington slot lets you secure it to a workstation.
Does this computer have a memory card reader?
Yes: an SD and MMC card reader is built in — handy for offloading a camera without an adapter. However, no optical drive is fitted.
What connectivity does this Asus ExpertCenter offer?
USB-C and USB-A, DisplayPort, HDMI, a VGA port for older monitors and an RJ-45 port. Wireless connectivity comes from tri-band Wi-Fi 6E and Bluetooth.
Is this Asus ExpertCenter D7 SFF computer new and under warranty?
Yes, it is a new Asus product, reference 90PF05N1-M03TR0, with a 512 GB NVMe PCIe 4.0 SSD and a TPM 2.0 security chip. The invoice serves as the warranty document, for a period of 1 year. Datasheet: Asus ExpertCenter D7 SFF.
